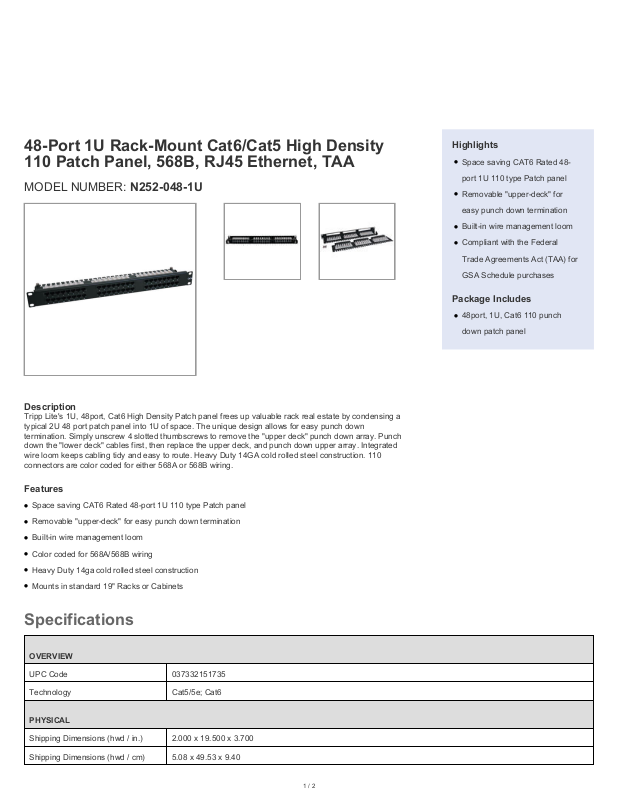

Tripp-Lite N252-048-1U Data Sheet

48-Port 1U Rack-Mount Cat6/Cat5 High Density 110 Patch Panel, 568B, RJ45 Ethernet, TAA

MODEL NUMBER: N252-048-1U

Description

Tripp Lite's 1U, 48port, Cat6 High Density Patch panel frees up valuable rack real estate by condensing a typical 2U 48 port patch panel into 1U of space. The unique design allows for easy punch down termination. Simply unscrew 4 slotted thumbscrews to remove the "upper deck" punch down array. Punch down the "lower deck" cables first, then replace the upper deck, and punch down upper array. Integrated wire loom keeps cabling tidy and easy to route. Heavy Duty 14GA cold rolled steel construction. 110 connectors are color coded for either 568A or 568B wiring.

Highlights

●

Space saving CAT6 Rated 48-

port 1U 110 type Patch panel

●

Removable "upper-deck" for

easy punch down termination

●

Built-in wire management loom

●

Compliant with the Federal

Trade Agreements Act (TAA) for

GSA Schedule purchases

Package Includes

●

48port, 1U, Cat6 110 punch

down patch panel

Features

●

Space saving CAT6 Rated 48-port 1U 110 type Patch panel

●

Removable "upper-deck" for easy punch down termination

●

Built-in wire management loom

●

Color coded for 568A/568B wiring

●

Heavy Duty 14ga cold rolled steel construction

●

Mounts in standard 19" Racks or Cabinets

Specifications

OVERVIEW

UPC Code 037332151735

Technology Cat5/5e; Cat6

PHYSICAL

Shipping Dimensions (hwd / in.) 2.000 x 19.500 x 3.700

Shipping Dimensions (hwd / cm) 5.08 x 49.53 x 9.40

1 / 2

Shipping Weight (lbs.) 3.9600

Shipping Weight (kg) 1.80

Unit Dimensions (hwd / in.) 1.75" x 19" x 4"

Unit Dimensions (hwd / cm) 4.45 x 48.26 x 10.16

Unit Weight (lbs.) 3.60

Unit Weight (kg) 1.63

Color Black

CONNECTIONS

Ports 48

Side A - Connector 1 110 IDC

Side B - Connector 1 RJ45 (FEMALE)

WARRANTY

Product Warranty Period (Worldwide)

Lifetime limited warranty

not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

Tripp Lite uses primary and third-party agencies to test its products for compliance with standards.
