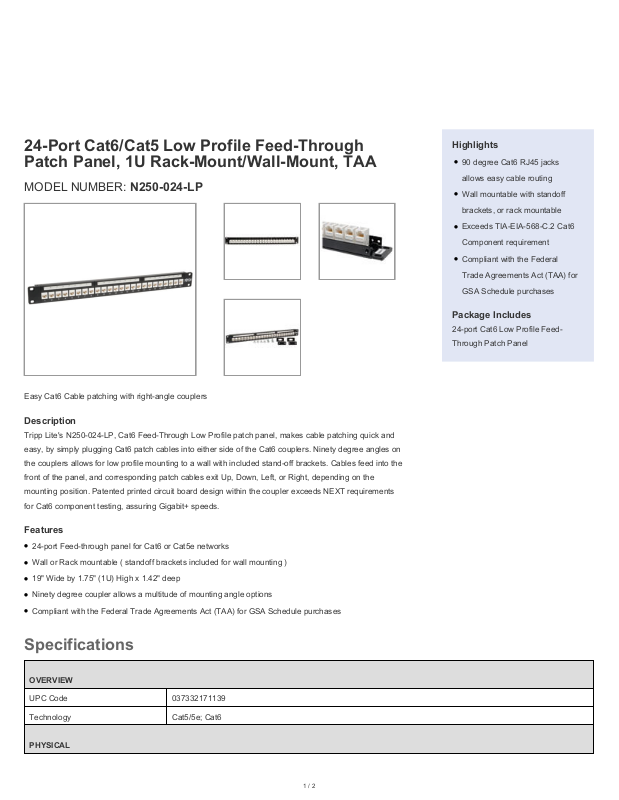

Tripp-Lite N250-024-LP Data Sheet

24-Port Cat6/Cat5 Low Profile Feed-Through Patch Panel, 1U Rack-Mount/Wall-Mount, TAA

MODEL NUMBER: N250-024-LP

Easy Cat6 Cable patching with right-angle couplers

Description

Tripp Lite's N250-024-LP, Cat6 Feed-Through Low Profile patch panel, makes cable patching quick and

easy, by simply plugging Cat6 patch cables into either side of the Cat6 couplers. Ninety degree angles on

the couplers allows for low profile mounting to a wall with included stand-off brackets. Cables feed into the

front of the panel, and corresponding patch cables exit Up, Down, Left, or Right, depending on the

mounting position. Patented printed circuit board design within the coupler exceeds NEXT requirements

for Cat6 component testing, assuring Gigabit+ speeds.

Highlights

●

90 degree Cat6 RJ45 jacks

allows easy cable routing

●

Wall mountable with standoff

brackets, or rack mountable

●

Exceeds TIA-EIA-568-C.2 Cat6

Component requirement

●

Compliant with the Federal

Trade Agreements Act (TAA) for

GSA Schedule purchases

Package Includes

24-port Cat6 Low Profile Feed-

Through Patch Panel

Features

●

24-port Feed-through panel for Cat6 or Cat5e networks

●

Wall or Rack mountable ( standoff brackets included for wall mounting )

●

19" Wide by 1.75" (1U) High x 1.42" deep

●

Ninety degree coupler allows a multitude of mounting angle options

●

Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specifications

OVERVIEW

UPC Code 037332171139

Technology Cat5/5e; Cat6

PHYSICAL

1 / 2

Shipping Dimensions (hwd / in.) 2.500 x 3.000 x 19.600

Shipping Dimensions (hwd / cm) 6.35 x 7.62 x 49.78

Shipping Weight (lbs.) 1.7000

Shipping Weight (kg) 0.77

Color Black

CONNECTIONS

Ports 24

Side A - Connector 1 RJ45 (FEMALE)

Side B - Connector 1 RJ45 (FEMALE)

WARRANTY

Product Warranty Period (Worldwide)

Lifetime limited warranty

not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

Tripp Lite uses primary and third-party agencies to test its products for compliance with standards.
