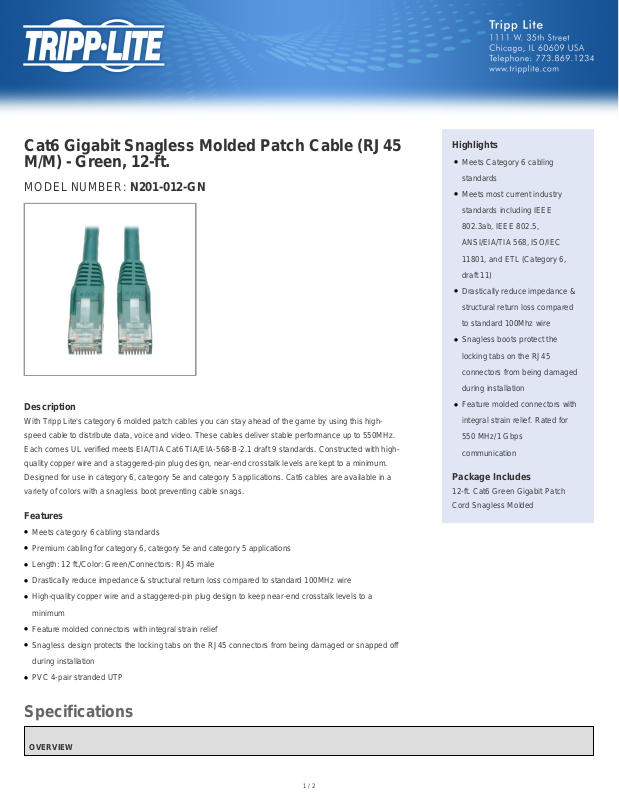

Tripp-Lite N201-012-GN Data Sheet

Cat6 Gigabit Snagless Molded Patch Cable (RJ45
M/M) - Green, 12-ft.

MODEL NUMBER: N201-012-GN

Description

With Tripp Lite's category 6 molded patch cables you can stay ahead of the game by using this high­speed cable to distribute data, voice and video. These cables deliver stable performance up to 550MHz.
Each comes UL verified meets EIA/TIA Cat6 TIA/EIA-568-B-2.1 draft 9 standards. Constructed with high­quality copper wire and a staggered-pin plug design, near-end crosstalk levels are kept to a minimum.
Designed for use in category 6, category 5e and category 5 applications. Cat6 cables are available in a
variety of colors with a snagless boot preventing cable snags.

Features

●

Meets category 6 cabling standards

●

Premium cabling for category 6, category 5e and category 5 applications

●

Length: 12 ft./Color: Green/Connectors: RJ45 male

●

Drastically reduce impedance & structural return loss compared to standard 100MHz wire

●

High-quality copper wire and a staggered-pin plug design to keep near-end crosstalk levels to a
minimum

●

Feature molded connectors with integral strain relief

●

Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off
during installation

●

PVC 4-pair stranded UTP

Highlights

●

Meets Category 6 cabling
standards

●

Meets most current industry
standards including IEEE

802.3ab, IEEE 802.5,
ANSI/EIA/TIA 568, ISO/IEC
11801, and ETL (Category 6,
draft 11)

●

Drastically reduce impedance &
structural return loss compared
to standard 100Mhz wire

●

Snagless boots protect the
locking tabs on the RJ45
connectors from being damaged
during installation

●

Feature molded connectors with
integral strain relief. Rated for
550 MHz/1 Gbps
communication

Package Includes

12-ft. Cat6 Green Gigabit Patch
Cord Snagless Molded

Specifications

OVERVIEW

1 / 2

UPC Code 037332172860

INPUT

Cable Length (ft.) 12
Cable Length (m) 3.7

PHYSICAL

Wire Gauge (AWG) 24
Shipping Dimensions (hwd / in.) 10.000 x 8.000 x 0.500
Shipping Dimensions (hwd / cm) 25.40 x 20.32 x 1.27
Shipping Weight (lbs.) 0.2800
Shipping Weight (kg) 0.13
Color Green

CONNECTIONS

Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (MALE)

FEATURES & SPECIFICATIONS

Technology Cat6

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
