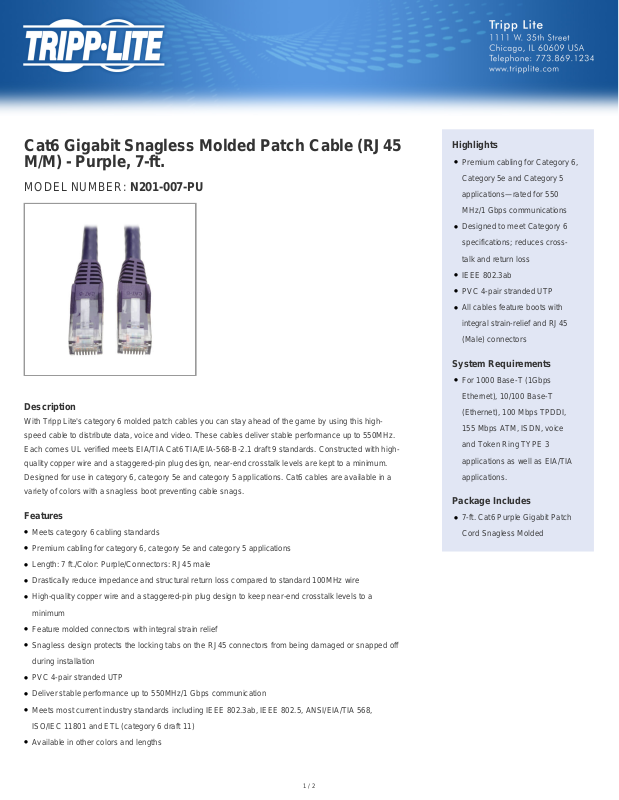

Tripp-Lite N201-007-PU Data Sheet
Cat6 Gigabit Snagless Molded Patch Cable (RJ45
M/M) - Purple, 7-ft.
MODEL NUMBER: N201-007-PU
Description
With Tripp Lite's category 6 molded patch cables you can stay ahead of the game by using this highspeed cable to distribute data, voice and video. These cables deliver stable performance up to 550MHz.
Each comes UL verified meets EIA/TIA Cat6 TIA/EIA-568-B-2.1 draft 9 standards. Constructed with highquality copper wire and a staggered-pin plug design, near-end crosstalk levels are kept to a minimum.
Designed for use in category 6, category 5e and category 5 applications. Cat6 cables are available in a
variety of colors with a snagless boot preventing cable snags.
Features
●
Meets category 6 cabling standards
●
Premium cabling for category 6, category 5e and category 5 applications
●
Length: 7 ft./Color: Purple/Connectors: RJ45 male
●
Drastically reduce impedance and structural return loss compared to standard 100MHz wire
●
High-quality copper wire and a staggered-pin plug design to keep near-end crosstalk levels to a
minimum
●
Feature molded connectors with integral strain relief
●
Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off
during installation
●
PVC 4-pair stranded UTP
●
Deliver stable performance up to 550MHz/1 Gbps communication
●
Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568,
ISO/IEC 11801 and ETL (category 6 draft 11)
●
Available in other colors and lengths
Highlights
●
Premium cabling for Category 6,
Category 5e and Category 5
applications—rated for 550
MHz/1 Gbps communications
●
Designed to meet Category 6
specifications; reduces crosstalk and return loss
●
IEEE 802.3ab
●
PVC 4-pair stranded UTP
●
All cables feature boots with
integral strain-relief and RJ45
(Male) connectors
System Requirements
●
For 1000 Base-T (1Gbps
Ethernet), 10/100 Base-T
(Ethernet), 100 Mbps TPDDI,
155 Mbps ATM, ISDN, voice
and Token Ring TYPE 3
applications as well as EIA/TIA
applications.
Package Includes
●
7-ft. Cat6 Purple Gigabit Patch
Cord Snagless Molded
1 / 2
Specifications
OVERVIEW
UPC Code 037332127471
INPUT
Cable Length (ft.) 7
Cable Length (m) 2.1
PHYSICAL
Wire Gauge (AWG) 24
Shipping Dimensions (hwd / in.) 9.000 x 7.000 x 0.500
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Weight (lbs.) 0.1700
Shipping Weight (kg) 0.08
Color Purple
CONNECTIONS
Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (MALE)
FEATURES & SPECIFICATIONS
Technology Cat6
CERTIFICATIONS
Certifications RoHS-Compliant
WARRANTY
Product Warranty Period
(Worldwide)
Lifetime limited warranty
© 2018 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
2 / 2
