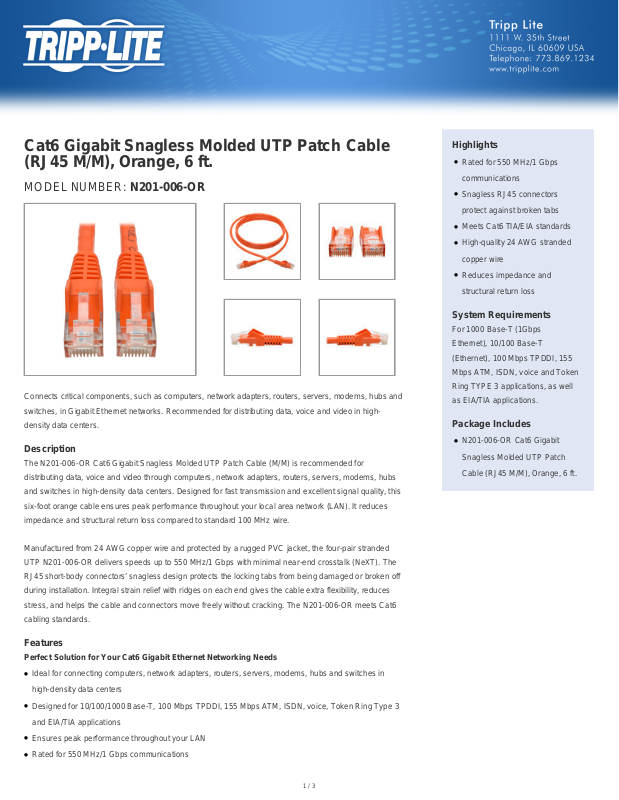

Tripp-Lite N201-006-OR Data Sheet

Cat6 Gigabit Snagless Molded UTP Patch Cable
(RJ45 M/M), Orange, 6 ft.

MODEL NUMBER: N201-006-OR

Connects critical components, such as computers, network adapters, routers, servers, modems, hubs and
switches, in Gigabit Ethernet networks. Recommended for distributing data, voice and video in high­density data centers.

Description

The N201-006-OR Cat6 Gigabit Snagless Molded UTP Patch Cable (M/M) is recommended for
distributing data, voice and video through computers, network adapters, routers, servers, modems, hubs
and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this
six-foot orange cable ensures peak performance throughout your local area network (LAN). It reduces
impedance and structural return loss compared to standard 100 MHz wire.

Highlights

●

Rated for 550 MHz/1 Gbps
communications

●

Snagless RJ45 connectors
protect against broken tabs

●

Meets Cat6 TIA/EIA standards

●

High-quality 24 AWG stranded
copper wire

●

Reduces impedance and
structural return loss

System Requirements

For 1000 Base-T (1Gbps
Ethernet), 10/100 Base-T
(Ethernet), 100 Mbps TPDDI, 155
Mbps ATM, ISDN, voice and Token
Ring TYPE 3 applications, as well
as EIA/TIA applications.

Package Includes

●

N201-006-OR Cat6 Gigabit
Snagless Molded UTP Patch
Cable (RJ45 M/M), Orange, 6 ft.

Manufactured from 24 AWG copper wire and protected by a rugged PVC jacket, the four-pair stranded
UTP N201-006-OR delivers speeds up to 550 MHz/1 Gbps with minimal near-end crosstalk (NeXT). The
RJ45 short-body connectors’ snagless design protects the locking tabs from being damaged or broken off
during installation. Integral strain relief with ridges on each end gives the cable extra flexibility, reduces
stress, and helps the cable and connectors move freely without cracking. The N201-006-OR meets Cat6
cabling standards.

Features

Perfect Solution for Your Cat6 Gigabit Ethernet Networking Needs

●

Ideal for connecting computers, network adapters, routers, servers, modems, hubs and switches in
high-density data centers

●

Designed for 10/100/1000 Base-T, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3
and EIA/TIA applications

●

Ensures peak performance throughout your LAN

●

Rated for 550 MHz/1 Gbps communications

1 / 3

●

Reduces impedance and structural return loss compared to standard 100 MHz wire

Snagless RJ45 Male Connectors

●

Molded snagless boots prevent locking tabs from damage during installation

Premium Construction for Superior Performance

●

High-quality 24 AWG 4-pair stranded copper wire

●

Minimal near-end crosstalk ensures a strong signal

●

Integral strain relief protects cable and connectors from stress and cracking

●

Rugged PVC jacket stands up to long-term use

Meets Top Cabling Standards

●

Meets Cat6 TIA/EIA standards

●

Meets most other current industry standards, including IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL
(Cat6 draft 11)

Specifications

OVERVIEW

UPC Code 037332202680

INPUT

Cable Length (ft.) 6
Cable Length (m) 1.8

PHYSICAL

Wire Gauge (AWG) 24
Shipping Dimensions (hwd / in.) 9.000 x 7.400 x 0.500
Shipping Dimensions (hwd / cm) 22.86 x 18.80 x 1.27
Shipping Weight (lbs.) 0.2000
Shipping Weight (kg) 0.09
Color Orange

CONNECTIONS

Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (MALE)

FEATURES & SPECIFICATIONS
