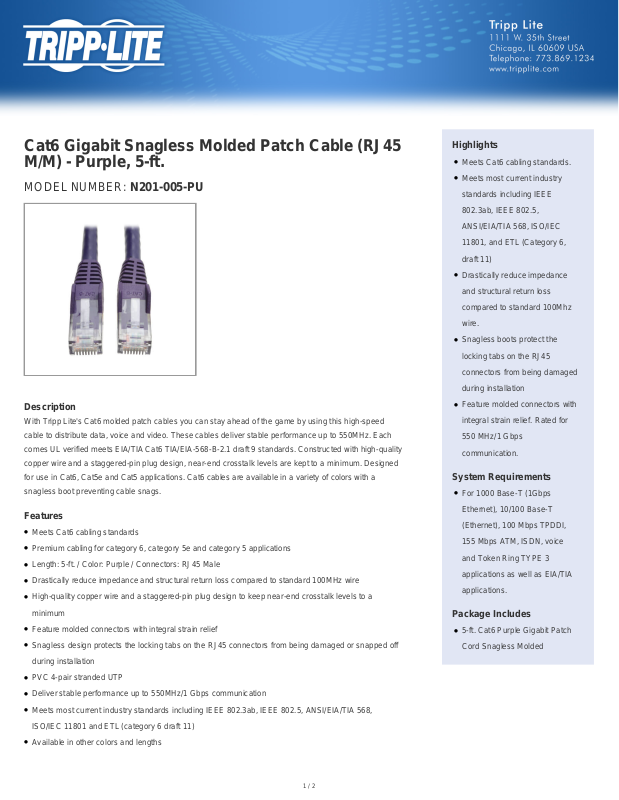

Tripp-Lite N201-005-PU Data Sheet

Cat6 Gigabit Snagless Molded Patch Cable (RJ45
M/M) - Purple, 5-ft.

MODEL NUMBER: N201-005-PU

Description

With Tripp Lite's Cat6 molded patch cables you can stay ahead of the game by using this high-speed
cable to distribute data, voice and video. These cables deliver stable performance up to 550MHz. Each
comes UL verified meets EIA/TIA Cat6 TIA/EIA-568-B-2.1 draft 9 standards. Constructed with high-quality
copper wire and a staggered-pin plug design, near-end crosstalk levels are kept to a minimum. Designed
for use in Cat6, Cat5e and Cat5 applications. Cat6 cables are available in a variety of colors with a
snagless boot preventing cable snags.

Features

●

Meets Cat6 cabling standards

●

Premium cabling for category 6, category 5e and category 5 applications

●

Length: 5-ft. / Color: Purple / Connectors: RJ45 Male

●

Drastically reduce impedance and structural return loss compared to standard 100MHz wire

●

High-quality copper wire and a staggered-pin plug design to keep near-end crosstalk levels to a
minimum

●

Feature molded connectors with integral strain relief

●

Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off
during installation

●

PVC 4-pair stranded UTP

●

Deliver stable performance up to 550MHz/1 Gbps communication

●

Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568,
ISO/IEC 11801 and ETL (category 6 draft 11)

●

Available in other colors and lengths

Highlights

●

Meets Cat6 cabling standards.

●

Meets most current industry
standards including IEEE

802.3ab, IEEE 802.5,
ANSI/EIA/TIA 568, ISO/IEC
11801, and ETL (Category 6,
draft 11)

●

Drastically reduce impedance
and structural return loss
compared to standard 100Mhz
wire.

●

Snagless boots protect the
locking tabs on the RJ45
connectors from being damaged
during installation

●

Feature molded connectors with
integral strain relief. Rated for
550 MHz/1 Gbps
communication.

System Requirements

●

For 1000 Base-T (1Gbps
Ethernet), 10/100 Base-T
(Ethernet), 100 Mbps TPDDI,
155 Mbps ATM, ISDN, voice
and Token Ring TYPE 3
applications as well as EIA/TIA
applications.

Package Includes

●

5-ft. Cat6 Purple Gigabit Patch
Cord Snagless Molded

1 / 2

Specifications

OVERVIEW

UPC Code 037332187598

INPUT

Cable Length (ft.) 5
Cable Length (m) 1.5

PHYSICAL

Wire Gauge (AWG) 24
Shipping Dimensions (hwd / in.) 9.000 x 7.000 x 0.500
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Weight (lbs.) 0.1500
Shipping Weight (kg) 0.07
Color Purple

CONNECTIONS

Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (MALE)

FEATURES & SPECIFICATIONS

Technology Cat6

CERTIFICATIONS

Certifications RoHS-Compliant
Approvals IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, and ETL (Category 6, draft 11)

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
