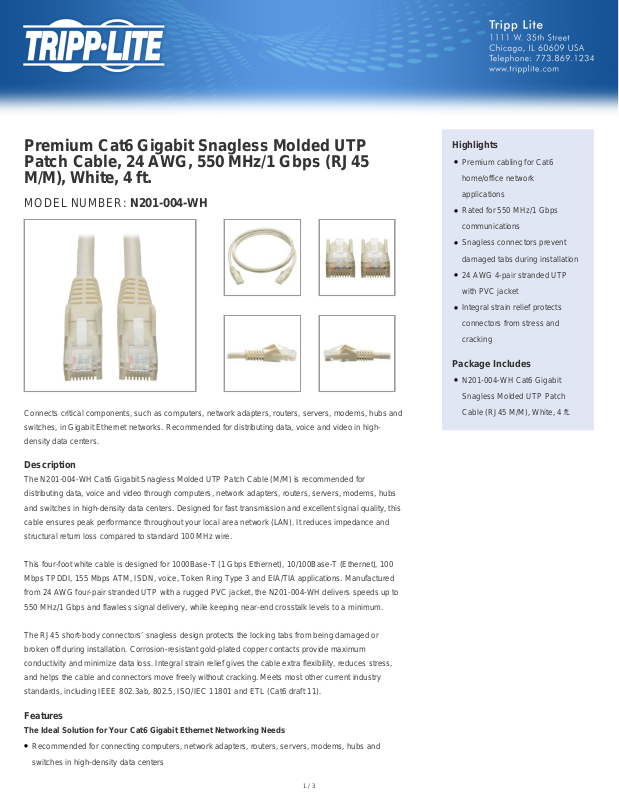

Premium Cat6 Gigabit Snagless Molded UTP
Patch Cable, 24 AWG, 550 MHz/1 Gbps (RJ45
M/M), White, 4 ft.
MODEL NUMBER: N201-004-WH
Connects critical components, such as computers, network adapters, routers, servers, modems, hubs and
switches, in Gigabit Ethernet networks. Recommended for distributing data, voice and video in highdensity data centers.
Highlights
●
Premium cabling for Cat6
home/office network
applications
●
Rated for 550 MHz/1 Gbps
communications
●
Snagless connectors prevent
damaged tabs during installation
●
24 AWG 4-pair stranded UTP
with PVC jacket
●
Integral strain relief protects
connectors from stress and
cracking
Package Includes
●
N201-004-WH Cat6 Gigabit
Snagless Molded UTP Patch
Cable (RJ45 M/M), White, 4 ft.
Description
The N201-004-WH Cat6 Gigabit Snagless Molded UTP Patch Cable (M/M) is recommended for
distributing data, voice and video through computers, network adapters, routers, servers, modems, hubs
and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this
cable ensures peak performance throughout your local area network (LAN). It reduces impedance and
structural return loss compared to standard 100 MHz wire.
This four-foot white cable is designed for 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100
Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications. Manufactured
from 24 AWG four-pair stranded UTP with a rugged PVC jacket, the N201-004-WH delivers speeds up to
550 MHz/1 Gbps and flawless signal delivery, while keeping near-end crosstalk levels to a minimum.
The RJ45 short-body connectors’ snagless design protects the locking tabs from being damaged or
broken off during installation. Corrosion-resistant gold-plated copper contacts provide maximum
conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress,
and helps the cable and connectors move freely without cracking. Meets most other current industry
standards, including IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL (Cat6 draft 11).
Features
The Ideal Solution for Your Cat6 Gigabit Ethernet Networking Needs
●
Recommended for connecting computers, network adapters, routers, servers, modems, hubs and
switches in high-density data centers
1 / 3
Page 2
●
Designed for 10/100/1000 Base-T, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3
and EIA/TIA applications
●
Provides high-speed connections up to 550 MHz/1 Gbps
●
Flawless signal delivery with minimal near-end crosstalk levels
●
Reduces impedance and structural return loss compared to standard 100 MHz wire
Snagless RJ45 Male Connectors
●
Molded snagless boots prevent locking tabs from damage during installation
Premium Construction Ensures Error-Free Signal Transfer
●
Manufactured from 24 AWG 4-pair stranded UTP
●
Gold-plated copper contacts for maximum conductivity and minimum data loss
●
Integral strain relief protects cable and connectors from stress and cracking
●
Rugged PVC jacket stands up to long-term use
Meets Top Cabling Standards
●
Meets Cat6 TIA/EIA standards
●
Meets most other current industry standards, including IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL
(Cat6 draft 11)
Specifications
OVERVIEW
UPC Code 037332204851
INPUT
Cable Length (ft.) 4
Cable Length (m) 1.2
PHYSICAL
Wire Gauge (AWG) 24
Wire Gauge (OD - mm²) 24
Shipping Dimensions (hwd / in.) 9.000 x 7.000 x 0.500
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Weight (lbs.) 0.1200
Shipping Weight (kg) 0.05
Color White
2 / 3
Page 3
CONNECTIONS
Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (MALE)
FEATURES & SPECIFICATIONS
Technology Cat6
CERTIFICATIONS
Certifications ROHS COMPLIANT
Approvals EIA/TIA CAT6 TIA/EIA - 568-B-2.1
WARRANTY
Product Warranty Period
(Worldwide)
Lifetime limited warranty
© 2018 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
