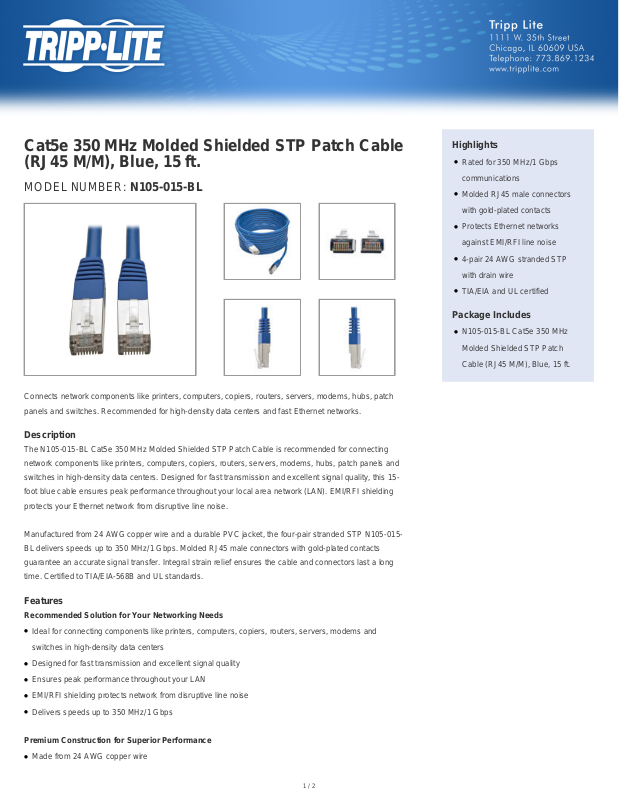

Tripp-Lite N105-015-BL Data Sheet
Cat5e 350 MHz Molded Shielded STP Patch Cable
(RJ45 M/M), Blue, 15 ft.
MODEL NUMBER: N105-015-BL
Connects network components like printers, computers, copiers, routers, servers, modems, hubs, patch
panels and switches. Recommended for high-density data centers and fast Ethernet networks.
Description
The N105-015-BL Cat5e 350 MHz Molded Shielded STP Patch Cable is recommended for connecting
network components like printers, computers, copiers, routers, servers, modems, hubs, patch panels and
switches in high-density data centers. Designed for fast transmission and excellent signal quality, this 15foot blue cable ensures peak performance throughout your local area network (LAN). EMI/RFI shielding
protects your Ethernet network from disruptive line noise.
Highlights
●
Rated for 350 MHz/1 Gbps
communications
●
Molded RJ45 male connectors
with gold-plated contacts
●
Protects Ethernet networks
against EMI/RFI line noise
●
4-pair 24 AWG stranded STP
with drain wire
●
TIA/EIA and UL certified
Package Includes
●
N105-015-BL Cat5e 350 MHz
Molded Shielded STP Patch
Cable (RJ45 M/M), Blue, 15 ft.
Manufactured from 24 AWG copper wire and a durable PVC jacket, the four-pair stranded STP N105-015BL delivers speeds up to 350 MHz/1 Gbps. Molded RJ45 male connectors with gold-plated contacts
guarantee an accurate signal transfer. Integral strain relief ensures the cable and connectors last a long
time. Certified to TIA/EIA-568B and UL standards.
Features
Recommended Solution for Your Networking Needs
●
Ideal for connecting components like printers, computers, copiers, routers, servers, modems and
switches in high-density data centers
●
Designed for fast transmission and excellent signal quality
●
Ensures peak performance throughout your LAN
●
EMI/RFI shielding protects network from disruptive line noise
●
Delivers speeds up to 350 MHz/1 Gbps
Premium Construction for Superior Performance
●
Made from 24 AWG copper wire
1 / 2
●
PVC 4-pair stranded STP with drain wire
●
Molded RJ45 male connectors with gold-plated contacts
●
Integral strain relief for long life
●
TIA/EIA and UL certified
Specifications
OVERVIEW
UPC Code 037332148254
INPUT
Cable Length (ft.) 15
Cable Length (m) 4.6
PHYSICAL
Shipping Dimensions (hwd / in.) 9.000 x 7.000 x 0.500
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Weight (lbs.) 0.4300
Shipping Weight (kg) 0.20
Color Blue
CONNECTIONS
Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (MALE)
FEATURES & SPECIFICATIONS
Technology Cat5/5e
WARRANTY
Product Warranty Period
(Worldwide)
Lifetime limited warranty
