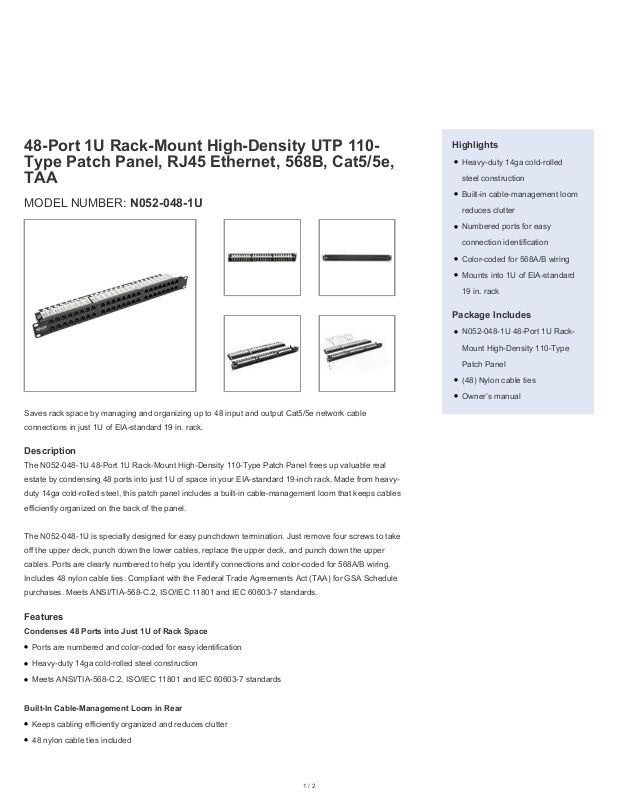

Tripp-Lite N052-048-1U Data Sheet
48-Port 1U Rack-Mount High-Density UTP 110Type Patch Panel, RJ45 Ethernet, 568B, Cat5/5e,
TAA
MODEL NUMBER: N052-048-1U
Saves rack space by managing and organizing up to 48 input and output Cat5/5e network cable
connections in just 1U of EIA-standard 19 in. rack.
Highlights
●
Heavy-duty 14ga cold-rolled
steel construction
●
Built-in cable-management loom
reduces clutter
●
Numbered ports for easy
connection identification
●
Color-coded for 568A/B wiring
●
Mounts into 1U of EIA-standard
19 in. rack
Package Includes
●
N052-048-1U 48-Port 1U Rack-
Mount High-Density 110-Type
Patch Panel
●
(48) Nylon cable ties
●
Owner’s manual
Description
The N052-048-1U 48-Port 1U Rack-Mount High-Density 110-Type Patch Panel frees up valuable real
estate by condensing 48 ports into just 1U of space in your EIA-standard 19-inch rack. Made from heavy-
duty 14ga cold-rolled steel, this patch panel includes a built-in cable-management loom that keeps cables
efficiently organized on the back of the panel.
The N052-048-1U is specially designed for easy punchdown termination. Just remove four screws to take
off the upper deck, punch down the lower cables, replace the upper deck, and punch down the upper
cables. Ports are clearly numbered to help you identify connections and color-coded for 568A/B wiring.
Includes 48 nylon cable ties. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule
purchases. Meets ANSI/TIA-568-C.2, ISO/IEC 11801 and IEC 60603-7 standards.
Features
Condenses 48 Ports into Just 1U of Rack Space
●
Ports are numbered and color-coded for easy identification
●
Heavy-duty 14ga cold-rolled steel construction
●
Meets ANSI/TIA-568-C.2, ISO/IEC 11801 and IEC 60603-7 standards
Built-In Cable-Management Loom in Rear
●
Keeps cabling efficiently organized and reduces clutter
●
48 nylon cable ties included
1 / 2
Specially Designed for Easy Punchdown Termination
●
Simply remove upper level for easy access to lower level of ports
Quick, Easy Installation
●
Mounts easily into 1U of EIA-standard 19 in. rack
TAA-Compliant
●
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule Purchases
Specifications
OVERVIEW
UPC Code 037332197474
Technology Cat5/5e
PHYSICAL
Shipping Dimensions (hwd / in.) 2.000 x 4.200 x 20.500
Shipping Dimensions (hwd / cm) 5.08 x 10.67 x 52.07
Shipping Weight (lbs.) 3.7000
Shipping Weight (kg) 1.68
CONNECTIONS
Ports 48
Side A - Connector 1 110 IDC
Side B - Connector 1 RJ45 (FEMALE)
WARRANTY
Product Warranty Period
(Worldwide)
Lifetime limited warranty
© 2018 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards.
