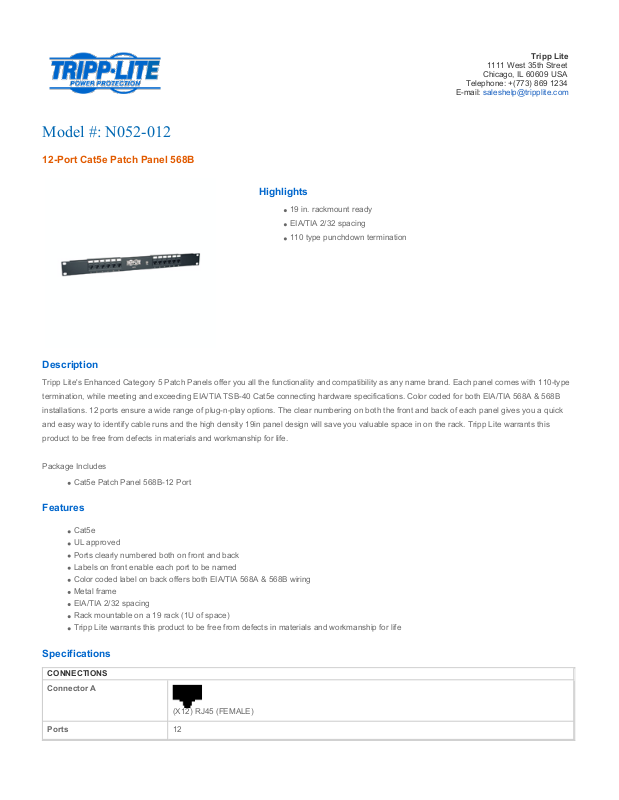

Model #: N052-012

12-Port Cat5e Patch Panel 568B

Highlights

19 in. rackmount ready

EIA/TIA 2/32 spacing

110 type punchdown termination

Description

Tripp Lite's Enhanced Category 5 Patch Panels offer you all the functionality and compatibility as any name brand. Each panel comes with 110-type

termination, while meeting and exceeding EIA/TIA TSB-40 Cat5e connecting hardware specifications. Color coded for both EIA/TIA 568A & 568B

installations. 12 ports ensure a wide range of plug-n-play options. The clear numbering on both the front and back of each panel gives you a quick

and easy way to identify cable runs and the high density 19in panel design will save you valuable space in on the rack. Tripp Lite warrants this

product to be free from defects in materials and workmanship for life.

Package Includes

Cat5e Patch Panel 568B-12 Port

Features

Cat5e

UL approved

Ports clearly numbered both on front and back

Labels on front enable each port to be named

Color coded label on back offers both EIA/TIA 568A & 568B wiring

Metal frame

EIA/TIA 2/32 spacing

Rack mountable on a 19 rack (1U of space)

Tripp Lite warrants this product to be free from defects in materials and workmanship for life

Specifications

CONNECTIONS

Connector A

(X12) RJ45 (FEMALE)

Ports 12

Related Items

Patch Cables

N002-003-BK 3-ft. Black Cat5e 350MHz Molded Patch Cable Qty: [optional]

N002-003-BL 3-ft. Blue Cat5e 350MHz Molded Patch Cable Qty: [optional]

N002-003-GN 3-ft. Green Cat5e 350MHz Molded Patch Cable Qty: [optional]

N002-003-GY 3-ft. Gray Cat5e 350MHz Molded Patch Cable Qty: [optional]

N002-003-RD 3-ft. Red Cat5e 350MHz Molded Patch Cable Qty: [optional]

N002-003-YW 3-ft. Yellow Cat5e 350MHz Molded Patch Cable Qty: [optional]

N002-005-GY 5-ft. Gray Cat5e 350MHz Molded Patch Cable Qty: [optional]

N002-007-GY 7-ft. Gray Cat5e 350MHz Molded Patch Cable Qty: [optional]

N002-010-GY 10-ft. Gray Cat5e 350MHz Molded Patch Cable Qty: [optional]

N050-012 12-Port Cat5e Wall Mount Patch Panel 568B Qty: [optional]

N052-024 24-Port Cat5e Patch Panel 568B Qty: [optional]

N052-048 48-Port Cat5e Patch Panel 568B Qty: [optional]

N060-002 2U Wall-Mount Hinged Patch Panel Bracket Qty: [optional]

N060-004 4U Wall-Mount Hinged Patch Panel Bracket Qty: [optional]

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?txtModelID=2149.
