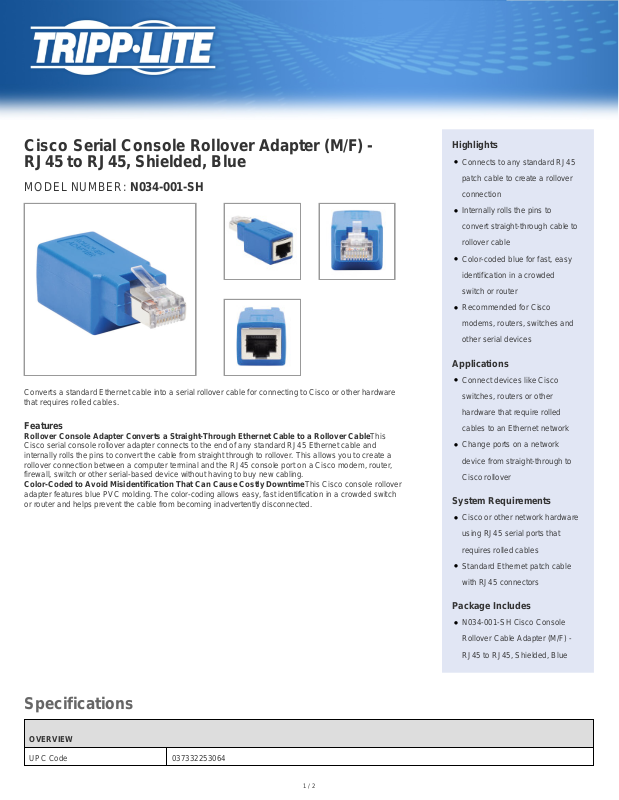

Tripp-Lite N034-001-SH Data Sheet
Cisco Serial Console Rollover Adapter (M/F) RJ45 to RJ45, Shielded, Blue
MODEL NUMBER: N034-001-SH
Converts a standard Ethernet cable into a serial rollover cable for connecting to Cisco or other hardware
that requires rolled cables.
Features
Rollover Console Adapter Converts a Straight-Through Ethernet Cable to a Rollover CableThis
Cisco serial console rollover adapter connects to the end of any standard RJ45 Ethernet cable and
internally rolls the pins to convert the cable from straight through to rollover. This allows you to create a
rollover connection between a computer terminal and the RJ45 console port on a Cisco modem, router,
firewall, switch or other serial-based device without having to buy new cabling.
Color-Coded to Avoid Misidentification That Can Cause Costly DowntimeThis Cisco console rollover
adapter features blue PVC molding. The color-coding allows easy, fast identification in a crowded switch
or router and helps prevent the cable from becoming inadvertently disconnected.
Highlights
●
Connects to any standard RJ45
patch cable to create a rollover
connection
●
Internally rolls the pins to
convert straight-through cable to
rollover cable
●
Color-coded blue for fast, easy
identification in a crowded
switch or router
●
Recommended for Cisco
modems, routers, switches and
other serial devices
Applications
●
Connect devices like Cisco
switches, routers or other
hardware that require rolled
cables to an Ethernet network
●
Change ports on a network
device from straight-through to
Cisco rollover
System Requirements
●
Cisco or other network hardware
using RJ45 serial ports that
requires rolled cables
●
Standard Ethernet patch cable
with RJ45 connectors
Specifications
OVERVIEW
UPC Code 037332253064
1 / 2
Package Includes
●
N034-001-SH Cisco Console
Rollover Cable Adapter (M/F) RJ45 to RJ45, Shielded, Blue
PHYSICAL
Cable Jacket Type PVC
Cable Shielding STP
Color Blue
Unit Dimensions (hwd / cm) 1.88 x 2.05 x 5.25
Unit Dimensions (hwd / in.) 0.74 x 0.81 x 2.07
Unit Dimensions (hwd / mm) 18.8 x 20.5 x 52.5
ENVIRONMENTAL
Operating Temperature Range 14 ~ 122°F (-10 ~ 50°C)
Storage Temperature Range 5 ~ 140°F (-15 ~ 60°C)
Relative Humidity 0% ~ 90%, Non-Condensing
CONNECTIONS
Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (FEMALE)
FEATURES & SPECIFICATIONS
Technology Cat5/5e; Cat6
© 2020 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https:// products/product-certification-agencies
2 / 2
