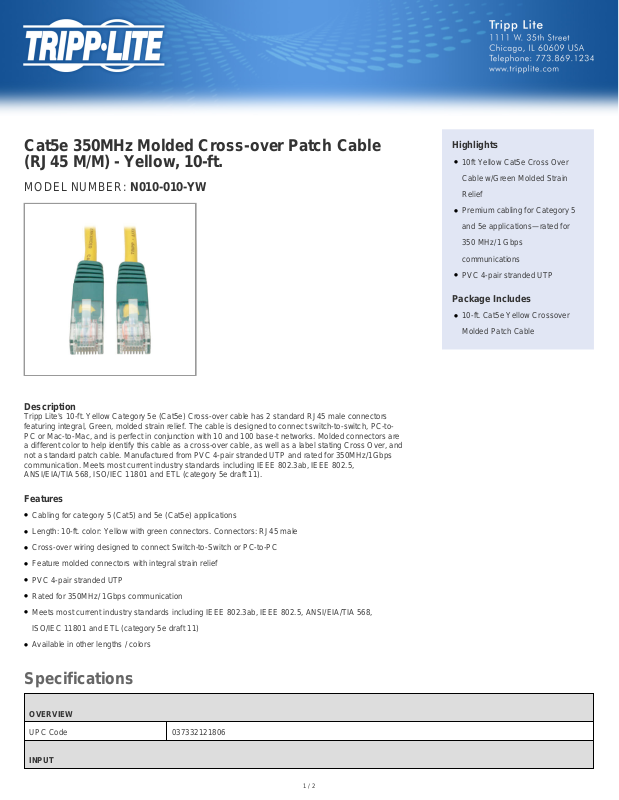

Tripp-Lite N010-010-YW Data Sheet

Cat5e 350MHz Molded Cross-over Patch Cable
(RJ45 M/M) - Yellow, 10-ft.

MODEL NUMBER: N010-010-YW

Description

Tripp Lite's 10-ft. Yellow Category 5e (Cat5e) Cross-over cable has 2 standard RJ45 male connectors
featuring integral, Green, molded strain relief. The cable is designed to connect switch-to-switch, PC-to­PC or Mac-to-Mac, and is perfect in conjunction with 10 and 100 base-t networks. Molded connectors are
a different color to help identify this cable as a cross-over cable, as well as a label stating Cross Over, and
not a standard patch cable. Manufactured from PVC 4-pair stranded UTP and rated for 350MHz/1Gbps
communication. Meets most current industry standards including IEEE 802.3ab, IEEE 802.5,
ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 5e draft 11).

Highlights

●

10ft Yellow Cat5e Cross Over
Cable w/Green Molded Strain
Relief

●

Premium cabling for Category 5
and 5e applications—rated for
350 MHz/1 Gbps
communications

●

PVC 4-pair stranded UTP

Package Includes

●

10-ft. Cat5e Yellow Crossover
Molded Patch Cable

Features

●

Cabling for category 5 (Cat5) and 5e (Cat5e) applications

●

Length: 10-ft. color: Yellow with green connectors. Connectors: RJ45 male

●

Cross-over wiring designed to connect Switch-to-Switch or PC-to-PC

●

Feature molded connectors with integral strain relief

●

PVC 4-pair stranded UTP

●

Rated for 350MHz/ 1Gbps communication

●

Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568,
ISO/IEC 11801 and ETL (category 5e draft 11)

●

Available in other lengths / colors

Specifications

OVERVIEW

UPC Code 037332121806

INPUT

1 / 2

Cable Length (ft.) 10
Cable Length (m) 3.1

PHYSICAL

Shipping Dimensions (hwd / in.) 9.000 x 7.000 x 0.500
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Weight (lbs.) 0.2000
Shipping Weight (kg) 0.09
Color Yellow

CONNECTIONS

Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (MALE)

FEATURES & SPECIFICATIONS

Technology Cat5/5e

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
