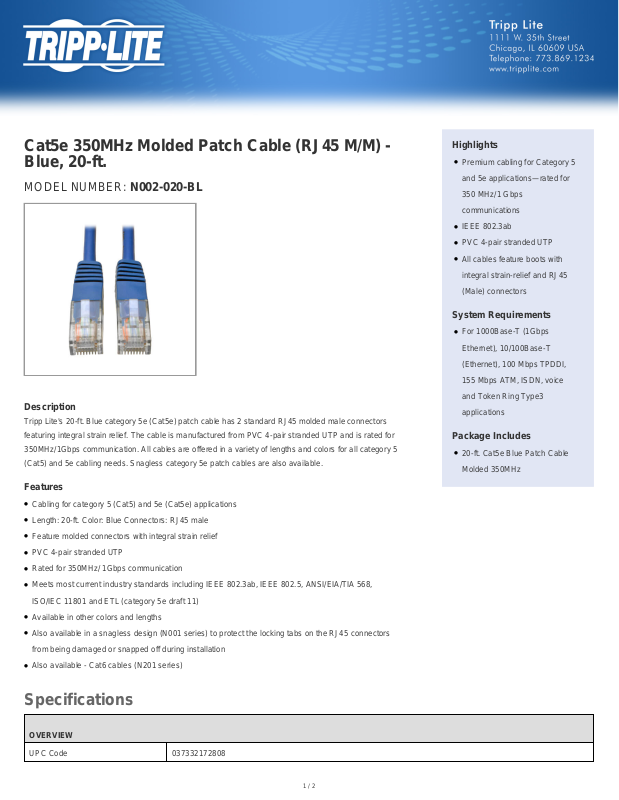

Tripp-Lite N002-020-BL Data Sheet
Cat5e 350MHz Molded Patch Cable (RJ45 M/M) Blue, 20-ft.
MODEL NUMBER: N002-020-BL
Description
Tripp Lite's 20-ft. Blue category 5e (Cat5e) patch cable has 2 standard RJ45 molded male connectors
featuring integral strain relief. The cable is manufactured from PVC 4-pair stranded UTP and is rated for
350MHz/1Gbps communication. All cables are offered in a variety of lengths and colors for all category 5
(Cat5) and 5e cabling needs. Snagless category 5e patch cables are also available.
Highlights
●
Premium cabling for Category 5
and 5e applications—rated for
350 MHz/1 Gbps
communications
●
IEEE 802.3ab
●
PVC 4-pair stranded UTP
●
All cables feature boots with
integral strain-relief and RJ45
(Male) connectors
System Requirements
●
For 1000Base-T (1Gbps
Ethernet), 10/100Base-T
(Ethernet), 100 Mbps TPDDI,
155 Mbps ATM, ISDN, voice
and Token Ring Type3
applications
Package Includes
●
20-ft. Cat5e Blue Patch Cable
Molded 350MHz
Features
●
Cabling for category 5 (Cat5) and 5e (Cat5e) applications
●
Length: 20-ft. Color: Blue Connectors: RJ45 male
●
Feature molded connectors with integral strain relief
●
PVC 4-pair stranded UTP
●
Rated for 350MHz/ 1Gbps communication
●
Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568,
ISO/IEC 11801 and ETL (category 5e draft 11)
●
Available in other colors and lengths
●
Also available in a snagless design (N001 series) to protect the locking tabs on the RJ45 connectors
from being damaged or snapped off during installation
●
Also available - Cat6 cables (N201 series)
Specifications
OVERVIEW
UPC Code 037332172808
1 / 2
INPUT
Cable Length (ft.) 20
Cable Length (m) 6.1
PHYSICAL
Wire Gauge (AWG) 26
Shipping Dimensions (hwd / in.) 10.000 x 8.000 x 0.500
Shipping Dimensions (hwd / cm) 25.40 x 20.32 x 1.27
Shipping Weight (lbs.) 0.4000
Shipping Weight (kg) 0.18
Color Blue
CONNECTIONS
Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (MALE)
FEATURES & SPECIFICATIONS
Technology Cat5/5e
CERTIFICATIONS
Certifications RoHS-Compliant
WARRANTY
Product Warranty Period
(Worldwide)
Lifetime limited warranty
