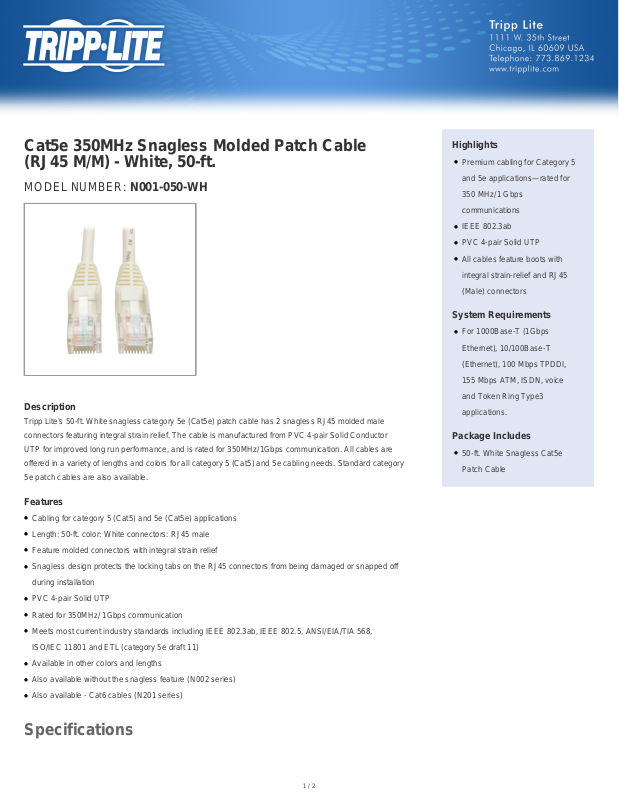

Tripp-Lite N001-050-WH Data Sheet

Cat5e 350MHz Snagless Molded Patch Cable
(RJ45 M/M) - White, 50-ft.

MODEL NUMBER: N001-050-WH

Description

Tripp Lite's 50-ft. White snagless category 5e (Cat5e) patch cable has 2 snagless RJ45 molded male
connectors featuring integral strain relief. The cable is manufactured from PVC 4-pair Solid Conductor
UTP for improved long run performance, and is rated for 350MHz/1Gbps communication. All cables are
offered in a variety of lengths and colors for all category 5 (Cat5) and 5e cabling needs. Standard category
5e patch cables are also available.

Highlights

●

Premium cabling for Category 5
and 5e applications—rated for
350 MHz/1 Gbps
communications

●

IEEE 802.3ab

●

PVC 4-pair Solid UTP

●

All cables feature boots with
integral strain-relief and RJ45
(Male) connectors

System Requirements

●

For 1000Base-T (1Gbps
Ethernet), 10/100Base-T
(Ethernet), 100 Mbps TPDDI,
155 Mbps ATM, ISDN, voice
and Token Ring Type3
applications.

Package Includes

●

50-ft. White Snagless Cat5e
Patch Cable

Features

●

Cabling for category 5 (Cat5) and 5e (Cat5e) applications

●

Length: 50-ft. color: White connectors: RJ45 male

●

Feature molded connectors with integral strain relief

●

Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off
during installation

●

PVC 4-pair Solid UTP

●

Rated for 350MHz/ 1Gbps communication

●

Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568,
ISO/IEC 11801 and ETL (category 5e draft 11)

●

Available in other colors and lengths

●

Also available without the snagless feature (N002 series)

●

Also available - Cat6 cables (N201 series)

Specifications

1 / 2

OVERVIEW

UPC Code 037332172730

INPUT

Cable Length (ft.) 50
Cable Length (m) 15.2

PHYSICAL

Wire Gauge (AWG) 26
Shipping Dimensions (hwd / in.) 10.000 x 8.000 x 0.500
Shipping Dimensions (hwd / cm) 25.40 x 20.32 x 1.27
Shipping Weight (lbs.) 1.2300
Shipping Weight (kg) 0.56
Color White

CONNECTIONS

Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (MALE)

FEATURES & SPECIFICATIONS

Technology Cat5/5e

CERTIFICATIONS

Certifications RoHS-Compliant

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
