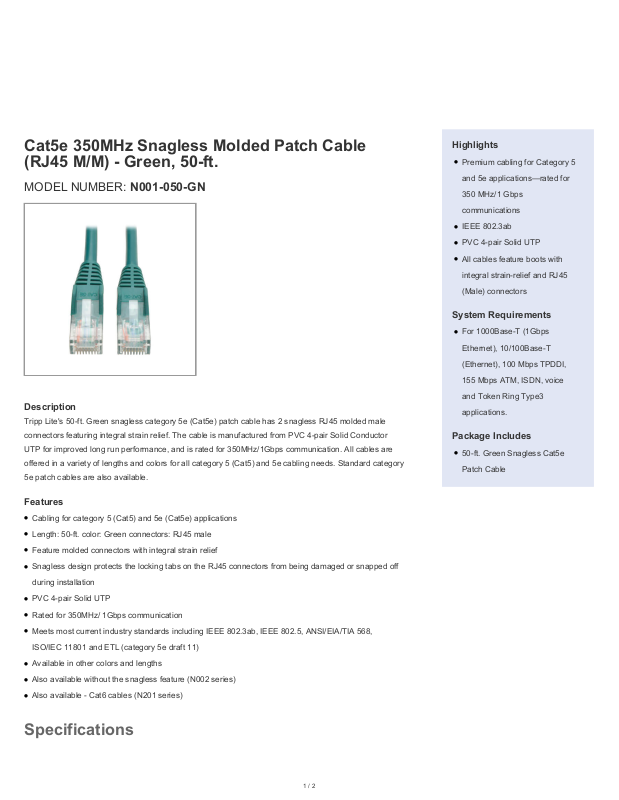

Tripp-Lite N001-050-GN Data Sheet
Cat5e 350MHz Snagless Molded Patch Cable
(RJ45 M/M) - Green, 50-ft.
MODEL NUMBER: N001-050-GN
Description
Tripp Lite's 50-ft. Green snagless category 5e (Cat5e) patch cable has 2 snagless RJ45 molded male
connectors featuring integral strain relief. The cable is manufactured from PVC 4-pair Solid Conductor
UTP for improved long run performance, and is rated for 350MHz/1Gbps communication. All cables are
offered in a variety of lengths and colors for all category 5 (Cat5) and 5e cabling needs. Standard category
5e patch cables are also available.
Highlights
●
Premium cabling for Category 5
and 5e applications—rated for
350 MHz/1 Gbps
communications
●
IEEE 802.3ab
●
PVC 4-pair Solid UTP
●
All cables feature boots with
integral strain-relief and RJ45
(Male) connectors
System Requirements
●
For 1000Base-T (1Gbps
Ethernet), 10/100Base-T
(Ethernet), 100 Mbps TPDDI,
155 Mbps ATM, ISDN, voice
and Token Ring Type3
applications.
Package Includes
●
50-ft. Green Snagless Cat5e
Patch Cable
Features
●
Cabling for category 5 (Cat5) and 5e (Cat5e) applications
●
Length: 50-ft. color: Green connectors: RJ45 male
●
Feature molded connectors with integral strain relief
●
Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off
during installation
●
PVC 4-pair Solid UTP
●
Rated for 350MHz/ 1Gbps communication
●
Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568,
ISO/IEC 11801 and ETL (category 5e draft 11)
●
Available in other colors and lengths
●
Also available without the snagless feature (N002 series)
●
Also available - Cat6 cables (N201 series)
Specifications
1 / 2
OVERVIEW
UPC Code 037332172723
Technology Cat5/5e
INPUT
Cable Length (ft.) 50
Cable Length (m) 15.2
PHYSICAL
Wire Gauge (AWG) 26
Shipping Dimensions (hwd / in.) 10.000 x 0.500 x 8.000
Shipping Dimensions (hwd / cm) 25.40 x 1.27 x 20.32
Shipping Weight (lbs.) 1.2300
Shipping Weight (kg) 0.56
Color Green
CONNECTIONS
Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (MALE)
CERTIFICATIONS
Certifications RoHS-Compliant
WARRANTY
Product Warranty Period
(Worldwide)
Lifetime limited warranty
