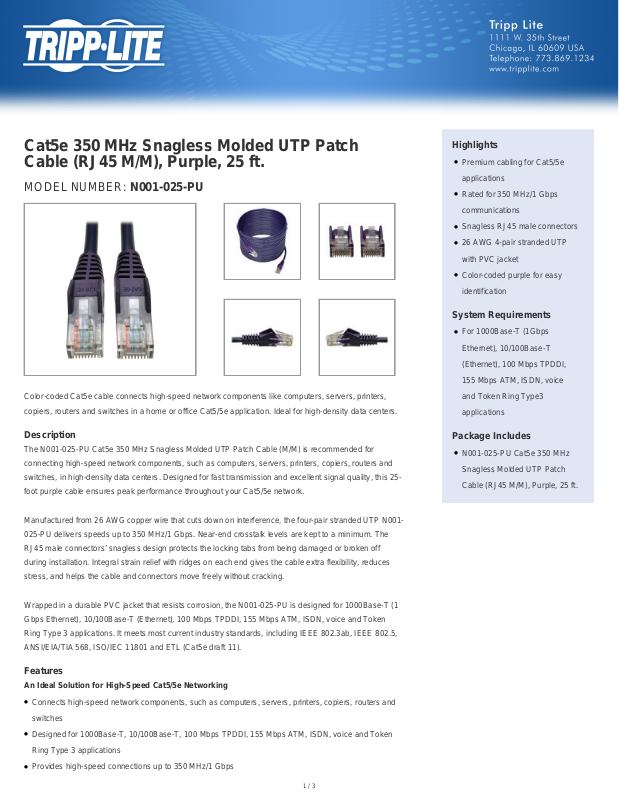

Tripp-Lite N001-025-PU Data Sheet
Cat5e 350 MHz Snagless Molded UTP Patch
Cable (RJ45 M/M), Purple, 25 ft.
MODEL NUMBER: N001-025-PU
Color-coded Cat5e cable connects high-speed network components like computers, servers, printers,
copiers, routers and switches in a home or office Cat5/5e application. Ideal for high-density data centers.
Highlights
●
Premium cabling for Cat5/5e
applications
●
Rated for 350 MHz/1 Gbps
communications
●
Snagless RJ45 male connectors
●
26 AWG 4-pair stranded UTP
with PVC jacket
●
Color-coded purple for easy
identification
System Requirements
●
For 1000Base-T (1Gbps
Ethernet), 10/100Base-T
(Ethernet), 100 Mbps TPDDI,
155 Mbps ATM, ISDN, voice
and Token Ring Type3
applications
Description
The N001-025-PU Cat5e 350 MHz Snagless Molded UTP Patch Cable (M/M) is recommended for
connecting high-speed network components, such as computers, servers, printers, copiers, routers and
switches, in high-density data centers. Designed for fast transmission and excellent signal quality, this 25foot purple cable ensures peak performance throughout your Cat5/5e network.
Manufactured from 26 AWG copper wire that cuts down on interference, the four-pair stranded UTP N001025-PU delivers speeds up to 350 MHz/1 Gbps. Near-end crosstalk levels are kept to a minimum. The
RJ45 male connectors’ snagless design protects the locking tabs from being damaged or broken off
during installation. Integral strain relief with ridges on each end gives the cable extra flexibility, reduces
stress, and helps the cable and connectors move freely without cracking.
Wrapped in a durable PVC jacket that resists corrosion, the N001-025-PU is designed for 1000Base-T (1
Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token
Ring Type 3 applications. It meets most current industry standards, including IEEE 802.3ab, IEEE 802.5,
ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (Cat5e draft 11).
Features
An Ideal Solution for High-Speed Cat5/5e Networking
●
Connects high-speed network components, such as computers, servers, printers, copiers, routers and
switches
●
Designed for 1000Base-T, 10/100Base-T, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token
Ring Type 3 applications
●
Provides high-speed connections up to 350 MHz/1 Gbps
Package Includes
●
N001-025-PU Cat5e 350 MHz
Snagless Molded UTP Patch
Cable (RJ45 M/M), Purple, 25 ft.
1 / 3
●
Flawless signal delivery with minimal near-end crosstalk levels
Snagless RJ45 Male Connectors
●
Molded snagless boots prevent locking tabs from damage during installation
●
Connectors and cable color-coded purple for easy ID in crowded applications
Premium Construction Ensures Excellent Performance
●
Manufactured from 26 AWG 4-pair stranded UTP
●
Gold-plated copper contacts for accurate signal transfer
●
Molded integral strain relief for long life
●
Durable corrosion-resistant PVC jacket
●
Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568,
ISO/IEC 11801 and ETL (Cat5e draft 11)
Specifications
OVERVIEW
UPC Code 037332202642
INPUT
Cable Length (ft.) 25
Cable Length (m) 7.6
PHYSICAL
Wire Gauge (AWG) 26
Shipping Dimensions (hwd / in.) 0.500 x 8.000 x 10.000
Shipping Dimensions (hwd / cm) 1.27 x 20.32 x 25.40
Shipping Weight (lbs.) 0.7000
Shipping Weight (kg) 0.32
Color Purple
CONNECTIONS
Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (MALE)
FEATURES & SPECIFICATIONS
Technology Cat5/5e
