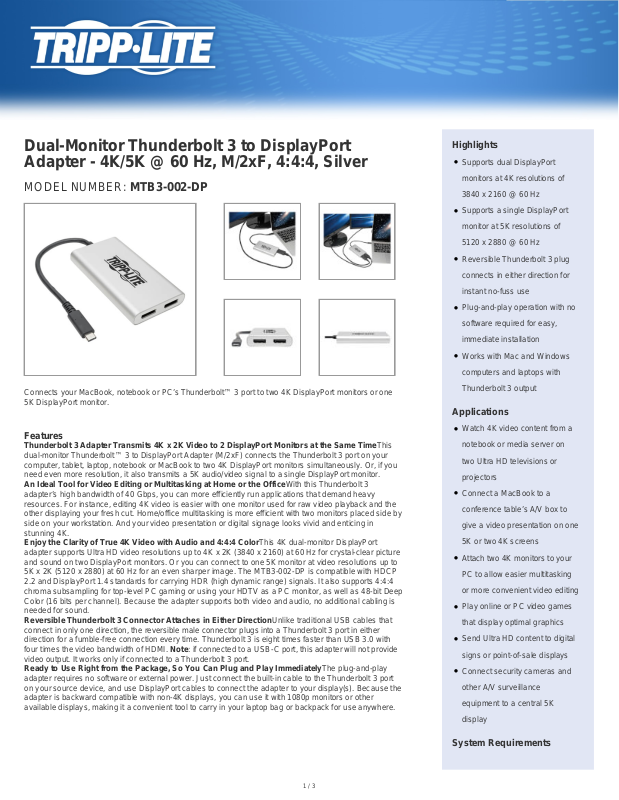

Tripp-Lite MTB3-002-DP Data Sheet

Dual-Monitor Thunderbolt 3 to DisplayPort
Adapter - 4K/5K @ 60 Hz, M/2xF, 4:4:4, Silver

MODEL NUMBER: MTB3-002-DP

Connects your MacBook, notebook or PC’s Thunderbolt™ 3 port to two 4K DisplayPort monitors or one
5K DisplayPort monitor.

Features

Thunderbolt 3 Adapter Transmits 4K x 2K Video to 2 DisplayPort Monitors at the Same TimeThis

dual-monitor Thunderbolt™ 3 to DisplayPort Adapter (M/2xF) connects the Thunderbolt 3 port on your
computer, tablet, laptop, notebook or MacBook to two 4K DisplayPort monitors simultaneously. Or, if you
need even more resolution, it also transmits a 5K audio/video signal to a single DisplayPort monitor.
An Ideal Tool for Video Editing or Multitasking at Home or the OfficeWith this Thunderbolt 3
adapter’s high bandwidth of 40 Gbps, you can more efficiently run applications that demand heavy
resources. For instance, editing 4K video is easier with one monitor used for raw video playback and the
other displaying your fresh cut. Home/office multitasking is more efficient with two monitors placed side by
side on your workstation. And your video presentation or digital signage looks vivid and enticing in
stunning 4K.
Enjoy the Clarity of True 4K Video with Audio and 4:4:4 ColorThis 4K dual-monitor DisplayPort
adapter supports Ultra HD video resolutions up to 4K x 2K (3840 x 2160) at 60 Hz for crystal-clear picture
and sound on two DisplayPort monitors. Or you can connect to one 5K monitor at video resolutions up to
5K x 2K (5120 x 2880) at 60 Hz for an even sharper image. The MTB3-002-DP is compatible with HDCP

2.2 and DisplayPort 1.4 standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4
chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor, as well as 48-bit Deep
Color (16 bits per channel). Because the adapter supports both video and audio, no additional cabling is
needed for sound.
Reversible Thunderbolt 3 Connector Attaches in Either DirectionUnlike traditional USB cables that
connect in only one direction, the reversible male connector plugs into a Thunderbolt 3 port in either
direction for a fumble-free connection every time. Thunderbolt 3 is eight times faster than USB 3.0 with
four times the video bandwidth of HDMI. Note: if connected to a USB-C port, this adapter will not provide
video output. It works only if connected to a Thunderbolt 3 port.
Ready to Use Right from the Package, So You Can Plug and Play ImmediatelyThe plug-and-play
adapter requires no software or external power. Just connect the built-in cable to the Thunderbolt 3 port
on your source device, and use DisplayPort cables to connect the adapter to your display(s). Because the
adapter is backward compatible with non-4K displays, you can use it with 1080p monitors or other
available displays, making it a convenient tool to carry in your laptop bag or backpack for use anywhere.

Highlights

●

Supports dual DisplayPort
monitors at 4K resolutions of
3840 x 2160 @ 60 Hz

●

Supports a single DisplayPort
monitor at 5K resolutions of
5120 x 2880 @ 60 Hz

●

Reversible Thunderbolt 3 plug
connects in either direction for
instant no-fuss use

●

Plug-and-play operation with no
software required for easy,
immediate installation

●

Works with Mac and Windows
computers and laptops with
Thunderbolt 3 output

Applications

●

Watch 4K video content from a
notebook or media server on
two Ultra HD televisions or
projectors

●

Connect a MacBook to a
conference table’s A/V box to
give a video presentation on one
5K or two 4K screens

●

Attach two 4K monitors to your
PC to allow easier multitasking
or more convenient video editing

●

Play online or PC video games
that display optimal graphics

●

Send Ultra HD content to digital
signs or point-of-sale displays

●

Connect security cameras and
other A/V surveillance
equipment to a central 5K
display

1 / 3

System Requirements

Specifications

OVERVIEW

●

Source device with Thunderbolt
3 port

●

Display device(s) with
DisplayPort input (DisplayPort

1.2 required to achieve 4K @ 60
Hz)

●

Supports Windows 8, 8.1 and
10; MacOS up to 10.12

Package Includes

●

MTB3-002-DP Thunderbolt 3 to
Dual DisplayPort Adapter ­4K/5K @ 60 Hz, M/2xF, Silver

●

Quick Start Guide

UPC Code 037332222008

INPUT

Built-In Cable Length (ft.) 0.39
Built-In Cable Length (in.) 4.72
Built-In Cable Length (cm) 12
Bus Powered Yes

PHYSICAL

Cable Jacket Rating VW-1
Cable Jacket Type TPE; VW-1
Cable Outer Diameter (OD) 5.0 mm
Color Silver

ENVIRONMENTAL

Operating Temperature Range 32 to 113°F (0 to 45°C)
Storage Temperature Range 14 to 158°F (~10C to 70°C)
Operating Humidity Range 10% to 90% RH (No Condensation)
Storage Humidity Range 10% to 90% RH (No Condensation)

2 / 3
