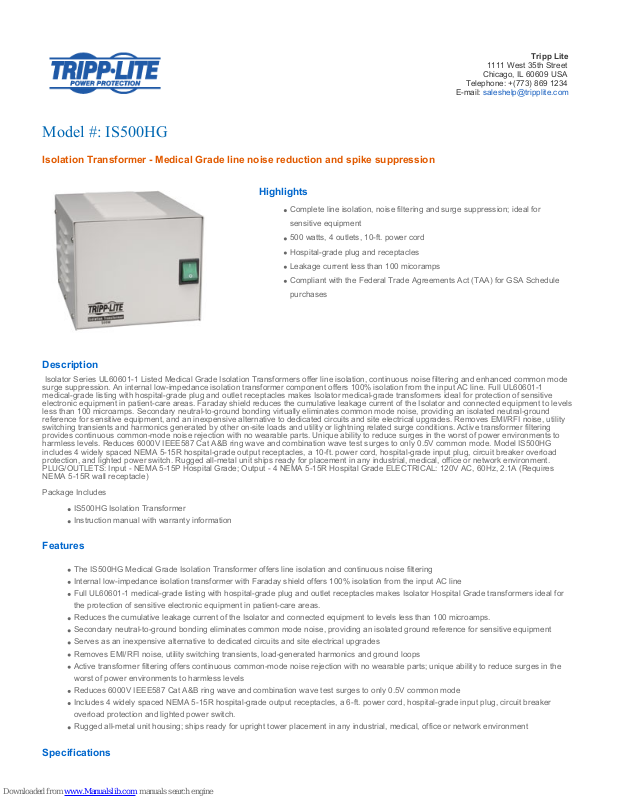

Tripp Lite Isolator Series UL60601-1, IS500HG Specifications

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +[phone]

E-mail: [e-mail]

Model #: IS500HG

Isolation Transformer - Medical Grade line noise reduction and spike suppression

Highlights

Complete line isolation, noise filtering and surge suppression; ideal for

sensitive equipment

500 watts, 4 outlets, 10-ft. power cord

Hospital-grade plug and receptacles

Leakage current less than 100 micoramps

Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule

purchases

Description

Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode
surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1
medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive
electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels
less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground
reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility
switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering
provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to
harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS500HG
includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload
protection, and lighted power switch. Rugged all-metal unit ships ready for placement in any industrial, medical, office or network environment.
PLUG/OUTLETS: Input - NEMA 5-15P Hospital Grade; Output - 4 NEMA 5-15R Hospital Grade ELECTRICAL: 120V AC, 60Hz, 2.1A (Requires
NEMA 5-15R wall receptacle)

Package Includes

IS500HG Isolation Transformer

Instruction manual with warranty information

Features

The IS500HG Medical Grade Isolation Transformer offers line isolation and continuous noise filtering

Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line

Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for

the protection of sensitive electronic equipment in patient-care areas.

Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps.

Secondary neutral-to-ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment

Serves as an inexpensive alternative to dedicated circuits and site electrical upgrades

Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops

Active transformer filtering offers continuous common-mode noise rejection with no wearable parts; unique ability to reduce surges in the

worst of power environments to harmless levels

Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode

Includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 6-ft. power cord, hospital-grade input plug, circuit breaker

overload protection and lighted power switch.

Rugged all-metal unit housing; ships ready for upright tower placement in any industrial, medical, office or network environment

Specifications

OVERVIEW

Amp Capacity 4.2A at 120V AC

Efficiency 96%

Form Factor Small tower format

Input Plug Type NEMA 5-15P-HG

Leakage Current Less than 100 microamps

Let-through Voltage
(Combination Wave)

L-N: 250V L-G: 250V N-G: 0.5V

Let-through Voltage (Ring
Wave)

L-N: 20V L-G: 20V N-G: 0.5V

Noise Suppression Rating 35-65 DB

Nominal Voltage / Frequency 120 /60Hz

Output Receptacle Qty / Type 4 NEMA 5-15R-HG

Over Current Protection 1 X THERMAL, 2 POLE, ROCKER

Shipping Weight 22.20 lbs

Total Harmonic Distortion Less than 1%

Transformer Type Medical-grade, low impedance transformer-based line isolation transformer

Unit Dimensions (HWD/in.) 5.75 x 6.25 x 9.25

VA / Watt Capacity 500

INPUT

Input cord length (ft.) 10

Input cord length (m) 3.05

PHYSICAL

Cooling method Convection

Unit Dimensions (HWD/in) 5.75 x 6.25 x 9.25

Unit Dimensions (HWD/cm) 14.61 x 15.88 x 23.50

CERTIFICATIONS

Certifications Tested to UL60601-1

WARRANTY

Product Warranty Period
(Worldwide)

2-year limited warranty

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?txtModelID=230.
