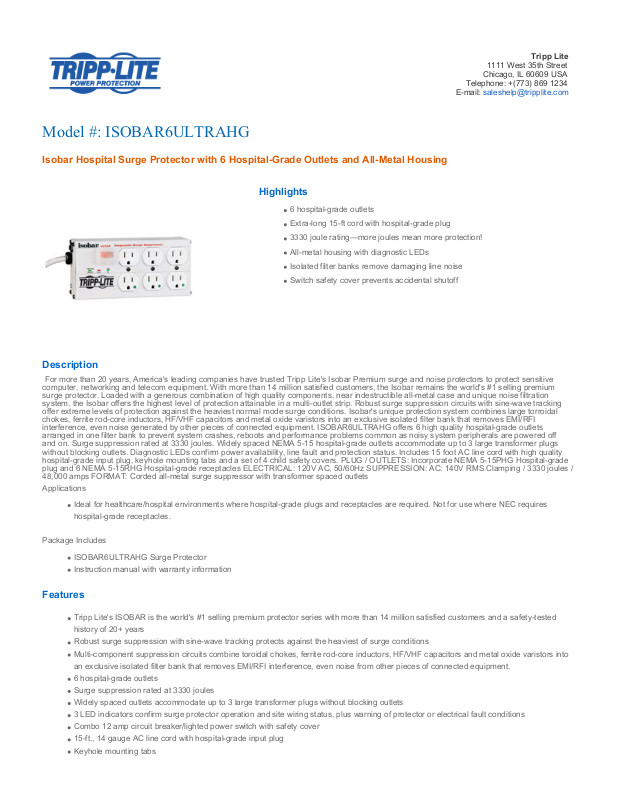

Tripp-Lite ISOBAR6ULTRAHG Data Sheet

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +[phone]

E-mail: [e-mail]

Model #: ISOBAR6ULTRAHG

Isobar Hospital Surge Protector with 6 Hospital-Grade Outlets and All-Metal Housing

Highlights

6 hospital-grade outlets

Extra-long 15-ft cord with hospital-grade plug

3330 joule rating—more joules mean more protection!

All-metal housing with diagnostic LEDs

Isolated filter banks remove damaging line noise

Switch safety cover prevents accidental shutoff

Description

For more than 20 years, America's leading companies have trusted Tripp Lite's Isobar Premium surge and noise protectors to protect sensitive
computer, networking and telecom equipment. With more than 14 million satisfied customers, the Isobar remains the world's #1 selling premium
surge protector. Loaded with a generous combination of high quality components, near indestructible all-metal case and unique noise filtration
system, the Isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking
offer extreme levels of protection against the heaviest normal mode surge conditions. Isobar's unique protection system combines large torroidal
chokes, ferrite rod-core inductors, HF/VHF capacitors and metal oxide varistors into an exclusive isolated filter bank that removes EMI/RFI
interference, even noise generated by other pieces of connected equipment. ISOBAR6ULTRAHG offers 6 high quality hospital-grade outlets
arranged in one filter bank to prevent system crashes, reboots and performance problems common as noisy system peripherals are powered off
and on. Surge suppression rated at 3330 joules. Widely spaced NEMA 5-15 hospital-grade outlets accommodate up to 3 large transformer plugs
without blocking outlets. Diagnostic LEDs confirm power availability, line fault and protection status. Includes 15 foot AC line cord with high quality
hospital-grade input plug, keyhole mounting tabs and a set of 4 child safety covers. PLUG / OUTLETS: Incorporate NEMA 5-15PHG Hospital-grade
plug and 6 NEMA 5-15RHG Hospital-grade receptacles ELECTRICAL: 120V AC, 50/60Hz SUPPRESSION: AC: 140V RMS Clamping / 3330 joules /
48,000 amps FORMAT: Corded all-metal surge suppressor with transformer spaced outlets

Applications

Ideal for healthcare/hospital environments where hospital-grade plugs and receptacles are required. Not for use where NEC requires

hospital-grade receptacles.

Package Includes

ISOBAR6ULTRAHG Surge Protector

Instruction manual with warranty information

Features

Tripp Lite's ISOBAR is the world's #1 selling premium protector series with more than 14 million satisfied customers and a safety-tested

history of 20+ years

Robust surge suppression with sine-wave tracking protects against the heaviest of surge conditions

Multi-component suppression circuits combine toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and metal oxide varistors into

an exclusive isolated filter bank that removes EMI/RFI interference, even noise from other pieces of connected equipment.

6 hospital-grade outlets

Surge suppression rated at 3330 joules

Widely spaced outlets accommodate up to 3 large transformer plugs without blocking outlets

3 LED indicators confirm surge protector operation and site wiring status, plus warning of protector or electrical fault conditions

Combo 12 amp circuit breaker/lighted power switch with safety cover

15-ft., 14 gauge AC line cord with hospital-grade input plug

Keyhole mounting tabs

120V AC, 50/60Hz electrical compatibility

Tested to UL (USA) and cUL (Canada) standards by ETL

Specifications

OVERVIEW

Intended Application Hospital/Medical

Model Type NOT For Patient Areas

OUTPUT

Frequency
compatibility

50 / 60 Hz

Output watts 1440

Circuit Breaker (amps) 12

Outlet quantity / type 6 NEMA 5-15R-HG

Transformer
accommodation

Supports up to 4 large transformer plug accessories without covering remaining outlets

INPUT

Nominal Input
Voltage(s) Supported

120V AC

Recommended
Electrical Service

120V (110-125V)

Input connection type NEMA 5-15P-HG Hospital-Grade

Input cord length (ft.) 15

Input cord length (m) 4.57

Voltage compatibility
(VAC)

120

Maximum Surge Amps 135000

LEDS ALARMS & SWITCHES

Switches Combination AC circuit breaker and two position red illuminated on/off power switch

Diagnostic LEDs PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)

Locking switch cover Transparent locking switch cover prevents accidental shutoff

SURGE / NOISE SUPPRESSION

AC suppression joule
rating

3330

AC suppression
response time

NM = 0 ns.

Protection modes Includes full normal mode surge suppression (H-N)

Clamping voltage
(RMS)

140

AC suppression surge
current rating

48,000 amps

AC suppression
components used

Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.
