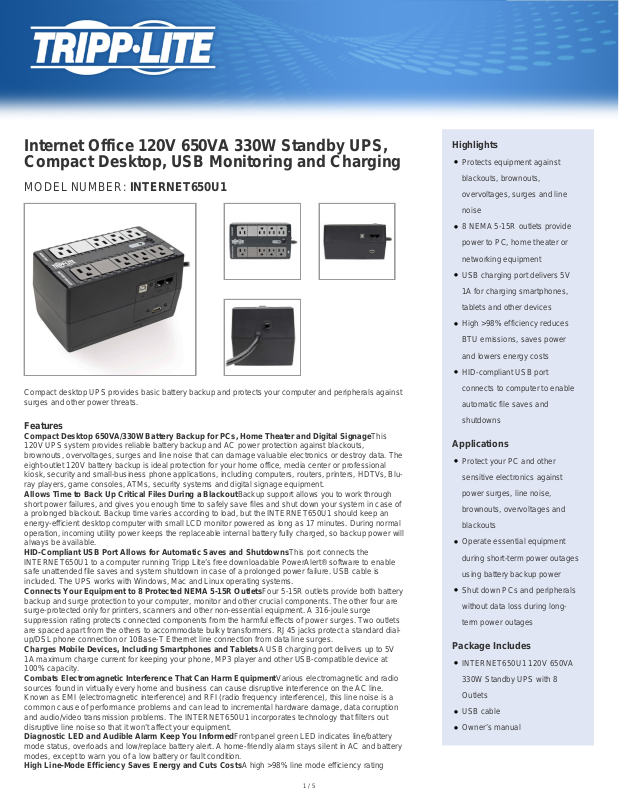

Internet Office 120V 650VA 330W Standby UPS,
Compact Desktop, USB Monitoring and Charging
MODEL NUMBER: INTERNET650U1
Compact desktop UPS provides basic battery backup and protects your computer and peripherals against
surges and other power threats.
Features
Compact Desktop 650VA/330W Battery Backup for PCs, Home Theater and Digital SignageThis
120V UPS system provides reliable battery backup and AC power protection against blackouts,
brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The
eight-outlet 120V battery backup is ideal protection for your home office, media center or professional
kiosk, security and small-business phone applications, including computers, routers, printers, HDTVs, Bluray players, game consoles, ATMs, security systems and digital signage equipment.
Allows Time to Back Up Critical Files During a BlackoutBackup support allows you to work through
short power failures, and gives you enough time to safely save files and shut down your system in case of
a prolonged blackout. Backup time varies according to load, but the INTERNET650U1 should keep an
energy-efficient desktop computer with small LCD monitor powered as long as 17 minutes. During normal
operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will
always be available.
HID-Compliant USB Port Allows for Automatic Saves and ShutdownsThis port connects the
INTERNET650U1 to a computer running Tripp Lite’s free downloadable PowerAlert® software to enable
safe unattended file saves and system shutdown in case of a prolonged power failure. USB cable is
included. The UPS works with Windows, Mac and Linux operating systems.
Connects Your Equipment to 8 Protected NEMA 5-15R OutletsFour 5-15R outlets provide both battery
backup and surge protection to your computer, monitor and other crucial components. The other four are
surge-protected only for printers, scanners and other non-essential equipment. A 316-joule surge
suppression rating protects connected components from the harmful effects of power surges. Two outlets
are spaced apart from the others to accommodate bulky transformers. RJ45 jacks protect a standard dialup/DSL phone connection or 10Base-T Ethernet line connection from data line surges.
Charges Mobile Devices, Including Smartphones and TabletsA USB charging port delivers up to 5V
1A maximum charge current for keeping your phone, MP3 player and other USB-compatible device at
100% capacity.
Combats Electromagnetic Interference That Can Harm EquipmentVarious electromagnetic and radio
sources found in virtually every home and business can cause disruptive interference on the AC line.
Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a
common cause of performance problems and can lead to incremental hardware damage, data corruption
and audio/video transmission problems. The INTERNET650U1 incorporates technology that filters out
disruptive line noise so that it won’t affect your equipment.
Diagnostic LED and Audible Alarm Keep You InformedFront-panel green LED indicates line/battery
mode status, overloads and low/replace battery alert. A home-friendly alarm stays silent in AC and battery
modes, except to warn you of a low battery or fault condition.
High Line-Mode Efficiency Saves Energy and Cuts CostsA high >98% line mode efficiency rating
Highlights
●
Protects equipment against
blackouts, brownouts,
overvoltages, surges and line
noise
●
8 NEMA 5-15R outlets provide
power to PC, home theater or
networking equipment
●
USB charging port delivers 5V
1A for charging smartphones,
tablets and other devices
●
High >98% efficiency reduces
BTU emissions, saves power
and lowers energy costs
●
HID-compliant USB port
connects to computer to enable
automatic file saves and
shutdowns
Applications
●
Protect your PC and other
sensitive electronics against
power surges, line noise,
brownouts, overvoltages and
blackouts
●
Operate essential equipment
during short-term power outages
using battery backup power
●
Shut down PCs and peripherals
without data loss during longterm power outages
Package Includes
●
INTERNET650U1 120V 650VA
330W Standby UPS with 8
Outlets
●
USB cable
●
Owner’s manual
1 / 5
Page 2
reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Compact Housing for Convenient Installation Almost AnywhereThe space-saving housing fits easily
on a desktop, shelf or anywhere else convenient to your workstation. Keyhole mounting tabs allows easy
wall installation. The five-foot power cord with NEMA 5-15P plug connects to a standard AC outlet.
Specifications
OVERVIEW
UPC Code 037332211057
UPS Type Standby
INPUT
Rated input current (Maximum Load) 6A
Nominal Input Voltage(s) Supported 120V AC
UPS Input Connection Type 5-15P
Input Circuit Breakers 7A
UPS Input Cord Length (ft.) 5
UPS Input Cord Length (m) 1.5
Recommended Electrical Service 15A 120V
Input Phase Single-Phase
OUTPUT
Output Volt Amp Capacity (VA) 650
Output Watt Capacity (Watts) 330
Nominal Voltage Details 120v nominal output in battery mode
Frequency Compatibility 50 / 60 Hz
Output Voltage Regulation (Battery
Mode)
UPS Output Receptacles (Surge
Suppression Only)
Hot-Swap PDU options PDUB15 (2U / 8 5-15R outlets)
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery
Mode)
Nominal Output Voltage(s)
Supported
Output Receptacles (8) 5-15R
Individually Controllable Load Banks No
±5%
4 UPS outlets, 4 surge-only outlets
PWM sine wave
110V; 115V; 120V
BATTERY
2 / 5
Page 3
Half Load Runtime (min.) 4.5 minutes (165w)
DC System Voltage (VDC) 12
Battery Recharge Rate (Included
Batteries)
6.5 hours from 10% to 90%
Battery Access Battery access door (see manual)
Battery Replacement Description Replaceable batteries
Expandable Runtime No
USER INTERFACE, ALERTS & CONTROLS
Switches Power switch enables UPS on / off control
Audible Alarm Alarm reports low-battery, fault, overload and replace battery conditions
LED Indicators Status LED reports off / on power status and battery mode operation
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 316
UPS AC Suppression Response
Time
Instantaneous
UPS Dataline Suppression 1 line TEL/DSL or Ethernet
EMI / RFI AC Noise Suppression Yes
PHYSICAL
Included Mounting Accessory
Description
Installation Form Factors Supported
with Included Accessories
Wallmount installation supported using keyhole mounting tabs
Tower; Ultra-compact desktop; Wallmount
Primary Form Factor Desktop
Primary UPS Depth (mm) 185
Primary UPS Height (mm) 105
Primary UPS Width (mm) 110
Shipping Dimensions (hwd / in.) 7.36 x 5.67 x 10.86
Shipping Weight (kg) 2.27
UPS Housing Material ABS
UPS Power Module Dimensions
(hwd, in.)
4.13 x 4.33 x 7.28
UPS Power Module Weight (kg) 1.80
UPS Power Module Weight (lbs.) 3.96
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit (0 to +40 degrees Celsius)
3 / 5
Page 4
Storage Temperature Range +5 to +113 degrees Fahrenheit (-15 to +45 degrees Celsius)
Relative Humidity Up to 90%, non-condensing
AC Mode BTU / Hr. (Full Load) 13.07
AC Mode Efficiency Rating (100%
Load)
COMMUNICATIONS
PowerAlert Software For local monitoring via the UPS’s built-in USB communications port, download PowerAlert Local software at
Communications Cable USB interface cable included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network UPS Tools Compatibility
Communications Interface USB (HID enabled)
LINE / BATTERY TRANSFER
Transfer Time 6 milliseconds (typical) / 10 milliseconds (max)
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
SPECIAL FEATURES
Cold Start (Startup in Battery Mode
During a Power Failure)
>98%
http:// poweralert
95V
145V
Cold-start operation supported
High Availability UPS Features Surge/noise protection
Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
STANDARDS & COMPLIANCE
UPS Certifications Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
Certification Details UL1778:2014 5th Edition; CAN/CSA-C22.2 No.107.3-14; FCC CLASS B
WARRANTY
Product Warranty Period (U.S. &
Canada)
Product Warranty Period (Latin
America)
Product Warranty Period
(International)
Product Warranty Period (Mexico) 3-year limited warranty
Connected Equipment Insurance
(U.S., Canada & Puerto Rico)
3-year limited warranty
3-year limited warranty
2-year limited warranty
$100,000 <a class="insuranceLink" href="// support/insurance-policy">Ultimate Lifetime
Insurance</a>
© 2020 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
4 / 5
Page 5
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https:// products/product-certification-agencies
