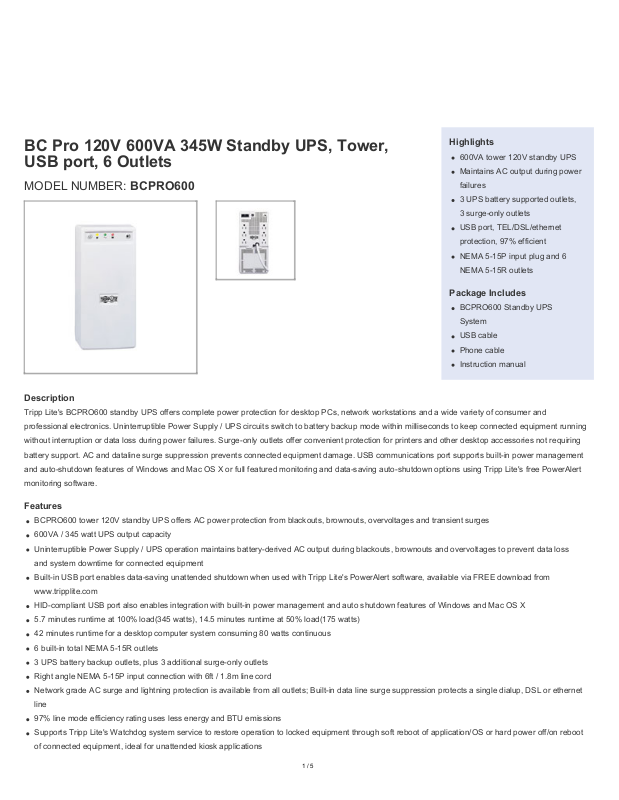

Tripp-Lite BCPRO600 Specifications

BC Pro 120V 600VA 345W Standby UPS, Tower,

Highlights

600VA tower 120V standby UPS

Maintains AC output during power

failures

3 UPS battery supported outlets,

3 surge-only outlets

USB port, TEL/DSL/ethernet

protection, 97% efficient

NEMA 5-15P input plug and 6

NEMA 5-15R outlets

Package Includes

BCPRO600 Standby UPS

System

USB cable

Phone cable

Instruction manual

1 / 5

USB port, 6 Outlets

MODEL NUMBER: BCPRO600

Description

Tripp Lite's BCPRO600 standby UPS offers complete power protection for desktop PCs, network workstations and a wide variety of consumer and

professional electronics. Uninterruptible Power Supply / UPS circuits switch to battery backup mode within milliseconds to keep connected equipment running

without interruption or data loss during power failures. Surge-only outlets offer convenient protection for printers and other desktop accessories not requiring

battery support. AC and dataline surge suppression prevents connected equipment damage. USB communications port supports built-in power management

and auto-shutdown features of Windows and Mac OS X or full featured monitoring and data-saving auto-shutdown options using Tripp Lite's free PowerAlert

monitoring software.

Features

BCPRO600 tower 120V standby UPS offers AC power protection from blackouts, brownouts, overvoltages and transient surges

600VA / 345 watt UPS output capacity

Uninterruptible Power Supply / UPS operation maintains battery-derived AC output during blackouts, brownouts and overvoltages to prevent data loss

and system downtime for connected equipment

Built-in USB port enables data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from

www.tripplite.com

HID-compliant USB port also enables integration with built-in power management and auto shutdown features of Windows and Mac OS X

5.7 minutes runtime at 100% load(345 watts), 14.5 minutes runtime at 50% load(175 watts)

42 minutes runtime for a desktop computer system consuming 80 watts continuous

6 built-in total NEMA 5-15R outlets

3 UPS battery backup outlets, plus 3 additional surge-only outlets

Right angle NEMA 5-15P input connection with 6ft / 1.8m line cord

Network grade AC surge and lightning protection is available from all outlets; Built-in data line surge suppression protects a single dialup, DSL or ethernet

line

97% line mode efficiency rating uses less energy and BTU emissions

Supports Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot

of connected equipment, ideal for unattended kiosk applications

Front panel LEDs indicate line / battery mode and battery replace status; Audible alarm with alarm cancel / self-test button

2 / 5

Hot swappable user battery replacement

Optional PDUB15 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment

Small tower housing supports desk or floor placement

Specifications

OUTPUT

Output Volt Amp Capacity (VA) 600

Output Watt Capacity (Watts) 345

Nominal Output Voltage(s)
Supported

Nominal Voltage Details 115v nominal output in battery mode

Frequency Compatibility 60 Hz

Output Voltage Regulation (Battery
Mode)

Output Receptacles (6) 5-15R

UPS Output Receptacles (Surge
Suppression Only)

Hot-Swap PDU options PDUB15 (2U / 8 5-15R outlets)

Output AC Waveform (AC Mode) Sine wave

Output AC Waveform (Battery Mode) PWM sine wave

INPUT

Rated input current (Maximum Load) 12A

Nominal Input Voltage(s) Supported 120V AC

UPS Input Connection Type 5-15P; Right-Angled

UPS Input Cord Length (ft.) 6

UPS Input Cord Length (m) 1.8

110V; 115V; 120V

+/- 5%

3 UPS outlets, 3 surge-only outlets

Recommended Electrical Service 15A 120V

Input Phase Single-Phase

BATTERY

Full Load Runtime (min.) 5.7 min. (345w)

Half Load Runtime (min.) 14.5 min. (175w)

DC System Voltage (VDC) 12

Battery Recharge Rate (Included
Batteries)

Less than 4.5 hours from 10% to 90%

Internal UPS Replacement Battery
Cartridge

Battery Access Battery access door

Battery Replacement Description Hot-swappable, user replaceable batteries

Expandable Runtime No

USER INTERFACE, ALERTS & CONTROLS

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation

RBC51

Alarm Cancel Operation

Audible Alarm Audible alarm indicates power-failure and low-battery conditions

LED Indicators 3 LEDs indicate line power, battery power and battery low/replace status

SURGE / NOISE SUPPRESSION

UPS AC Suppression Joule Rating 510

UPS AC Suppression Response
Time

UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet

EMI / RFI AC Noise Suppression Yes

PHYSICAL

Installation Form Factors Supported
with Included Accessories

Installation Form Factors Supported
with Optional Accessories

Primary Form Factor Tower

UPS Power Module Dimensions
(hwd, in.)

Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate
low-battery status

Instantaneous

Tower

Wallmount(

10.8 x 5.2 x 7.5

UPSWM

- tower mounting kit)

UPS Power Module Dimensions
(hwd, cm)

UPS Power Module Weight (lbs.) 15.2

UPS Power Module Weight (kg) 6.9

UPS Shipping Dimensions (hwd / in.) 14 x 8.5 x 11

UPS Shipping Dimensions (hwd /
cm)

Shipping Weight (lbs.) 17.2

Shipping Weight (kg) 7.8

UPS Housing Material PVC

27.3 x 13.3 x 19

35.6 x 21.6 x 27.9

ENVIRONMENTAL

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load) 36.3

Battery Mode BTU / Hr. (Full Load) 330.8

AC Mode Efficiency Rating (100%
Load)

COMMUNICATIONS

Communications Interface USB (HID enabled)

PowerAlert Software Free download from www.tripplite.com

Communications Cable USB interface cable included

WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

Network UPS Tools Compatibility

LINE / BATTERY TRANSFER

Transfer Time 2-4 milliseconds

Low Voltage Transfer to Battery
Power (Setpoint)

High Voltage Transfer to Battery
Power (Setpoint)

SPECIAL FEATURES

Cold Start (Startup in Battery Mode
During a Power Failure)

97%

NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at
http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

99 (adjustable to 83 via back panel potentiometer)

139

Cold-start operation supported

High Availability UPS Features Hot swappable batteries

Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS

CERTIFICATIONS

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)

WARRANTY

Product Warranty Period (Worldwide) 2-year limited warranty
