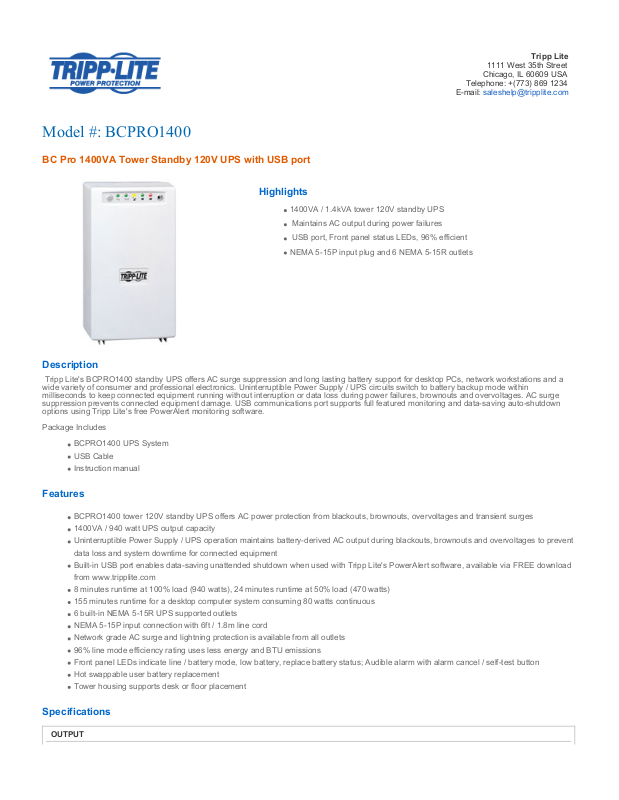

Tripp Lite BCPRO1400 User Manual

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +[phone]

E-mail: [e-mail]

Model #: BCPRO1400

BC Pro 1400VA Tower Standby 120V UPS with USB port

Highlights

1400VA / 1.4kVA tower 120V standby UPS

Maintains AC output during power failures

USB port, Front panel status LEDs, 96% efficient

NEMA 5-15P input plug and 6 NEMA 5-15R outlets

Description

Tripp Lite's BCPRO1400 standby UPS offers AC surge suppression and long lasting battery support for desktop PCs, network workstations and a
wide variety of consumer and professional electronics. Uninterruptible Power Supply / UPS circuits switch to battery backup mode within
milliseconds to keep connected equipment running without interruption or data loss during power failures, brownouts and overvoltages. AC surge
suppression prevents connected equipment damage. USB communications port supports full featured monitoring and data-saving auto-shutdown
options using Tripp Lite's free PowerAlert monitoring software.

Package Includes

BCPRO1400 UPS System
USB Cable
Instruction manual

Features

BCPRO1400 tower 120V standby UPS offers AC power protection from blackouts, brownouts, overvoltages and transient surges
1400VA / 940 watt UPS output capacity
Uninterruptible Power Supply / UPS operation maintains battery-derived AC output during blackouts, brownouts and overvoltages to prevent
data loss and system downtime for connected equipment
Built-in USB port enables data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download
from www.tripplite.com
8 minutes runtime at 100% load (940 watts), 24 minutes runtime at 50% load (470 watts)
155 minutes runtime for a desktop computer system consuming 80 watts continuous
6 built-in NEMA 5-15R UPS supported outlets
NEMA 5-15P input connection with 6ft / 1.8m line cord
Network grade AC surge and lightning protection is available from all outlets
96% line mode efficiency rating uses less energy and BTU emissions
Front panel LEDs indicate line / battery mode, low battery, replace battery status; Audible alarm with alarm cancel / self-test button
Hot swappable user battery replacement
Tower housing supports desk or floor placement

Specifications

OUTPUT

Output Volt Amp Capacity
(VA)

1400

Output kVA capacity (kVA) 1.4

Output Watt Capacity
(watts)

940

Nominal Output Voltage(s)
Supported

115V; 120V

Frequency compatibility 60 Hz

Output voltage regulation
(Battery mode)

115V (+/- 5%)

Built-in UPS output
receptacles

6 5-15R outlet(s)

Output AC waveform (AC
mode)

Sine wave

Output AC waveform
(battery mode)

PWM sine wave

INPUT

Rated input current (at
maximum load)

9.2A

Nominal Input Voltage(s)
Supported

120V AC

UPS input connection type 5-15P

Input circuit breaker 15A

UPS Input cord length (ft.) 6

UPS Input cord length (m) 1.8

Recommended Electrical
Service

15A 120V

Input cord length (ft.) 6

Input cord length (m) 1.8

BATTERY

Full load runtime (minutes) 8 min. (940w)

Half load runtime (minutes) 24 min. (470w)

DC system voltage (VDC) 36

Battery recharge rate
(included batteries)

Less than 4 hours from 10% to 90%

Replacement battery
cartridge (internal UPS
battery replacement)

RBC53

Battery Access Battery access door

Battery replacement
description

Hot-swappable, user replaceable batteries

LEDS ALARMS & SWITCHES

LED Indicators 5 LEDs indicate line power, battery power, battery low/replace and overload status

Alarms Audible alarm indicates power-failure and low-battery conditions

Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate

low-battery status

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation

SURGE / NOISE SUPPRESSION

UPS AC suppression joule
rating

510

UPS AC suppression
response time

Instantaneous

EMI / RFI AC noise
suppression

Yes

AC suppression joule rating 510

AC suppression response
time

Instantaneous

PHYSICAL

Installation form factors
supported with included
accessories

Tower

Installation form factors
supported with optional
accessories

Wallmount (UPSWM - tower mounting kit)

Primary form factor Tower

UPS / Power Module
dimensions in primary form
factor (height x width x
depth / inches)

12.8 x 7.5 x 9

UPS / Power Module
dimensions in primary form
factor (height x width x
depth / cm)

32.4 x 19 x 22.9

UPS / Power Module weight
(lbs)

36.4

UPS / Power Module weight
(kg)

16.5

UPS Shipping dimensions
(height x width x depth /
inches)

16.5 x 11.5 x 13

UPS Shipping dimensions
(height x width x depth / cm)

41.9 x 29.2 x 33

Shipping weight (lbs) 42

Shipping weight (kg) 19.1

UPS housing material Polycarbonate

ENVIRONMENTAL

Operating Temperature
Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full
load)

133.2

Battery mode BTU / hr. (full
load)

435.8

COMMUNICATIONS

Communications interface USB

PowerAlert software Free download from www.tripplite.com

Communications cable USB interface cable included

WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

Transfer time 2-4 milliseconds

Low voltage transfer to
battery power (setpoint)

99

High voltage transfer to
battery power (setpoint)

143

SPECIAL FEATURES

Cold Start (startup in
battery mode during a
power failure)

Cold-start operation supported

High availability UPS
features

Hot swappable batteries

Green & high efficiency
features

Greater than 95% efficiency - GREEN UPS

CERTIFICATIONS

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B

(EMI)

WARRANTY

Product Warranty Period
(Worldwide)

2-year limited warranty

Connected Equipment
Insurance (U.S., Canada &
Puerto Rico)

$200,000 Ultimate Lifetime Insurance

Related Items

Optional Products

Related Model Description Qty.

CT120 Instant-Read- AC Outlet Circuit Tester 1

DCATV Network Surge Suppressor - Essential protection for TV/VCR coaxial lines 1

DNET1 Network Surge Suppressor - Essential protection for data and communication lines 1

DTEL2 Network Surge Suppressor - Essential protection for data and communication lines 1

UPSWM Wallmount Bracket and installation accessories (4 washers, 4 screws, 1 Velcro safety

strap)

1

U022-010 10-ft. USB2.0 A/B Gold Device Cable

(A Male to B Male)

1

WATCHDOGSW WatchDog Service Monitoring / Reboot Software 1

WEXT3-BCPRO 3-Year Extended Warranty - For BC Pro Models 1

WEXT5-BCPRO 5-Year Extended Warranty - For BC Pro Models 1

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?variables.txtModelID=8.

Copyright © 2013 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous

improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
