Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +[phone]

E-mail: [e-mail]

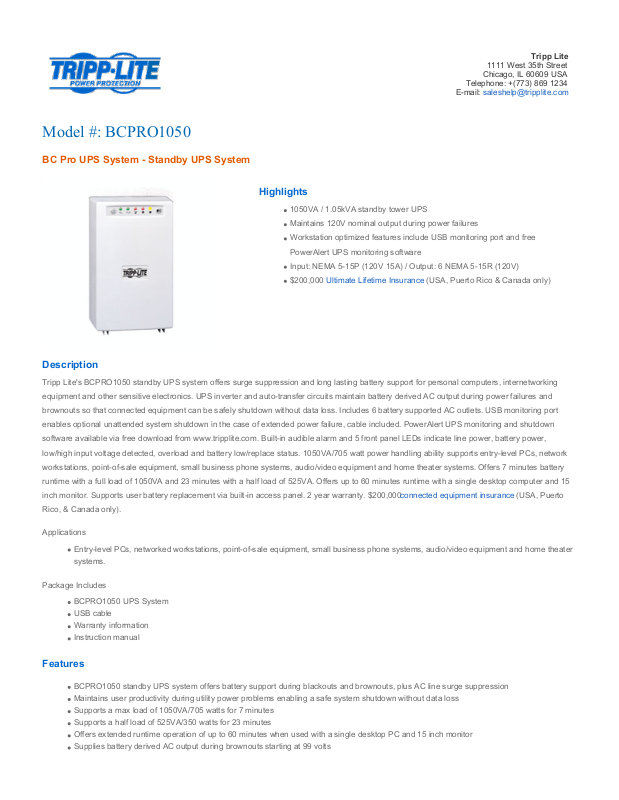

Model #: BCPRO1050

BC Pro UPS System - Standby UPS System

Highlights

1050VA / 1.05kVA standby tower UPS

Maintains 120V nominal output during power failures

Workstation optimized features include USB monitoring port and free

PowerAlert UPS monitoring software

Input: NEMA 5-15P (120V 15A) / Output: 6 NEMA 5-15R (120V)

$200,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)

Description

Tripp Lite's BCPRO1050 standby UPS system offers surge suppression and long lasting battery support for personal computers, internetworking

equipment and other sensitive electronics. UPS inverter and auto-transfer circuits maintain battery derived AC output during power failures and

brownouts so that connected equipment can be safely shutdown without data loss. Includes 6 battery supported AC outlets. USB monitoring port

enables optional unattended system shutdown in the case of extended power failure, cable included. PowerAlert UPS monitoring and shutdown

software available via free download from www.tripplite.com. Built-in audible alarm and 5 front panel LEDs indicate line power, battery power,

low/high input voltage detected, overload and battery low/replace status. 1050VA/705 watt power handling ability supports entry-level PCs, network

workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Offers 7 minutes battery

runtime with a full load of 1050VA and 23 minutes with a half load of 525VA. Offers up to 60 minutes runtime with a single desktop computer and 15

inch monitor. Supports user battery replacement via built-in access panel. 2 year warranty. $200,000connected equipment insurance (USA, Puerto

Rico, & Canada only).

Applications

Entry-level PCs, networked workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater
systems.

Package Includes

BCPRO1050 UPS System
USB cable
Warranty information
Instruction manual

Features

BCPRO1050 standby UPS system offers battery support during blackouts and brownouts, plus AC line surge suppression
Maintains user productivity during utility power problems enabling a safe system shutdown without data loss
Supports a max load of 1050VA/705 watts for 7 minutes
Supports a half load of 525VA/350 watts for 23 minutes
Offers extended runtime operation of up to 60 minutes when used with a single desktop PC and 15 inch monitor
Supplies battery derived AC output during brownouts starting at 99 volts

Attractive gray small footprint upright tower configuration
Includes 6 battery supported NEMA 5-15R output receptacles, 6 foot AC line cord (NEMA 5-15P input connection)
Built-in USB port enables unattended shutdown without data loss during extended power failures, includes cable
Communications port supports on battery, low battery and power restored messaging - plus additional data regarding AC line voltage and
battery charge level
PowerAlert UPS monitoring and shutdown software available via free download from http://www.tripplite.com
Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting
completely locked computers by automatically switching UPS power off and back on again
Two front panel switches support power off/on control, alarm cancel and UPS self test functions
Built-in audible alarm and 5 front panel LEDs indicate line power, battery power, battery low/replace, low/high input voltage detected and
overload status
1050VA power handling ability supports a variety of computer, internetworking, telecom and consumer electronics equipment
Supports hot swappable user battery replacement via built-in access panel
Compatible with 120V/60Hz applications
Tested to UL1778 (USA), cUL (Canada), NOM (Mexico), Class B (Emissions)
2 year manufacturerâs warranty
$200,000connected equipment insurance (USA, Puerto Rico, & Canada only)

Specifications

SYSTEM OVERVIEW

Voltage compatibility 120V AC

Frequency
compatibility

60Hz

OUTPUT

Output VA 1050

Output watts 705

Output nominal
voltage

120V AC

Output voltage
regulation

BATTERY MODE: PWM sine wave output 115V +/-5%

Output frequency
regulation

LINE MODE: Passes line frequency of 60Hz +/-10%
BATTERY MODE: Inverter output regulated to 60Hz +/-0.5Hz

Outlet quantity / type 6 NEMA 5-15R

INPUT

Maximum input amps 6.7A / 760 watts

Input connection type NEMA 5-15P space saving right angle plug

Input cord length 6 ft., 16 gauge

Recommended
Electrical Service

15A 120V

BATTERY

Full load runtime 7 minutes (1050VA)

Half load runtime 23 minutes (525VA)

DC system voltage 18 V DC

Typical battery
lifespan

3-6 years, depending on usage

Battery recharge rate 2-4 hours to 90%

Replacement Battery
Cartridge

RBC52 (3)

LEDS ALARMS & SWITCHES

Front panel LEDs 5 front panel LEDs indicate line power status, battery power status, battery low/replace status, low/high input voltage

detected and overload status
