Owner’s Manual
VGA with Audio Over Cat5
Extender Wallplate Kit
Model: B130-101A-WP
Safety Information 2
Package Contents 2
Product Features 2-3
Optional Accessories 3
Specifications 3
Features 4
Installation 5
Warranty & Warranty Registration 6
Español 7
Français 13
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
Follow these instructions to ensure proper operation and prevent damage
Note:
to this device and its connected equipment.
Copyright © 2009 Tripp Lite. All rights reserved.
All trademarks are the property of their respective owners.
1
Safety Information
• To reduce the risk of electric shock, do not expose the product to moisture.
• Operate this product using only the included external power supply. Use
of other power supplies could impair performance, damage the product, or
cause fire.
• Use only recommended accessories to avoid fire, shock or other hazards.
• Unplug this product before cleaning. Use a damp cloth for cleaning. Do
not use cleaning fluids or aerosols, which could enter the unit and cause
damage, fire or electrical shock.
• Do not attempt to service this unit. Instead, disconnect it and visit
www.tripplite.com/support.
• Use of this equipment in life support applications where failure of this
equipment can reasonably be expected to cause the failure of the life
support equipment or to significantly affect its safety or effectiveness
is not recommended. Do not use this equipment in the presence of a
flammable anesthetic mixture with air, oxygen or nitrous oxide.
Package Contents
• Local Unit
• Remote Unit
• VGA with Audio Splitter Cable
• (2) 5V, 2.0A DC Power Supplies
• (2) Wallplate Screw Sets
• 110 Punchdown Tool
• Screwdriver
• Owner’s Manual
Product Features
• Extends a VGA* and audio signal up to 500 ft. (150 m) using standard
Cat5/5e/6 cable (or up to 1000 ft. at 1024x768 using Zero-Skew UTP
cable)
* Supports VGA, SVGA, XGA, UXGA and WUXGA monitors.
2
Product Features
• Provides connections for optional local monitor and speakers
• Features built-in Equalization and Gain controls to adjust the video image
• Supports video resolutions up to 1920x1440
• No drivers required
Optional Accessories
• P504-Series Monitor Cables with RGB Coax and Audio, HD15 Male/
Male, Mini-Stereo 3.5 mm Male/Male
• P312-Series 3.5 mm Mini-Stereo Cable
• P502-Series Monitor Cables with RGB Coax, HD15 Male/Male
• P524-Series Zero-Skew UTP Bulk Cable
• N020-01K-GY Cat5e Bulk Stranded Cable, 1000 ft.
• N022-01K-GY Cat5e Bulk Solid Cable, 1000 ft.
• N222-01K-GY Cat6 Bulk Solid Cable, 1000 ft.
Specifications
Signal Type VGA, SVGA, XGA, UXGA and WUXGA
Video Amplifier Bandwidth 350 Mbps
Input DDC Signal 0.7 Volts p-p (TTL)
Signal Noise Ration 90 dB
Local Unit Ports (1) HD15 Female, (1) 3.5 mm Female,
(1) 110 Punchdown Female
Remote Unit Ports (1) HD15 Female, (1) 3.5 mm Female,
(1) 110 Punchdown Female
Power Supply (2) 5V, 2.0A DC Power Supplies
Dimensions (Local Unit) 2.75 in. (W) x 4.5 in. (H) x 1.1 in. (D)
Dimensions (Remote Unit) 2.75 in. (W) x 4.5 in. (H) x 1.1 in. (D)
Local Unit Weight 0.2 lb
Remote Unit Weight 0.2 lb
Specifications are subject to change without notice. Mass and dimensions are
Note:
approximate; please take the actual products as the standard.
3

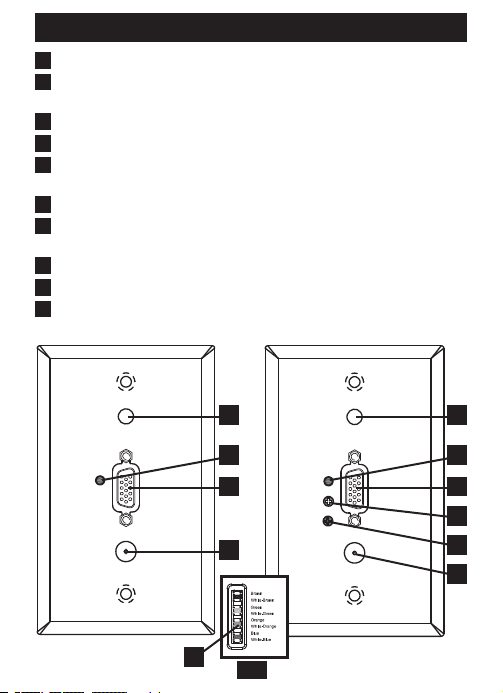

Features
Power
Local
Audio
DC5V, 2.0A
Power
Gain
EQ
Remote
Audio
DC5V, 2.0A
Source Video-In Port:
1
Local Unit Power LED:
2
supply is connected and the unit is receiving power.
Source Audio-In Port:
3
Power Jack:
4
110 Punchdown Connector:
5
Punchdown Connectors on the local and remote units.
Remote Unit Video-Out Port:
6
Remote Unit Power LED:
7
power supply is connected and the unit is receiving power.
Remote Unit Audio-Out Port:
8
Gain Adjustment:
9
EQ Adjustment:
10
Local Unit (By Source) Remote Unit (By Display)
HD15 Female Connector.
This LED illuminates when the external power
3.5 mm Female Connector.
The 5V, 2A external power supply plugs in here.
Connect Cat5/5e/6 cable between the 110
HD15 Female Connector.
This LED illuminates when the external
3.5 mm Female Connector.
Adjusts brightness.
Adjusts equalization length.
3 8
2 7
1 6
4
9
10
4
5
Rear
4

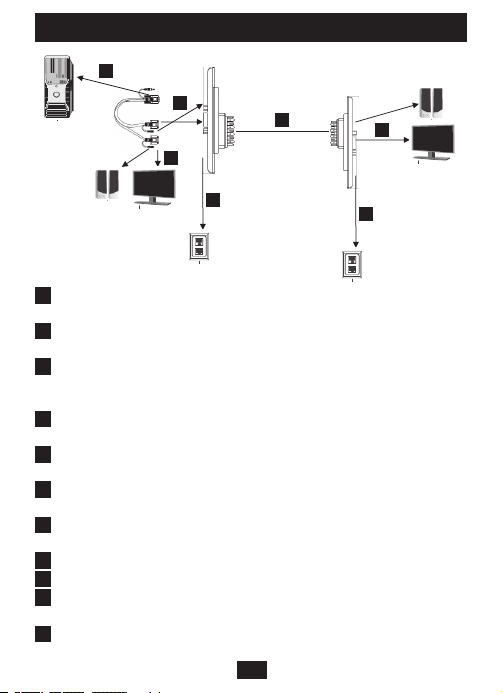

Installation
1
2
3
5
6
4
Connect the Male end of the VGA with audio splitter cable to the HD15
1
and 3.5 mm ports on the source computer.
Connect one of the Female ends of the VGA with audio splitter cable to the
2
Local Unit’s HD15 and 3.5 mm ports using a VGA cable and audio cable.
(Optional) Connect a local monitor and speakers to the remaining
3
Female connectors of the VGA with audio splitter cable using a VGA
7
cable and audio cable.
Connect the external power supply to the power jack on the local unit
4
and plug it into an appropriate power source.
Connect the 110 Punchdown Connector on the local unit to the 110
5
Punchdown Connector on the remote unit using Cat5/5e/6 cable.
Connect the HD15 and 3.5 mm ports on the remote unit to a monitor
6
and speakers using a VGA cable and audio cable.
Connect the external power supply to the power jack on the remote unit
7
and plug it into an appropriate power source.
Turn the display(s) on first.
8
Turn on the computer.
9
If the video on your monitor is either too dark or too light, use the Gain
10
Adjustment on the remote unit.
If the video on your monitor is fuzzy, or shows a ghosting effect, use the
11
EQ Adjustment on the remote unit.
5
Warranty & Warranty Registration
1-Year Limited Warranty
TRIPP LITE warrants its products to be free from defects in materials and workmanship for
a period of one (1) year from the date of initial purchase. TRIPP LITE’s obligation under this
warranty is limited to repairing or replacing (at its sole option) any such defective products. To
obtain service under this warranty, you must obtain a Returned Material Authorization (RMA)
number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned
to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid
and must be accompanied by a brief description of the problem encountered and proof of date and
place of purchase. This warranty does not apply to equipment which has been damaged by accident,
negligence or misapplication or has been altered or modied in any way.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties;
therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR
DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE. Specically, TRIPP LITE is not liable for any costs, such as lost prots or revenue, loss
of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims
by third parties, or otherwise.
WARRANTY REGISTRATION
Visit www.tripplite.com/warranty today to register the warranty for your new Tripp Lite product.
You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
WEEE Compliance Information for Tripp Lite Customers and Recyclers
(European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing
regulations, when customers buy new electrical and electronic equipment from Tripp Lite they
are entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on
the country)
• Send the new equipment back for recycling when this ultimately becomes waste
Tripp Lite follows a policy of continuous improvement. Product specications are subject to
change without notice.
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
6
