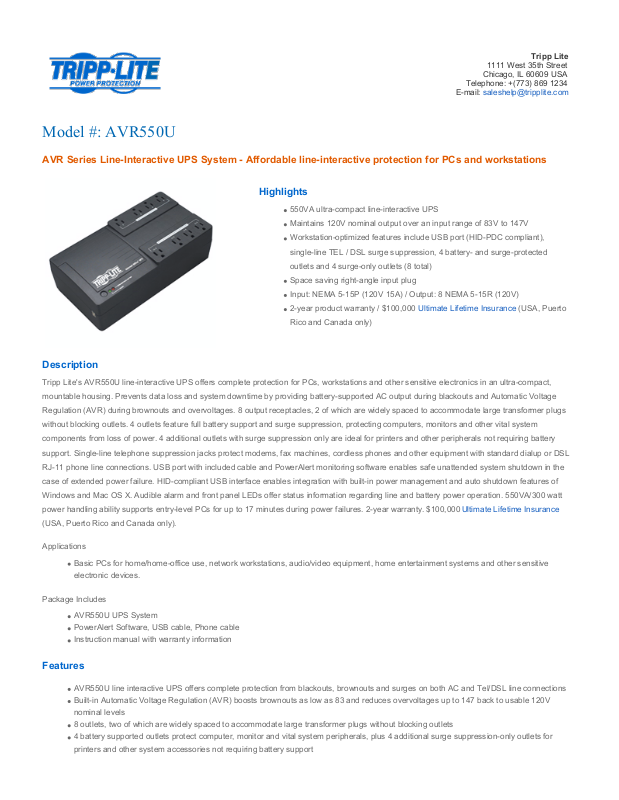

Model #: AVR550U

AVR Series Line-Interactive UPS System - Affordable line-interactive protection for PCs and workstations

Highlights

550VA ultra-compact line-interactive UPS

Maintains 120V nominal output over an input range of 83V to 147V

Workstation-optimized features include USB port (HID-PDC compliant),

single-line TEL / DSL surge suppression, 4 battery- and surge-protected

outlets and 4 surge-only outlets (8 total)

Space saving right-angle input plug

Input: NEMA 5-15P (120V 15A) / Output: 8 NEMA 5-15R (120V)

2-year product warranty / $100,000 Ultimate Lifetime Insurance (USA, Puerto

Rico and Canada only)

Description

Tripp Lite's AVR550U line-interactive UPS offers complete protection for PCs, workstations and other sensitive electronics in an ultra-compact,

mountable housing. Prevents data loss and system downtime by providing battery-supported AC output during blackouts and Automatic Voltage

Regulation (AVR) during brownouts and overvoltages. 8 output receptacles, 2 of which are widely spaced to accommodate large transformer plugs

without blocking outlets. 4 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system

components from loss of power. 4 additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery

support. Single-line telephone suppression jacks protect modems, fax machines, cordless phones and other equipment with standard dialup or DSL

RJ-11 phone line connections. USB port with included cable and PowerAlert monitoring software enables safe unattended system shutdown in the

case of extended power failure. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of

Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 550VA/300 watt

power handling ability supports entry-level PCs for up to 17 minutes during power failures. 2-year warranty. $100,000 Ultimate Lifetime Insurance

(USA, Puerto Rico and Canada only).

Applications

Basic PCs for home/home-office use, network workstations, audio/video equipment, home entertainment systems and other sensitive
electronic devices.

Package Includes

AVR550U UPS System
PowerAlert Software, USB cable, Phone cable
Instruction manual with warranty information

Features

AVR550U line interactive UPS offers complete protection from blackouts, brownouts and surges on both AC and Tel/DSL line connections
Built-in Automatic Voltage Regulation (AVR) boosts brownouts as low as 83 and reduces overvoltages up to 147 back to usable 120V
nominal levels
8 outlets, two of which are widely spaced to accommodate large transformer plugs without blocking outlets
4 battery supported outlets protect computer, monitor and vital system peripherals, plus 4 additional surge suppression-only outlets for
printers and other system accessories not requiring battery support

Provides battery derived AC output during blackouts, voltage boost during brownouts and voltage reduction during overvoltages
550VA/300 watt power handling ability supports a variety of PCs, workstations and other sensitive electronics
Supports entry-level PC systems up to 17 minutes during blackout conditions
Built-in single line Tel/DSL line surge suppression protects modem, fax machine or cordless phone
USB port, PowerAlert software and cabling offer safe unattended shutdown without data loss during extended outages
HID compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
Supports Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard
power off/on reboot of connected equipment - ideal for unattended kiosk applications
Hot swappable user battery replacement supported via battery access door
Space saving, ultra-compact housing fits almost anywhere
Keyhole mounting flanges enable secure wallmount installation

Specifications

SYSTEM OVERVIEW

Voltage compatibility 120VAC

Frequency
compatibility

60Hz

OUTPUT

Output VA 550

Output watts 300

Output nominal
voltage

120VAC

Output voltage
regulation

Sine wave 120V +8% / -21% (line mode) / PWM sine wave 115V +/-5% (battery mode)

Output frequency
regulation

LINE MODE: Passes line frequency of 60Hz +/-10% BATTERY MODE: Inverter output regulated to 60Hz +/-0.5Hz

Outlet quantity / type 8 NEMA 5-15R

INPUT

Maximum input amps 12A

Input connection type NEMA 5-15P, right-angle plug

Input cord length 6ft / 1.8m

Recommended
Electrical Service

120V 15A

BATTERY

Full load runtime 3 minutes

Half load runtime 9 minutes

DC system voltage 12 VDC

Typical battery
lifespan

3-6 years, depending on usage

Battery recharge rate 2-4 hours to 90%

VOLTAGE REGULATION

Voltage regulation
description

Automatic voltage regulation maintains 120V nominal over an input voltage range of 83 to 147

Overvoltage
correction

Output voltage is reduced by 12% as line voltage increases to 128V or higher

Brownout correction Output voltage is boosted by 14% as line voltage decreases to 104V or lower

LEDS ALARMS & SWITCHES

Front panel LEDs 2 LEDs indicate line power, battery power status

Alarms Audible alarm beeps at regular intervals to indicate battery backup operation. Alarm also sounds during self-test

operation. Alarm can be disabled altogether via PowerAlert software
