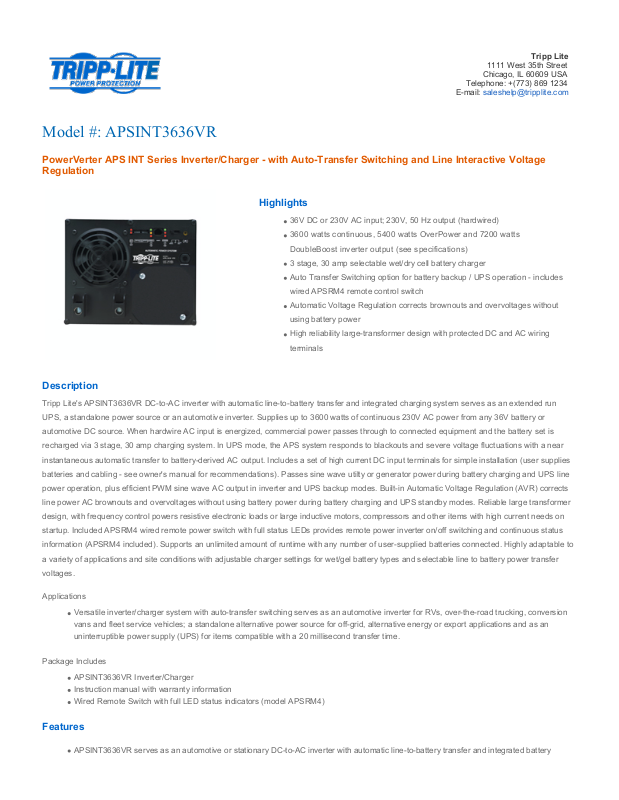

Tripp Lite APSINT3636VR User Manual

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +[phone]

E-mail: [e-mail]

Model #: APSINT3636VR

PowerVerter APS INT Series Inverter/Charger - with Auto-Transfer Switching and Line Interactive Voltage
Regulation

Highlights

36V DC or 230V AC input; 230V, 50 Hz output (hardwired)

3600 watts continuous, 5400 watts OverPower and 7200 watts

DoubleBoost inverter output (see specifications)

3 stage, 30 amp selectable wet/dry cell battery charger

Auto Transfer Switching option for battery backup / UPS operation - includes

wired APSRM4 remote control switch

Automatic Voltage Regulation corrects brownouts and overvoltages without

using battery power

High reliability large-transformer design with protected DC and AC wiring

terminals

Description

Tripp Lite's APSINT3636VR DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run

UPS, a standalone power source or an automotive inverter. Supplies up to 3600 watts of continuous 230V AC power from any 36V battery or

automotive DC source. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is

recharged via 3 stage, 30 amp charging system. In UPS mode, the APS system responds to blackouts and severe voltage fluctuations with a near

instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies

batteries and cabling - see owner's manual for recommendations). Passes sine wave utilty or generator power during battery charging and UPS line

power operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Built-in Automatic Voltage Regulation (AVR) corrects

line power AC brownouts and overvoltages without using battery power during battery charging and UPS standby modes. Reliable large transformer

design, with frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on

startup. Included APSRM4 wired remote power switch with full status LEDs provides remote power inverter on/off switching and continuous status

information (APSRM4 included). Supports an unlimited amount of runtime with any number of user-supplied batteries connected. Highly adaptable to

a variety of applications and site conditions with adjustable charger settings for wet/gel battery types and selectable line to battery power transfer

voltages.

Applications

Versatile inverter/charger system with auto-transfer switching serves as an automotive inverter for RVs, over-the-road trucking, conversion

vans and fleet service vehicles; a standalone alternative power source for off-grid, alternative energy or export applications and as an

uninterruptible power supply (UPS) for items compatible with a 20 millisecond transfer time.

Package Includes

APSINT3636VR Inverter/Charger

Instruction manual with warranty information

Wired Remote Switch with full LED status indicators (model APSRM4)

Features

APSINT3636VR serves as an automotive or stationary DC-to-AC inverter with automatic line-to-battery transfer and integrated battery

charger

Supports 230V AC output from a 230V AC line power source or 36V DC battery source

20 millisecond automatic transfer between line and battery power supports UPS protection during blackouts and severe voltage fluctuations

for equipment compatible with a one cycle transfer time

3600 watts continuous AC output in inverter mode

Double Boost inverter output supports momentary startup loads up to 200% of the continuous rating for up to 10 seconds (see

specification chart)

OverPower inverter output supports longer duration overloads to 150% for 1-60 minutes under ideal battery and temperature conditions.

(For best results, utilize OverPower usage for as short of a duration as possible, ensure battery bank and cabling is able to provide full

nominal DC voltage under load and allow inverter/charger to fully cool before and after OverPower usage.)

3 stage, 30 amp battery charger with adjustable settings for wet/gel battery types offers fast, reliable battery recharging

Protected hardwire bolt-down input lugs safely accept heavy gauge input wiring from attached battery bank

Protected hardwire output passes 120V line power or inverter output through to connected equipment

Reliability enhanced large-transformer design with secure mounting flanges and protected DC wiring terminals

Moisture-resistant construction enables vehicular or marine operation in high humidity environments

3 position operating mode switch supports "AUTO" mode to enable automatic transfer between DC and AC modes, CHARGE-ONLY to

maintain a full battery charge when AC is present without auto transfer and SYSTEM OFF settings

Set of six front panel LEDs display AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status

Set of 4 configuration dipswitches support wet/gel battery charging profiles, adjustable 259/264V high voltage auto transfer during

overvoltages and selectable 144/163/182/201V AC low voltage auto transfer during brownouts

Set of 4 additional configuration dipswitches support 4 levels of charger limiting relative to output load size, a battery equalization program

and battery charger low/high settings

Resettable 12A charger AC input breaker and resettable 20A AC output breaker and automatic 2 speed cooling fan protect the inverter from

load and temperature related failures

Grounding lug properly connects the inverter/charger system to earth ground or vehicle grounding system

Automatic overload and thermal shutoff safely turns off inverter as excessive loads or overheating conditions develop

Front panel remote control connector enables remote off/on switching (APSRM4 remote control switch with status LED display and 50 ft

cable included). APSRM4 accessory also includes user configurable jacks to support inverter shutoff or startup as a vehicle ignition is

engaged

Load sensing control dial enables adjustable load threshold required to automatically turn the inverter on and off in DC mode as load

conditions change

Specifications

OVERVIEW

Intended
Application

Emergency Home Power

SYSTEM OVERVIEW

Voltage
compatibility

36VDC / 230VAC

Frequency
compatibility

50 Hz

OUTPUT

Output watts INVERTER MODE - 3600 watts continuous, Double Boost rated to 7200 watts peak (up to 10 seconds). Overpower

rating supports longer term overloads to 5400 watts for up to 15 seconds prior to inverter shutoff.

Output nominal
voltage

230V

Output voltage
regulation

LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC):
Maintains PWM sine wave output voltage of 230 VAC (+/-5%).

Output frequency
regulation

50 Hz (+/- 0.3 Hz)

Outlet quantity /
type

Hardwire

Overload
protection

Includes 12A input breaker dedicated to the charging system and 20A output breaker for AC output loads.

Continuous output
capacity (watts)

3600
