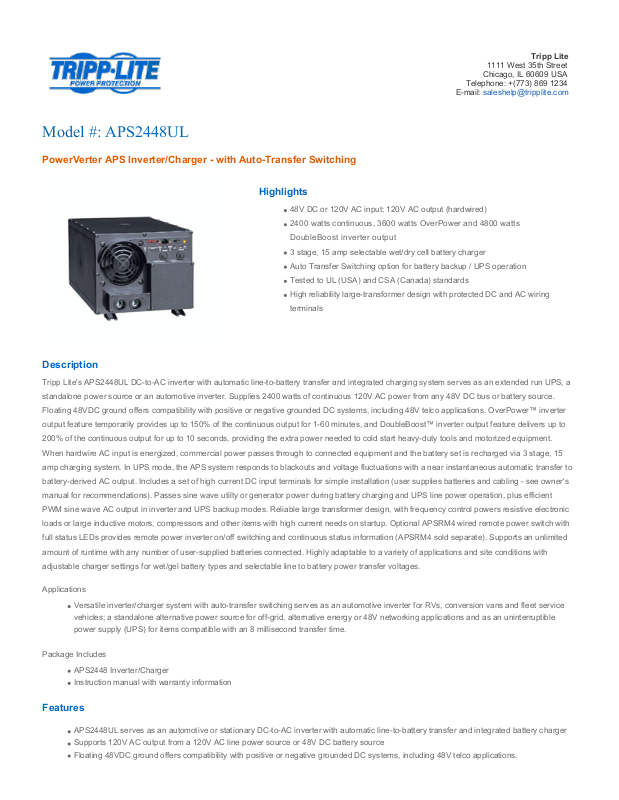

Tripp Lite APS2448UL User Manual

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +[phone]

E-mail: [e-mail]

Model #: APS2448UL

PowerVerter APS Inverter/Charger - with Auto-Transfer Switching

Highlights

48V DC or 120V AC input; 120V AC output (hardwired)

2400 watts continuous, 3600 watts OverPower and 4800 watts

DoubleBoost inverter output

3 stage, 15 amp selectable wet/dry cell battery charger

Auto Transfer Switching option for battery backup / UPS operation

Tested to UL (USA) and CSA (Canada) standards

High reliability large-transformer design with protected DC and AC wiring

terminals

Description

Tripp Lite's APS2448UL DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a

standalone power source or an automotive inverter. Supplies 2400 watts of continuous 120V AC power from any 48V DC bus or battery source.

Floating 48VDC ground offers compatibility with positive or negative grounded DC systems, including 48V telco applications. OverPower™ inverter

output feature temporarily provides up to 150% of the continuous output for 1-60 minutes, and DoubleBoost™ inverter output feature delivers up to

200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment.

When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, 15

amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to

battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's

manual for recommendations). Passes sine wave utilty or generator power during battery charging and UPS line power operation, plus efficient

PWM sine wave AC output in inverter and UPS backup modes. Reliable large transformer design, with frequency control powers resistive electronic

loads or large inductive motors, compressors and other items with high current needs on startup. Optional APSRM4 wired remote power switch with

full status LEDs provides remote power inverter on/off switching and continuous status information (APSRM4 sold separate). Supports an unlimited

amount of runtime with any number of user-supplied batteries connected. Highly adaptable to a variety of applications and site conditions with

adjustable charger settings for wet/gel battery types and selectable line to battery power transfer voltages.

Applications

Versatile inverter/charger system with auto-transfer switching serves as an automotive inverter for RVs, conversion vans and fleet service

vehicles; a standalone alternative power source for off-grid, alternative energy or 48V networking applications and as an uninterruptible

power supply (UPS) for items compatible with an 8 millisecond transfer time.

Package Includes

APS2448 Inverter/Charger

Instruction manual with warranty information

Features

APS2448UL serves as an automotive or stationary DC-to-AC inverter with automatic line-to-battery transfer and integrated battery charger

Supports 120V AC output from a 120V AC line power source or 48V DC battery source

Floating 48VDC ground offers compatibility with positive or negative grounded DC systems, including 48V telco applications.

8 millisecond automatic transfer between line and battery power supports UPS protection during blackouts and voltage fluctuations for

nearly all computer and networking applications

2400 watts continuous AC output in inverter mode, 2400 watts continuous AC output in AC mode

Double Boost™ inverter output supports momentary startup loads up to 200% of the continuous rating for up to 10 seconds

OverPower™ inverter output supports longer duration overloads to 150% for 1-60 minutes under ideal battery and temperature conditions.

(For best results, utilize OverPower usage for as short of a duration as possible, ensure battery bank and cabling is able to provide full

nominal DC voltage under load and allow inverter/charger to fully cool before and after OverPower usage.)

3 stage, 15 amp battery charger with adjustable settings for wet/gel battery types offers fast, reliable battery recharging

Protected hardwire bolt-down input lugs safely accept heavy gauge input wiring from attached battery bank

Protected hardwire output passes 120V line power or inverter output through to connected equipment

Reliability enhanced large-transformer design tested to UL (USA) and CSA (Canada) standards

Moisture-resistant construction enables vehicular or marine operation in high humidity environments

3 position operating mode switch supports "AUTO" mode to enable automatic transfer between DC and AC modes, CHARGE-ONLY to

maintain a full battery charge when AC is present without auto transfer and SYSTEM OFF settings

Set of six front panel LEDs display AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status

Set of 4 configuration dipswitches support wet/gel battery charging profiles, adjustable 135/145V high voltage auto transfer during

overvoltages and selectable 75/85/95/105V AC low voltage auto transfer during brownouts

Set of 4 additional configuration dipswitches support 4 levels of charger limiting relative to output load size, a battery equalization program

and battery charger on / off settings

Resettable 15A charger AC input breaker and resettable 20A AC output breaker and automatic 2 speed cooling fan protect the inverter from

load and temperature related failures

Grounding lug properly connects the inverter/charger system to earth ground or vehicle grounding system

Automatic overload and thermal shutoff safely turns off inverter as excessive loads or overheating conditions develop

Front panel remote control connector enables remote off/on switching (requires APSRM4 switch accessory). Optional APSRM4 accessory

also includes user configurable jacks to support inverter shutoff or startup as a vehicle ignition is engaged

Load sensing control dial enables adjustable load threshold required to automatically turn the inverter on and off in DC mode as load

conditions change

Specifications

OVERVIEW

Intended
Application

Emergency Home Power

SYSTEM OVERVIEW

Voltage
compatibility

48VDC / 120VAC

Frequency
compatibility

60 Hz

OUTPUT

Output watts 2400W (continuous) / 4800W (peak)

Output nominal
voltage

120V

Output voltage
regulation

LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC):
Maintains PWM sine wave output voltage of 120 V AC (+/-5%).

Output frequency
regulation

60 Hz (+/- 0.3 Hz)

Outlet quantity /
type

Hardwire

Overload
protection

Includes 15A input breaker dedicated to the charging system and 20A output breaker for AC output loads.

Continuous output
capacity (watts)

2400

Peak output
capacity (watts)

4800

INPUT

Input connection
type

DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: Hardwire via built in junction box with cover plate
