Important Safety Instructions
SAVE THESE INSTRUCTIONS
This manual contains important instructions that should be followed during the installation, operation and storage of all Tripp Lite UPS Systems. Failure to heed these warnings will void your warranty.
UPS Location Warnings
• Use caution when lifting your UPS. Because of the considerable weight of all rackmount UPS systems, at least two people should assist in lifting and installing them.
• Install your UPS indoors, away from excess moisture or heat, dust or direct sunlight.
• For best performance, the ambient temperature near your UPS should be between 0° C and 40° C (between 32° F and 104° F).
• Leave adequate space around all sides of the UPS for proper ventilation. Do not obstruct its vents or fan openings.
UPS Connection Warnings
• The UPS contains its own energy source (battery). The output terminals may be live even when the UPS is not connected to an AC supply.
• Connect your UPS to a properly grounded AC power outlet. Do not modify the UPS’s plug in a way that would eliminate the UPS's connection to ground. Do not use adapters that eliminate the UPS’s connection to ground.
• Do not plug your UPS into itself; this will damage the UPS and void your warranty.
• If you are connecting your UPS to a motor-powered AC generator, the generator must provide filtered, frequency-regulated computer-grade output.
Equipment Connection Warnings
• Do not use Tripp Lite UPS Systems for life support applications in which a malfunction or failure of a Tripp Lite UPS System could cause failure or significantly alter the performance of a life-support device.
• Do not connect surge suppressors or extension cords to the output of your UPS. This might overload the UPS and will void the surge suppressor and UPS warranties.
Battery Warnings
• Except for battery replacement, your UPS does not require routine maintenance. Do not open your UPS for any reason. There are no user-serviceable parts inside.

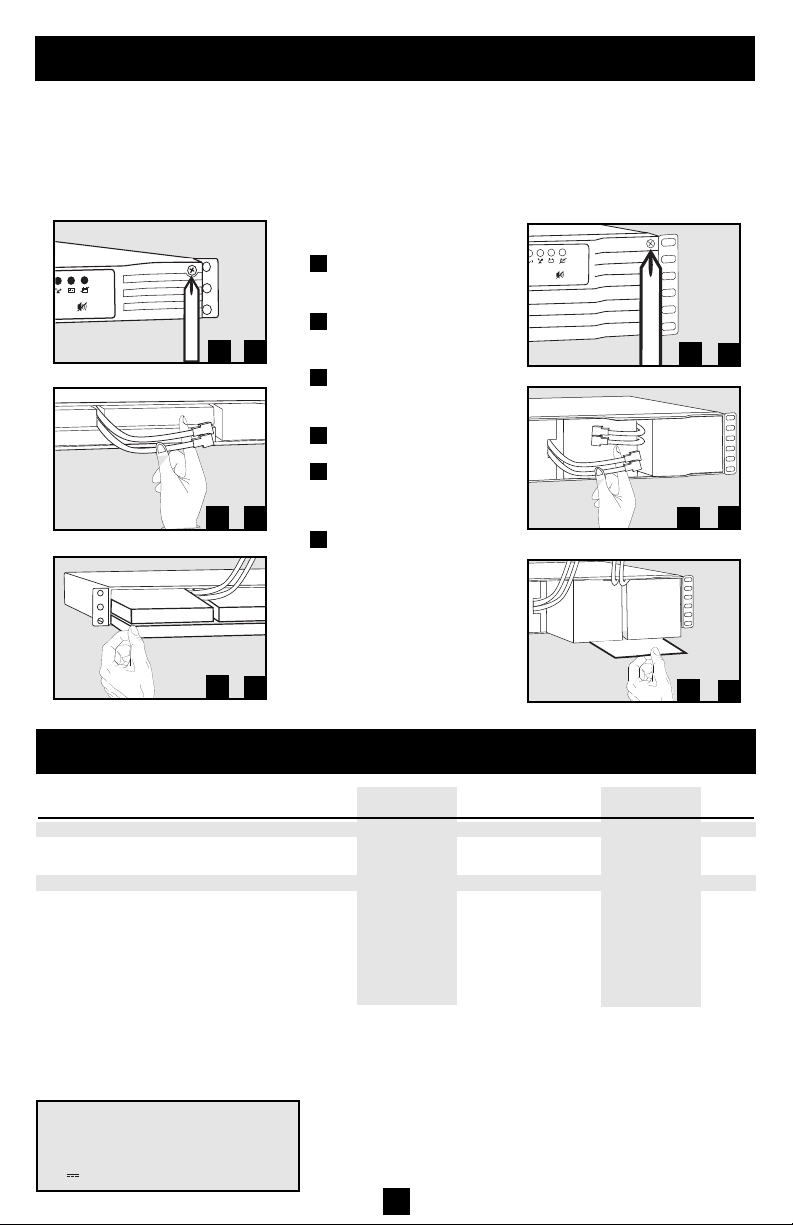

• Because batteries present a risk of electrical shock and burn from high short-circuit current, qualified service personnel should observe proper precautions: Use tools with insulated handles and replace the existing batteries with the same number and type of new batteries (Sealed Lead-Acid). Do not open the batteries. Do not short or bridge the battery terminals with any object. Tripp Lite offers a complete line of UPS System Replacement Battery Cartridges (R.B.C.). Visit Tripp Lite on the Web at www.tripplite.com/support/battery/index.cfm to locate the specific replacement battery for your UPS.
• During hot-swap battery replacement, the UPS will not provide backup power in the event of a blackout or other power interruptions.
• Do not operate UPS without batteries.
• Do not dispose of the batteries in a fire. The UPS batteries are recyclable. Refer to local codes for disposal requirements.
• When adding external battery packs to select models with external battery pack connectors, connect only Tripp Lite-recommended battery packs of the correct voltage and type. Do not connect or disconnect battery packs when the UPS is operating on battery power.
2
Mounting (Rack)
Mount your equipment in either a 4-post or 2-post rack or rack enclosure (see next page for 2-post mounting). The user must determine the fitness of hardware and procedures before mounting. If hardware and procedures are not suitable for your application, contact the manufacturer of your rack or rack enclosure. The procedures described in this manual are for common rack and rack enclosure types and may not be appropriate for all applications.
4-Post Mounting
All UPS models include hardware required to mount in a 4-post rack. Select models include an adjustable rackmount shelf kit to provide additional support. If your UPS model does not
an adjustable rackmount shelf kit, skip steps 1 and 2.
include
Connect the two segments of each shelf using the
1
included screws and nuts . Leave the screws slightly
B
A
loose so that the shelves can be adjusted in the next step.
Adjust each shelf to fit your rack, then mount them in
2
the lowest available space of your rack with the screws, nuts and washers provided . Note that the
B
support ledges should face inward. Tighten the screws that connect the shelf segments .
Attach mounting ears to the front mounting holes
3
of your UPS using the screws provided . The
C
A
ears should face forward.
Using an assistant if necessary, lift your UPS and slide
4
it onto the mounting shelves (if your model includes the shelves). Attach your UPS to the rack by using the appropriate hardware through its mounting ears
F
and into the rack rails.
B
A
1
B
2
ED
D
C
A
E
3
F
4
3
Mounting (Rack)
continued
2-Post (Telecom) Mounting
Mount 1U UPS models in 2-post racks with user-supplied hardware following the procedure below.
If you mount 2U UPS models in 2-post racks, they require the addition of a Tripp Lite 2-Post Rackmount Installation Kit (model: 2POSTRMKIT, sold separately). See Installation Kit owner’s manual for installation procedure for 2U UPS models.
Attach mounting ears to the front mounting holes of
1
your UPS using the screws provided . The ears should face backward.
B
A
C
B
C
A
1
Using an assistant if necessary, lift your UPS and
2
attach it to the rack by passing the screws, nuts and washers provided through its mounting ears and into the rack rails.
D
D
2
Mounting (Tower)
Mount all UPS models in an upright, tower position using included hardware. The user must deter­mine the fitness of hardware and procedures before mounting.
All UPS Models
Stand your UPS on its side with the LED/Control panel at the top. Attach one rack mounting ear to each side of the UPS using included screws.
A
2U UPS Models Only
Rotate the LED/Control panel to view it easier while the UPS is tower mounted. Insert a small screwdriver, or other tool, in the slots on either side of the panel. Pop the panel out; rotate it; and pop the panel back in place.
4
A
