Triplex POSIFLEX KS7215 Installation Manual

POSIFLEX USER INSTALLATION GUIDE

Copyright© 2013 Triple E Technologies. All rights reserved.

POSIFLEX USER INSTALLATION GUIDE

Manufacturer Supplied Components:

1. POSIFlex KS7215 touchhead

2. Triple E Technologies Posiflex Installation Card

3. Keyboard

4. Mouse

5. Power Cord

6. Display Port to DVI Adapter

7. Resource media DVD

8. FCC Required Safety and Regulatory Documentation

9. Posiflex Cables and Components in accordance with product specification.*

OVERVIEW

Each new Posiflex system installation is shipped with the Manufacturer Supplied Components listed
above. For best results, read and become familiar with the product documentation included as well as
the product components included with the installation shipment.

The product includes a lithium battery. Always follow local environmental rules and regulations
pertaining to the disposal of used batteries. Always replace the battery only with a battery of the same
type.

NOTE

There is a risk of explosion in the event that the lithium battery is replaced by
an incorrect type.

INSTALL GUIDE

The Posiflex system will be shipped partially assembled. Components and Peripherals will be connected
to the unit with provided fasteners, and electronic components will be connected through the
power/connector console (See Page 6, Figure 14). Pass through all connecting cables through the base
as set forth on Page 10.

PARTS IDENTIFICATION

1. Main Display Unit

2. Touch/LCD Panel

3. Power Indicator

4. Gen 5 Base Stand

5. Attachment Screw Holes for PDC71648 Customer Display Unit (CDU)[??]

6. Hard Disk Drive (HDD) Cover

7. Power Switch

2

8. Brightness Control Button “+”

9. Brightness Control Button “-“

10. USB Ports

11. Base Stand

12. Compression lock for base stand cover

13. Cable exit

14. Cable groove

15. Cable exit

16. Cable holder

17. Bottom Plate

18. Cable Passage in bottom plate

19. Rubber feet with bottom plate fastening screw

CONNECTING CASH DRAWER

The RJ11 connector in I/O area of a KS6915/6917/7215/7217 system can be used for controlling most of
the common cash drawers available on the market.

However, it is most recommended to use Posiflex CR-2200 or CR-2210 or CR-3100 or CR-4000 or CR­4100 or CR-6300 for best compliance in operating the opening mechanism and to monitor the “drawer
open” status.

The connector cable for the Cash Drawer has a 6-pole plug at one end and an 8-pole plug at the other.
The 8-pole plug should be inserted into the connector of the cash drawer labeled “Signal.” The 6-pole
plug should be inserted in the connector marked “CR” which can found in the main connection area in
the system. The user may also purchase the optional 2-in-1 cash drawer control cable to control 2 cash
drawers in 1 port. It has a 6-pole plug at one end and two 8-pole plugs at the other. The 6-pole plug
should be inserted in the connector marked “CR” found in the I/O area in the system. Each 8-pole plug
should be inserted into the connector marked “signal cable from POS Printer” at the rear of one of the
cash drawers.

3

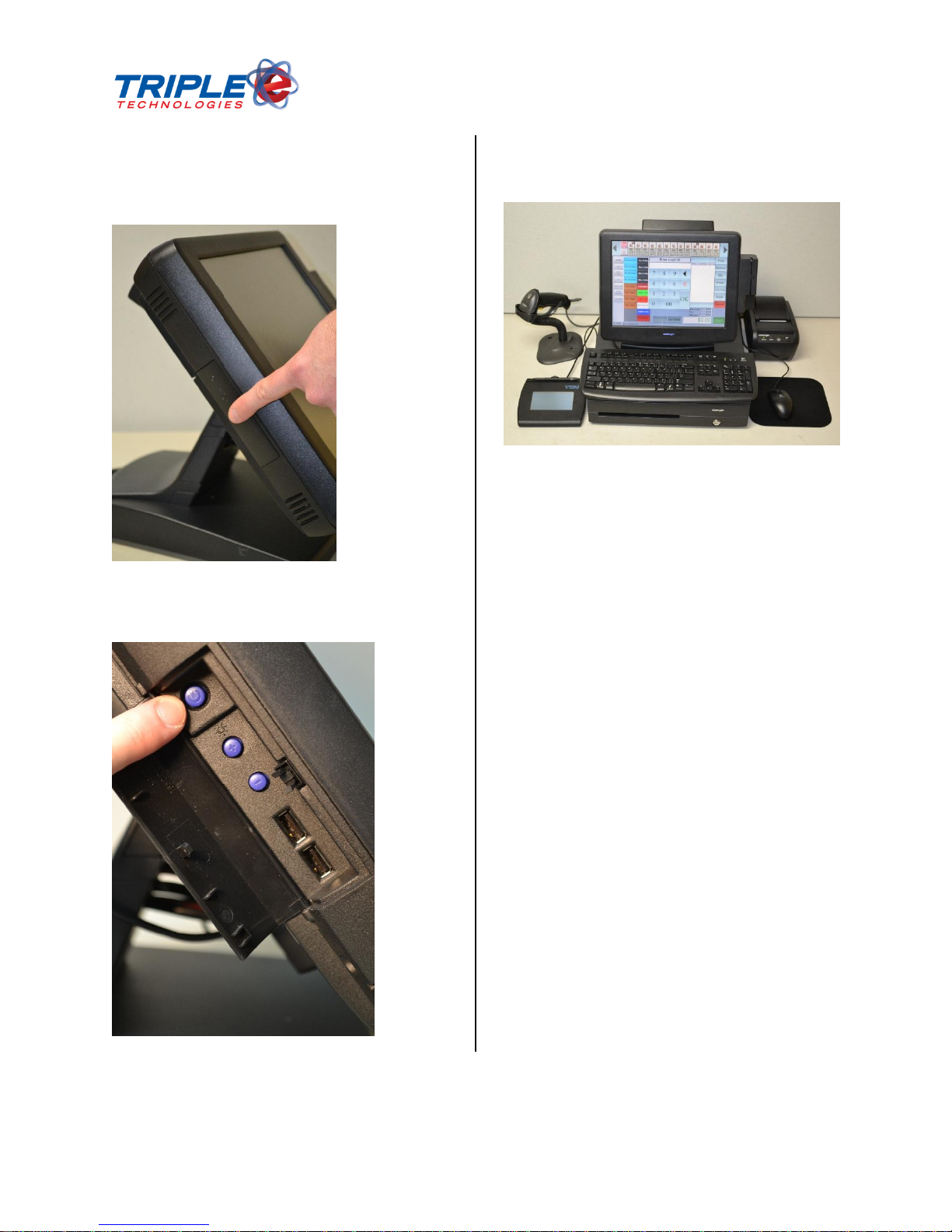

FINAL ASSEMBLY AND INSTALLATION INSTRUCTIONS

2. Remove the two screws that attach the

panel to the touchscreen.

1. If you wish to install an optional card

reader, locate the accessory panel on the
right hand side of the touchscreen.

3. Remove the panel. The connector for the

card reader will be visible.

4. Locate the port on the card reader.

4
