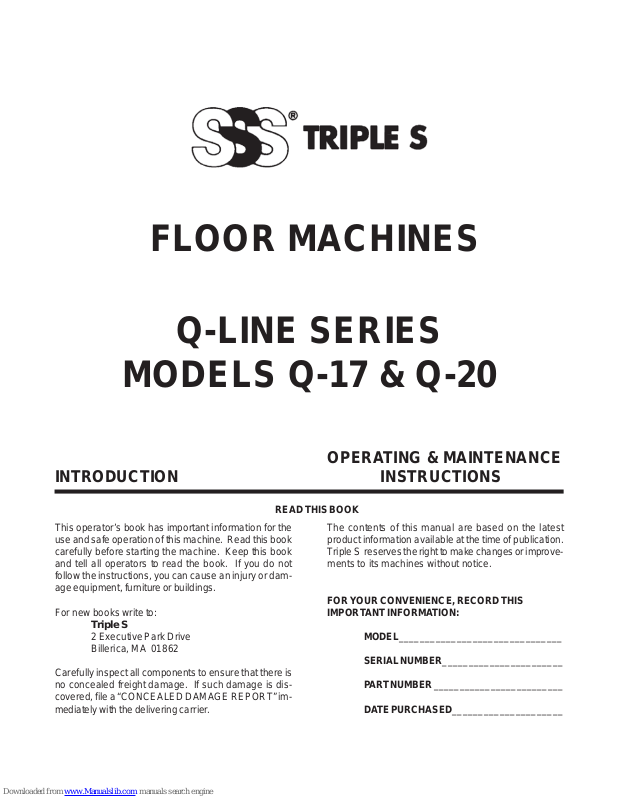

FLOOR MACHINES
Q-LINE SERIES
MODELS Q-17 & Q-20
OPERATING & MAINTENANCE
INTRODUCTION INSTRUCTIONS
READ THIS BOOK
This operator’s book has important information for the
use and safe operation of this machine. Read this book
carefully before starting the machine. Keep this book
and tell all operators to read the book. If you do not
follow the instructions, you can cause an injury or damage equipment, furniture or buildings.
For new books write to:
Triple S
2 Executive Park Drive
Billerica, MA 01862
Carefully inspect all components to ensure that there is
no concealed freight damage. If such damage is discovered, file a “CONCEALED DAMAGE REPORT” immediately with the delivering carrier.
The contents of this manual are based on the latest
product information available at the time of publication.
Triple S reserves the right to make changes or improvements to its machines without notice.
FOR YOUR CONVENIENCE, RECORD THIS
IMPORT ANT INFORMATION:
MODEL_______________________________
SERIAL NUMBER_______________________
P ART NUMBER _________________________
DA TE PURCHASED_____________________
IMPORT ANT SAFETY INSTRUCTIONS
T o assure the safe operation of this machine, you must read and understand all warnings and instructions in this book.
If you do not understand, ask your supervisor.
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE
WARNING
: To reduce the risk of fire, electric shock, or injury:
1. Y ou must be trained to operate this machine. This machine is to be operated for its intended use only.
2. Do not operate this machine unless it is completely assembled.
3. Always use a three-wire electrical system connected to the electrical ground. For maximum protection against
electrical shock, use a circuit that is protected by a ground fault circuit interrupter. Consult your electrical contractor.
4. T o prevent electric shock, always remove the electrical plug from the electrical outlet before doing any rep airs or
maintenance and when leaving the machine unattended.
5. T o prevent electric shock, keep the machine surface dry . Do not subject to rain. S tore the machine in a dry building
area. Clean the machine with a dry cloth only .
6. Machines can cause an explosion when near flammable materials and vapors. Do not use this machine with or
near fuels, grain dust, solvents, thinners, or other flammable materials. Do not use flammables to clean this
machine.
7. A qualified or authorized person must do maintenance and repairs.
8. T o prevent damage to the power cord, do not move this machine over the power cord. Always lift the power cord over
the machine. Do not pull or carry cord, use cord as a handle, close a door on cord, or pull cord around sharp edges
or corners. Keep cord away from heated surfaces.
9. Do not use with damaged cord or plug. If the machine is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water , return it to a service center.
Grounding Instructions
This machine must be grounded. If it should malfunction or break
down, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This machine is equipped
with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that
is properly installed and grounded in accordance with all local
codes and ordinances.
WARNING - Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified
electrician or service person if you are in doubt as to whether the
outlet is properly grounded. Do not modify the plug provided with
the machine - if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
This machine is for use on a nominal 120-volt circuit, and has a
grounded plug that looks like the plug illustrated in figure A. A
temporary adapter that looks like the adapter illustrated in figures B
and C may be used to connect this plug to a 2-pole receptacle as
shown in figure B if a properly grounded outlet is not available.
The temporary adapter should be used only until a properly
grounded outlet (figure A) can be installed by a qualified electrician. The green colored rigid ear, lug, or the like extending from the
adapter must be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is
used, it must be held in place by a metal screw.
NOTE: In Canada, the use of a temporary adapter is not permitted
by the Canadian Electrical Code
EXTENSION CORDS
Use only three-wire 12/3 or larger gauge approved extension
cords that have three-prong grounding type plugs and three-pole
receptacles that accept the appliance’s plug. Replace or repair
any damaged cords or plugs.
When servicing, refer to authorized person only. Use only identical replacement parts.
NOTE: Do not use adapters shown in figures B & C in Canada
OPERA TING PROCEDURES
WARNING! For the safe operation of this machine
follow the instructions given in this manual and
the training given by your supervisor. Failure to
do so can result in personal injury and/or damage
to machine and property!
DO NOT OPERA TE MACHINE IN AN EXPLOSIVE ENVIRONMENT!
This machine is intended for commercial use.
PREPARATION
T o prepare the machine for operation, make sure it is of
correct voltage and properly assembled.
Y our new floor machine operates in the normal side to
side motion of a conventional single disc machine. Be
prepared before starting by removing all obstructions or
other obstacles in the area to be cleaned. Check the
proper application recommendations and procedures
found on the label of your cleaning or finish container .
IF IN DOUBT , CALL
YOUR SUPERVISOR .
WARNING! NEVER USE THIS MACHINE WITH FLAMMABLE OR EXPLOSIVE MA TERIAL!
OPERATION
Plug the machine’s power cable into a properly grounded
outlet (see Safety Instructions). Next, adjust the handle
height to a comfortable position.
Pull out on the “Watch Dog” Safety Lock button and
start the machine by depressing either the left or right
switch levers.
Both hands should be placed on the handle when the
machine is in operation. The machine will glide sideways over the floor by a slight raising and lowering of
the handle. Raise the handle slightly to go to the right.
Lower the handle slightly to go left. Releasing the
switch lever stops the machine at once.
MAINTENANCE
AFTER EACH USE: Store the machine in a clean dry
area. Wipe the entire machine and cord down with a
clean cloth. Remove the pad or brush and clean thoroughly. Wrap the machine’s electrical cord onto the
handles and the cord hook provided. CHECK the cord
and plug for nicks, cuts or damage. Report these to
your supervisor for correction.
For Scrubbing or Polishing: Select the correct
clean SSS floor pad or brush (your Triple S Distributor
can assist you). If in doubt, ask your supervisor.
NEVER OPERATE THE MACHINE WITHOUT THE
FLOOR P AD OR BRUSH INSTALLED!
To properly attach the brush, UNPLUG THE FLOOR
MACHINE, place the handle in the vertical position, then
tilt the machine back until the handle rests on the floor .
Straddle the handle, facing the motor, and grasp the
brush with the block toward you. Place the brush or
pad clutch plate over the three lugs on the motor drive
adapter. Twist the brush right to lock it into position. T o
remove the brush, UNPLUG THE MACHINE and follow
the same procedure as above, but by twisting the brush
off with a firm jerk to the left. Remove the brush or pad
driver when the machine is not in use. This will help
prevent brush damage and reduce wobble problems.
WARNING! Always disconnect the machine’s electrical plug from the electrical outlet before performing any service, maintenance, pad changing
or inspection of the machine.
MOTOR: The motor is lubricated for life under normal
use. No oiling or greasing is necessary . However, if the
machine is used in dusty areas or is used for spray
buffing, the motor should be cleaned. Blowing the motor out with compressed air or with the exhaust from a
vacuum is suggested. Keeping the motor clean will allow the clear passage of air for ventilation and prevent
overheating. If you have any questions regarding the
maintenance of your floor machine, ASK YOUR SUPERVISOR.
10
Q-17 & Q-20
14
15
13
12
16
17
18
19
11
8
7
3
2
9
6
1
4
27
5
31
30
29
32
28
37
23
24
26
33
20
21
22
25
34
35
36
53
43
42
52
40
51
41
19
38
39
40
19
50
44
45
48
46
47
48
49
46
4
Q-17 & Q-20 Parts List
I TEM P A RT NO. DESCRI PTION QTY. I TEM P A RT NO. DESCRI PTION QTY.
1 504810 Int er loc k Assembly w/Nut 1 28 486701 Pin, Foot Latc h 1
506318 Label, I nterlock Assembly 1 29 980004 Washer, 1/4 Flat 1
2 962011 Screw, 10-32 x 1 3/4 Oval 2 30 A13507 Pin, Cotter - 1/2 SS 1
3 486407C Cover, S wi t c h B o x 1 31 962005 S c r ew, 1/4-2 0 x 3/ 8 S et 1
4 962002 Screw, 10-32 x 1/2 Oval 2 32 480805 Arm, Right 1
5 980018 Washer, #10 C- S unk E xt . 1 33 482003 Clamp, Handle Tube 1
6 485002 Switc h, On/Off 1 34 480804 A r m, Lef t 1
7 509821 Washer, Rubber 2 35 980003 Washer, 3/8 Flat 1
8 920005 Nut, 3/ 8 - 24 Hex J am 1 36 924055 Nut, Loc k M10 Zinc 1
9 505121 Lev er , Switch Lef t 1 37 908008 Cord Assembly, Handle 1
10 505120 Lever, Swit c h Right 1 38 509920C Y o k e, Handle 1
11 920001 Nut, 10- 32 Nyloc S top 1 39 507480 Rod, Yoke 1
12 509830 Washer, Handle T ube 1 40 980002 Washer, 1/4 Split Lock 6
13 503320 Flange, S train Relief 1 41 962004 S c rew, 10-32 x 1 1/4 Oval 3
14 505720 Nipple, Handle 2 42 502373 Cover, Motor 1
15 481310C Switc h B ox 1 43 See Page 7 Motor & Gear Assembly 1
16 515150 Label, W ar n ing 1 44 483226 Frame, 17" 1
17 501210 Bumper, Handle 1 483227 Frame, 20" 1
18 962003 Screw, 10-32 x 3/4 PHP 1 45 487706C Shaft, Wheel Axle 1
19 962006 Screw, 1/4-20 x 1/ 2 P HP S S 6 46 509820 Washer, F ibr e 4
20 503711 Grip, Handle-G r ay 2 47 529701 Wheel, 5" Non-Markin g 2
501501 Cap, Pro tective E nd 2 48 980005 Washer, Wave 4
21 980015 Washer, #10 Ex t Tooth 1 49 S482P Cap, Snap Axle 2
22 508520 Stra in Relie f-Complete 1 50 962016 Screw, 10-32 x 3/8 S et 1
502020 Clamp, S train Relief 1 51 962010 Screw, 1/4-2 0 x 1 4
23 962015 Screw, 10-32 x 3/8 PHP 1 52 98 0004 Washer, 1/4 Flat 4
24 509082 Tube, Handle 1 53 481202 Bumper, 17" Gray 1
25 502422 Cord A ssembly, 50 f t Y e llow 1 481203 Bumper, 20" Gray 1
26 504420 Hook, Cor d 1
27 485133 Kick Lever Assembly 1
(comes w/ items 27,28,29 & 34)
SINGLE PHASE
GROUNDED
POWER SUPPLY
115 VOLTS
60 HERTZ
GROUND
HANDLE
SWITCH
WHITE WHITE
BLACK
GREEN
POWER
SUPPLY
CORD
(COM)
(COM)
SWITCH
HOUSING
(N.O.)
(N.O.)
HANDLE
CORD
5
BLACK
GREEN
MOTOR
AC MOTOR ILLUSTRA TION
6
AC MOTOR P ARTS LIST
for
Q-17 & Q-20
ITEM DESCRIPTION
505254 Motor #36J377T115
(Bal dor M o tor, 1999-2005)
A Ring Gear Housing 504209 B Bearing 902007 902007
C P l an et G ear Hsing, 10:1-3 Idler 504208 D Bear ing 9020 05 902005
E Sc rew - 960016 (Qty 6)
F Screw - 960017 (Qty 6)
GMotor Cord - H Run Capacitor - 911305
I Cover, Run Capaci t o r - 502351
J Cover, S tart Capac i tor - 502351
K St a rt Capacit or 911239 - 400/ 48 0M F D-115V 911304 - 450M F D
L B ol t 960035 (Qt y 4) -
M End B el l - 502934
N S tator Asm (No Capacit ors), Chrom e - O Beari ng, Mot or Top 902003 902003
P St at i onary S witch 911251 911306
Q Rotary S witch - 911307
R Rot or Assembly (No Bearin gs or Switch) - S End B ell-Mot or Lower 502927 502932
T Cover, Ring Gear - U Bear ing 9020 15 902015
V Beari ng 902005 (Q t y 2) 902005 (Qt y 2)
X Coupling Fl ex i bl e 502460 502460
Y Spacer 508211 508211
Z Pinion 503510 503510
AA Shaft -Planet G ear 507701 (Qt y 3) 507701 (Qt y 3)
BB Bearing-Planet Shaft 902016 (Qt y 6) 902016 (Qt y 6)
CC Gear-Planet - -
Motor & Gea r Asm., 1.5HP 115V 60CY
505251 Motor & Gear B ox
503535 Gear A ssem bl y
(Imperial Motor & Gear Box
#AD15017A
2005 to p res en t )
7
SSS FLOOR MACHINE, MODELS Q-17 & Q-20
LIMITED WARRANTY
The SSS Floor Machine, Q-Line Series has been manufactured, tested and inspected in accordance with specific engineering
requirements, and is WARRANTED by the manufacturer to be free from defects in workmanship and materials.
This warranty is, however, subject to the following qualifications, conditions and limitations which are set forth to provide you
and all users of the SSS Floor Machine, Q-Line Series with information concerning the duration, extent, availability and
applicability of this Limited Warranty, the procedure to be taken to obtain its performance and other information concerning the
manufacturer’s warranty policy.
1. TO WHOM EXTENDED AND DURA TION OF ITEMS
COVERED
This warranty extends to the original consumer purchaser from
the date it was purchased and for the items and periods as follows:
Five (5) years parts, one (1) year labor - Base, Cast Aluminum
(reference Item 50)
Three (3) years parts, one (1) year labor - AC Motor and Gear Box,
except switches, capacitors and flex couplings which have a one
(1) year warranty.
One (1) year parts & labor - All other components unless excluded
below.
2. PARTS NOT COVERED BY W ARRANTY
Certain parts of the SSS Floor Machine require replacement in the
ordinary course of use due to normal wear by reason of their
characteristics. This warranty does not cover the following normal wear items:
Part Number Part Name
502422 Cord Assembly
529701 Wheel
503711 Handle Grips
481202 Bumper, 17”
481203 Bumper, 20”
3. EXCEPTIONS AND EXCLUSIONS FROM W ARRANTY
The SSS Floor Machine is required to be used on electric current
as indicated on the nameplate. Otherwise damage, defects, malfunctions or other failures of the SSS Floor Machine arising from
use on electric current not as indicated are excepted and excluded from this warranty.
Defects, malfunctions, failure or damage of the SSS Floor Machine
caused by improper, unreasonable or negligent use or abuse while
in the possession of the consumer are likewise excluded from this
warranty.
If repair is done on your SSS Floor Machine by anyone other than
those below designated as authorized to perform such work without first having obtained factory instructions, the manufacturer, at
its sole option, may determine that this warranty will not apply and
that reimbursement for such repair will not be made because of
the failure to comply with such factory specified instructions.
4. PROCEDURE TO BE T AKEN TO OBT AIN PERFORMANCE OF
WARRANTY
To secure repair of the SSS Floor Machine or any warranted parts
under this warranty, the following procedure should be taken: The
inoperative SSS Floor Machine or warranted parts, together with
satisfactory evidence of the purchase date, must be delivered
with shipping and delivery charges prepaid to the Dealer from
whom purchased.
If you are unable to locate the Dealer, you may write or otherwise
communicate with Triple S, 2 Executive Park Drive, Billerica,
MA 01862 for instructions before repair service is performed by
anyone else. In such event Triple S will provide either the location
of a closely available Triple S distributor Service Department or
other factory instructions.
Upon compliance with the above procedure, all warranted defects
will be repaired, at no additional charge or costs to the consumer,
and the repaired product returned to the consumer, with all shipping and delivery charges prepaid.
In following the procedures above set forth PLEASE MAKE
CERTAIN to state the Triple S model, type and serial number as
shown on the name plate of the SSS Floor Machine.
REPLACEMENT
In the event of the defect, malfunction or failure of your SSS Floor
Machine or any warranted part to conform with this warranty, the
manufacturer may at its sole option and own expense, replace the
SSS Floor Machine or any warranted part with another new identical or reasonably equivalent model or part in lieu of repairing the
defect.
5. NO REFUND OF PURCHASE PRICE
Triple S will not, as a matter of its warranty policy, refund the
consumer’s purchase price.
6. WARRANTY REGISTRA TION CARD FOR YOUR SSS FLOOR
MACHINE AND REQUESTS FOR INFORMA TION
Please fill out the warranty registration card accompanying your
SSS Floor Machine, giving complete information as requested on
the card, and return to Triple S.
This warranty is in lieu of all other expressed or implied warranties.
4/11
2 Executive Park Drive Billerica, MA 01862
Ph: (800) 323-2251 • Fax (978) 667-9360
www.triple-s.com
Loading...
