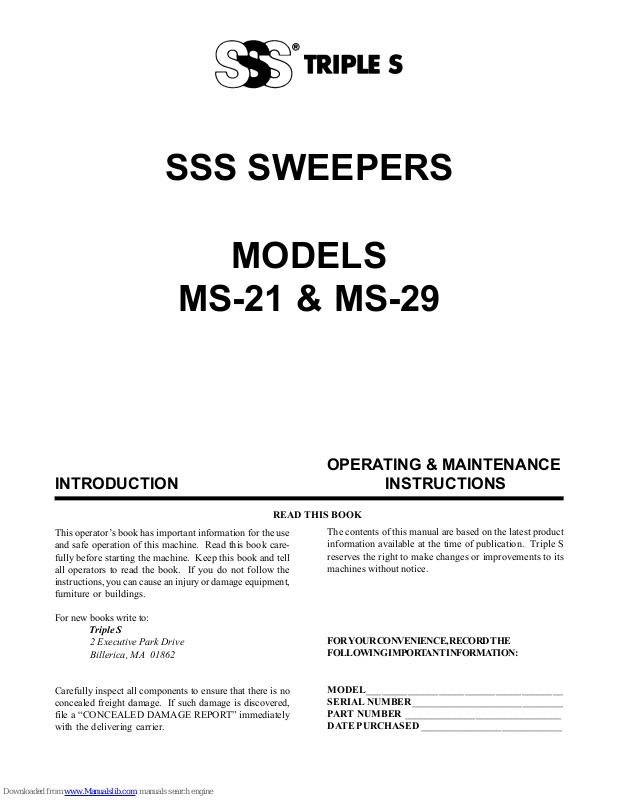

SSS SWEEPERS
MODELS
MS-21 & MS-29
OPERATING & MAINTENANCE
INTRODUCTION INSTRUCTIONS
READ THIS BOOK
This operator’s book has important information for the use
and safe operation of this machine. Read this book carefully before starting the machine. Keep this book and tell
all operators to read the book. If you do not follow the
instructions, you can cause an injury or damage equipment,
furniture or buildings.
For new books write to:
Triple S
2 Executive Park Drive
Billerica, MA 01862
Carefully inspect all components to ensure that there is no
concealed freight damage. If such damage is discovered,
file a “CONCEALED DAMAGE REPORT” immediately
with the delivering carrier.
The contents of this manual are based on the latest product
information available at the time of publication. Triple S
reserves the right to make changes or improvements to its
machines without notice.
FOR YOUR CONVENIENCE, RECORD THE
FOLLOWING IMPORTANT INFORMATION:
MODEL______________________________________
SERIAL NUMBER______________________________
PART NUMBER _______________________________
DATE PURCHASED ____________________________
OPERATION
Introduction
The SSS Sweepers, Models MS-21 and MS-29 are designed
with two counter rotating brushes that can pick up small and
large debris on hard, flat surfaces. The sweepers will pick up
paper, leaves and general litter – both inside and out. However they are not designed for dust. The debris is swept into
the hopper and the hopper is easily removed by lifting the
handle; then the hopper can be carried separately for disposal
of the debris.
Assembly
Your sweeper requires little assembly before operation. Follow these simple steps:
1. Secure the front cover to the hopper. Fit them together
by placing the two bottom corners of the hopper to the
locating lugs on the corners of the front cover. After
these are fitted together, the hopper’s handle (Item 21)
can be pushed down - this latches the front cover and
hopper together.
Operation
This sweeper can be used for both indoor and outdoor sweeping.
DO NOT PICK UP ANYTHING THAT IS BURNING OR
SMOKING, SUCH AS CIGARETTES, MATCHES OR HOT
ASHES.
1. Make sure the hopper and front cover are securely fastened (reference Assembly #1).
2. Adjust the handle height for the operator (reference Assembly #2).
3. Adjust the brush pressure to accommodate your pick up
needs. The height adjustment dial (Item # 1) is located on
the front of the sweeper. For larger debris use a high
setting, number 1 is the highest position. Move to a
higher number (lower position) for picking up finer debris. Do not press the brushes too firmly to the ground
because this will eventually wear out the drive mechanism.
2. Assemble the operator’s handle. The machine handle is
shipped in three parts: the “U” shaped tube and the two
straight lower tubes.
a) First connect each straight tube to the U tube. De-
press the spring clip on the straight tube and slide it
into the U tube until it clicks into the chosen hole.
The handle height is adjusted by selecting either the
top or bottom pair of holes.
b) Connect the handle assembly to the machine. Un-
screw the clamping knobs (Item 2) from each side of
the machine. The handle tubes will fit over the exposed screws. Then screw the knobs back on.
4. Start sweeping. The overlapping brushes ensure good
coverage. The edge guide rollers on both sides enable
the brushes to reach into corners. Dirt and debris will be
pushed into the hopper as soon as you begin pushing
the sweeper. The carrying capacity of the hopper can be
increased by raising the front of the sweeper, this will
move debris to the back of the hopper.
5. Empty the hopper when you’re done sweeping. Simply
pull up on the hopper’s handle and lift the hopper off the
front cover. Dispose of the debris in an approved waste
receptacle. Clean the hopper if necessary. Reattach the
hopper to the front cover.
6. To transport the sweeper place the handle in the down
position: loosen the clamps on each side of the machine,
then lower the handle toward the brushes until it slides
past the molded stoppers. Retighten the clamps. Remember to loosen the clamps before raising the handle
again.
7. Storage: Store the sweeper indoors. The sweeper may be
stored in the standing or hanging position. To hang the
sweeper, place the handle in the down position as described in Step 6.
MAINTENANCE
1. Hopper: We recommend that the hopper be emptied after
each use.
2. Clean the hopper and machine by wiping with a dry cloth
as needed.
3. Brushes: After each use, remove any strings or debris.
See Step 5 for cleaning and replacement.
4. Replacement or Cleaning of the Angled Wheels (D): Set
the height adjustment dial to position 8. Pull the angled
wheel (D) strongly, to remove it and its axle from the tooth
sleeve. Clean or replace the wheel, then push it firmly
back into the tooth sleeve. Make sure you place the wheels
back in their correct positions, they are marked L and R
for the left and right positions.
5. Cleaning or Replacement of the Brushes (B) and Nylon
Gear Casing (C): Remove the angled wheel (D) as explained in Step 4. Pull the brush towards you - the brush
and gear will come away from the pivot housing. The
gear can now be pulled away from the brush. The brushes
and gears may be cleaned with water. The gears should
only be lubricated with silicone spray.
Ensure that the brushes and gears are fitted on the correct side of the sweeper when reassembling. To guide
you, the inside of the front cover is marked L and R, as are
the wheels (D) and each brush is marked L/// and R\\\
which indicates the direction of the bristle point. To reassemble, place the brush over the pivot housing then push
the nylon gear (C) over the pivot housing. Refit the
angled wheel.
MS-21 & MS-29
MS-21 & MS-29
PARTS LIST
ITEM MS-21 PART NUMBER MS-29 PART NUMBER DESCRIPTION QTY
715404 715414 Machine, Complete
A
1 712701 712701 Height Adjustment Dial 1
2 712001 712001 Clamp 2
3 712002 712002 Washer, Clamp 2
4 712302 712311 Front Cover 1
5 717501 717501 Edge Guiding Roller 2
6 980631 980631 Washer, Edge Roller 2
7 960032 960032 Screw 2
8 718501 718510 Adjustment Slide 2
9 980632 980633 Washer, Pivot Housing 2
10 714201 714210 Pivot Housing 2
B
C
11 712401 712410 Clutch Complete, Left
12 713501 713502 Tooth Sleeve
D
13 980634 980634 Washer, 6mm
E
14 715101 715101 Sweeping Lip
15 NA NA Sweeping Plate
16 714001 714001 Holder
F
17 717701 717701 Axle
18 719703 719704 Wheel
19 714502 714511 Bottom, Hopper
20 714503 714512 Cover, Hopper
21 713901 713901 Handle, Hopper
G
22 712101 712101 Spring Clip
23 719001 719001 Straight Tube
24 713903 713904 U Handle Section
712301 712310 Front Cover Complete
710901 710902 Circular Brush Set, Left&Right 1
710901L 710902L Brush, Left
710901R 710902R Brush, Right
718101 718110 Tooth Sleev e with Clutch Left 1
718102 718111 Tooth Sleev e with Clutch Right 1
712402 712411 Clutch Complete, Right
719701 719702 Wheel Set Complete 1
719701L 719702L Wheel, Left
719701R 719702R Wheel, Right
716601 716610 Sweeping Plate with Lip 1
714501 714510 Hopper Complete 1
713902 713910 Handle, Machine Complete 1
713701 713701 Grips, 2 pcs./set 2
SSS SWEEPER, MODELS MS-21 & MS-29
LIMITED WARRANTY
The SSS Sweeper, Model MS has been manufactured, tested and inspected in accordance with specific engineering requirements,
and is WARRANTED by the manufacturer to be free from defects in workmanship and materials.
This warranty is, however, subject to the following qualifications, conditions and limitations which are set forth to provide you
and all users of the SSS Sweeper with information concerning the duration, extent, availability and applicability of this Limited
Warranty, the procedure to be taken to obtain its performance and other information concerning the manufacturer’s warranty
policy.
1. TO WHOM EXTENDED AND DURATION OF ITEMS
COVERED
This warranty extends to the original consumer purchaser from the
date it was purchased and for the items and periods as follows:
One (1) year unless excluded below.
2. PARTS NOT COVERED BY WARRANTY
Certain parts of the SSS Sweeper require replacement in the ordinary
course of use due to normal wear by reason of their characteristics.
This warranty does not cover normal wear items such as brushes.
3. EXCEPTIONS AND EXCLUSIONS FROM WARRANTY
Defects, malfunctions, failure or damage of the SSS Sweeper caused
by improper, unreasonable or negligent use or abuse while in the
possession of the consumer are likewise excluded from this warranty.
If repair is done on your SSS Sweeper by anyone other than those
below designated as authorized to perform such work without first
having obtained factory instructions, the manufacturer, at its sole
option, may determine that this warranty will not apply and that
reimbursement for such repair will not be made because of the failure
to comply with such factory specified instructions.
4. PROCEDURE TO BE TAKEN TO OBTAIN PERFORMANCE OF WARRANTY
To secure repair of the SSS Sweeper or any warranted parts under this
warranty, the following procedure should be taken:
The inoperative SSS Sweeper or warranted parts, together with satisfactory evidence of the purchase date, must be delivered with shipping and delivery charges prepaid to the Dealer from whom purchased.
If you are unable to locate the Dealer, you may write or otherwise
communicate with Triple S, 2 Executive Park Drive, Billerica, MA
01862 for instructions before repair service is performed by anyone
else. In such event Triple S will provide either the location of a
closely available Triple S distributor Service Department or other
factory instructions.
Upon compliance with the above procedure, all warranted defects
will be repaired, at no additional charge or costs to the consumer, and
the repaired product returned to the consumer, with all shipping and
delivery charges prepaid.
In following the procedures above set forth PLEASE MAKE CERTAIN to state the Triple S model, type and serial number as shown
on the name plate of the SSS Sweeper.
REPLACEMENT
In the event of the defect, malfunction or failure of your SSS Sweeper
or any warranted part to conform with this warranty, the manufacturer may at its sole option and own expense, replace the SSS Sweeper
or any warranted part with another new identical or reasonably equivalent model or part in lieu of repairing the defect.
5. NO REFUND OF PURCHASE PRICE
Triple S will not, as a matter of its warranty policy, refund the
consumer’s purchase price.
6. WARRANTY REGISTRATION CARD FOR YOUR SSS
SWEEPER AND REQUESTS FOR INFORMATION
Please fill out the warranty registration card accompanying your SSS
Sweeper, giving complete information as requested on the card, and
return to Triple S.
This warranty is in lieu of all other expressed or implied warranties.
05/01 715602
