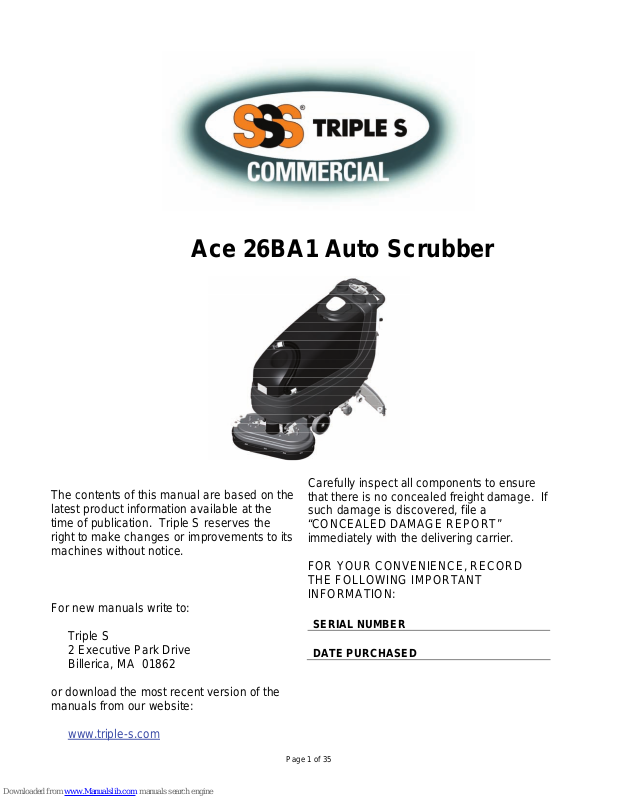

Ace 26BA1 Auto Scrubber
The contents of this manual are based on the
latest product information available at the
time of publication. Triple S reserves the
right to make changes or improvements to its
machines without notice.
For new manuals write to:
Triple S
2 Executive Park Drive
Billerica, MA 01862
or download the most recent version of the
manuals from our website:
www.triple-s.com
Carefully inspect all components to ensure
that there is no concealed freight damage. If
such damage is discovered, file a
“CONCEALED DAMAGE REPORT”
immediately with the delivering carrier.
FOR YOUR CONVENIENCE, RECORD
THE FOLLOWING IMPORTANT
INFORMATION:
SERIAL NUMBER
DATE PURCHASED
Page 1 of 35
SAFETY INSTRUCTIONS
1) You must have training in the operation of the machine before using it. READ THE
INSTRUCTION BOOK. If you do not understand any instruction, ask your supervisor.
2) Make sure all labels, decals, warnings, cautions and instructions are fastened to the
machine.
3) Read the labels carefully on the machine. Do not cover them for any reason and replace
them if damaged.
4) Do not operate this machine unless it is completely assembled and inspect the machine
carefully before operation.
5) Pay close attention to other people and especially children while operating this machine.
6) Be a careful driver and do not strike shelving or scaffolding, especially where there is a
danger of falling objects.
7) Machines can cause an explosion when operated near flammable materials and vapors.
Do not use this machine with or near fuels, grain dust, solvents, thinners, or other
flammable materials.
8) In case of fire, use a powder extinguisher. Do not use water.
9) Do not use this machine as a means of transport.
10) Do not use acid solutions that could damage the machine.
11) Adjust your speed to the conditions of the floor.
12) Do not turn the machine on an incline. Do not stop and leave the machine on a ramp or
incline.
13) During any maintenance operation disconnect the power supply from the machine.
14) Lead acid batteries generate gases that can cause an explosion. Read the instruction
manual supplied with the battery charger. Keep sparks and flames away from batteries.
NO SMOKING. Charge the batteries only in an area with good ventilation.
15) Do not use a charger if the power cord is damaged or if charger is not rated for the
machine.
16) Always wear eye protection and protective clothing when working near batteries. Remove
all jewelry. Do not put tools or other metal across the battery terminals, or on the top of the
batteries.
17) Maintenance and repairs must be performed by authorized Service Centers only.
18) Keep the electrical parts of the machine dry. Do not wash the machine with direct water
jets or high pressure, or with corrosive material. For storage, keep the machine in a dry
location.
19) Water solutions or cleaning materials used with this type of machine can leave wet areas
on the floor surface. These areas can cause a dangerous condition for the operator or
other persons. Always put CAUTION signs near the area you are cleaning.
20) Do not reach under shrouds with fingers, hands, or toes when machine is running.
Page 2 of 35
SYMBOLS USED ON THE AUTOMATIC SCRUBBER
Water Valve Indicator
Brush Drive Motor Control Switch
Vacuum Motor Control Switch
Battery Charge Indicator
Main Machine Power Key Switch
Squeegee Lift Control Lever
Solution Flow Rate Adjusting Lever
Page 3 of 35
MACHINE PREPARATION
1) UNPACKING THE MACHINE
a) Take off the outer
packaging.
b) The machine is fastened to
the pallet with wooden
wedges that block the
wheels. Remove tie down
straps.
c) Using a ramp, pull the
machine off the pallet.
2) BATTERY INSTALLATION
a) Remove the squeegee hose
from the recovery tank.
b) Remove the vacuum cover
by rotating it
counterclockwise.
c) Remove recovery tank by
lifting tank by lift chain at the
back of the tank and the
drain hose at the front of the
tank.
Remove
Lift Chain
Drain Hose Lift Point
Remove
Page 4 of 35
BATTERY INSTALLATION
(Cont.)
d) Place the batteries in the
battery compartment.
e) Connect the battery
connector to the machine
connector
f) Replace the recovery tank
and reassemble the vacuum
cover and squeegee hose.
MACHINE PREPARATION
Machine Connector
Battery Connector
3) BATTERY CHARGE LEVEL
INDICATOR
The battery indicator is digital with
4 display levels and a flashing one.
The numbers, which appear on the
display, show the approximate
charge level. 4 represents a full
charge and 0 represents
discharged and the batteries must
be recharged.
NOTE: The brush motor
automatically switches off after
the battery indicator light
begins to flash. You will be
able run the vacuum motor and
finish drying any wet areas.
Battery Charge
Indicator
Page 5 of 35
MACHINE PREPARATION
4) SQUEEGEE ASSEMBLY INSTALLATION
The squeegee is assembled to the machine
by lifting the locking latches and sliding the
squeegee assembly onto the 2 posts at the
rear of the squeegee swing arm. Push on the
locking latches down. Lower the squeegee
and install vacuum hose over vacuum outlet
on squeegee assembly. The hose should be
located to the rear of the lifting cable.
5) ADJUSTING SQUEEGEE HEIGHT
The height from floor to squeegee should be
adjusted based on blade wear. Rotate the
adjusting knobs counter-clockwise to lower
squeegee and clockwise to lift it.
NOTE: Rotate the right and left adjusting
knobs until the squeegee is positioned parallel
to the floor.
Vacuum
Outlet
Locking Latches
Height
Adjusting
Knobs
6) ADJUSTING SQUEEGEE INCLINATION
During operation the rear squeegee blade is
most efficient when bent backwards roughly
3/16
ths
to 5/16
ths
of an inch along its entire
length. To increase the blade bending in the
center of the squeegee, tilt the squeegee body
backward by turning the adjuster knob
counter-clockwise. Conversely, turn the
adjuster knob clockwise to increase the
bending at the outside edges of squeegee
blade.
Inclination
Adjusting
Knob
Page 6 of 35
r
MACHINE PREPARATION
7) RECOVERY TANK
Open the lid and confirm the following
connections are secure:
a) The vacuum cover is securely attached.
Align the notches and rotate the cover
clockwise to close. The vacuum hose
must also be attached.
b) Confirm that the squeegee hose is properly
connected.
c) Confirm that the drain hose plug, which is
located at the front of the machine, is
closed.
8) SOLUTION WATER
Fill the solution tank with clean water at a
temperature not higher than 50°C / 122°F. Add
the proper concentration of liquid detergent by
following the manufacturer instructions. Excess
foam in the recovery tank can damage the
vacuum motor, so use only the minimum amount
of detergent necessary. Reassemble the cover.
WARNING! Always use low foaming
detergent. Adding antifoam liquid into
the recovery tank before cleaning will also help
prevent foaming.
NEVER USE ACID, BLEACH or AMMONIA
Vacuum
Cove
Squeegee
Hose
Solution Tank
Fill Opening
9) BRUSH INSTALLATION
a) Lift the brush base by depressing the foot
level at the rear of the machine.
b) Place the brushes under the base. Align
the brush lugs with the holes in the brush
plate. Insert the brushes into the plate and
turn each brush so the lugs are pushed
toward their retaining springs, until locked.
The photo shows the directions to rotate
the brushes to lock them into operating
position.
Page 7 of 35
r
r
r
r
r
MACHINE OPERATION
1) Connect machine connector to the battery
connector.
2) Turn on the main power key switch. Battery
charge indicator will illuminate indicating the
charge level of the batteries. If the indicator is
flashing the batteries need to be charged.
3) Turn on the brush motor switch. Please note
that the scrubbing brush will not rotate until
the hand switch lever is engaged.
4) Turn on the water solenoid valve switch.
5) Turn on the vacuum motor switch.
Machine
Connecto
Battery
Connecto
Vacuum
Motor
Switch
Water
Solenoid
Switch
Battery
Charge
Indicator
Main Power
Key Switch
Brush Motor
Switch
6) Adjust the flow rate of the cleaning solution
with lever. Moving the solution flow control
lever downward increase the flow rate and
raising the lever decreases the flow rate.
There should be enough solution to wet the
floor uniformly, but not so much that
the water
gets past the splash guard. Remember that
the correct solution quantity depends on the
type of floor, the dirt level and the scrubbing
speed.
7) Release parking brake by raising parking
brake lever.
8) Release and raise the brush base lift lever to
lower the brush base.
9) Lower the squeegee using the squeegee lift
lever.
Squeegee
Lift Leve
Parking Brake
Leve
Solution
Tank
Drain
Hose
Brush
Base
Lift
Leve
Solution
Flow
Control
Lever
Page 8 of 35
MACHINE OPERATION
10) SCRUBBING
This machine is equipped with brush assist
propulsion. Depress the handle switch lever.
The scrub brush will begin to rotate and solution
will begin to flow. During the first few yards of
operation, check that the quantity of the cleaning
solution is sufficient to wet the floor and that the
squeegee dries the floor surface.
WARNING! Always lift the squeegee when
moving backwards.
11) OVER FILL PROTECTION
The machine is equipped with a float that stops
the vacuum exhaust air flow when the recovery
tank is full. Vacuum motor does not stop
operating but the vacuum exhaust air flow rate is
greatly reduced. When this occurs, empty the
recovery tank by removing the drain plug on the
drain hose and then empty the recovery tank.
WARNING! Use gloves for protection from
contact with dangerous solutions.
Handle
Switch
Lever
Float
Drain Plug
Page 9 of 35
r
r
UPON COMPLETION OF MACHINE USE
After finishing your work and before any type of
maintenance is done, it is necessary to do the
following:
1) Close the water valve by raising the solution
flow control lever.
2) Raise the brush base by stepping down
locking the brush base lift lever. To lock the
lever move your foot to the right while the
lever is pressed down.
3) Lock parking brake by stepping down on
parking brake lever. To lock the lever move
your foot to the right while the lever is pressed
down.
4) Lift the squeegee by raising the squeegee lift
lever and locking it by moving the lever to the
left.
WARNING! The squeegee blades can
be damaged if the squeegee is not raised
during storage or transport.
Squeegee
Lift Leve
Parking Brake
Leve
Solution
Tank
Drain
Hose
Brush
Base
Lift
Lever
Solution
Flow
Control
Lever
5) Switch off main power key switch.
6) Switch off the water solenoid valve switch.
7) Switch off the brush motor switch.
8) Switch off the vacuum motor switch.
9) Transport the machine to the location where
the recovery tank should be emptied.
10) Remove the drain hose at the front of the
recovery tank.
11) Remove the drain plug and empty the
recovery tank.
WARNING! Use gloves for protection
from contact with dangerous solutions.
12) Remove the brush or pad driver and clean
them with clear water.
Water
Solenoid
Switch
Vacuum
Motor
Switch
Battery
Charge
Indicator
Main Power
Key Switch
Brush Motor
Switch
Drain Plug
Page 10 of 35
r
DAILY MACHINE MAINTENANCE
CLEANING THE RECOVERY TANK
1) Empty the recovery tank by removing the drain
plug from the drain hose.
WARNING: Use gloves for protection from
contact with dangerous solution.
Drain Plug
2) Lift the cover of the recovery tank.
3) Take off the vacuum cover by rotating it
counter clockwise.
4) Remove the filter and its housing.
5) Rinse the tank with clean water.
CLEANING THE VACUUM FILTER
6) Lift the cover.
7) Take off the vacuum cover by rotating it
counter clockwise.
8) Remove the filter and its housing.
9) Use clear water to clean the walls and the
bottom of the filter.
10) Remove the filter and its housing.
11) Wash all components thoroughly.
12) Reassemble repeating the above operations
in reverse.
Vacuum
Cove
Squeegee
Hose
Page 11 of 35
DAILY MACHINE MAINTENANCE
CLEANING THE SQUEEGEE
To obtain the best drying results, keep the
squeegee clean. To clean the squeegee it is
necessary to:
13) Remove the vacuum hose from the
squeegee.
14) Lift locking latches. Remove the squeegee
assembly by pulling rearward.
15) Clean the inside of the squeegee thoroughly.
16) Clean the squeegee blades thoroughly.
17) Reassemble.
REPLACING THE SQUEEGEE BLADES
Check the squeegee blades for wear and if
necessary, change them. To replace the
squeegee blades:
18) Remove the squeegee vacuum hose from its
port.
19) Lift locking latches and pull squeegee
assembly rearward.
20) Release the band clamps by lifting the band
clamp latch.
21) Remove squeegee blades.
22) Rotate or replace the blades. Please note
that the squeegee has 4 useable edges so
you may be able to rotate squeegee blades.
23) To reassemble the squeegee, repeat the
above operations in reverse.
Vacuum
Outlet
Locking Latches
Band
Clamp
Latch
Squeegee
Blade
Band
Clamp
Latch
Squeegee
Blade
Band
Clamp
Page 12 of 35
Band
Clamp
DAILY MACHINE MAINTENANCE
BRUSH / PAD DRIVER REMOVAL
24) Lift the brush base by depressing the foot
level at the rear of the machine.
25) The photo shows the directions to rotate the
brushes to unlock them from the auto
scrubber. Clean the brushes with clear water.
Page 13 of 35
g
WEEKLY MACHINE MAINTENANCE
CLEANING THE SQUEEGEE HOSE
To obtain the best drying results, keep the
squeegee hose clean. To clean the squeegee
hose it is necessary to:
1) Take off the vacuum hose from its vacuum
port on the squeegee.
2) Remove the other end of the vacuum hose
from the recovery tank.
3) Wash the inner part of the hose with clean
water.
4) Reassemble.
WARNING: Do not wash the hose that
goes from the vacuum motor to the
vacuum cover.
SOLUTION TANK CLEANING
5) Remove the fill cap from the solution tank.
6) Rinse with clear water.
7) Remove the solution tank drain hose and cap
at rear of machine and empty the solution
tank.
WARNING: Use gloves for protection
from contact with dangerous solution.
Do Not
Wash
Vacuum
Cover
Hose
Wash
Squeegee
Hose
Solution Tank
Fill Openin
IN-LINE FILTER CLEANING
8) Drain solution tank.
9) Turn off solenoid valve.
10) Loosen set screw on in-line filter but do not
remove.
11) Pull rear hose rearward and separate in-line
filter into 2 pieces.
12) Remove the filter element and clean with
clear water.
13) Reassemble.
WARNING: Use gloves for protection
from contact with dangerous solution.
In-Line
Filter
Set Screw
Filter Element
Page 14 of 35
WATER SOLENOID MAINTENANCE
In the event that the water solenoid begins to
leak when turned off debris must be cleared at
the valve seat. To gain access the water
solenoid the scrub deck most be disassembled
from the lifting arms. Remove the 4 bolts shown
in the photo to release the scrub deck.
Water
Solenoid
Page 15 of 35
TROUBLE SHOOTING GUIDE
1) INSUFFICIENT WATER TO THE BRUSHES
Solution
a) Make sure the solution flow control valve is open.
b) Confirm that there is water in the solution tank.
c) Make sure solution dispensing tubes are not clogged or
obstructed.
2) THE MACHINE DOES NOT CLEAN SATISFACTORILY
a) Check the condition of the brush or pad and replace them if necessary.
b) The brush should be replaced when the bristles reach a length of 5/8 inches (15mm).
3) THE SQUEEGEE DOES NOT DRY THE FLOOR WELL
a) Check that the squeegee blades are clean.
b) Adjust the inclination of the squeegee.
c) Confirm the vacuum hose is correctly fitted into its port in the recovery tank and free from
Flow
Control
Lever
obstructions.
d) Replace the squeegee blades if worn.
e) Check that the vacuum motor switch is on.
f) Check the squeegee height adjustment (see "MACHINE PREPARATION" section).
4) EXCESSIVE FOAM PRODUCTION
a) Check that a low foaming detergent has been used. If required, add a small quantity of
defoamer liquid to the recovery tank. More foam is generated when a floor is lightly
soiled. Use less detergent if this is the case.
Page 16 of 35
Brush Deck Assembly Drawing 1
Page 17 of 35
PART NUMBER DESCRIPTION & SPECIFICATION QTY NOTE
Drawing 1
840502 Adjuster Bolt 6
840901 Brush 2 Optional
840904 Carbon Brush 4
841102 Wheel Bushing 2
841110 Bushing 2
841111 Bushing 4
841308 Brush Drive Belt 2
841309 Bearing 6
842312 Base Cover 1
842706 Brush Deck 1
843302 Fitting Barbed 1
843306 Fitting Barbed 2
843307 Fitting 1
843607 Splash Guard 1
845003 Key - Motor Shaft 2
845119 Brush Base Dual Lift Link 2
845201 Brush Motor Asm 2
845604 Solenoid Valve Mount 1
845605 Motor Mount Weldment 2
846001 Pipe 2
846401 Left Spring Retaining Plate 1
846402 Right Spring Retaining Plate 1
846903 Brush Clutch Pulley 2
846904 Pulley 2
847003 Brush Deck - Pivot Block 8
847301 Reataining Ring 50 mm 2
847701 Brush Pulley Shaft 2
848201 Bearing Spacer 2
848210 Spacer 2
848301 Brush Retaining Spring 2
848505 Belt Tensioner Support Arm Weldment 2
849401 Solenoid Valve 1
849501 Brush Deck Weight 1
849701 Wheel 2
849801 Thrust Washer 2
881141 Bushing 6
882131 Clip Guard 12
888342 Spring 6
902033 Bearing 4
920033 M4 Hexagon Lock Nut 12
920647 Hex Nut M20 Zinc 2
920653 M6 Nyloc Hex Nut Zinc 6
924033 NyLoc Hex Nut M8 Zinc 16
924080 Jam Nut M12 Zinc 6
964001 Hex Bolt M8x12 2
964005 Flat Head Soc Hex Screw Full Thd M8X25 8
964083 Hex Bolt M8X30 Zinc 2
964103 Hex Bolt-Full M8x45 Zinc 2
964116 M8 Washer Flat Zinc 26
964173 Hex Bolt Full Thread M4x8 Zinc 6
964193 Oval HD Screw M4x16 Zinc 12
964220 M6x45 Flat Hd Phil Zinc 2
964246 Hex Bolt M8x35 Zinc 4
964423 Hex Bolt M6X12 Zinc 2
980058 Washer Star Lock M8 2
980064 M10 Washer Flat Zinc 4
980069 Lock Washer M8 Zinc 2
980665 M6 Flat Washer Zinc 2
980667 Washer M20x39 Flat Zinc 2
980671 M6 Washer Flat XL Zinc 2
980672 M6 Lock Washer Zinc 16
980675 M6 Flat Washer Stainless 28
980679 M8 Washer Flat Zinc 22
980680 Lock Washer M4 Zinc 6
980681 Washer M4 Flat Zinc 12
980684 M8 Washers Flat L Zinc 6
980702 M4 Large Flat Washer Zinc 6
Page 18 of 35
Main Frame Assembly Drawing 2
Page 19 of 35
PART NUMBER DESCRIPTION & SPECIFICATION QTY NOTE
Drawing 2
840308 Brake Lever Arm Weldment 1 ZINC
840310 Brush Deck Idle Arm W el dment 1 ZINC
840311 Brush Desk Lift Arm Weldment ASM 1 ZINC
841108 Bushing 2
841112 Bushing 2
842003 Hose Clamp 2 SS
842008 Clamp Bar 1
842306 Pedal Cover 1
842311 Pedal Cover - Brake 1
842701 Metal Disc 2 ZINC
843314 In Line Filter Outer Housing 1
843315 In Line Filter Inner Housing 1
843316 In Line Filter Element 1
843603 Splash Guard 1
843801 Grommet 1
845117 Brake Lever Arm Weldment 1 ZINC
845118 Brake Latch 1 ZINC
845801 O-Ring 21.2x2.65 1
845902 Brake Pad 2 ZINC
846404 Axle Retaining Plate Weldment 1 EPOXY PAINT
846405 Axle Retaining Plate Weldment 1 EPOXY PAINT
847001 Brush Lift - Pivot Block 8
847002 Brush Lift - Pivot Block 4
847302 Retaining Ring 20mm x 1.2mm THK 1
847407 Brake Screw Rod 1 ZINC
847705 Wheel Shaft 1 ZINC
848206 Wheel Spacer 2 ZINC
848208 Pivot Block Spacer 2
848302 SPRING 2 ZINC
848309 Brake Return Spring 1 ZINC
849005 Tubing 1
849006 Tubing 1
849703 Castor 2
849704 Main Wheel 2
920648 M12 Nyloc Hex Nut Zinc 3
920649 Hex Nut M8 Zinc 6
920653 M6 Nyloc Hex Nut Zinc 14
924032 M5 Nyloc Hex Nut Zinc 8
924033 NyLoc Hex Nut M8 Zinc 8
924063 Hex Nut M6 Zinc 2 ZINC
964007 Hex Bolt M8x40 Zinc 2
964083 Hex Bolt M8X30 Zinc 2
964116 Hex Bolt M6x20 Zinc 2
964182 Screw M4x10 Pan Head Zinc 4
964209 Hex Bolt M6x16 Zinc 4
964225 Hex Bolt M5X20 Zinc 8
964230 Hex Bolt M12x65 Zinc 1
964400 Flat Head Soc Hex Screw M6x16 Zinc 2
964428 Hex Bolt M6x60 Zinc 4
964429 Hex Bolt M6x50 Zinc 6
964437 Screw - SHCS M8x40 Zinc 2
964442 Slotted Set Screw Cone Point M3x6 1
980043 Washer Flat M12 5
980501 M6x22 OD Washer Flat Zinc 2
980665 M6 Flat Washer Zinc 24
980670 M6 External Lock Washer Zinc 2
980671 M6 Washer Flat L Zinc 2
980672 M6 Lock Washer Zinc 2
980676 M8 Washer - Plastic 4
980679 M8 Washer Flat Zinc 8
980684 M8 Washers Flat L Zinc 2
980684 M8 Washers Flat L Zinc 6
980685 M5 Washer Flat Zinc 16
74610004 Fork 2
74620005 Pin 2
Page 20 of 35
Squeegee Arm Assembly Drawing 3
Page 21 of 35
PART NUMBER DESCRIPTION & SPECIFICATION QTY NOTE
Drawing 3
840304 Squeegee Link Arm W el dment 1
840501 Squeegee Adjuster Bolt Rod 1
841103 Wheel Bushing 2
842405 Squeegee Lift Cable 2
842407 Squeegee Lift Cable 1
845001 Knob Handle 3
845601 Squeegee Mount Base 1
845602 Squeegee Mount Base Pivot 1
846701 Squeegee Attachment Pin 2
847302 Retaining Ring 20mm x 1.2mm THK 2
847303 Retaining Ring 15mm x 1.0mm THK 2
847305 Squeegee Lift Ring 2
847403 Rod End Male M12 Zinc 1
847702 Squeegee Adjuster Front Shaft 1
847703 Squeegee Adjuster Rear Shaft 1
848302 SPRING 1
848303 Spring - Squeegee Adjust 2
848401 Squeegee Wheel Adjusti ng S tud 2
848501 Wheel Strut Weldment 2
849702 Wheel Tread 2
887341 E-Ring 9 mm ID 2
920615 Hex Nut M5 Zinc 2
920648 M12 Nyloc Hex Nut Zinc 1
920649 Hex Nut M8 Zinc 3
920650 Hex Nut M12 Zinc 1
920653 M6 Nyloc Hex Nut Zinc 4
924033 NyLoc Hex Nut M8 Zinc 1
964005 Flat Head Soc Hex Screw Full Thd M8X25 3
964116 Hex Bolt M6x20 Zinc 2
964220 M6x45 Flat Hd Phil Zinc 2
964243 Hex Bolt M12x100 Lg Zinc 1
980043 Washer Flat M12 4
980671 M6 Washer Flat XL Zinc 2
980679 M8 Washer Flat Zinc 4
980685 M5 Washer Flat Zinc 2
Page 22 of 35
Squeegee Assembly Drawing 4
Page 23 of 35
PART NUMBER DESCRIPTION & SPECIFICATION QTY NOTE
Drawing 4
840703 Squeegee Blade Front 1
840704 Squeegee Blade Rear 1
841304 Squeegee Attachment Bloc k 2
842012 Band Clamp-Rear 1
842013 Band Clamp-Front 1
843205 Squeegee Frame Weldm ent 1
843317 Filler - Squeegee 2
845104 Latch ASM 2
845105 Squeegee Attachment Bloc k Latch 2
881145 Wheel Bushing 2
889742 Wheel 45 Dia 2
920649 Hex Nut M8 Zinc 2
924033 NyLoc Hex Nut M8 Zinc 2
925009 Roll Pin M5.5x12 SS 1
930012 REVIT M4x8 Lg Oval Head Semi-Tubular 4
964004 Hex Set Screw M6X8 2
964103 Hex Bolt-Full M8x45 Zinc 2
964209 Hex Bolt M6x16 Zinc 2
964232 Hex Bolt M6x25 Zinc 4
980665 M6 Flat Washer Zinc 6
980672 M6 Lock Washer Zinc 4
980679 M8 Washer Flat Zinc 4
980681 Washer M4 Flat Zinc 4
980684 M8 Washers Flat L Zinc 2
Page 24 of 35
Solution Tank Assembly Drawing 5
Page 25 of 35
PART NUMBER DESCRIPTION & SPECIFICATION QTY NOTE
Drawing 5
841300 Rear Battery Bracket 1
841303 Side Battery Bracket 1
842003 Hose Clamp 2
842705 Sound Deadener 1
843308 Fitting Barbed 1
843309 Fitting Barbed 1
843310 Filter Basket 1
843401 Battery Plastic Gask et 1
843402 Side Battery Gasket 1
843404 Conical Tank Gasket 1
844702 Fitting 1
845106 Brush Deck Lift Latch 1
845111 Water Control Label 1
845113 Squeegee Lift Label 1
845125 Lever - Valve 1
846406 Plate Wire Retaining 3
846603 Water Valve Limi t Plate 1
847406 Connecting Rod 1
848302 Spring 1
848603 Solution Tank 1
849008 Drain Tubing - Solution Tank 1
849402 Valve 1
882440 Hook 1
885044 Knob 1
886852 Cap 1
920615 Hex Nut M5 Zinc 1
924051 M5 Retaining Nut 1
925008 Cotter Pin M2x10 1
964127 Screw M4X8 Pan Head Zinc 1
964209 Hex Bolt M6x16 Zinc 2
964224 M5.5X16 Pan Head Plastite Screw 4
964228 M3X9.5 Pan Head Plastite Screw 6
964231 ST4.2X13 Pan HD PL Zinc 2
964332 Hex Bolt M8x80 Zinc 4
964398 Hex Bolt-Full THD M6×25 SS 1
980060 Plastic W asher M5 1
980504 M6x30 OD Washer Flat Plastic 2
980665 M6 Flat Washer Zinc 2
980671 M6 Washer Flat XL Zinc 4
980672 M6 Lock Washer Zinc 2
980679 M8 Washer Flat Zinc 1
980680 Lock Washer M4 Zinc 1
980682 M3 Washer Flat Zinc 6
980684 M8 Washers Flat L Zinc 4
980685 M5 Washer Flat Zinc 2
980702 M4 Large Flat Washer Zinc 1
Page 26 of 35
Recovery Tank Assembly Drawing 6
Page 27 of 35
PART NUMBER DESCRIPTION & SPECIFICATION QTY NOTE
Drawing 6
842007 Hose Clamp 1
842305 Solution Tank Cover 1
842308 Recovery Tank Cover 1
842403 Chain 2
842411 Chain For Lift 1
843405 Tank Gasket 1
844101 Recovery Tank Vacuum Hose 1
844102 Squeegee Vacuum Hose 1
844103 Drain Hose 1
845110 Recovery Tank Cover Label 1
845131 Lift Label 1
846801 Plug - Solution Tank Fill 1
847304 Ring - Filter Holder 1
848101 Sleevee 2
848103 Sleeve For Lift 1
848608 Recovery Tank 1
849004 Tubing 1
882440 Hook 1 CHROMATE
882442 Vacuum Outlet Port 1
883343 Filter Basket 1
883344 Float 1
883441 Gasket 1
883442 M8 Washer Flat Zinc 1
883446 Gasket 1
886841 Filter Cover 1
887440 Float Rod 1
888551 Splash Protector 1
924045 M5 Nyloc Hex Nut Stainless 2
925603 Cotter Pin M2x20 2
964063 FLHD Screw Ph Drive SS 4.2x13 4
964105 Oval HD PHL Screw M5x25 SS 2
964226 Screw M5x8 Pan Head Zinc 4
964231 ST4.2X13 Pan HD PL Zinc 2
980060 Plastic W asher M5 2
980675 M6 Flat Washer Stainless 2
980677 Washer M5 Flat XL Zinc 4
980704 M5 Washer Flat SS 2
S611A Hose Clamp 45mm 3
Page 28 of 35
Vacuum Assembly Drawing 7
Page 29 of 35
PART NUMBER DESCRIPTION & SPECIFICATION QTY NOTE
Drawing 7
840305 Lever Arm Weldment 1 ZINC
840805 Bracket-Wel dment 1 EPOXY PAINT
841104 Bushing 2 BRASS
841305 Lever Bracket 1 ZINC
842014 Hose Clamp 50mm 1 SS
842702 Vacuum Motor Sound Deadener 1
842703 Vacuum Motor Sound Deadener 1
842704 Sound Deadener 1
843801 Grommet 1
843901 Connector Handle 1
844104 Vacuum Exhaust Hose 1
845002 Lever Arm Knob 1 ZINC
845202 24VDC Vacuum Motor - SIX 1
845603 Muffler 1
847405 Rod - Connecting 1 ZINC
911441 Connector Male 50A 1
911442 Connector Female 50A 1
911531 Hose Clamp 1
920033 M4 Hexagon Lock Nut 4 ZINC
920653 M6 Nyloc Hex Nut Zinc 6 ZINC
924063 Hex Nut M6 Zinc 4 ZINC
962332 ST M6.3X22 Pan Head Zinc 2 ZINC
964116 Hex Bolt M6x20 Zinc 3 ZINC
964176 Hex Bolt M6X30 Zinc 2 ZINC
964421 Screw M4x25 Pan HD PL Zinc 2 ZINC
964422 Screw M4x20 Pan HD PL Zinc 2 ZINC
964423 Hex Bolt M6X12 Zinc 5 ZINC
980501 M6x22 OD Washer Flat Zinc 2 ZINC
980665 M6 Flat Washer Zinc 18 ZINC
980671 M6 Washer Flat XL Zinc 2 ZINC
980672 M6 Lock Washer Zinc 6 ZINC
980681 Washer M4 Flat Zinc 4 ZINC
Page 30 of 35
Switch Box Assembly Drawing 8
Page 31 of 35
PART NUMBER DESCRIPTION & SPECIFICATION QTY NOTE
Drawing 8
841306 Bezel - Rocker Switch 5
842302 Cover Lower Switch Box 1
842307 Cover - Rocker Switch 5
843801 Grommet 1
844001 Fuse Holder 1
844703 Insulator 1
845101 Scrubber Lever - Switch Box 2
845120 Switch Box Label 1
845122 Switch Box Latch 2
847501 Traction & Vacuum Motor Relay 1
847501
911172 Rocker Switch Green 3
911308 Battery Check Card 1
911419 Brush Motor Relay 1
911421 Battery Charge Numberic Indic ator 1
911424 Fuse 30Amp 1
911427 Trigger Switch 1
911428 Key Switch 1
911431 Fuse 3Amp 1
911440 Jumper Wire 1
911443 Fuse 50Amp 2
920615 Hex Nut M5 Zinc 14
924081 Hex Nut M2 Zinc 8
964182 Screw M4x10 Pan Head Zinc 2
964228 M3 x9.5 Pan Head Plastite Screw 6
964229 M6.0x32 Pan Head Plastite Screw 2
964237 Set Screw Socket M5X30 Zinc 2
964238 Plastite Screw M6x45 Pan HD PL Zinc 2
964432 Set Screw Socket M5X30 Zinc 1
964433 Set Screw Socket M5X20 Zinc 1
964434 Set Screw Socket M5X25 Zinc 1
964436 Flat HD PHL Screw M2x8 Zinc 8
980043 Washer Flat M12 2
980502 M5 x 15OD Flat Washer Zinc 12
980685 M5 Washer Flat Zinc 8
980687 Special Washer 4
980703 M2 Flat Washer Zinc 8
980705 Spring Lock Washer M2 Zinc 8
Traction & Vacuum Motor Relay
Page 32 of 35
Electrical Schematic Drawing 9
Page 33 of 35
Drawing 9
PART NUMBER DESCRIPTION & SPECIFICATION QTY NOTE
844506 Wire Harness 1
844507 Wire Harness 1
844509 Wire Harness 1
844513 Wire Harness 1
844514 Wire Harness 1
844515 Wire Harness 1
844516 Wire Harness 1
844518 Wire Harness 1
844519 Wire Harness 1
844520 Wire Harness 1
844521 Wire Harness 1
844522 Wire Harness 1
844523 Wire Harness 1
844526 Wire Harness 1
844527 Wire Harness 1
844530 911441 2 Cables black-red and connector 50A 1
844531 911442 2 Cables black-red and connector 50A 1
844532 Wire Harness 1
844533 Wire Harness 1
844536 Wire Harness 1
844539 Wire Harness 1
844542 Wire Harness 1
844579 Wire Harness 1
844580 Wire Harness 1
844581 Wire Harness 1
844582 Wire Harness 1
845201 Brush Motor 2
845202 24VDC Vacuum Motor - SIX 1
847501 Traction & Vacuum Motor Relay 1
849401 Solenoid Valve 1
887550 Traction & Vacuum Motor Relay 1
911172 Rocker Switch Green 3
911308 Battery Check Card 1
911401 Capacitor 470nF-250V 1
911402 Resistor 220 Ohm 1
911419 Brush Motor Relay 1
911421 Battery Charge Numberic Indicat or 1
911424 Fuse 30Amp 1
911427 Microswitch 1
911428 Key Switch 1
911431 Fuse 3Amp 1
911440 Jumper Wire 1
911443 Fuse 50Amp 2
911490 Butt Connector 6.0mm Yellow 4
911491 Spade Connector Famale Ins 6.3x5.0mm Yellow 2
911495 Spade Connector male Ins 6.3x5.0mm Yellow 2
68000154 Cable Bridge 1
72500008 Diode IN4007 6
Page 34 of 35
WARRANTY POLICY
TRIPLE S LIMITED WARRANTY
The Triple S 26BA1 has been manufactured, tested and inspected in accordance with specific
engineering requirements. This machine is WARRANTED to be free from defects in workmanship
and materials for periods as follows from the date of purchase.
Ten (10) Years Parts, One (1) Year Labor – Polyethylene Components
Five (5) Years Parts, One (1) Year Labor – Main Frame
Two (2) Years Parts, One (1) Year Labor – Brush Drive Motors
One (1) Year Parts & Labor – All other components unless excluded below
Travel time for warranty repair is authorized for a period of ninety (90) days following the date of
sale to the end user, with a maximum of three (3) hours per claim.
This warranty extends to the original user/purchaser and only when used, operated and maintained
in accordance with Triple S Operating and Maintenance instructions.
This warranty does not apply to certain wear parts and accessories of the machine such as
electrical cords, carbon motor brushes, floor brushes, belts, hoses, tools, squeegee blades, etc.,
nor does it apply to damage or failure caused by improper use, abuse or neglect. Warranty credit
of return parts including motors, pumps, etc., is subject to incoming inspection of those items.
To secure repair under this warranty, the following procedure should be taken:
1. After the expiration of the ninety (90) day travel time warranty period, the customer is
responsible for warranty travel payment for the inoperative machine or warranted parts must be
delivered to the authorized dealer with shipping and delivery charges prepaid. If unable to locate
the Dealer, you may contact Triple S at the address listed herein for the location of the nearest
Triple S repair center or agent or for other instructions pertaining to your warranty difficulty.
2. Upon compliance with the above warranty procedure, all warranted repairs will be completed at
no additional charge or cost to the user.
3. Only Triple S or its authorized dealers and agents may make no charge warranty repairs on this
product. All others do so at their own risk.
This warranty limits Triple S liability to the repair of the product and/or warranted parts replacement
and does not include incidental or consequential damages arising from the use of a Triple S
machine whether defective or not.
BATTERY WARRANTY
In addition to the terms above, any original equipment Triple S battery which becomes
unserviceable under normal use within a period of ninety (90) days from the date of sale to the
original user will be repaired or replaced with one of equal specification at our option, F.O.B. any
authorized Triple S sales or service branch, with no charge to user, except transportation costs.
After the expiration of the above ninety (90) day period, any battery which fails under normal use
will be adjusted to the original user with a new battery of equal specification on a twelve (12) month
pro rata basis from the date of purchase. Adjustments will be determined using the then current list
price, plus transportation costs. Warranty is rendered null and void if battery is not kept filled to the
proper level with DISTILLED WATER.
This warranty is in lieu of all other expressed or implied warranties and is extended to the original
purchaser/user.
04/2008 Page 35 of 35 PN 845612
Loading...
