Trion SE400E, SE800E User Manual

ELECTRONIC

AIR PURIFICATION

SYSTEM

Eliminator

Series

SE400E and SE800E

•

INSTALLATION

•

OPERATION

•

SERVICE

Electrostatic Precipitators for

Commercial Applications

101 McNeill Road • Sanford, NC 27330

[phone] • Fax: [phone] • [phone]

www.trioninc.com

MANUAL PART NO. 154385-002 • September 2001

1

Contents

Section I – Design Page

1. Introduction……………………….. 3

2. The Filter System………………… 3

3. Specifications…………………….. 4

Section II - Installation

1. Installation………………………… 5-6

2. Diagrams………………………….. 7

Section III – Servicing and Maintenance

1. Servicing / Maintenance………… 8

2. Parts List………………………….. 9

3. Exploded Views………………….. 10

Section IV - Reference

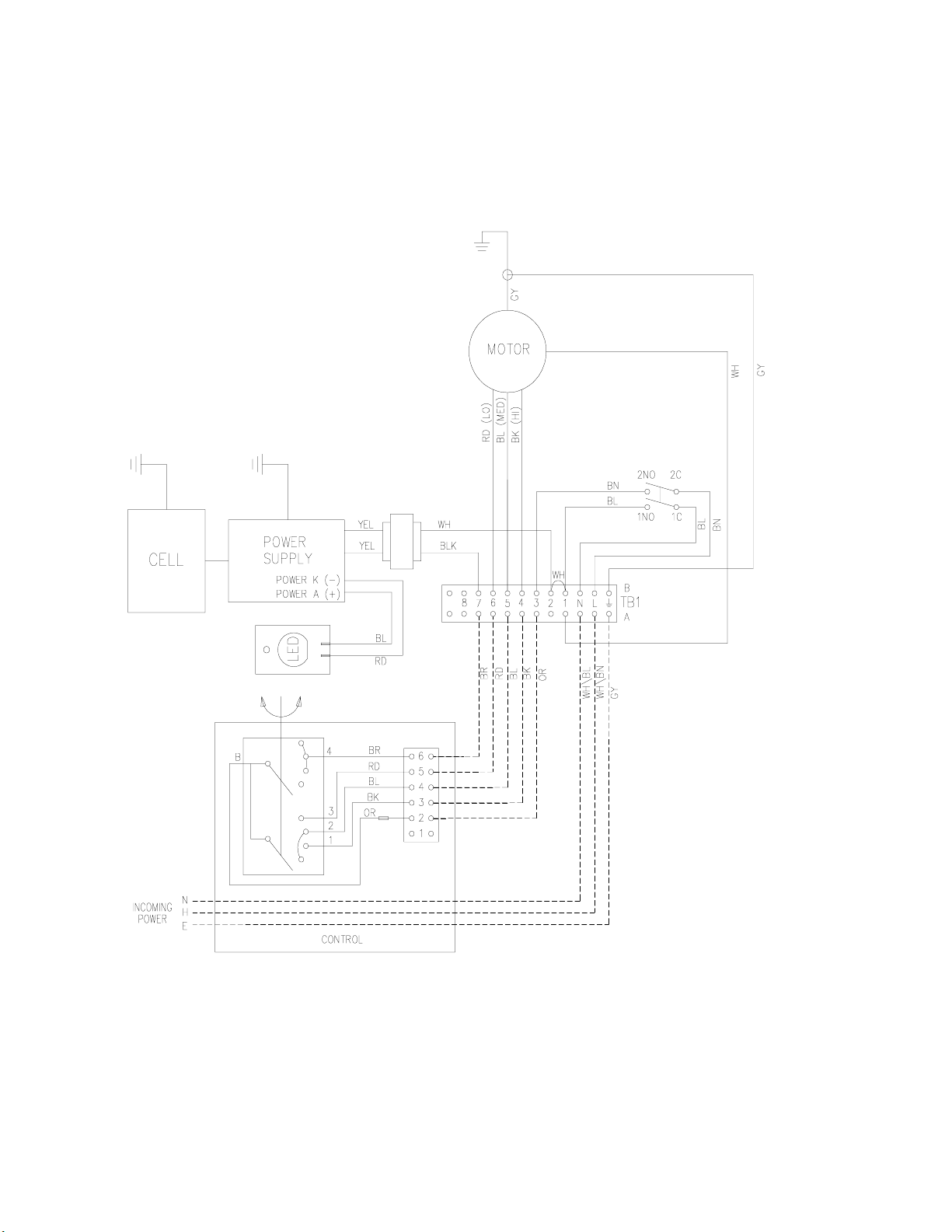

1. Wiring Diagram SE400E………… 11

2. Wiring Diagram SE 800E……….. 12

This manual provides information for installation, operation and maintenance of

your Trion SE400E & SE800E. Before installing and using the air purifier, carefully

read these instructions to ensure maximum benefits from the unit, and to avoid

needless service costs that may result from improper installation

and maintenance.

2

Eliminator SE Series

2. The Filter System

Section I – Design

1. Introduction

The Trion Eliminator SE400E & SE800E are
commercial air purifiers that have been
specifically designed to remove airborne
pollutants - including tobacco smoke, dust,
pollen and mold spores - in rooms and areas
where people work or relax. They are
designed to be mounted onto a solid ceiling,
semi-recessed for into a suspended ceiling, or
wall mounted (SE400E only). Where
appropriate they can also draw in additional
fresh air.
Their features make them the ideal air purifier
for installations into areas such as offices,
conference rooms, restaurants, designated
smoking areas, institutions and waiting rooms
or any other place where people gather.

HOW THEY WORK

The Trion SE400E & SE800E utilize the
principle of Electrostatic Precipitation. Air is
drawn into the intake, through the metal
prefilter, which traps lint and large dust
particles. The remaining particles, some as
small as 0.01 microns*, pass into a strong
electrical field (ionizing section) where the
particles receive an electrical charge. The
charged particles pass onto a series of equally
spaced parallel plates (collector section). Each
alternate plate is charged with the same
polarity as the particles, which are repelled,
while the interleaving plates are grounded, and
therefore attract and collect the particles.

* The diameter of a human hair is about 100
micron!

There are two filters in your air cleaner ­THE PRE-FILTER: This is the mechanical
filter that lies behind the inlet grill. It is
designed to remove large particles and can be
washed many times before replacement.

THE ELECTROSTATIC FILTER: This is the
deep aluminum assembly (Collector Cell)
located immediately behind the pre-filter and
is the heart of your air cleaner. It uses an
electrostatic charge to remove particles so
small that it would take a pile of many millions
to cover a pinhead. When dirty it can be
washed and reused indefinitely.

FILTER REMOVAL

TRION SE400E

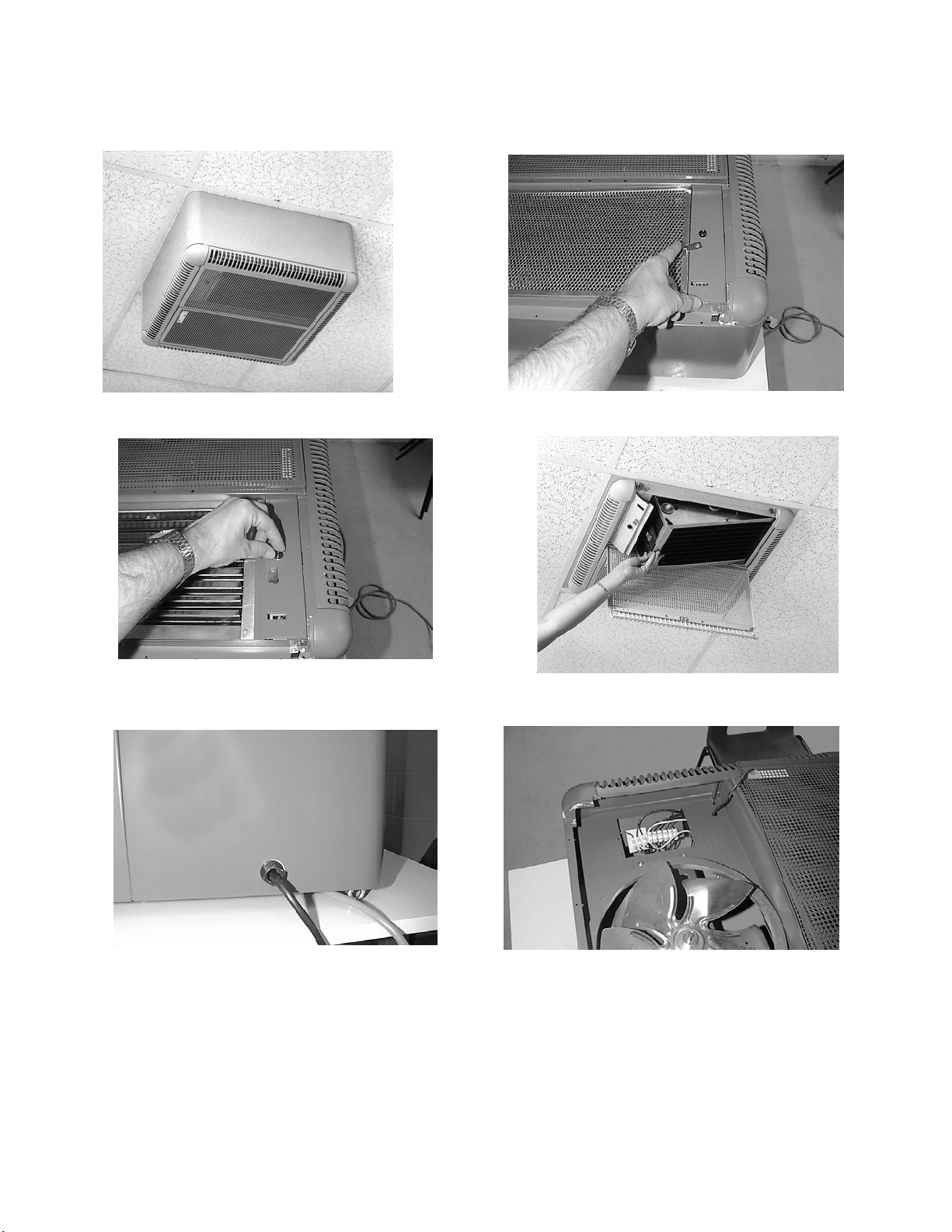

Turn the control switch off before removing cell.
Press the two cell access latches and the hinged
door will swing down. Remove pre-filter by turning
pre-filter clip 90 degrees (fig 2). While supporting
the weight of the Collector Cell, loosen the filter
retaining screw (fig 3). The filter retaining plate will
now open allowing the filter to be removed (fig 4).
To reinstall the filter, simply reverse above
procedure.

TRION SE800E

The two hinged access doors are secured with
retaining screws (fig 3). Release screws to
allow the doors to swing down. Remove the
Collector Cells as described above.

INSTALLATION LOCATION

The most effective location for the air purifier is
the center of the area to be cleaned because
the dirty air is pulled into the center of the unit
and discharged equally out the four sides. If
more than one unit is required, space them
evenly over the area to be cleaned.

3

Eliminator SE Series

3. Specifications

Model SE400E SE800E

Dimensions Depth: 9.5” Depth: 9.5”

Width: 22.5” Width: 22.5”
Length: 22.5” Length: 46.12”

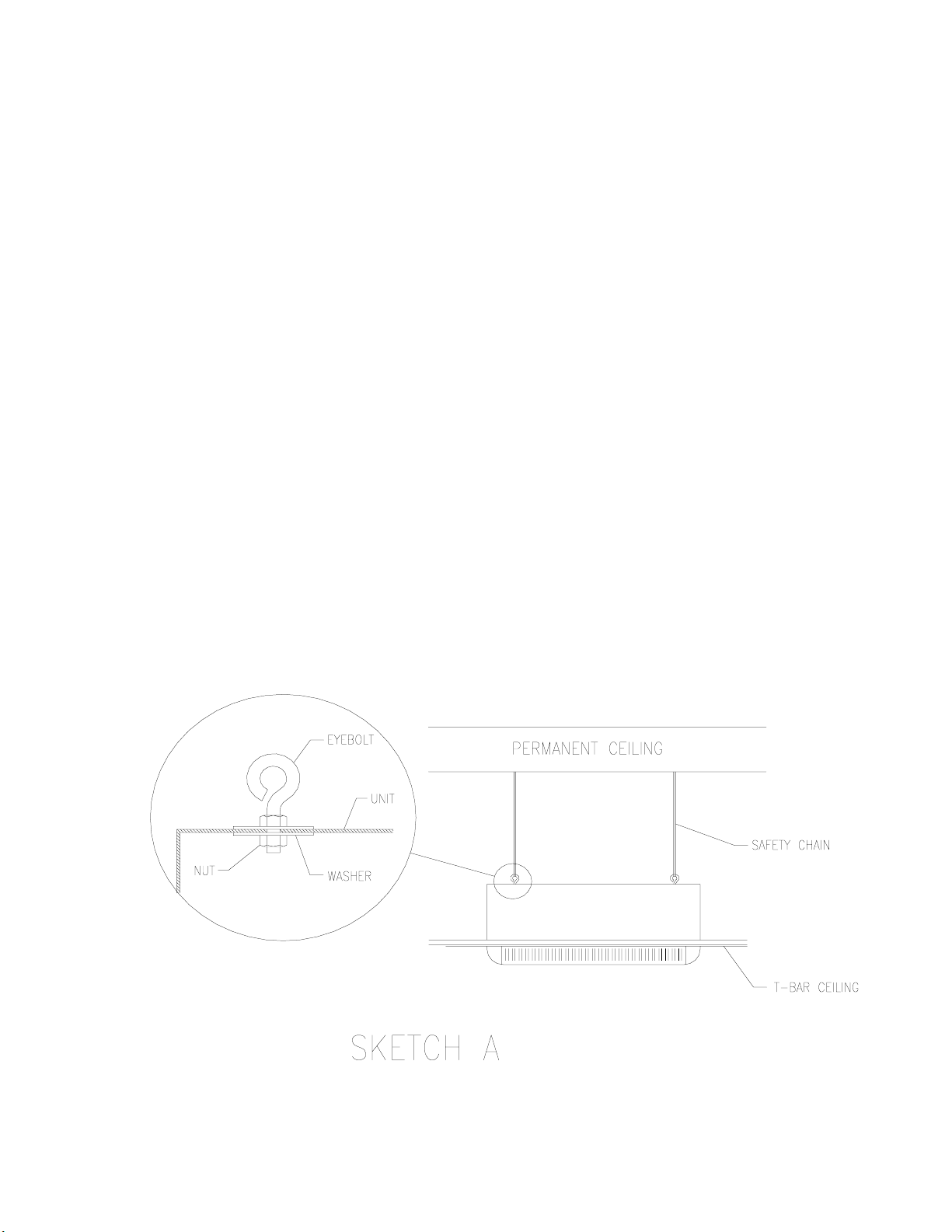

Installation Surface mounted, recessed into suspended ceiling,

or wall (SE400E only) mounted.

Weight 42 lbs. / shipping 48 lbs. 80 lbs. / shipping 86 lbs.

Input Power 120 Volts, 1 Phase, 60 Hz 120 Volts, 1 Phase, 60 Hz

Power Consumed 1.8 Amps, 155 Watts 3.4 Amps, 270 Watts

Controls Hard-wired remote control Hard wired remote control

with 3-speed selector switch with 3-speed selector switch
with air-dry (fan only) facility with air dry (fan only) facility

Motor 1/20 HP, 3-speed, Ball Bearing (2) 1/20 HP, 3-speed, Ball Bearing

Air Flow 200, 300, 400 CFM 400, 600, 800 CFM

Sound Rating 38, 55, 62 dBa 41, 58, 65 dBa

Safety Feature Interlock to cell access door Interlock to cell access door

Features Anti-arc circuitry Anti-arc circuitry

Power to cell indicator Power to cell indicator
Fresh air inlet Fresh air inlet
Dry (fan only) cycle Dry (fan only) cycle

Options Infrared remote control Infrared remote control

Fresh air damper system Fresh air damper system

4
