Trion Port-A-Cart User Manual

Capture Dry Process Pollutants at the Source
The Port-A-Cart™ helps to eliminate smoke, dust, powders and
Port-A-Cart incorporates the latest technological advances in filtration design and is ideal for applications in which:
other dry process pollutants before they adversly affect indoor air quality and worker productivity.
Port-A-Cart is adaptable, efficient and easy
to maintain. Its many advantages can help:
• Meet OSHA air quality standards
• Reduce make-up air requirements by cleaning and re-circulating the air
• Cut maintenance costs by eliminating smoke and dust before particles can settle on equipment and work surfaces
• Large pick-up hoods are impractical
• Dust and smoke-producing machinery are used intermittently
• An employee works at multiple stations The Port-A-Cart’s parabolic (curved) hood and inlet flange make
the device most effective in capturing smoke and fumes at fur­ther distances, compared to standard designs that allow con­taminant bypass.
How Port-A-Cart Works
The Port-A-Cart functions in three easy steps:
• Contaminants enter the Port-A-Cart through the unit-mounted hood and are conveyed through the swing arm into the cartridge filter section
• As the cartridge filter loads with contaminants, the optional, off-line reverse pulse cleaning system directs compressed air through the filter, dislodging collected particles. These particles then fall into the dust drawer for storage and easy removal
• Clean air is re-circulated into the work area
Dirty Air
Clean Air
Dirty Air
2
Clean Airflow 1000 CFM (1700 m3/hr.) Filter Area 190 ft2 (17.7 m2) Cabinet 48” D x 30” W x 34” H
Dimensions (1222mm x 749mm x 851mm) Shipping Weight 400 lbs. (180 kg.) Noise Level 70 dB(A)* at 5’ distance (1.5m) Horsepower 1.5 HP Electrical 115/208-230/1/60,
17/9.4-8.5 amps
Construction 14 ga. welded steel,
powder coated cabinet
*dB(A) sound levels are an average of measurements made in a laboratory environment. Installed sound levels will vary depending on the measure­ment location, operating conditions and installation.
Features and Benefits
• Complete self-contained unit, includes 6.5-foot arm with parabolic hood, blower and filter cartridge for “plug and

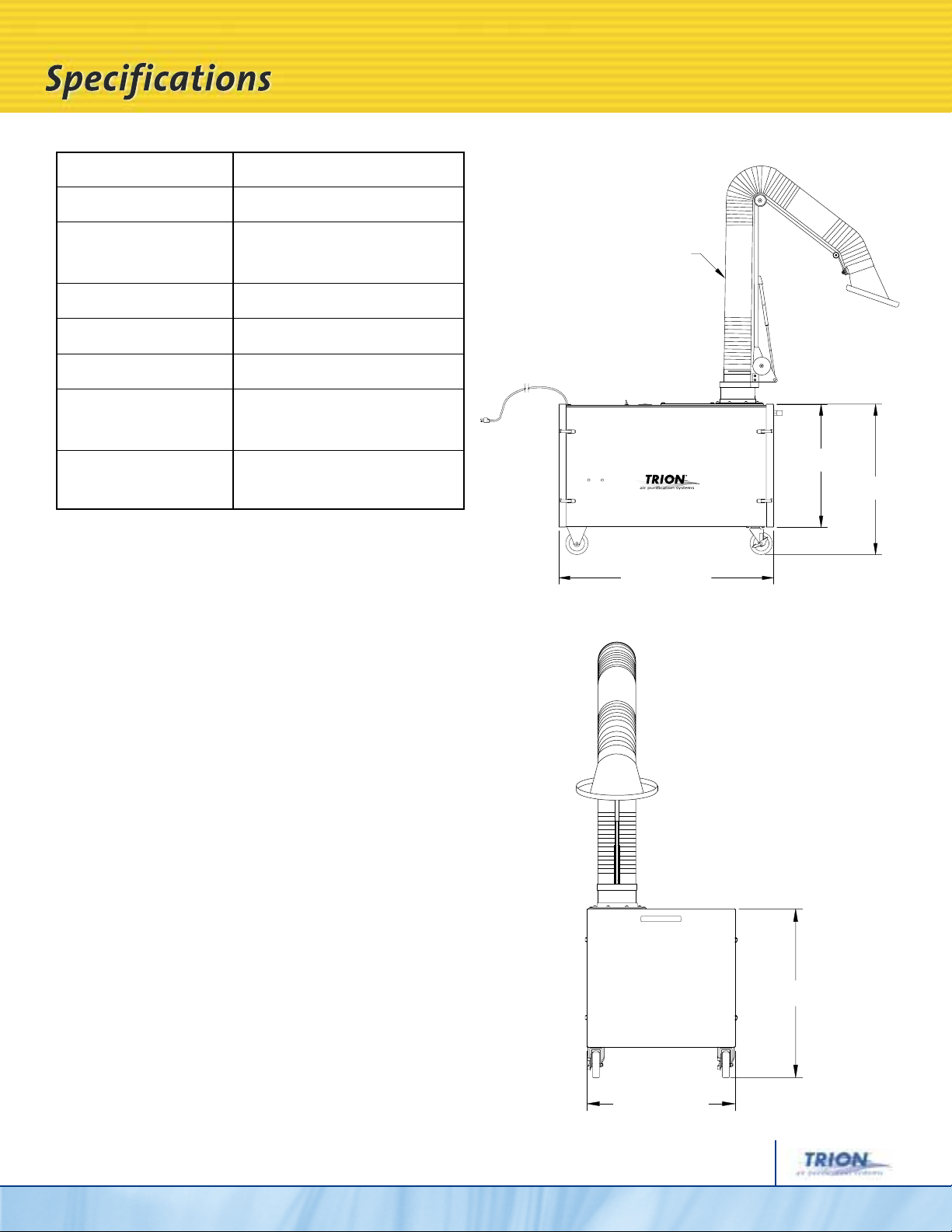

8.00" [200mm] DIAMETER x 6 1/2' [2m] LG SELF SUPPORTING SOURCE
CAPTURE SWING ARM
P
ORT
-A-C
Portable Cartridge
Air Cleaner
by
48.09" [1221mm]
ART
27.50" [699mm]
33.59" [853mm]
go” operation
• Minihelic® gauge kit to indicate when filter requires cleaning
• Direct-drive backward inclined blower overcomes higher static pressure to provide longer filter life and greater reliability; no belts or pulleys to replace
• Removable filter door allows easy access to cartridge filter
• Nanofiber technology provides up to 99.999% filtration efficiency on 0.5 µm dust particles
• Fire retardant cartridge for increased safety
• Compact design easily fits through a standard doorway
• Impregnated carbon after-filter for odor control
Options
• Off-line, reverse pulse cleaning system, factory or field installed kit
33.59" [853mm]
29.50" [749mm]
• Bolt-on, 99.97% HEPA after filter
