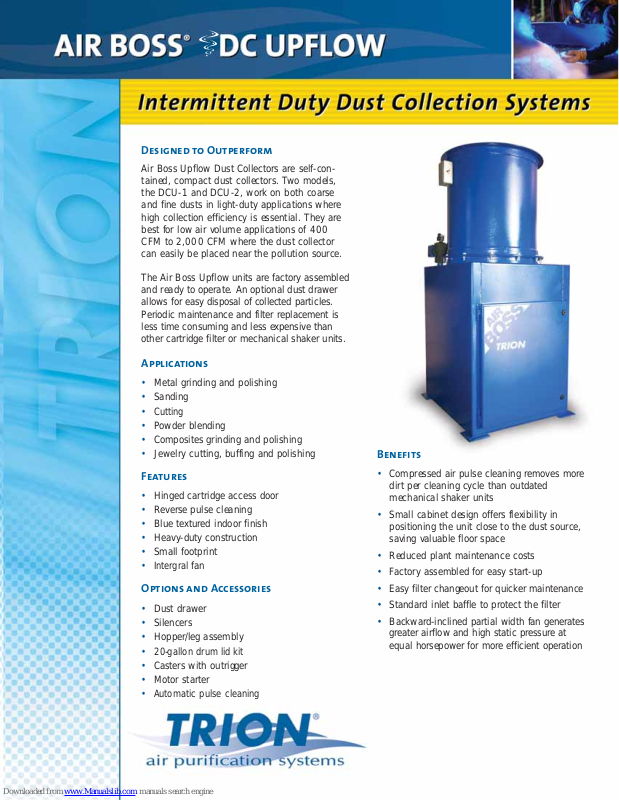

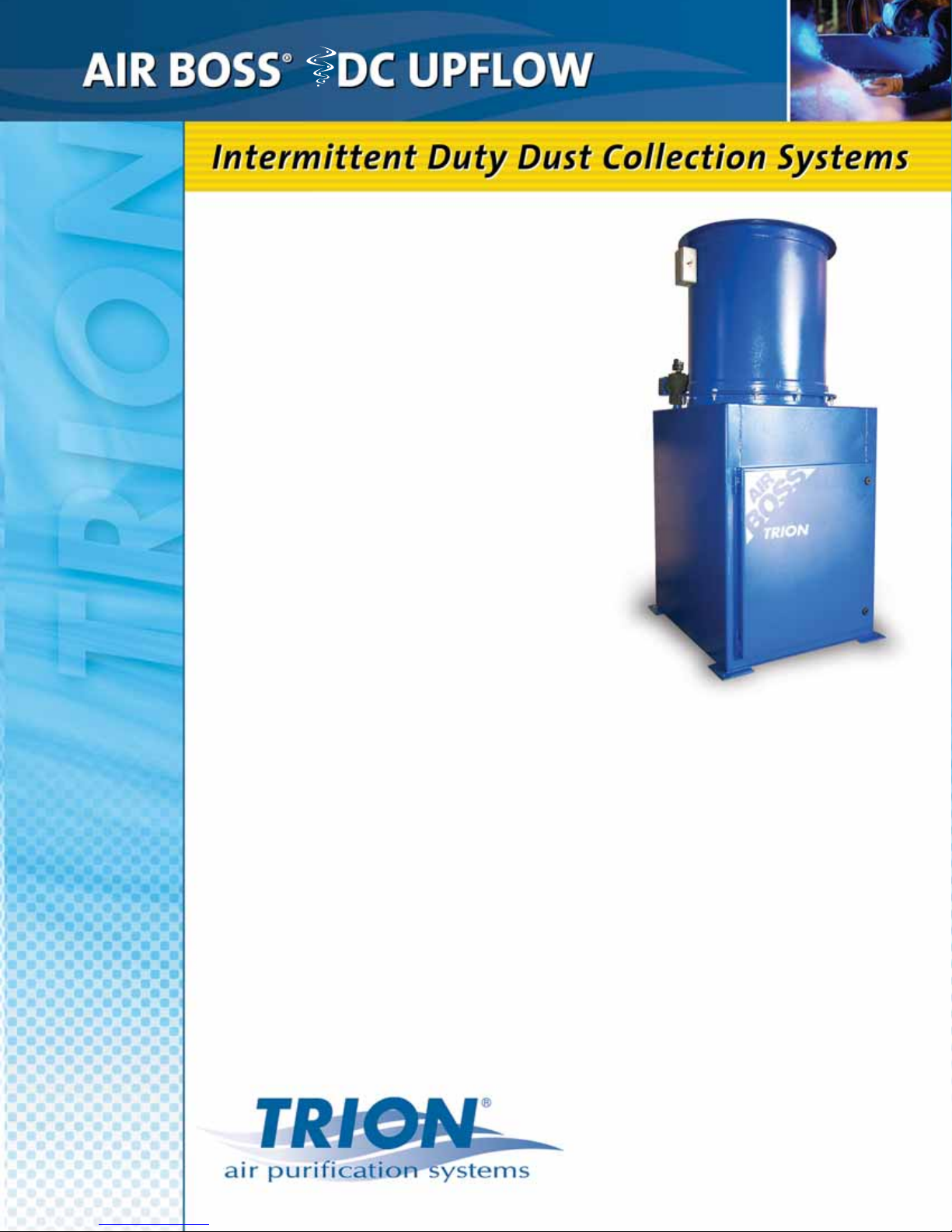

Designed to Outperform
Air Boss Upflow Dust Collectors are self-contained, compact dust collectors. Two models,
the DCU-1 and DCU-2, work on both coarse
and fine dusts in light-duty applications where
high collection efficiency is essential. They are
best for low air volume applications of 400
CFM to 2,000 CFM where the dust collector
can easily be placed near the pollution source.
The Air Boss Upflow units are factory assembled
and ready to operate. An optional dust drawer
allows for easy disposal of collected particles .
Periodic maintenance and filter replacement is
less time consuming and less expensive than
other cartridge filter or mechanical shaker units.
Applications
• Metal grinding and polishing
• Sanding
• Cutting
• Powder blending
• Composites grinding and polishing
• Jewelry cutting, buffing and polishing
Features
• Hinged cartridge access door
• Reverse pulse cleaning
• Blue textured indoor finish
• Heavy-duty construction
• Small footprint
• Intergral fan
Options and Accessories
• Dust drawer
• Silencers
•
Hopper/leg assembly
• 20-gallon drum lid kit
• Casters with outrigger
• Motor starter
• Automatic pulse cleaning
Benefits
• Compressed air pulse cleaning removes more
dirt per cleaning cycle than outdated
mechanical shaker units
•
Small cabinet design offers flexibility in
positioning the unit close to the dust source,
saving valuable floor space
• Reduced plant maintenance costs
• Factor y assembled for easy start-up
•
Easy filter changeout for quicker maintenance
• Standard inlet baffle to protect the filter
• Backward-inclined partial width fan generates
greater airflow and high static pressure at
equal horsepower for more efficient operation
Page 2
Model DCU-1
One (1) 80/20 Cartridge Filter, 195 sq. ft. Media
CFM
400
600
800
1000
Height
56 7/16 ”
Voltage
Amps
115/1/6016230/1/60
8.8
Width
25 11/16 ”
Depth
29 9/16 ”
Weight
390 lbs.
Total Static Pressure
@ 5.35” w.g.
@ 5.15” w.g.
@ 4.75” w.g.
@ 3.95” w.g.
Voltage
Amps
208/3/60
9.5
230/3/60
7.6
460/3/60
3.6
Model DCU-2
One (1) 80/20 Cartridge Filter, 350 sq. ft. Media
CFM
500
1000
1500
2000
Height
71 7/16”
Width
25 11/16”
Depth
29 9/16”
Weight
445 lbs.
Total Static Pressure
@ 8.10” w.g.
@ 7.85” w.g.
@ 7.20” w.g.
@ 5.10” w.g.
Notes: 1.) Dimensions & Weights are for the standard open bottom units.
2.) Add 42 lbs. for dust drawer base and 130lbs. for 20-gallon hopper/leg set.

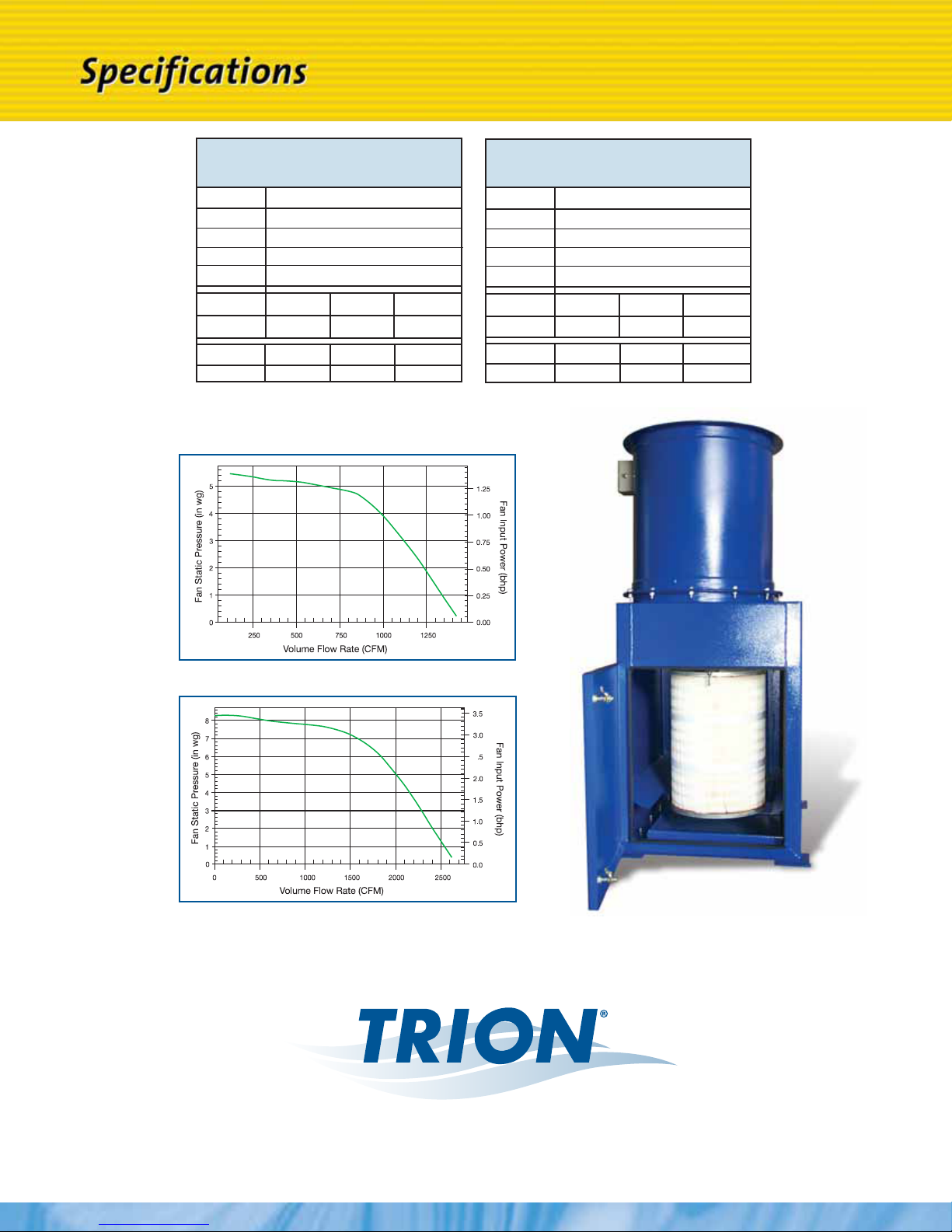

Model DCU-1 (1.5 hp) Blower Curve
Model DCU-2 (3 hp) Blower Curve
