Page 1

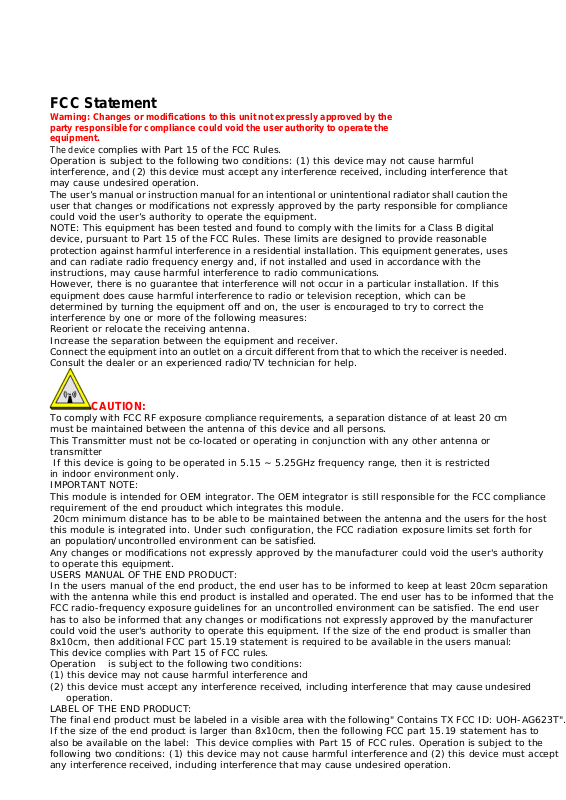

FCC Statement
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate the
equipment.
The device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device m ust accept an y interferen ce received, inc luding interfer ence that
may cause undesired operation.
The user’s manual or instruction manual for an intentional or uninte ntional radiator shall caution the
user that changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equi pment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a resi dential installa tion. This equipment gen erates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and re ce ive r.
Connect the equipment into a n outlet on a circuit different from that to which the receiver is needed.
Consult the dealer or an experienced radio/TV technician for help.
i
CAUTION:
To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm
must be maintained between the antenna of this device and all persons.
This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter
If this device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is restricted
in indoor environment only.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance
requirement of the end prouduct which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the users for the host
this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for
an population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's authority
to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm separation
with the antenna while this end product is installed and operated. The end user has to be informed that the
FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user
has to also be informed that any changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this equipment. If the size of the end product is smaller than
8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual:
This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following" Contains TX FCC ID: UOH-AG623T".
If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to
also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Page 2
RF Exposure Manual Information That Must be Included
The users manual for end users must include the following information in a prominent location
"IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used
for this transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna or
transmitter."
Additional Information That Must be Provided to OEM Integrators
The end user should NOT be provided any instructions on how to remove or install the device.
Page 3
1. Introduction
54Mbps IEEE802.11a/b/g Wireless Network Mini PCI Adapter is the perfect solution for your wireless network
applications based on the IEEE 802.11a/b/g standard offering a data rate of 54Mbps in a wireless LAN
environment.
AG-623
Internet Video Server gives you wireless access the web and network resource without the wire.
AG-623
bit of WEP (Wired Equivalent Privacy) data encryption. With Direct Spread Spectrum Signaling
(DSSS) and Orthogonal Frequency Division Multiplexing (OFDM), domain access control, WEP
encryption and group security, the modules will safeguard all your wireless data transmissions from
your nosy neighbors.
AG-623
information and online services anytime a nd anywhere.
is designed for Access Point, Router, ATUR, Printer Server series, IP Camera series and
provides high-speed access to network resources and has built-in 40/64-bit, 128 bit and 256
allows you to take full advantage of your devices mobility with access to real-time
2. Feature
Complies with IEEE 802.11a/b/g Standard for
.
Works with All Existing Network Infrastructures.
.
Compatible with Wi-Fi Wireless Products and Services
.
. Capable of up to 256-Bit WEP Encryption.
. Freedom to Roam While staying Connected
. 54 Mbps High-Speed Transfer Rate
. Two UF-L Connectors for External Antenna
. Support Antenna diversity for Better Sensitivity
. Lower Power Consumption.
Wireless LAN.
Page 4
3.Specification
Product Description
IEEE 802.11a/b/g 5 & 2.4 GHz WLAN miniPCI card with Turbo A & Turbo G
Lead Free
RoHs Compliant
Host Interface
32-bit miniPCI
Operating Voltage
DC 3.3 + 5%
Chipset
Mac/BB Processor Atheros AR5413 (Single chip)
PA Chip RF5824 RFMD
Po wer Consumption
11A
11B
11G
TX: ≦ 550 mA RX: ≦ 450 mA
TX: ≦ 550 mA RX: ≦ 450 mA
TX: ≦ 550 mA RX: ≦ 450 mA
Radio
Antenna two U.FL-R-SMT connectors

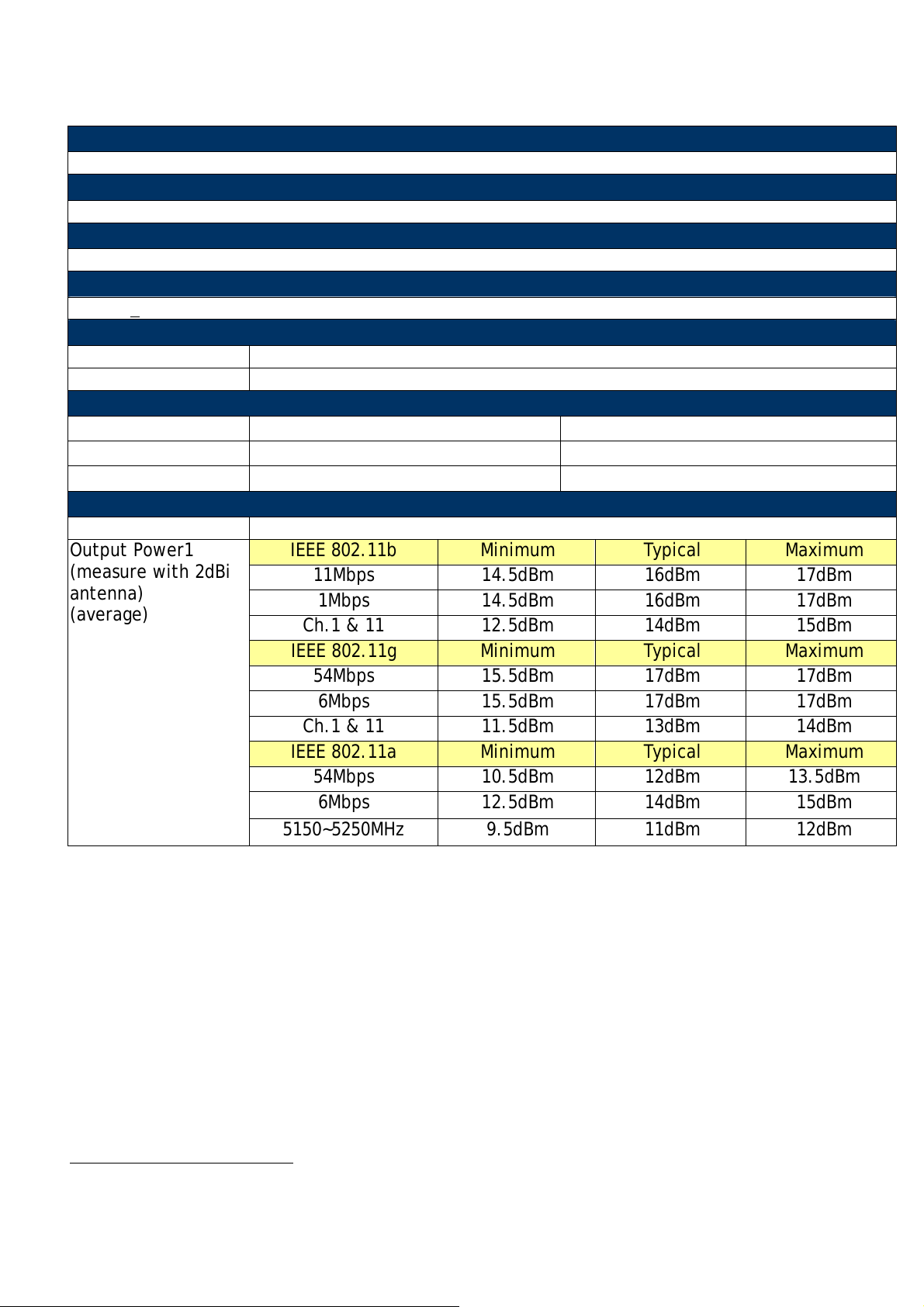

Output Power1
(measure with 2dBi
antenna)
(average)
IEEE 802.11b Minimum Typical Maximum
11Mbps 14.5dBm 16dBm 17dBm
1Mbps 14.5dBm 16dBm 17dBm
Ch.1 & 11 12.5dBm 14dBm 15dBm
IEEE 802.11g Minimum Typical Maximum
54Mbps 15.5dBm 17dBm 17dBm
6Mbps 15.5dBm 17dBm 17dBm
Ch.1 & 11 11.5dBm 13dBm 14dBm
IEEE 802.11a Minimum Typical Maximum
54Mbps 10.5dBm 12dBm 13.5dBm
6Mbps 12.5dBm 14dBm 15dBm
5150~5250MHz 9.5dBm 11dBm 12dBm
Page 5
Sensitivity
IEEE 802.11a / Super A
Sensitivity @ Packet Error Rate: 10%
IEEE 802.11g / Super G
Sensitivity @ Packet Error Rate: 10%
IEEE 802.11b
Sensitivity @ Packet Error Rate: 8%
♦ 54 / 108 Mbps:≦-65dBm
♦ 48 / 96 Mbps:≦-66dBm
♦ 36 / 72 Mbps:≦-70dBm
♦ 24 / 48 Mbps:≦-74dBm
♦ 18 / 36 Mbps:≦-77dBm
♦ 12 / 24 Mbps:≦-79dBm
♦ 9 / 18 Mbps:≦-81dBm
♦ 6 / 12 Mbps:≦-82dBm
Modulation IEEE 802.11a (OFDM/DSSS)
♦ 48/54 Mbps (QAM-64)
♦ 24/36 Mbps (QAM-16)
♦ 12/18 Mbps (QPSK)
♦ 6/9 Mbps (BPSK)
Range
Coverage
IEEE 802.11a
♦ 54Mbps:≧ 60 meter
(Typical range
♦ 54 / 108 Mbps:≦-65dBm
♦ 48 / 96 Mbps:≦-66dBm
♦ 36 / 72 Mbps:≦-70dBm
♦ 24 / 48 Mbps:≦-74dBm
♦ 18 / 36 Mbps:≦-77dBm
♦ 12 / 24 Mbps:≦-79dBm
♦ 9 / 18 Mbps:≦-81dBm
♦ 6 / 12 Mbps:≦-82dBm
IEEE 802.11g (OFDM/DSSS)
♦ 48/54 Mbps (QAM-64)
♦ 24/36 Mbps (QAM-16)
♦ 12/18 Mbps (QPSK)
♦ 6/9 Mbps (BPSK)
IEEE 802.11g
♦ 54Mbps:≧ 60 meter
in open
environment
with 0 dBi
Antenna)
Operating
Frequency
IEEE 802.11a ISM Band
♦ Japan(TELEC) : 5.15GHz ~ 5.25GHz, 5.25~5.35GHz
♦ USA(FCC):5.15GHz ~ 5.25GHz, 5.725~5.850GHz
IEEE 802.11b/g ISM Band
♦ Japan(TELEC) : 2.412 GHz ~ 2.472 GHz (CH13 for 802.11g, CH14 for 802.11b)
♦ USA(FCC):2.412GHz ~ 2.462GHz(CH1~11)
Software Specification
Supported OS Identical to Atheros Latest Version
Security Identical to Atheros Latest Version
Physical Specification
Dimension 59.6mm(L) * 31.3mm(W) * 4mm(H)
Weight
≦ 50 g
♦ 11Mbps:≦-80dBm
♦ 5.5Mbps:≦-83dBm
♦ 2Mbps:≦-84dBm
♦ 1Mbps:≦-87dBm
IEEE 802.11b (DSSS)
♦ 5.5/11 Mbps (CCK)
♦ 2 Mbps (DQPSK)
♦ 1 Mbps (DBPSK)
IEEE 802.11b
♦ 11Mbps:≧80 meter
Environment Specification
Temperrature
Operating
Storage
0 ~ 65 ℃
-20 ~ 80 ℃
Warranty
12 months
Page 6
4. Hardware Installation
The following sections in this chapter describe how to install AG-623 Module
4.1. Installation Overview
AG-623 wireless module is design for Access Point, Router, ATU-R, Printer Server series, IP Camera
series and Internet Video Server only.
4.2. Safety Recommendations
The safety guidelines are as follows:
λ Keep the board area clear and dust-free before, during, and after installation.
λ Keep tools away from walk areas where you and others could fall over them.
λ Do not wear loose clothing or jewelry, such as earrings, bracelets, or chains, that could get
caught in the board.
Wear safety glasses if you are working under any conditions that might be hazardous to your
λ
eyes.
λ Do not perform any action that creates a potential hazard to people or makes
the equipment unsafe.
λ Never attempt to lift an object that is too heavy for one person to handle.
4.3. Maintaining Safety with Electricity
Warning: Before working on a board or working near power supplies, unplug the power cord on AC units;
on DC units, disconnect the power at the circuit breaker
Follow these guidelines when working on equipment powered by electricity:
λ Do not work alone if potentially hazardous conditions exist anywhere in your
work space.
λ Never assume that power is disconnected from a circuit; always check the
circuit.
extension cables, frayed power cords, and missing safety grounds.
λ If an electrical accident occurs, proceed as follows:
– Use caution; do not become a victim yourself.
Disconnect power from the system.
–
– If possible, send another person to get medical aid. Otherwise, assess the condition of the victim
and then call for help.
– Determine if the person needs rescue breathing or external cardiac compressions; then take
appropriate action.
- 7 -
4.4. Installing a AG-623
λ
Remove the AG-623
λ
Avoiding Electrostatic Discharge
Before you install the AG-623
to avoid electrostatic discharge (ESD). You should also take the following
precautions to prevent damage to the AG-623
λ Keep the AG-623
you are ready to install it.
λ Handle the AG-623
λ Ensure the connector is connected to above Model’s board tightly.
module from its protective packaging.
module, ground yourself by touching a piece of metal
module in its antistatic-shielded bag until
module by its edges.
.
module:
