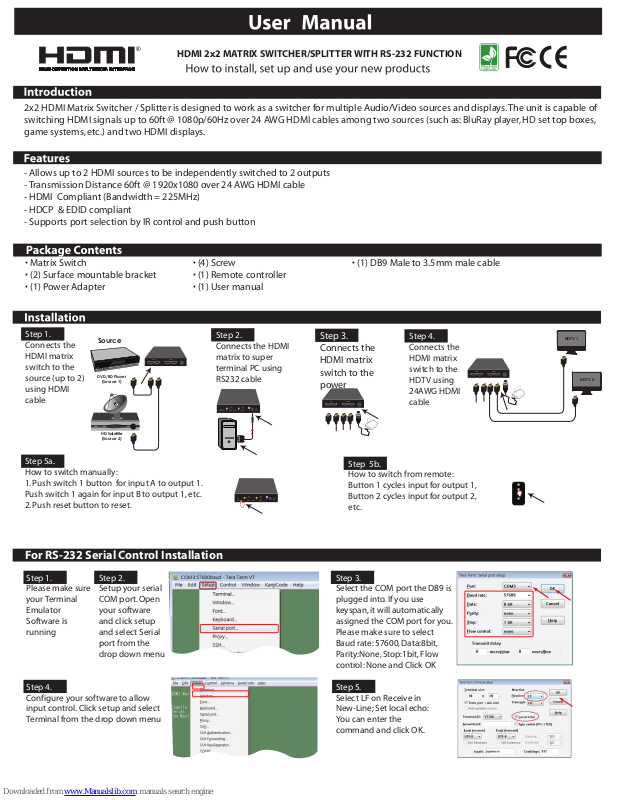

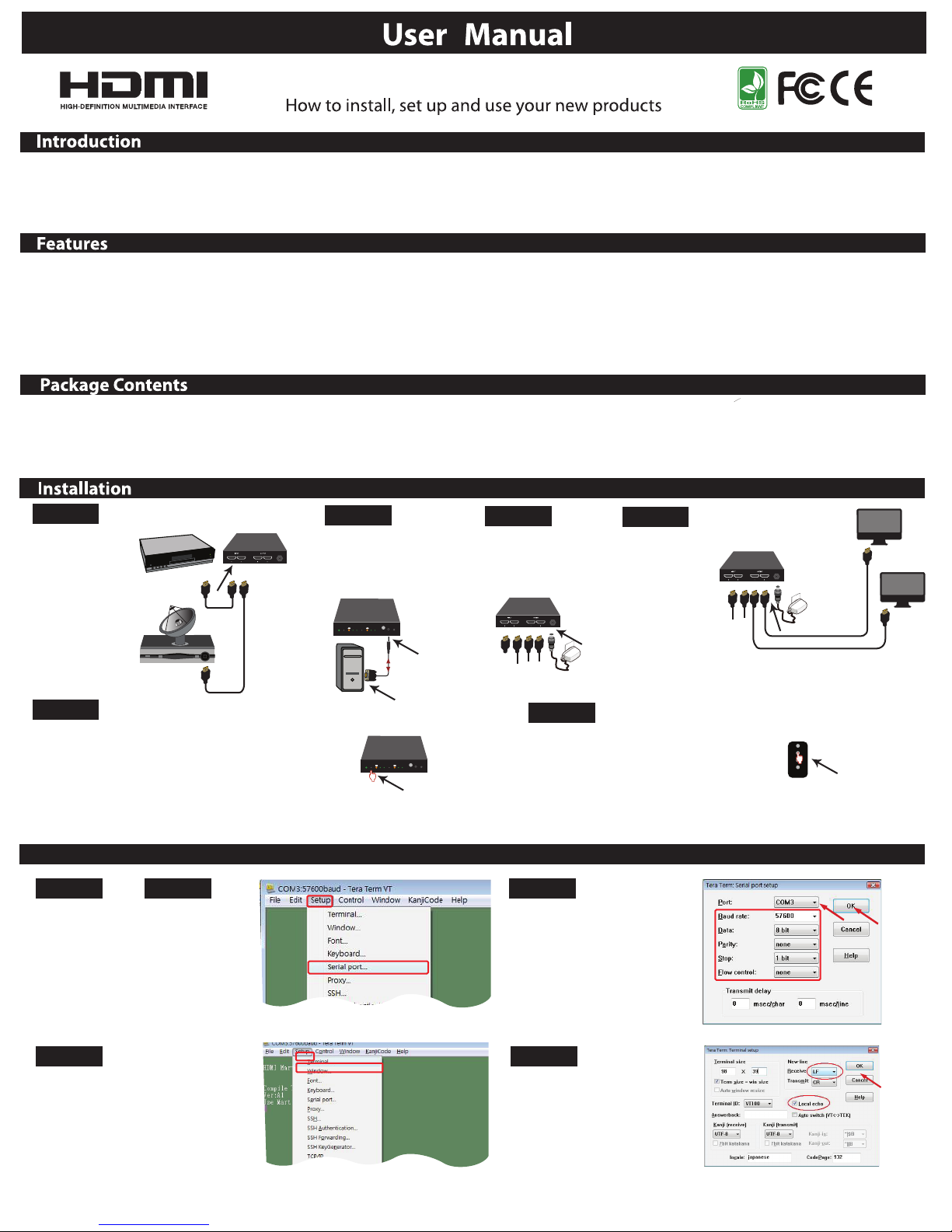

Page 1
®
HDMI 2x2 MATRIX SWITCHER/SPLITTER WITH RS-232 FUNCTION
2x2 HDMI Matrix Switcher / Splitter is designed to work as a switcher for multiple Audio/Video sources and displays. The unit is capable of
switching HDMI signals up to 60ft @ 1080p/60Hz over 24 AWG HDMI cables among two sources (such as: BluRay player, HD set top boxes,
game systems, etc.) and two HDMI displays.
- Allows up to 2 HDMI sources to be independently switched to 2 outputs
- Transmission Distance 60ft @ 1920x1080 over 24 AWG HDMI cable
- HDMI Compliant (Bandwidth = 225MHz)
- HDCP & EDID compliant
- Supports port selection by IR control and push button
• Matrix Switch
• (2) Surface mountable bracket
• (1) Power Adapter
Step 1.
Connects the
Source
• (4) Screw
• (1) Remote controller
• (1) User manual
HDMI matrix
switch to the
source (up to 2)
DVD/BD Player
(Source 1)
using HDMI
cable
HD Satellite
(Source 2)
Step 5a.
How to switch manually:
1. Push switch 1 button for input A to output 1.
Push switch 1 again for input B to output 1, etc.
2. Push reset button to reset.
For RS-232 Serial Control Installation
Step 2.
Connects the HDMI
matrix to super
terminal PC using
RS232 cable
INPUT
INPUT
1
2
A B
A B
RESET
IR RS232
POWER OUTPUT 1
SWITCH 2SWITCH 1
OUTPUT 2
INPUT
INPUT
1
2
A B
A B
RESET
IR RS232
POWER OUTPUT 1
SWITCH 2SWITCH 1
OUTPUT 2
• (1) DB9 Male to 3.5mm male cable
Step 3.
Connects the
HDMI matrix
switch to the
power
Step 5b.
How to switch from remote:
Button 1 cycles input for output 1,
Button 2 cycles input for output 2,
etc.
Step 4.
Connects the
HDMI matrix
switch to the
HDTV using
24AWG HDMI
cable
HDTV 1
HDTV 2
Step 1.
Please make sure
your Terminal
Emulator
Software is
running
Step 2.
Setup your serial
COM port. Open
your software
and click setup
and select Serial
port from the
drop down menu
Step 4.
Configure your software to allow
input control. Click setup and select
Terminal from the drop down menu
Step 3.
Select the COM port the DB9 is
plugged into. If you use
keyspan, it will automatically
assigned the COM port for you.
Please make sure to select
Baud rate: 57600, Data:8bit,
Parity:None, Stop:1bit, Flow
control: None and Click OK
Step 5.
Select LF on Receive in
New-Line; Set local echo:
You can enter the
command and click OK.
Page 2
®
HDMI 2x2 MATRIX SWITCHER/SPLITTER WITH RS-232 FUNCTION
COMMANDS FOR SERIAL CONTROL
COMMAND MEANING
Sw1 x1 ROUTED TO OUTPUT1 , Output n to
input [x1]
Sw2 x1 ROUTED TO OUTPUT1 , Output n to
input [x1]
PWD stands for Power On/Off
STE State of the output
Important note control command:
Command is issued to the matrix will cause the response matrix once the command has
been accepted and is finished. Make any order,
The response of the matrix must wait before sending another command. If you send
another command before the com on of a matrix may be ignored.
R s
Command:
swN M
V ons:
N: stands for Connect Output N
M:switch to input M
Response:
CMD: swN M
Response Example:
sw1 a
CMD: sw1 A
Output 1, Select Input A
sw2 b
CMD: sw2 B
Output 2, Select Input B
Power ns
Command: pwd
Response: PW
stands for Power On/Off
pwd
CMD: PWD
Special Commands
Command: ste
Response: OutputN M[STATE]
V ons:
N: Output N
M:Input M
[STATE]: [Signal] signal on from input
[Idle] no signal from input
state of the output channel
STE
CMD: STATE
Output1 A[Idle]
Output2 A[Idle]
This product is to be free from defects in material and workmanship for the following limited
warranty period:
Manufacturer will repair or replace the product only if the product has not been subjected to
mechanical, electrical, or other forms of abuse or modification, and if the product fails and the
manufacturer is notified within 1 year of purchase.
This warranty supersedes all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or fitness for any particular purpose, all of
which are expressly disclaimed.
The information in this manual has been carefully checked and is believed to be accurate;
however, the manufacturer assumes no responsibility for any inaccuracies that may be
contained in this manual. In no event will the manufacturer be liable for direct, indirect,
special, incidental, or consequential damages resulting from any defect or omission in this
manual, even if advised of the possibility of such damages. The technical information
contained herein regarding HDMI 2x2 Matrix Switcher/Splitter Extender with RS232 function
over HDMI cables features and specifications is subject to change without notice.
