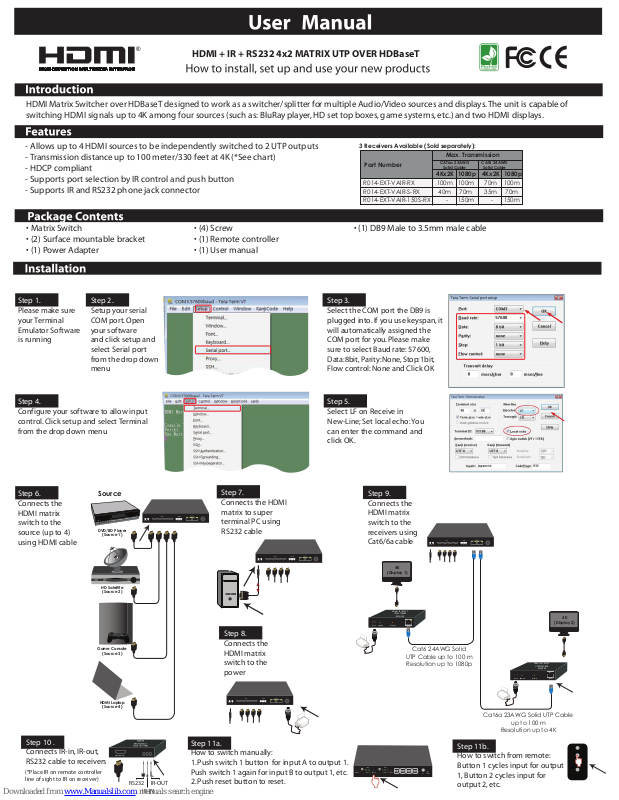

HDMI + IR + RS232 4x2 MATRIX UTP OVER HDBaseT
HDMI Matrix Switcher over HDBaseT designed to work as a switcher/splitter for multiple Audio/Video sources and displays. The unit is capable of
switching HDMI signals up to 4K among four sources (such as: BluRay player, HD set top boxes, game systems, etc.) and two HDMI displays.
- Allows up to 4 HDMI sources to be independently switched to 2 UTP outputs
- Transmission distance up to 100 meter/330 feet at 4K (*See chart)
- HDCP compliant
- Supports port selection by IR control and push button
- Supports IR and RS232 phone jack connector
• Matrix Switch
• (2) Surface mountable bracket
• (1) Power Adapter
Step 1.
Please make sure
your Terminal
Emulator Software
is running
Step 4.
Configure your software to allow input
control. Click setup and select Terminal
from the drop down menu
Step 2.
Setup your serial
COM port. Open
your software
and click setup and
select Serial port
from the drop down
menu
• (4) Screw
• (1) Remote controller
• (1) User manual
3 Receivers Available (Sold separately):
Part Number
4Kx2K 1080p
R014-EXT-VAIR-RX 100m100m
R014-EXT-VAIR-S-RX 70m40m
R014-EXT-VAIR-150S-RX 150m-
• (1) DB9 Male to 3.5mm male cable
Step 3.
Select the COM port the DB9 is
plugged into. If you use keyspan, it
will automatically assigned the
COM port for you. Please make
sure to select Baud rate: 57600,
Data:8bit, Parity:None, Stop:1bit,
Flow control: None and Click OK
Step 5.
Select LF on Receive in
New-Line; Set local echo: You
can enter the command and
click OK.
Max. Transmission
CAT6a 23AWG
Solid Cable
CAT6 24AWG
Solid Cable
4Kx2K 1080p
100m70m
70m35m
150m-
Step 6.
Source
Connects the
HDMI matrix
switch to the
source (up to 4)
DVD/BD Player
(Source 1)
RS232 IR A BC D
RS232
using HDMI cable
HD Satellite
(Source 2)
Game Console
(Source 3)
HDMI Laptop
(Source 4)
RECEIVER
RS232
RS232
IR-IN
UTP EXTENDER
HDMI + IR + RS232
IR-IN IR-OUT
IR-OUT
Step 11a.
How to switch manually:
1. Push switch 1 button for input A to output 1.
Push switch 1 again for input B to output 1, etc.
2. Push reset button to reset.
Step 10 .
Connects IR-in, IR-out,
RS232 cable to receivers
(*Place IR on remote controller
line of sight to IR on receiver)
HDMI OUTPUT
Step 7.
Connects the HDMI
matrix to super
terminal PC using
RS232 cable
RS232 IR A BC D
Step 8.
Connects the
HDMI matrix
switch to the
power
RS232 IR A BC D
RS232
Step 9.
Connects the
HDMI matrix
switch to the
receivers using
Cat6/6a cable
RS232
4K
(Display 1)
HDMI + IR + RS232
UTP EXTENDER
RECEIVER
DC 5V POWER ACTIVITY
RS232 IR A BC D
INPUT
Cat6 24AWG Solid
UTP Cable up to 100 m
Resolution up to 1080p
RS232
DC 5V POWER ACTIVITY
Cat6a 23AWG Solid UTP Cable
up to 100 m
Resolution up to 4K
HDMI + IR + RS232
UTP EXTENDER
RECEIVER
(Display 2)
INPUT
4K
Step 11b.
How to switch from remote:
INPUT
INPUT
1
2
IR A
IR B
IR C
A B C D
A B C D
OUTPUT 1
OUTPUT 2
SWITCH 1
POWER
IR D
IN OUT
IN OUT
IN OUT
IN OUT
SWITCH 2
RESET
IR
Button 1 cycles input for output
1, Button 2 cycles input for
output 2, etc.
®
HDMI + IR + RS232 4x2 MATRIX OVER HDBaseT
COMMANDS FOR SERIAL CONTROL
COMMAND MEANING
Sw1 x1 ROUTED TO OUTPUT1 , Output n to
input [x1]
Sw2 x1 ROUTED TO OUTPUT1 , Output n to
input [x1]
PWD stands for Power On/Off
STE State of the output
Important note control command:
Command is issued to the matrix will cause the response matrix once the command has
been accepted and is finished. Make any order,
The response of the matrix must wait before sending another command. If you send
another command before the compleon of a matrix may be ignored.
Roung Funcons
Command:
swN M
Variaons:
N: stands for Connect Output N
M:switch to input M
Response:
CMD: swN M
Response Example:
sw1 a
CMD: sw1 A
Output 1, Select Input A
sw2 b
CMD: sw2 B
Output 2, Select Input B
Power Funcons
Command: pwd
Response: PW
stands for Power On/Off
pwd
CMD: PWD
Special Commands
Command: ste
Response: OutputN M[STATE]
Variaons:
N: Output N
M:Input M
[STATE]: [Signal] signal on from input
[Idle] no signal from input
state of the output channel
STE
CMD: STATE
Output1 A[Idle]
Output2 A[Idle]
This product is to be free from defects in material and workmanship for the following limited
warranty period:
Manufacturer will repair or replace the product only if the product has not been subjected to
mechanical, electrical, or other forms of abuse or modification, and if the product fails and the
manufacturer is notified within 1 year of purchase.
This warranty supersedes all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or fitness for any particular purpose, all of
which are expressly disclaimed.
The information in this manual has been carefully checked and is believed to be accurate;
however, the manufacturer assumes no responsibility for any inaccuracies that may be
contained in this manual. In no event will the manufacturer be liable for direct, indirect,
special, incidental, or consequential damages resulting from any defect or omission in this
manual, even if advised of the possibility of such damages. The technical information
contained herein regarding HDMI 4x2 Matrix Switch/Splitter over HDBaseT with IR and RS232
function features and specifications is subject to change without notice.
