MODULES FOR STEPPER MOTORS MODULES

Hardware Version V 1.10

HARDWARE MANUAL

+ +

TMCM-6211

6-Axes Stepper Controller / Driver

Up-to 0.7A RMS / 24V DC

Encoder / HOME / STOP

4x analog / digital inputs 4x digital outputs Brake chopper support CAN, RS485, USB (TMCM-6210) EtherCAT™, USB (TMCM-6211)

+ +

TMCM-6210

TRINAMIC Motion Control GmbH & Co. KG Hamburg, Germany

www.trinamic.com

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 2

Table of contents

1 Life support policy ....................................................................................................................................................... 3

2 Features ........................................................................................................................................................................... 4

3 Order codes .................................................................................................................................................................... 5

4 Mechanical and Electrical Interfacing ..................................................................................................................... 6

4.1 Dimensions and Mounting Holes ................................................................................................................... 6

4.2 Board mounting considerations ...................................................................................................................... 7

5 Connectors of TMCM-6210 and TMCM-6211 ........................................................................................................... 8

5.1 TMCM-6210 Interface Brick ................................................................................................................................ 8

5.1.1 RS485 connector ............................................................................................................................................ 9

5.1.2 CAN connector ................................................................................................................................................ 9

5.1.3 USB connector .............................................................................................................................................. 10

5.1.4 Input connector ........................................................................................................................................... 10

5.1.5 Output connector ......................................................................................................................................... 11

5.2 TMCM-6211 Interface Brick .............................................................................................................................. 11

5.2.1 EtherCAT™ connector ................................................................................................................................. 12

5.2.2 USB connector .............................................................................................................................................. 12

5.2.3 Input connector ........................................................................................................................................... 12

5.2.4 Output connector ......................................................................................................................................... 13

5.3 TMCM-6210 + TMCM-6211 Driver Brick .......................................................................................................... 14

5.3.1 Motor connector........................................................................................................................................... 14

5.3.2 REF / HOME connector ................................................................................................................................ 15

5.3.3 Encoder connector....................................................................................................................................... 15

5.4 TMCM-6210 + TMCM-6211 Power supply Brick ........................................................................................... 16

5.4.1 Power connector .......................................................................................................................................... 17

5.4.2 Control connector ........................................................................................................................................ 17

5.4.3 Resistor connector ....................................................................................................................................... 18

5.5 Power supply ...................................................................................................................................................... 18

5.6 RS485 ..................................................................................................................................................................... 18

5.7 CAN ........................................................................................................................................................................ 20

5.7.1 CAN adapter .................................................................................................................................................. 21

5.8 General purpose outputs OUT0..3 ................................................................................................................. 22

6 Motor driver current .................................................................................................................................................. 23

7 On Board LEDs............................................................................................................................................................. 24

7.1 Power supply brick ............................................................................................................................................ 24

7.2 TMCM-6210 Interface Brick .............................................................................................................................. 24

7.3 TMCM-6211 Interface Brick .............................................................................................................................. 25

8 Reset to Factory Default ........................................................................................................................................... 25

9 Operational ratings .................................................................................................................................................... 26

10 TMCM-6210 Functional Description ........................................................................................................................ 27

11 TMCM-6211 Functional Description ........................................................................................................................ 28

12 Revision History .......................................................................................................................................................... 29

12.1 Document revision ............................................................................................................................................ 29

12.2 Hardware revision ............................................................................................................................................. 29

13 References..................................................................................................................................................................... 29

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 3

1 Life support policy

TRINAMIC Motion Control GmbH & Co. KG does not authorize or warrant any of its products for use in life support systems, without the specific written consent of TRINAMIC Motion Control GmbH & Co. KG.

Life support systems are equipment intended to support or sustain life, and whose failure to perform, when properly used in accordance with instructions provided, can be reasonably expected to result in personal injury or death.

Information given in this data sheet is believed to be accurate and reliable. However neither responsibility is assumed for the consequences of its use nor for any infringement of patents or other rights of third parties, which may result from its use.

Specifications are subject to change without notice.

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 4

2 Features

The TMCM-6210 / TMCM-6211 is a six axes controller/driver module for 2-phase bipolar stepper motors with separate encoder (differential) and HOME / STOP switch inputs for each axis. CAN, RS485 and USB (Micro-USB) interfaces are available on the TMCM-6210 and EtherCAT™ together with USB (Micro-USB) on the TMCM-6211 for communication. Furthermore the modules offer four analog / digital inputs and four digital outputs together with a brake chopper unit (supporting an external brake resistor) for supply voltage limitation when energy is fed back into the supply rail.

MAIN CHARACTERISTICS

Motion controller

 Motion profile calculation in real-time  On the fly alteration of motor parameters (e.g. position, velocity, acceleration)  Dedicated HOME + STOP switch inputs (internal pull-ups)  High performance microcontroller for overall system control and communication protocol handling

Bipolar stepper motor driver

 Up to 256 microsteps per full step  High-efficient operation, low power dissipation  Dynamic current control  Integrated protection  stealthChop™ for quiet operation and smooth motion  dcStep™ feature for load dependent speed control  stallGuard2™ feature for stall detection  coolStep™ feature for reduced power consumption and heat dissipation

Interfaces

 TMCM-6210: CAN + RS485  TMCM-6211: EtherCAT™  USB full speed (12Mbit/s) device interface (Micro-USB)  Differential encoder input per motor axis (6x)  HOME, STOP_L, STOP_R switch inputs with internal pull-ups per motor axis (6x)  4 general purpose analog inputs (0..10V) or digital inputs (accept +24V signals)  4 general purpose digital outputs (open-drain, 500mA each)

Software

 TMCL™ remote (direct mode) and standalone operation with memory for up to 1024 TMCL commands  TMCM-6210: CANopen firmware available  TMCM-6211: CoE (CANopen over EtherCAT™) firmware available

Electrical data

 Supply voltage: nom. +12V and +24V with +10V … +27V supply voltage operating range  Motor current: up to 0.7A RMS (programmable)

Mechanical data

 Board size: 215mm x 100mm, overall height 21mm max. (incl. pcb but, without mating connectors and cables)  12x M3 mounting holes (optional)

Please see separate TMCM-6210 / TMCM-6211 Software / Firmware documentation for additional information regarding programming and communication protocol.

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 5

Order code

Description

Size of unit

TMCM-6210-TMCL

6-axes controller / driver up-to 0.7A RMS / +24V, CAN + RS485 + USB with standard TMCL firmware

215mm x 100mm x 21mm

TMCM-6210-CANopen

6-axes controller / driver up-to 0.7A RMS / +24V, CAN + RS485 + USB with CANopen firmware

215mm x 100mm x 21mm Order code

Description

Size of unit

TMCM-6211-CoE

6-axes controller / driver up-to 0.7A RMS / +24V, EtherCAT™ + USB with CANopen over EtherCAT™ firmware

215mm x 100mm x 21mm

Order code

Description

G4-CABLE

Cable loom for TMCM-6210/6211, TMCM-6212/6213, TMCM-3212/3213, TMCM-3214/3215, TMCM-3312/3313 and TMCM-3314/3315. Contains:

- 1x cable loom for RS485 connector (6210)

- 1x standard CAT5 cable with 2x RJ45 for CAN / EtherCAT (6210/6211)

- 1x RJ45-2-DSUB_G4_V10 adapter (for CAN RJ45 <-> D-SUB translation) (6210)

- 1x Micro-USB cable (6210/6211)

- 1x cable loom for INPUTs connector (6210/6211)

- 1x cable loom for OUTPUTs connector (6210/6211)

- 6x cable loom for MOTOR connector (small) (6210/6211)

- 3x cable loom for MOTOR connector (big)

- 6x cable loom for ENCODER connector (6210/6211)

- 6x cable loom for REF / HOME connector (6210/6211)

- 1 cable loom for POWER connector (small) (6210/6211)

- 1x cable loom for POWER connector (big)

- 1x cable loom for CONTROL connector (6210/6211)

- 1x cable loom for RESISTOR connector (6210/6211)

3 Order codes

The TMCM-6210 unit is available with two different firmware options:

Table 3.1: TMCM-6210 order code

The TMCM-6211 unit is available as:

Table 3.2: TMCM-6211 order code

A cable loom is available, also:

Please note: there is one cable loom available for a complete family of modules in order to speed-up initial setup of these modules. The family consists of these currently planned / available modules: TMCM-6210/6211, TMCM6212/6213, TMCM-3212/3213, TMCM-3214/3215, TMCM-3312/3313 and TMCM-3314/3315. Not all cables are required for all modules – some cable will fit or will be helpful for some modules, only. Module numbers in parenthesis behind each cable in the table above indicate whether the particular part of the cable loom can be used with the TMCM-6210 and / or TMCM-6211.

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 6

4 Mechanical and Electrical Interfacing

4.1 Dimensions and Mounting Holes

The dimensions of the TMCM-6210 and TMCM-6211 controller/driver board are approx. 215mm x 100mm x 21mm. Maximum component height (height above PCB level) without mating connectors is around 17mm above PCB level and 2mm below PCB level. There are 12 mounting holes for M3 screws (3.2mm diameter) altogether for mounting the PCB.

Figure 4.1 Dimension of TMCM-6210 / TMCM-6211 and position of mounting holes

Please note: TMCM-6210 and TMCM-6211 share the same PCB with different assembly options regarding the interface section. Dimensions, mounting holes and board mounting considerations (see chapter below) are the same for both boards.

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 7

n.c.

n.c. n.c.

n.c.

1M

1nF

1M

1nF

4.2 Board mounting considerations

The TMCM-6210 / TMCM-6211 offer 12 metal plated mounting holes. One hole (lower right) is connected to onboard system ground (connected to power supply input ground) via 1M (500VDC) || 1nF (1kV). The same combination or resistor and capacitor is used for connecting the RJ45 shield ground (connector enclosure) to power supply input ground (see figure 4.1).

Figure 4.2 TMCM-6210 / TMCM-6211 mounting hole connections

All other mounting holes are electrically isolated. Please note that not all holes have to be used for mounting the pcb. At least the mounting holes in all four corners and two in the middle (6 altogether) should be used to ensure adequate support of the pcb when inserting / removing connectors in order to avoid significant bending of the pcb.

In any case: please remove / attach mating connectors carefully – supporting the pcb if necessary!

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 8

Interface Brick Driver Brick Driver Brick Driver Brick Supply Brick

Motor 0

Motor 1

Motor 2 Motor 4

Motor 3 Motor 5

1

3

1

4

5

8

1

5

6

10

RS485

connector (2x)

RS485-3

RS485+

GND1

2

CAN

connector (2x)

GND3

CAN_L

CAN_H1

2

n.c.6

n.c.

n.c.4

5

n.c.8

n.c.7

Output connector

OUT3

OUT23

4

OUT1

OUT01

2

+24V_FUSE

7 8

+24V_FUSE

+24V_FUSE5

6

Input connector

AIN2

AIN13

4

AIN0

+24V_FUSE1

2

GND

GND8

9

GND

GND6

7

AIN35 GND10

USB (MicroUSB)

connector

1

8

1

8

5 Connectors of TMCM-6210 and TMCM-6211

The TMCM-6210 and TMCM-6211 are two members of a new family of modules with a modular architecture composed of so called “bricks”.

The TMCM-6210 and TMCM-6211 consist of one interface brick, three dual-axes stepper motor controller / driver bricks and one supply brick. With the TMCM-6210 the interface brick offers CAN and RS485 interfaces while with the TMCM-6211 the EtherCAT™ option is assembled instead. All other bricks are the same for both modules.

Figure 5.1 different bricks used for the TMCM-6210 / TMCM-6211

5.1 TMCM-6210 Interface Brick

The interface brick of the TMCM-6210 offers RS485, CAN and USB interfaces for communication, four general purpose analog inputs (which can be used as digital inputs as well) and four open-drain outputs.

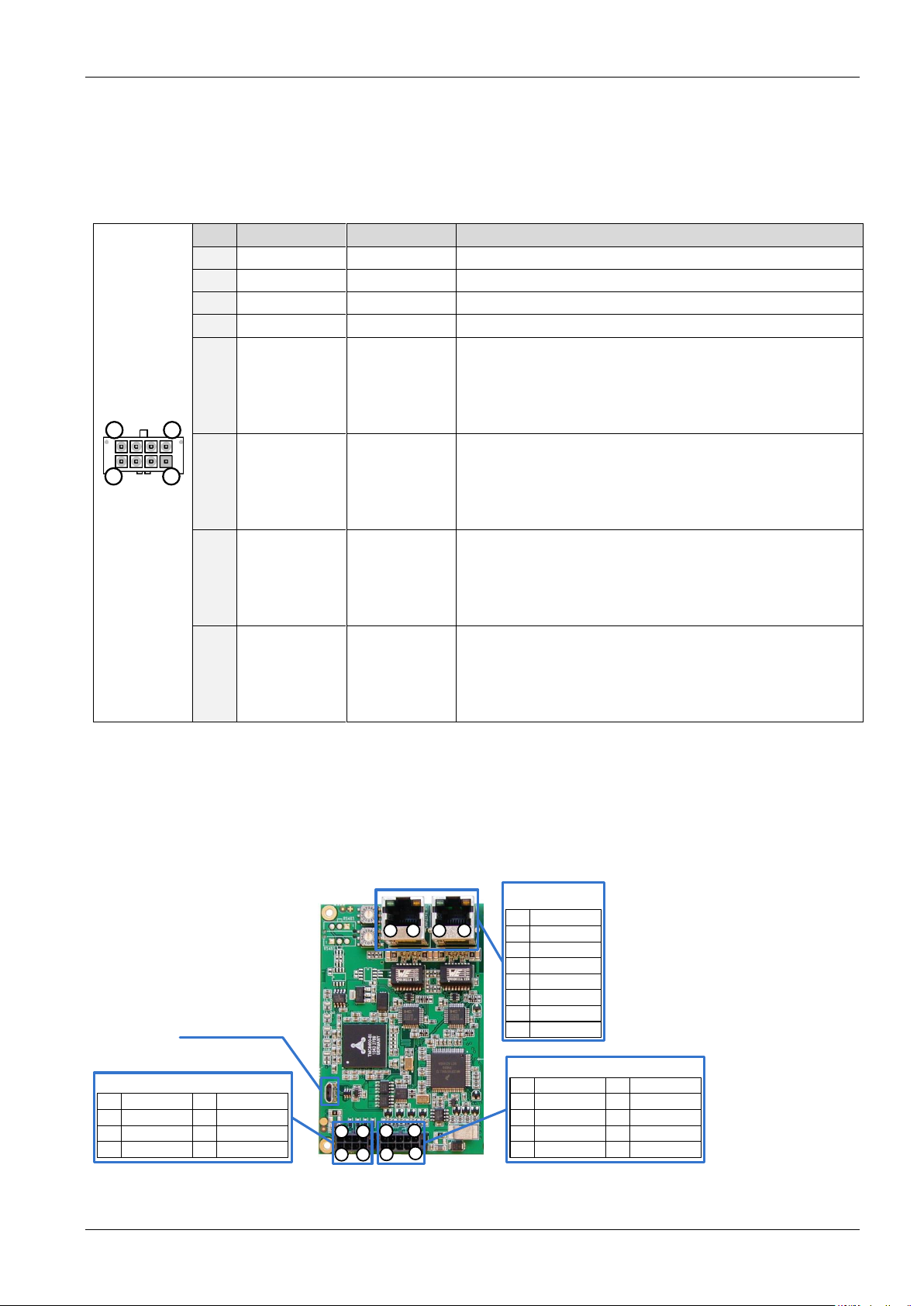

Figure 5.2 TMCM-6210 interface brick

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 9

Label

Connector type

Mating connector type

RS485 connector (2x) Molex MicroFit™, 436500315

1x4 pin header, 3mm pitch

Molex MicroFit™, Housing: 43645-0300 Contacts: 43030-0007

CAN connector (2x) RJ45 plug connector

e.g. Standard CAT 5 / CAT 5e cables may be used

USB (MicroUSB) connector

Micro-USB connector, type B (USB device interface)

Standard Micro-USB

Input connector Molex MicroFit™, 430451012

2x5 pin header, 3mm pitch

Molex MicroFit™, Housing: 43025-1000 Contacts: 43030-0007

Output connector Molex MicroFit™, 430450812

2x4 pin header, 3mm pitch

Molex MicroFit™, Housing: 43025-0800 Contacts: 43030-0007

1

3

Label

Direction

Description

1

GND

Power

Supply and signal ground

2

RS485+

Bi-directional

RS485 interface, diff. signal (non-inverting)

3

RS485-

Bi-directional

RS485 interface, diff signal (inverting)

1

8

Label

Direction

Description

1

CAN_H

Bi-Directional

CAN interface, diff signal (non-inverting)

2

CAN_L

Bi-directional

CAN interface, diff signal (inverting)

3

GND

Power

Supply and signal ground

4

n.c.

5

n.c. 6 n.c. 7 n.c.

8

n.c.

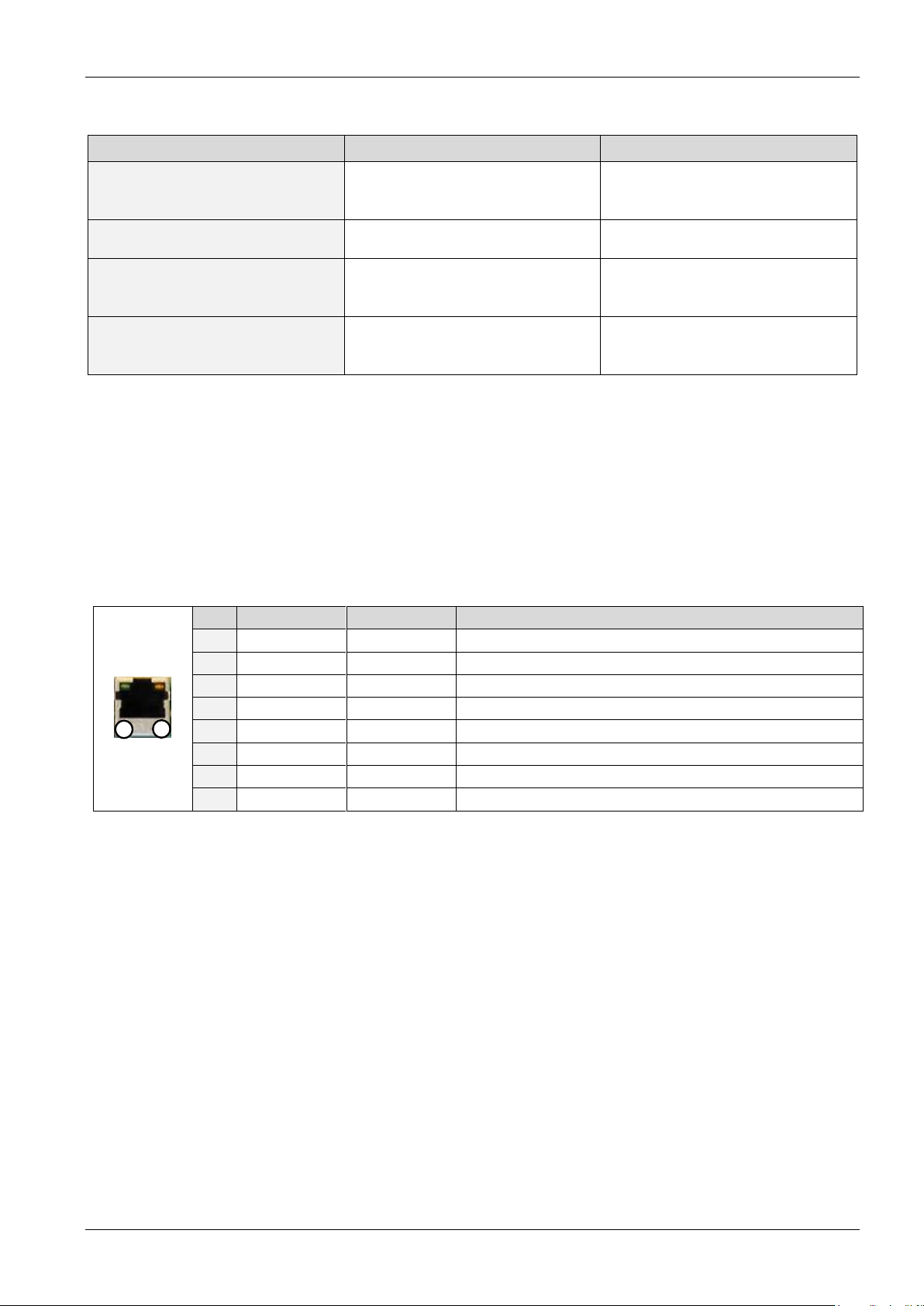

Connector and mating connector overview:

Table 5.1 TMCM-6210 interface brick: connectors and mating connectors

5.1.1 RS485 connector

There are two RS485 connectors on the board with the same pin assignment – pins directly connected to each other. The second connector may be used for attaching a bus termination resistor to the RS485 bus (there is no termination resistor on-board) or for further distribution of the RS485 bus signals to other RS485 communication nodes while maintaining a proper bus structure.

A three pin Molex MicroFit™ connector (Molex part no. 436500315) is used for RS485 connection. Mating connector housing e.g. Molex 43645-0300, contacts Molex 43030-0007. Please note that there are alternative options available from Molex for both, housing and contacts.

Table 5.1: Interface Brick: RS485 connector

5.1.2 CAN connector

There are two CAN connectors on the board with the same pin assignment – pins directly connected to each other. The second one may be used for attaching a bus termination resistor to the RS485 bus (there is no termination resistor on-board) or for further distribution of the CAN bus signals to other CAN nodes while maintaining a proper bus structure. A standard RJ45 plug connector is used for CAN communication. Standard CAT cables (e.g. CAT 5, non-crossing) might be used for connection. Pin assignment of the RJ45 is based on the CiA 303-1 recommendation.

Table 5.2 Interface Brick: CAN connector

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 10

1

5

6

10

Label

Direction

Description

1

+24V_FUSE

Power output

Connected via fuse (polyfuse) to power supply input (+24V_LOGIC supply input on power control connector). Max. output current (together with all +24V_FUSE supply outputs on output connector: 500mA / polyfuse protected)

2

AIN0

Input

Analog input channel 0 (nom. 0..10V)

3

AIN1

Input

Analog input channel 1 (nom. 0..10V)

4

AIN2

Input

Analog input channel 2 (nom. 0..10V)

5

AIN3

Input

Analog input channel 3 (nom. 0..10V)

6

GND

Power

Supply and signal ground

7

GND

Power

Supply and signal ground

8

GND

Power

Supply and signal ground

9

GND

Power

Supply and signal ground

10

GND

Power

Supply and signal ground

5.1.3 USB connector

The TMCM-6210 / TMCM-6211 offers a Micro USB connector (Type B, device interface) for communication. The USB interface supports USB high speed communication (12Mbit/s). With USB attached the digital logic part of the TMCM-6210 / TMCM-6211 will be supplied via USB (USB powered mode) if there is no main supply available. This mode may be used for firmware-updates, TMCL-program download or parameter settings etc. (requires USB connection, only). Please note that in USB stand-alone mode (main board supply available) the board might still draw current from the USB supply – depending on the voltage level of the USB +5V and the on-board generated +5V.

5.1.4 Input connector

The TMCM-6210 / TMCM-6211 offer four analog inputs (nom. 0..10V range) which may be used as digital inputs, also (+24V tolerant).

The four inputs are available via one 10 pin Molex MicroFit™ connector (Molex part no. 430451012). Mating connector housing e.g. Molex 43025-1000, contacts Molex 43030-0007. Please note that there are alternative options available from Molex for both, mating housing and contacts.

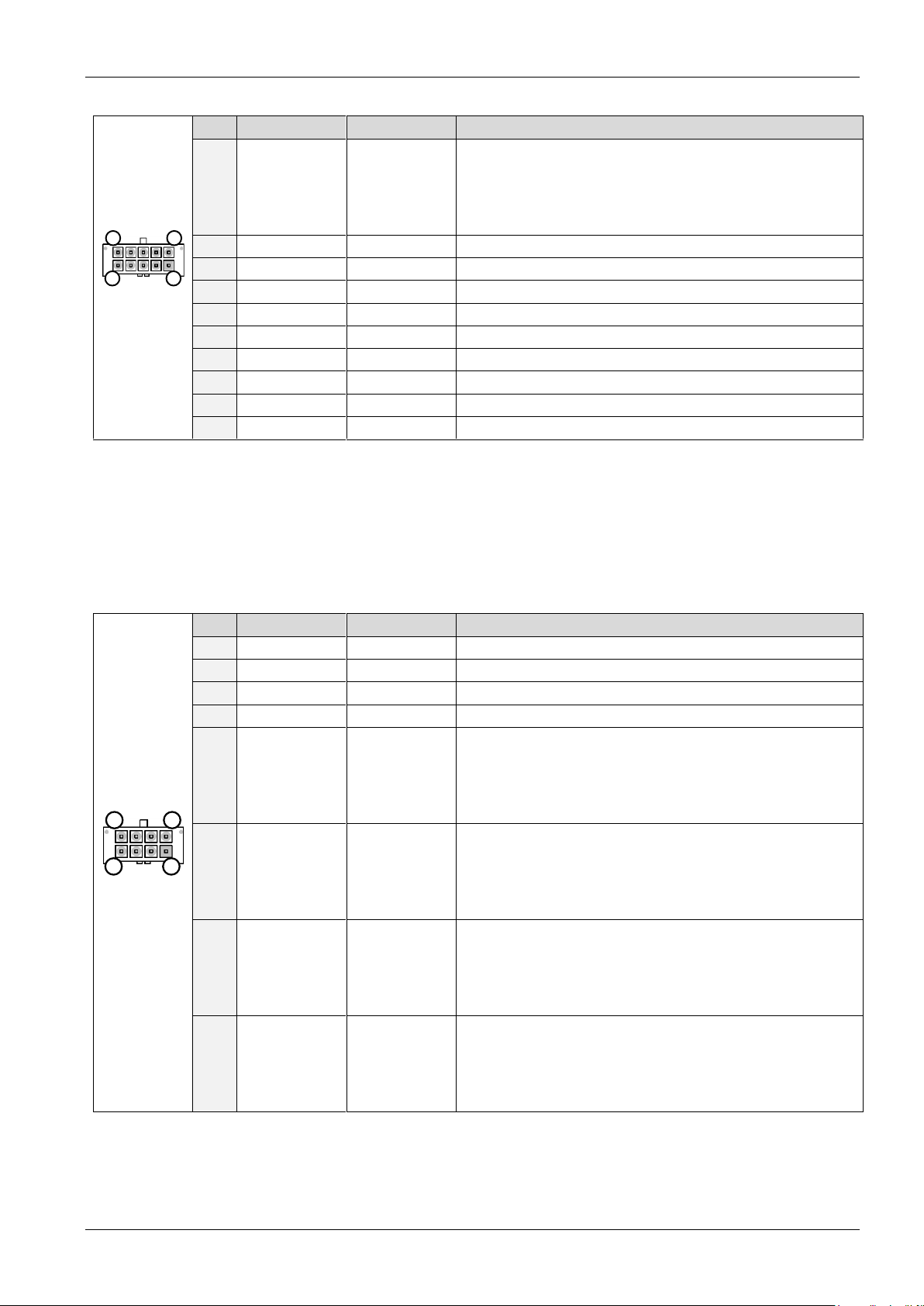

Table 5.3: Interface Brick: Input connector

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 11

1

4

5

8

Label

Direction

Description

1

OUT0

Output

Open-drain output

2

OUT1

Output

Open-drain output

3

OUT2

Output

Open-drain output

4

OUT3

Output

Open-drain output

5

+24V_FUSE

Power output

Connected via fuse (polyfuse) to power supply input (+24V_LOGIC supply input on power control connector). Max. output current (together with all +24V_FUSE supply outputs on output connector: 500mA / polyfuse protected)

6

+24V_FUSE

Power output

Connected via fuse (polyfuse) to power supply input (+24V_LOGIC supply input on power control connector). Max. output current (together with all +24V_FUSE supply outputs on output connector: 500mA / polyfuse protected)

7

+24V_FUSE

Power output

Connected via fuse (polyfuse) to power supply input (+24V_LOGIC supply input on power control connector). Max. output current (together with all +24V_FUSE supply outputs on output connector: 500mA / polyfuse protected)

8

+24V_FUSE

Power output

Connected via fuse (polyfuse) to power supply input (+24V_LOGIC supply input on power control connector). Max. output current (together with all +24V_FUSE supply outputs on output connector: 500mA / polyfuse protected)

1

4

5

8

1

5

6

10

Output connector

OUT3

OUT23

4

OUT1

OUT01

2

+24V_FUSE

7 8

+24V_FUSE

+24V_FUSE5

6

Input connector

AIN2

AIN13

4

AIN0

+24V_FUSE1

2

GND

GND8

9

GND

GND6

7

AIN35 GND10

USB (MicroUSB)

connector

EtherCAT

connector (2x)

RX+3

TX-

TX+1

2

RX-6

4 5

8

7

1

8

1

8

LINKINLINK

OUT

5.1.5 Output connector

The TMCM-6210 / TMCM-6211 offer four digital outputs (open-drain). The four outputs are available via one 8 pin Molex MicroFit™ connector (Molex part no. 43045-0812). Mating connector housing e.g. Molex 43025-0800, contacts Molex 43030-0007. Please note that there are alternative options available from Molex for both, mating housing and contacts.

Table 5.4: Interface Brick: Output connector

5.2 TMCM-6211 Interface Brick

The interface brick of the TMCM-6210 offers EtherCAT™ and USB interfaces for communication, four general purpose analog inputs (which can be used as digital inputs as well) and four open-drain outputs.

Figure 5.3 TMCM-6211 interface brick

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 12

Label

Connector type

Mating connector type

EtherCAT™ connector (2x) RJ45 plug connector

e.g. Standard CAT 5 / CAT 5e cables suitable for 100Mbit/s Ethernet

USB (MicroUSB) connector

Micro-USB connector, type B (USB device interface)

Standard Micro-USB

Input connector Molex MicroFit™, 43045-1012

2x5 pin header, 3mm pitch

Molex MicroFit™, Housing: 43025-1000 Contacts: 43030-0007

Output connector Molex MicroFit™, 43045-0812

2x4 pin header, 3mm pitch

Molex MicroFit™, Housing: 43025-0800 Contacts: 43030-0007

1

8

Label

Direction

Description

1

TX+

Output

Transmit data output, differential, non-inverting

2

TX-

Output

Transmit data output, differential, inverting

3

RX+

Input

Receive data input, differential, non-inverting

4 5 6

RX-

Input

Receive data input, differential, inverting

7 8

Connector and mating connector overview:

Table 5.5: TMCM-6211 interface brick: connectors and mating connectors

5.2.1 EtherCAT™ connector

There are two EtherCAT™ connectors on the board – one for LINK IN (towards / coming from EtherCAT™ master) and one for LINK OUT (for connecting further slaves) connection.

A standard RJ45 plug connector (as used for 10/100Mbit/s Ethernet) is used for EtherCAT™ communication. Standard CAT cables suitable for 100Mbit/s Ethernet (e.g. CAT 5 / 5e etc.) might be used for connection. The PHYs used on the TMCM-6211 support auto MDI-X – therefore, TX and RX signals on the connector might be exchanged – e.g. cables with straight-through pin-assignment can be used.

Table 5.6: TMCM-6211 Interface Brick: EtherCAT™ connector

5.2.2 USB connector

The TMCM-6210 / TMCM-6211 offers a Micro USB connector (Type B, device interface) for communication. The USB interface supports USB high speed communication (12Mbit/s). With USB attached the digital logic part of the TMCM-6210 / TMCM-6211 will be supplied via USB (USB powered mode) if there is no main supply available. This mode may be used for firmware-updates, TMCL-program download or parameter settings etc. (requires USB connection, only). Please note that in USB stand-alone mode (main board supply available) the board might still draw current from the USB supply – depending on the voltage level of the USB +5V and the on-board generated +5V.

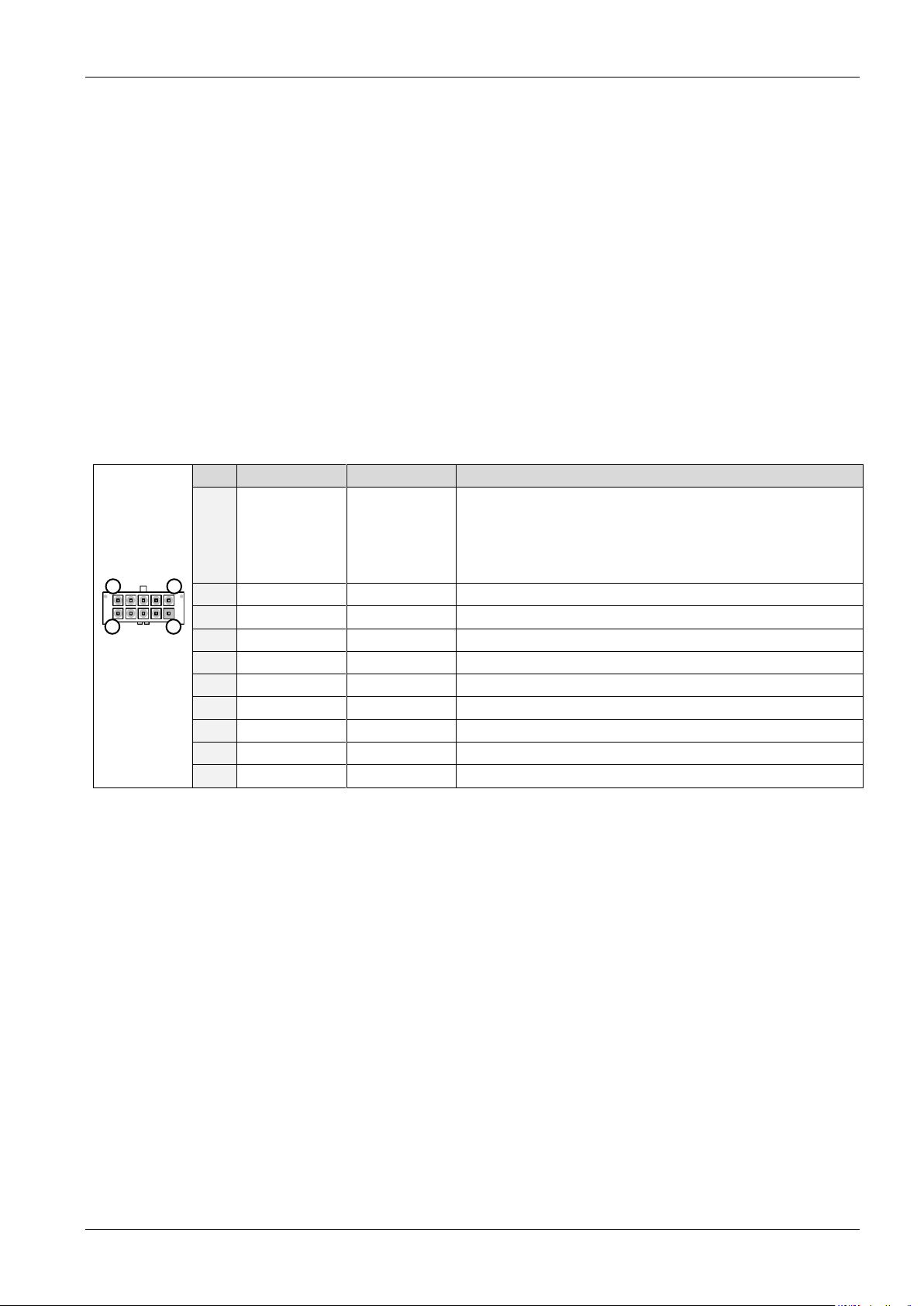

5.2.3 Input connector

The TMCM-6210 / TMCM-6211 offer four analog inputs (nom. 0..10V range) which may be used as digital inputs, also (+24V tolerant).

The four inputs are available via one 10 pin Molex MicroFit™ connector (Molex part no. 430451012). Mating

connector housing e.g. Molex 43025-1000, contacts Molex 43030-0007. Please note that there are alternative options available from Molex for both, mating housing and contacts.

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 13

1

5

6

10

Label

Direction

Description

1

+24V_FUSE

Power output

Connected via fuse (polyfuse) to power supply input (+24V_LOGIC supply input on power control connector). Max. output current (together with all +24V_FUSE supply outputs on output connector: 500mA / polyfuse protected)

2

AIN0

Input

Analog input channel 0 (nom. 0..10V)

3

AIN1

Input

Analog input channel 1 (nom. 0..10V)

4

AIN2

Input

Analog input channel 2 (nom. 0..10V)

5

AIN3

Input

Analog input channel 3 (nom. 0..10V)

6

GND

Power

Supply and signal ground

7

GND

Power

Supply and signal ground

8

GND

Power

Supply and signal ground

9

GND

Power

Supply and signal ground

10

GND

Power

Supply and signal ground

1

4

5

8

Label

Direction

Description

1

OUT0

Output

Open-drain output channel 0

2

OUT1

Output

Open-drain output channel 1

3

OUT2

Output

Open-drain output channel 2

4

OUT3

Output

Open-drain output channel 3

5

+24V_FUSE

Power output

Connected via fuse (polyfuse) to power supply input (+24V_LOGIC supply input on power control connector). Max. output current (together with all +24V_FUSE supply outputs on output connector: 500mA / polyfuse protected)

6

+24V_FUSE

Power output

Connected via fuse (polyfuse) to power supply input (+24V_LOGIC supply input on power control connector). Max. output current (together with all +24V_FUSE supply outputs on output connector: 500mA / polyfuse protected)

7

+24V_FUSE

Power output

Connected via fuse (polyfuse) to power supply input (+24V_LOGIC supply input on power control connector). Max. output current (together with all +24V_FUSE supply outputs on output connector: 500mA / polyfuse protected)

8

+24V_FUSE

Power output

Connected via fuse (polyfuse) to power supply input (+24V_LOGIC supply input on power control connector). Max. output current (together with all +24V_FUSE supply outputs on output connector: 500mA / polyfuse protected)

Table 5.7: Interface Brick: Input connector

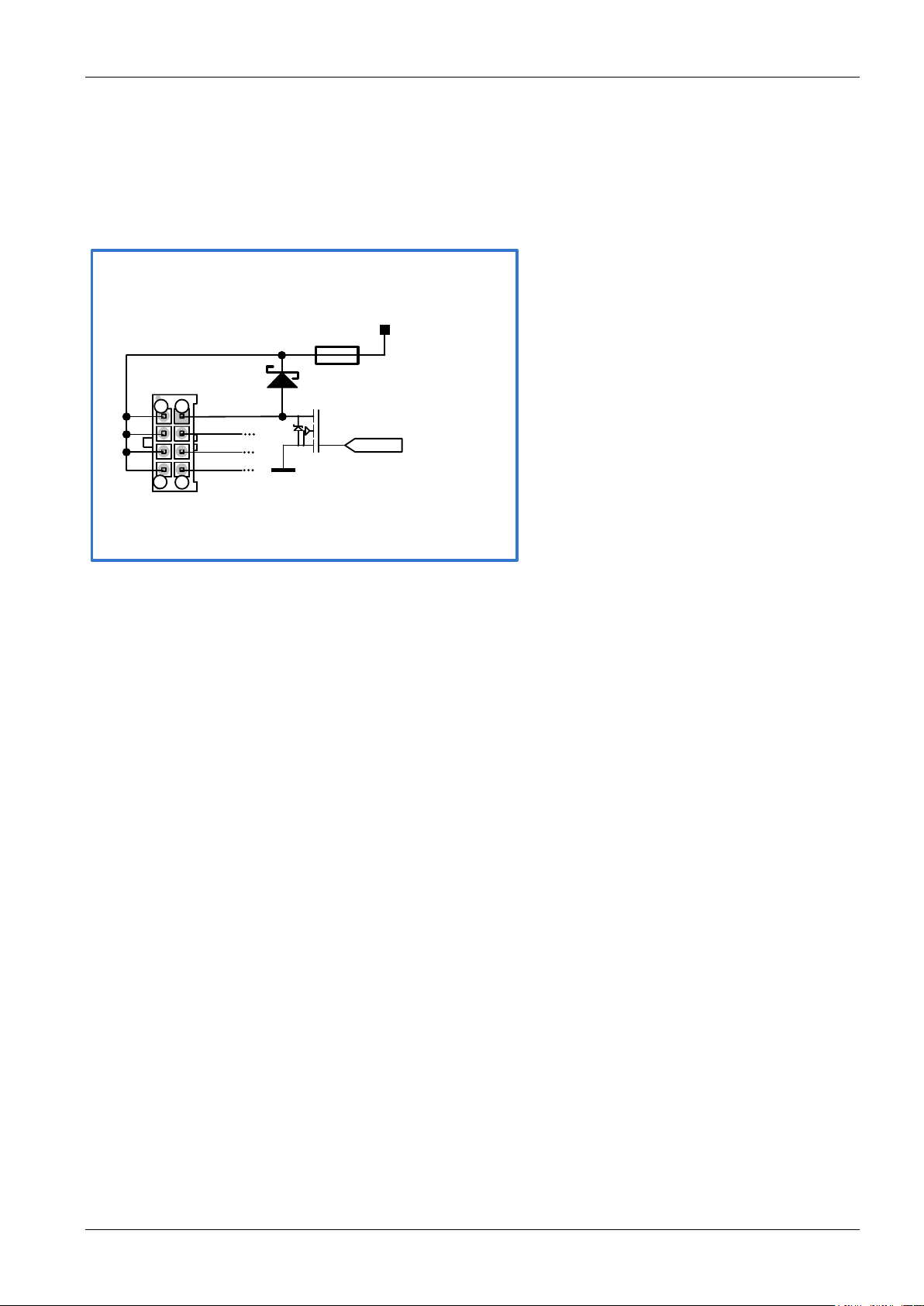

5.2.4 Output connector

The TMCM-6210 / TMCM-6211 offer four digital outputs (open-drain). The four outputs are available via one 8 pin Molex MicroFit™ connector (Molex part no. 43045-0812). Mating connector housing e.g. Molex 43025-0800, contacts Molex 43030-0007. Please note that there are alternative options available from Molex for both, mating housing and contacts.

Table 5.8: Interface Brick: Output connector

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 14

1

2

3

4

1

4

5

8

1

3

4

6

Motor connector

OB1

OA11

2

OB2

OA23

4

Encoder connector

ENC_N+

ENC_B+3

4

ENC_A+

GND1

2

ENC_N-

ENC_B-

7 8

ENC_A-

+5V_OUT5

6

REF / HOME connector

HOME3

REFL

GND1

2

GND

6

REFR

+5V_OUT4

5

43

2

1

8

5

41

Motor connector Encoder connector

4

2

3

1

REF / HOME connector

Label

Connector type

Mating connector type

Motor connector Molex MicroFit Jr.™, 43045-0412

2x2 pin header, 3mm pitch

Molex MicroFit Jr.™, Housing: 43025-0400 Contacts: 43030-0007

REF / HOME connector Molex MicroFit™, 43045-0612

2x3 pin header, 3mm pitch

Molex MicroFit™, Housing: 43025-0600 Contacts: 43030-0007

Encoder connector Molex MicroFit™, 43045-0812

2x4 pin header, 3mm pitch

Molex MicroFit™, Housing: 43025-0800 Contacts: 43030-0007

1

3

2

4

Label

Direction

Description

1

OA1

Output

Motor coil A

2

OB1

Output

Motor coil B

3

OA2

Output

Motor coil A

4

OB2

Output

Motor coil B

5.3 TMCM-6210 + TMCM-6211 Driver Brick

The driver brick of the TMCM-6210 and TMCM-6211 offers two outputs for bipolar stepper motors with up-to 0.7A RMS / 1.0A peak motor current (programmable), separate HOME + REFL and REFR inputs and encoder inputs (for incremental ABN encoders with differential signals) for each motor axes. Please note that due to sharing of hardware resources either REFL and REFR inputs or encoder inputs are available at a given point in time and may be used. The TMCM-6210 and TMCM-6211 offer three such driver bricks, supporting 6 stepper motors altogether.

Figure 5.4 TMCM-6210 + TMCM-6211 Driver Brick

Table 5.9 TMCM-6210 and TMCM-6211 Driver brick: connectors and mating connectors

5.3.1 Motor connector

As there are two bipolar stepper motors supported per single driver brick there are also two motor connectors per brick.

Each motor (with two coils A + B and four connecting wires) can be connected via one 4 pin Molex MicroFit™ connector (Molex part no. 43045-0412). Mating connector housing e.g. Molex 43025-0400, contacts Molex 43030-

0007. Please note that there are alternative options available from Molex for both, mating housing and contacts.

Table 5.10: Driver Brick: Motor connector

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 15

CAUTION

Do not connect or disconnect motor during operation!

Motor cable and motor inductivity might lead to voltage spikes when the motor is disconnected / connected while energized. These voltage spikes might exceed voltage limits of the driver MOSFETs and might permanently damage them. Therefore, always switch off and / or disconnect power supply before connecting / disconnecting the motor.

1

3

4

6

Label

Direction

Description

1

GND

Power

Supply and signal ground

2

REFL

Input

REF left / Left stop switch input. Internal pull-up (5k6) to +5V. External switch to ground may be connected or upto +5V push-pull signal.

3

HOME

Input

Home switch input. Internal pull-up (5k6) to +5V. External switch to ground may be connected or up-to +5V pushpull signal.

4

+5V_OUT

Power output

Connected to the on-board +5V auxiliary DC/DC converter. All +5V_OUT power supply outputs together on the 6 REF / HOME and 6 Encoder connectors may draw up-to 1A (e.g. 100mA per encoder and up-to 20mA per REF / HOME switch).

5

REFR

Input

REF right / Right stop switch input. Internal pull-up (5k6) to +5V. External switch to ground may be connected or up-to +5V push-pull signal.

6

GND

Power

Supply and signal ground

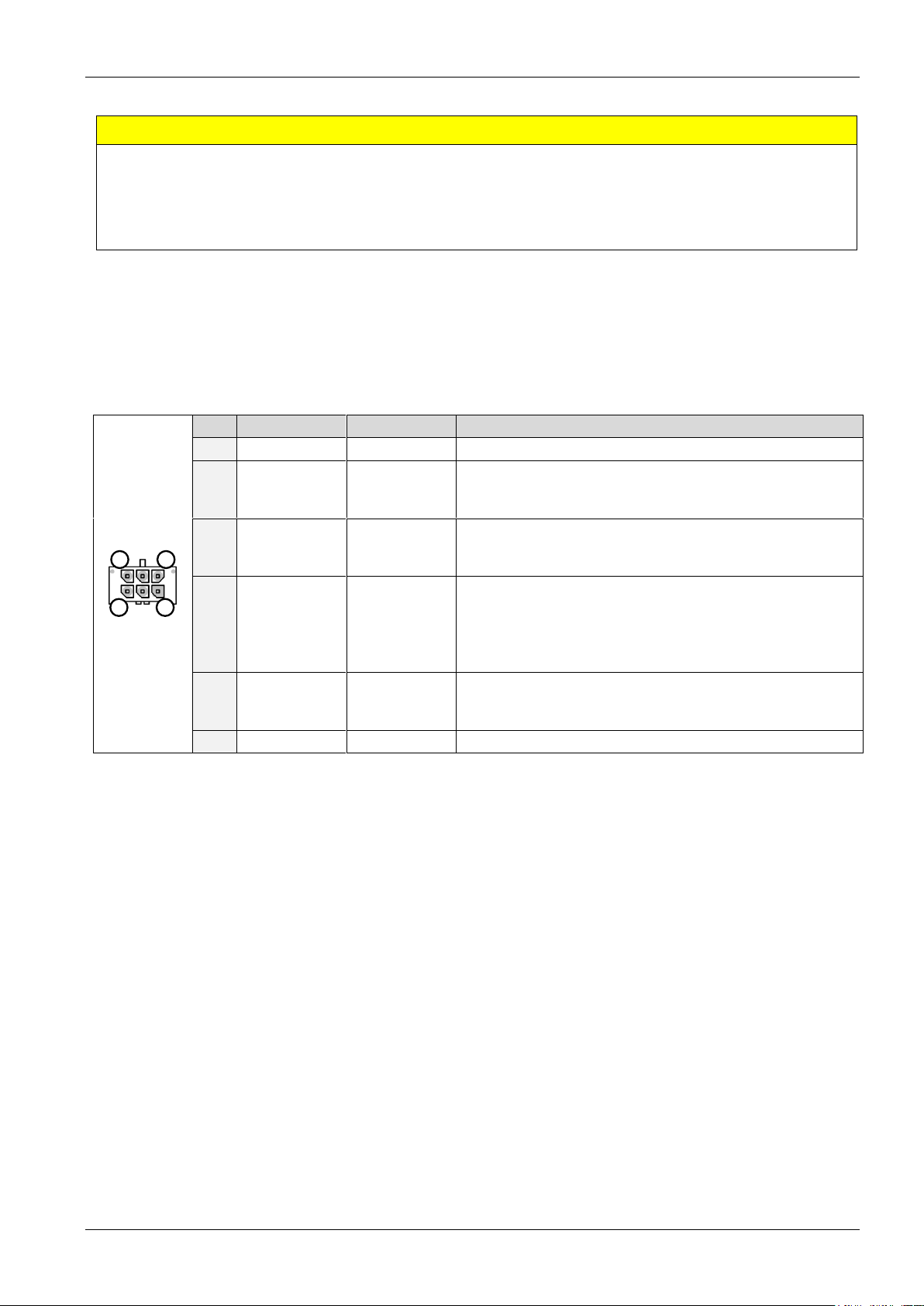

5.3.2 REF / HOME connector

There are two REF / HOME connectors per single driver brick – one for each motor axis. HOME, REFL and / or REFR switches may be connected via one 6 pin Molex MicroFit™ connector (Molex part no. 43045-0612). Mating connector housing e.g. Molex 43025-0600, contacts Molex 43030-0007. Please note that there are alternative options available from Molex for both, mating housing and contacts.

Table 5.11: Driver Brick: REF / HOME connector

5.3.3 Encoder connector

There are two Encoder connectors per single driver brick – one for each motor axis. Incremental A/B/N encoders with differential encoder signals are supported. The TMCM-6210 / TMCM-6211 offer on-board differential line receivers (AM26LV32 or equivalent) with 120R termination resistor per differential signal pair. Differential encoder signals may be connected via one 8 pin Molex MicroFit™ connector (Molex part no. 43045-0812). Mating connector housing e.g. Molex 43025-0800, contacts Molex 43030-0007. Please note that there are alternative options available from Molex for both, mating housing and contacts.

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 16

1

4

5

8

Label

Direction

Description

1

GND

Power

Supply and signal ground

2

ENC_A+

Input

Differential input of encoder channel A, non-inverting input

3

ENC_B+

Input

Differential input of encoder channel B, non-inverting input

4

ENC_N+

Input

Differential input of encoder null / zero channel, noninverting input

5

+5V_OUT

Power output

Connected to the on-board +5V auxiliary DC/DC converter. All +5V_OUT power supply outputs together on the 6 REF / HOME and 6 Encoder connectors may draw up-to 1A (e.g. 100mA per encoder and up-to 20mA per REF / HOME switch).

6

ENC_A-

Input

Differential input of encoder channel A, inverting input

7

ENC_B-

Input

Differential input of encoder channel B, inverting input

8

ENC_N-

Input

Differential input of encoder null / zero channel, inverting input

1

4

2

12

Control connector

+24V_LOGIC

GND1

2

Enable

+24V_LOGIC3

4

Power connector

+24V

GND1

2

Resistor connector

Resistor

+24V1

2

1

Label

Connector type

Mating connector type

Power connector Molex MiniFit Jr.™, 39-28-1023

1x2 pin header, 4.2mm pitch

Molex MiniFit Jr.™, Housing: 39-01-2020 Contacts: 39-00-0039

Control connector Molex MicroFit™, 43650-0415

1x4 pin header, 3mm pitch

Molex MicroFit™, Housing: 43645-0400 Contacts: 43030-0007

Resistor connector Molex MicroFit™, 43650-0215

2x4 pin header, 3mm pitch

Molex MicroFit™, Housing: 43645-0200 Contacts: 43030-0007

Table 5.12: Driver Brick: Encoder connector

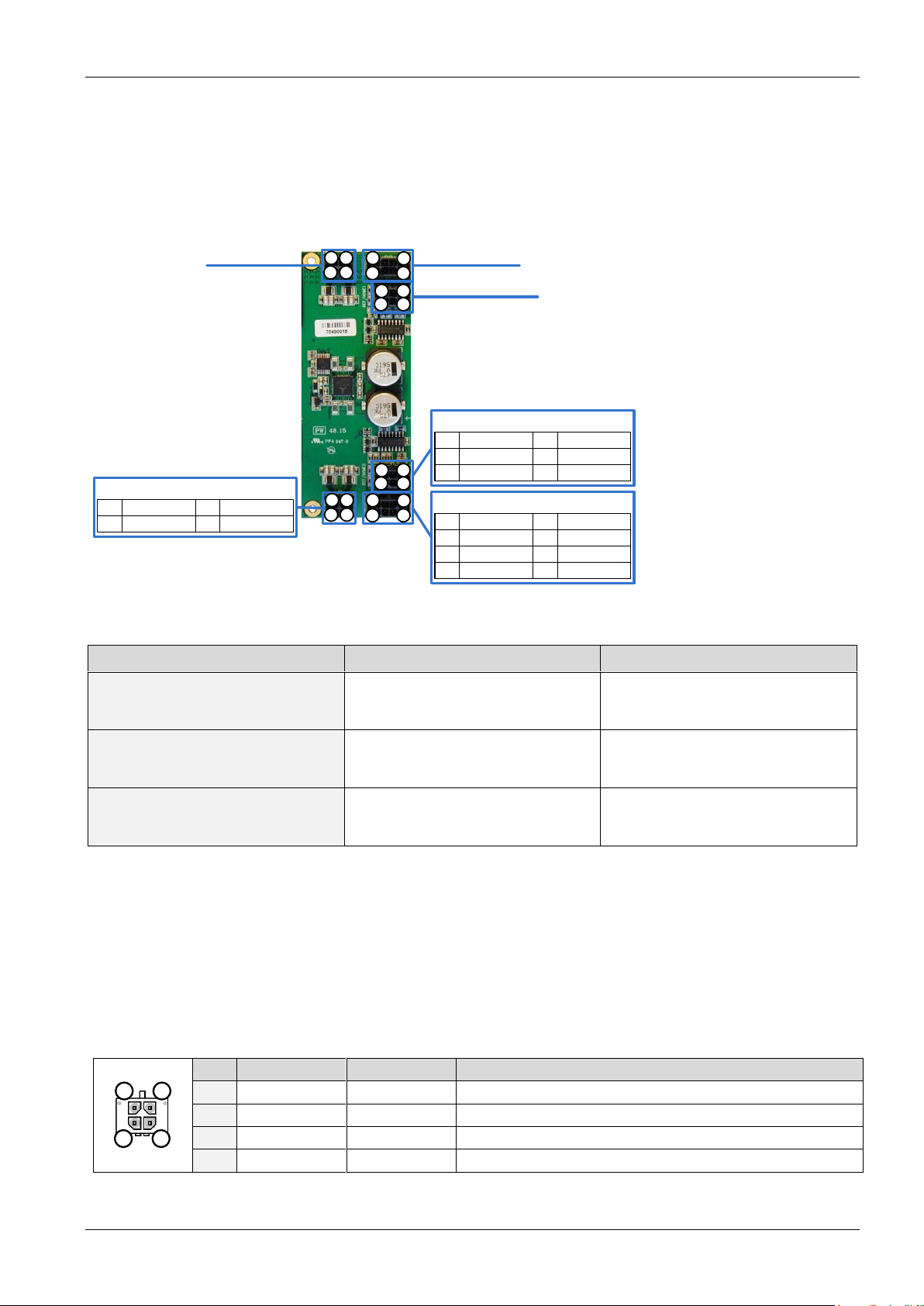

5.4 TMCM-6210 + TMCM-6211 Power supply Brick

The power supply brick of the TMCM-6210 and TMCM-6211 offers one main supply input via the Power connector, separate logic supply input as an option and a hardware driver stage enable input on the Control connector and connection for an external brake connector with the on-board brake chopper circuit.

Figure 5.5: TMCM-6210 + TMCM-6211 Power supply Brick

Connector and mating connector overview:

Table 5.13 TMCM-6210 and TMCM-6211 Power supply brick: connectors and mating connectors

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 17

1

2

Label

Direction

Description

1

GND

Power

Supply and signal ground

2

+24V

Power supply input

Power supply input. +12V … +24V +/- 10% regulated power supply input. Supply input for all six motor driver stages and logic supply.

CAUTION

Always keep the power supply voltage (+24V) below the upper limit of 27V! Otherwise the driver electronics will be seriously damaged. Especially, when the selected operating voltage is near the upper limit a regulated power supply is highly recommended.

Always keep the logic power supply voltage (+24V_LOGIC) above or equal to the main power supply! Otherwise the on-board electronics (diode connection between +24V main power supply input and +24V logic supply input) might be seriously damaged.

1

4

Label

Direction

Description

1

GND

Power

Supply and signal ground

2

+24V_LOGIC

Power supply input

Separate logic supply input. May be used in order to keep digital / logic part alive while driver stage is not supplied (Power supply input via Power connector either switched off or disconnected).

3

+24V_LOGIC

Power supply input

Same as Pin 2.

4

ENABLE

Input

Driver stage enable input (logic high). Maybe connected to pin 3 / +24V_LOGIC in order to enable driver.

CAUTION

Always keep the digital logic power supply voltage (+24V_LOGIC) below the upper limit of 27V! Otherwise the on-board electronics might be seriously damaged. Especially, when the selected operating voltage is near the upper limit a regulated power supply is highly recommended.

Always keep the logic power supply voltage (+24V_LOGIC) above or equal to the main power supply (on the Power supply connector)!

Otherwise the on-board electronics (diode connection between +24V main power supply input and +24V logic supply input) might be seriously damaged.

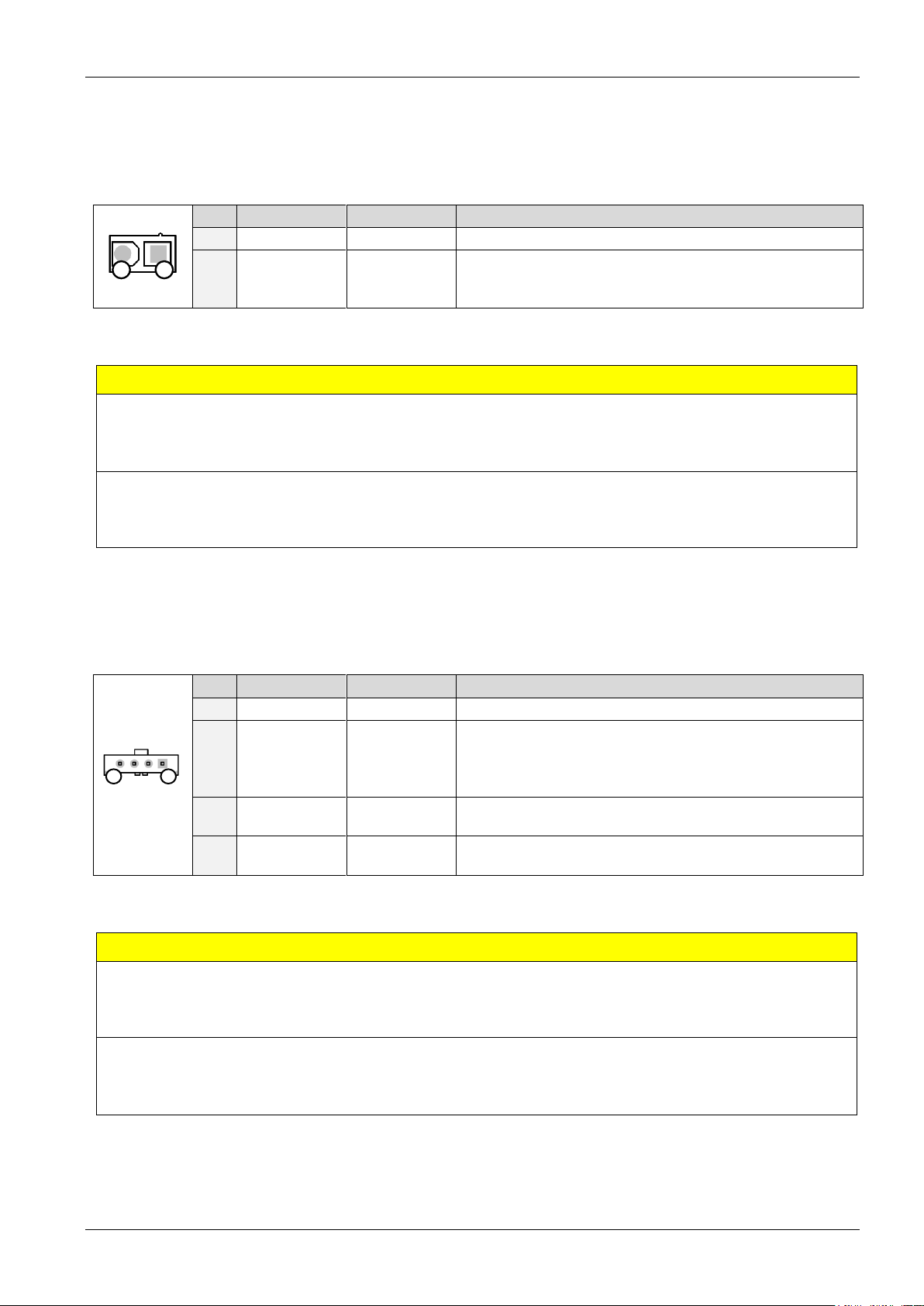

5.4.1 Power connector

A two pin Molex MiniFit Jr.™ connector (Molex part no. 39-28-1023) is available for power supply connection. Mating connector housing e.g. Molex 39-01-2020, contacts Molex 39-00-0039. Please note that there are alternative options available from Molex for both, housing and contacts.

Table 5.14: Power supply Brick: Power connector

5.4.2 Control connector

A four pin Molex MicroFit™ connector (Molex part no. 436500415) is used for the driver stage enable signal and optional separate logic supply input. Mating connector housing e.g. Molex 43645-0400, contacts Molex 43030-0007. Please note that there are alternative options available from Molex for both, housing and contacts.

Table 5.15: Power supply brick: Control connector

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 18

1

2

Label

Direction

Description

1

+24V

Power supply input

Connected to power supply input of Power connector.

2

Resistor

Output

Brake chopper output. An external power resistor should be connected between Pin 1 and Pin 2 of this connector.

CAUTION

Always keep the power supply voltage (+24V) below the upper limit of 27V! Otherwise the on-board electronics might be seriously damaged. Especially, when the selected operating voltage is near the upper limit a regulated power supply is highly recommended. In addition, the on-board brake chopper may be used together with an external power resistor connected to the Resistor connector in order to limit supply voltage.

Always keep the digital logic power supply voltage (+24V_LOGIC) below the upper limit of 27V! Otherwise the on-board electronics might be seriously damaged. Especially, when the selected operating voltage is near the upper limit a regulated power supply is highly recommended.

Always keep the logic power supply voltage (+24V_LOGIC) above or equal to the main power supply (on the Power supply connector)!

Otherwise the on-board electronics (diode connection between +24V main power supply input and +24V logic supply input) might be seriously damaged.

There is limited reverse polarity protection, only! The module will short any reversed supply voltage.

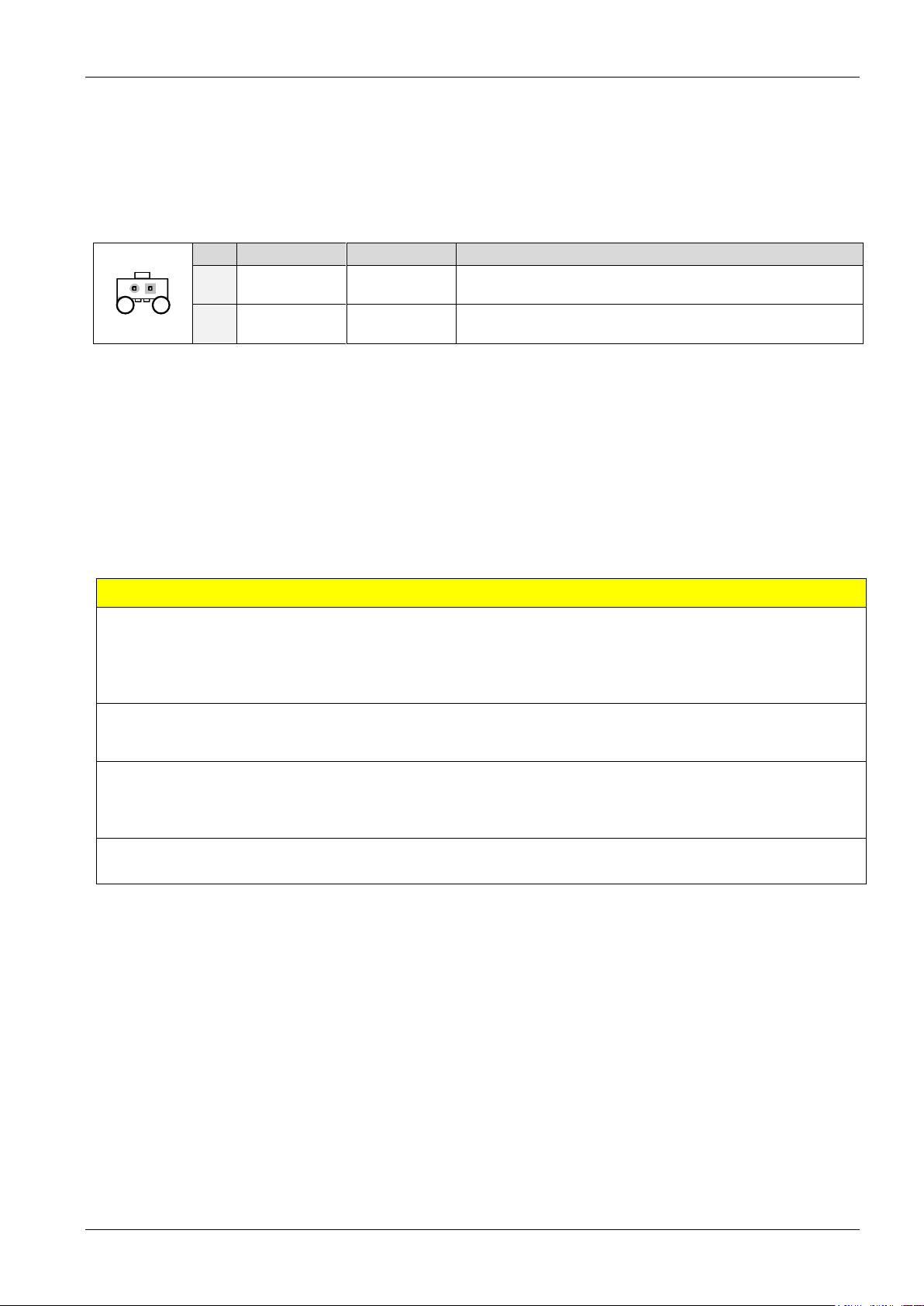

5.4.3 Resistor connector

The TMCM-6210 and TMCM-6211 offer a brake chopper in hardware for limiting supply voltage in case energy is fed back from motor / driver stage into the supply rail. A two pin Molex MicroFit™ connector (Molex part no. 43650-0215) is used for connecting an external brake resistor. Mating connector housing e.g. Molex 43645-0200, contacts Molex 43030-0007. Please note that there are alternative options available from Molex for both, housing and contacts.

Table 5.16: Power supply brick: Resistor connector

5.5 Power supply

For proper operation care has to be taken with regard to power supply concept and design. The TMCM-6210 / TMCM-6211 includes about 2800µF/35V of supply filter capacitors. In addition, the module includes a 24V suppressor diode for over-voltage protection. Nevertheless, it is important to make sure that supply voltage will not rise beyond the upper limit of +27V! Please note: during motor deceleration the driver stage might feedback energy from the motor into the supply rail and supply voltage might increase. In order to limit the supply voltage a brake chopper circuit has been included on the board. When activated in software and together with an external power resistor this circuit will limit the supply voltage.

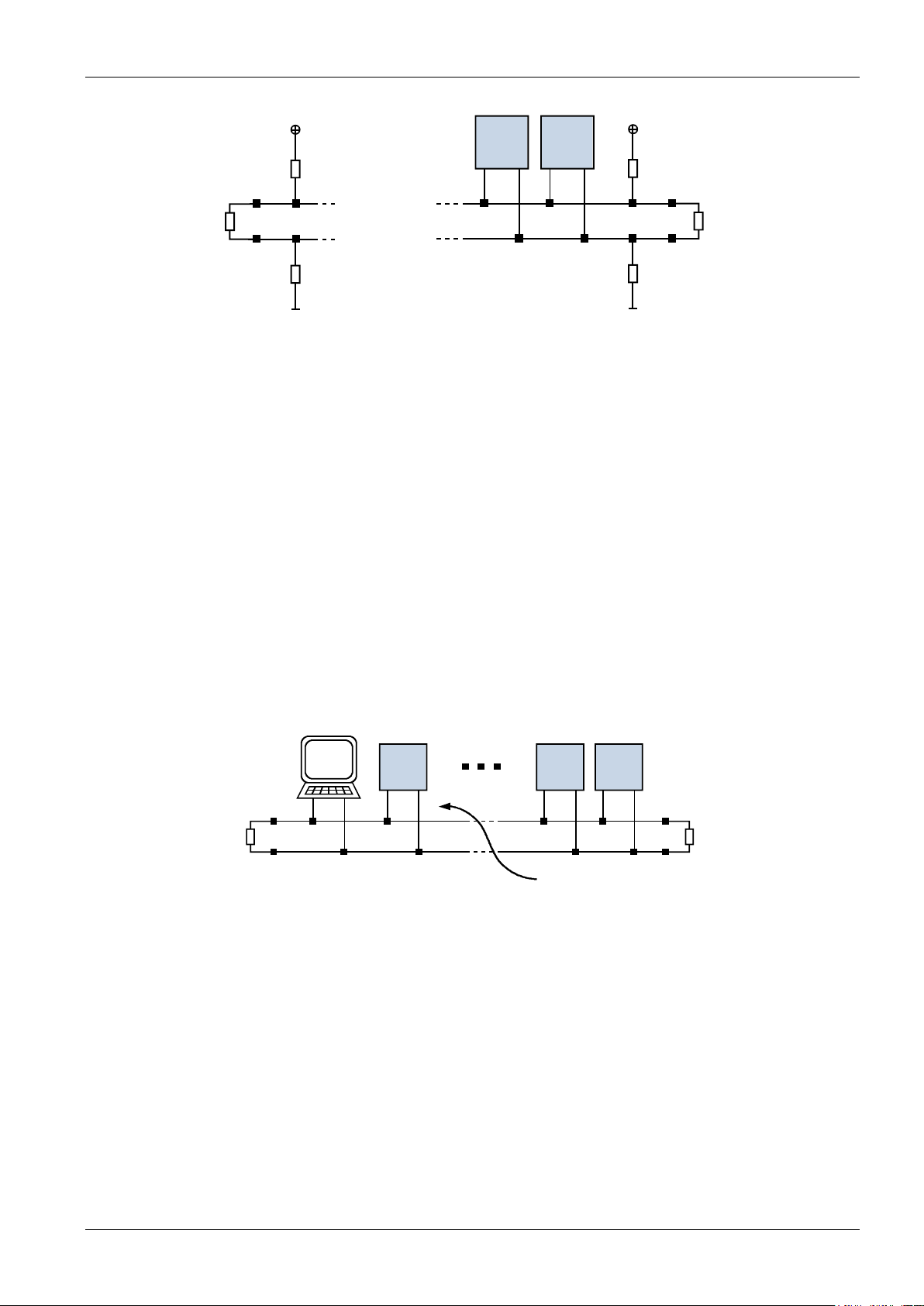

5.6 RS485

For remote control and communication with a host system the TMCM-6210 provides a two wire RS485 bus interface. For proper operation the following items should be taken into account when setting up an RS485 network:

1. BUS STRUCTURE:

The network topology should follow a bus structure as closely as possible. That is, the connection between each node and the bus itself should be as short as possible. Basically, it should be short compared to the length of the bus. The TMCM-6210 offers two connectors which are connected directly to each other and the on-board RS485 transceiver. Using both connectors for passing through the bus will help with keeping a proper bus topology.

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 19

c:>

node

1

node

n

- 1

node

n

Host

Slave Slave Slave

RS485

termination

resistor

(120 Ohm)

termination

resistor

(120 Ohm)

}

keep distance as short as possible

node

n - 1

node

n

Slave Slave

termination

resistor

(120R)

+5V

GND

pull-up (680R)

pull-down (680R)

RS485- / RS485B

termination

resistor

(220R)

RS485+ / RS485A

Figure 5.3: Bus structure

2. BUS TERMINATION:

Especially for longer busses and/or multiple nodes connected to the bus and/or high communication speeds, the bus should be properly terminated at both ends. The TMCM-6210 does not integrate any termination resistor. Therefore, 120 Ohm termination resistors at both ends of the bus have to be added externally.

3. NUMBER OF NODES:

The RS485 electrical interface standard (EIA-485) allows up to 32 nodes to be connected to a single bus. The bus transceivers used on the TMCM-6110 units (SN65HVD1781D) have a significantly reduced bus load and allow a maximum of 255 units to be connected to a single RS485 bus using TMCL firmware. Please

note: usually it cannot be expected to get reliable communication with the maximum number of nodes connected to one bus and maximum supported communication speed at the same time. Instead, a compromise has to be found between bus cable length, communication speed and number of nodes.

4. COMMUNICATION SPEED:

The maximum RS485 communication speed supported by the TMCM-6210 hardware is 1Mbit/s. Factory default is 9600 bit/s. Please see separate firmware manuals for information regarding other possible communication speeds below the upper limit in hardware.

5. NO FLOATING BUS LINES:

Avoid floating bus lines while neither the host/master nor one of the slaves along the bus line is transmitting data (all bus nodes switched to receive mode). Floating bus lines may lead to communication errors. In order to ensure valid signals on the bus it is recommended to use a resistor network connecting both bus lines to well defined logic levels.

There are actually two options which can be recommended: Add resistor (Bias) network on one side of the bus, only (120R termination resistor still at both ends):

Figure 4.4: Bus lines with resistor (Bias) network on one side, only

Or add resistor (Bias) network at both ends of the bus (like Profibus™ termination):

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 20

node

n - 1

node

n

Slave Slave

termination

resistor

(220R)

+5V

GND

pull-up (390R)

pull-down (390R)

RS485- / RS485B

RS485+ / RS485A

termination

resistor

(220R)

+5V

GND

pull-up (390R)

pull-down (390R)

c:>

node

1

node

n

- 1

node

n

Host

Slave Slave Slave

CAN

termination

resistor

(120 Ohm)

termination

resistor

(120 Ohm)

}

keep distance as short as possible

Figure 4.5: Bus lines with resistor (Bias) network at both ends

Certain RS485 interface converters available for PCs already include these additional resistors (e.g. USB-2485 with bias network at one end of the bus).

5.7 CAN

For remote control and communication with a host system the TMCM-6210 provides a CAN bus interface. For proper operation the following items should be taken into account when setting up a CAN network:

1. BUS STRUCTURE:

The network topology should follow a bus structure as closely as possible. That is, the connection between each node and the bus itself should be as short as possible. Basically, it should be short compared to the length of the bus. The TMCM-6210 offers two connectors (RJ45) which are connected directly to each other and the on-board CAN transceiver. Using both connectors for passing through the bus will help with keeping a proper bus topology.

Figure 5.6: CAN bus structure

2. BUS TERMINATION:

Especially for longer busses and/or multiple nodes connected to the bus and/or high communication speeds, the bus should be properly terminated at both ends. The TMCM-6210 does not integrate any termination resistor. Therefore, 120 Ohm termination resistors at both ends of the bus have to be added externally.

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 21

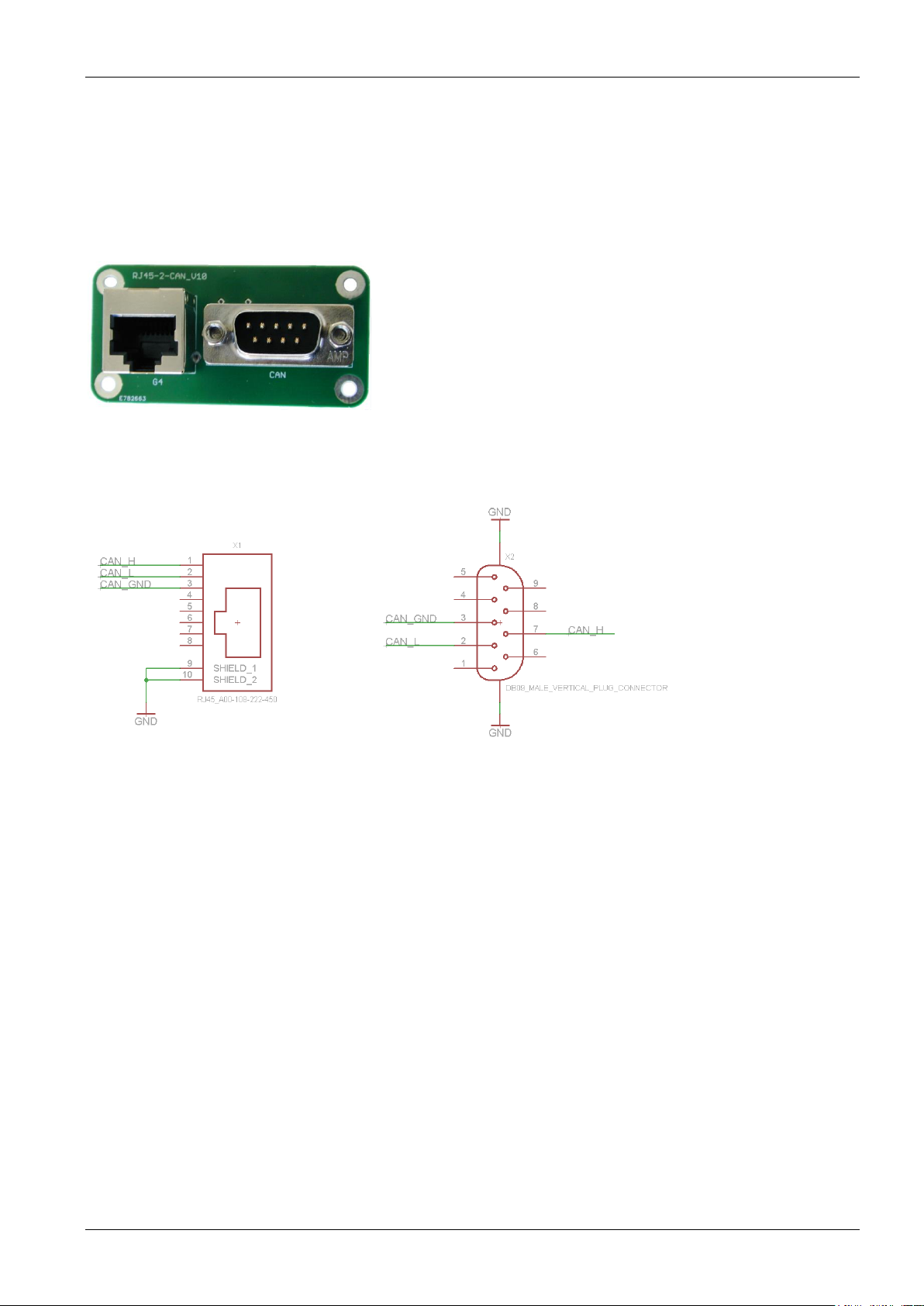

5.7.1 CAN adapter

As part of the cable loom for the TMCM-6210 (G4-CABLE) an adapter pcb is vailable (RJ45-2-DSUB_G4_V10) for making CAN bus connection via standard D-SUB connectors instead of the RJ45 available on the TMCM-6210. A standard e.g. CAT5 ethernet cable might be used to connect the RJ45 connector on the TMCM-6210 with the RJ45 connector on the adapter pcb. The D-SUB connector on the adapter pcb might then be used to connect further slaves or the master with CAN D-SUB connectors. Please make sure to maintain a proper bus structure while using the adapter pcb.

Figure 5.6: RJ45-2-DSUB PCB top view

Figure 5.7: RJ45-2-DSUB schematic / connector pin assignment

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 22

+24V_LOGIC

microcontroller

GND

1

OUT0

5

4

8

OUT1 OUT2 OUT3

TMCM-6210 / TMCM-6211

Output OUT0..3 with internal circuit

of OUT0 as example

0.5A/60V

Polyfuse

5.8 General purpose outputs OUT0..3

The TMCM-6210 and TMCM-6211 offer 4 open-drain (N-channel MOSFET) general purpose outputs available at the output connector of the interface brick part. The internal connection of the N-channel MOSFETs together with a flyback / freewheeling diode can be seen in figure 5.8. When activating the MOSFET the related output will be pulled low (sometimes called npn-style switch). Please note the internal fuse limiting the current that can be drawn from the output connector.

Figure 5.8: General purpose output – internal circuit (simplified)

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 23

Motor current setting in software (TMC)

In TMCL axis parameter 6 (motor run current) and 7 (motor standby current) can be used for motor current setting:

SAP 6, 0, <value> // set run current

SAP 7, 0, <value> // set standby current

For <value> numbers between 0 (minimum) and 255 (maximum) are supported. Motor current is scaled linearly up-to 0.7A RMS / 1A peak. (read-out value with GAP instead of SAP. Please see separate TMCM-6210 / TMCM-6211 firmware / software manual for further information)

6 Motor driver current

The stepper motor driver section of the TMCM-6210 + TMCM-6211 operates current controlled. The driver current may be programmed in software with 256 effective scaling steps in hardware up-to 0.7A RMS / 1A peak max. motor coil current.

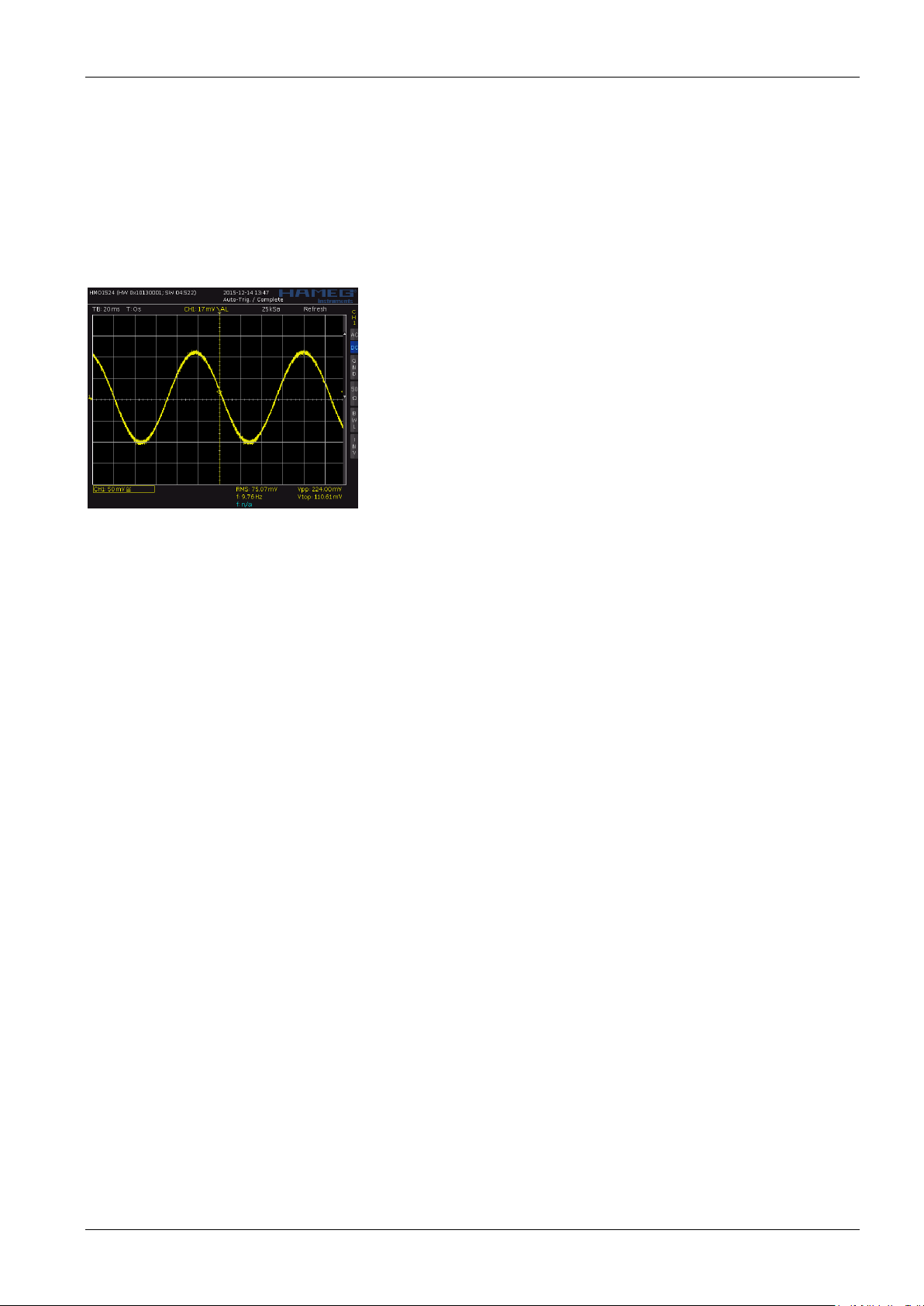

Motor current measured for one phase with max. current settings (100% e.g. “SAP 6, 0, 255”) and 256 microsteps:

CH1 (yellow): motor current [50mV / A]

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 24

+5V auxilliary supply

+5V supply

LED

Description

+5V supply

+5V available from on-board DC/DC converter for supply of on-board digital circuit

+5V auxiliary supply

+5V auxiliary supply available (can be switched on/off in software). +5V_OUT on REF/HOME and ENCODER connector.

LED (green)

LED (red)

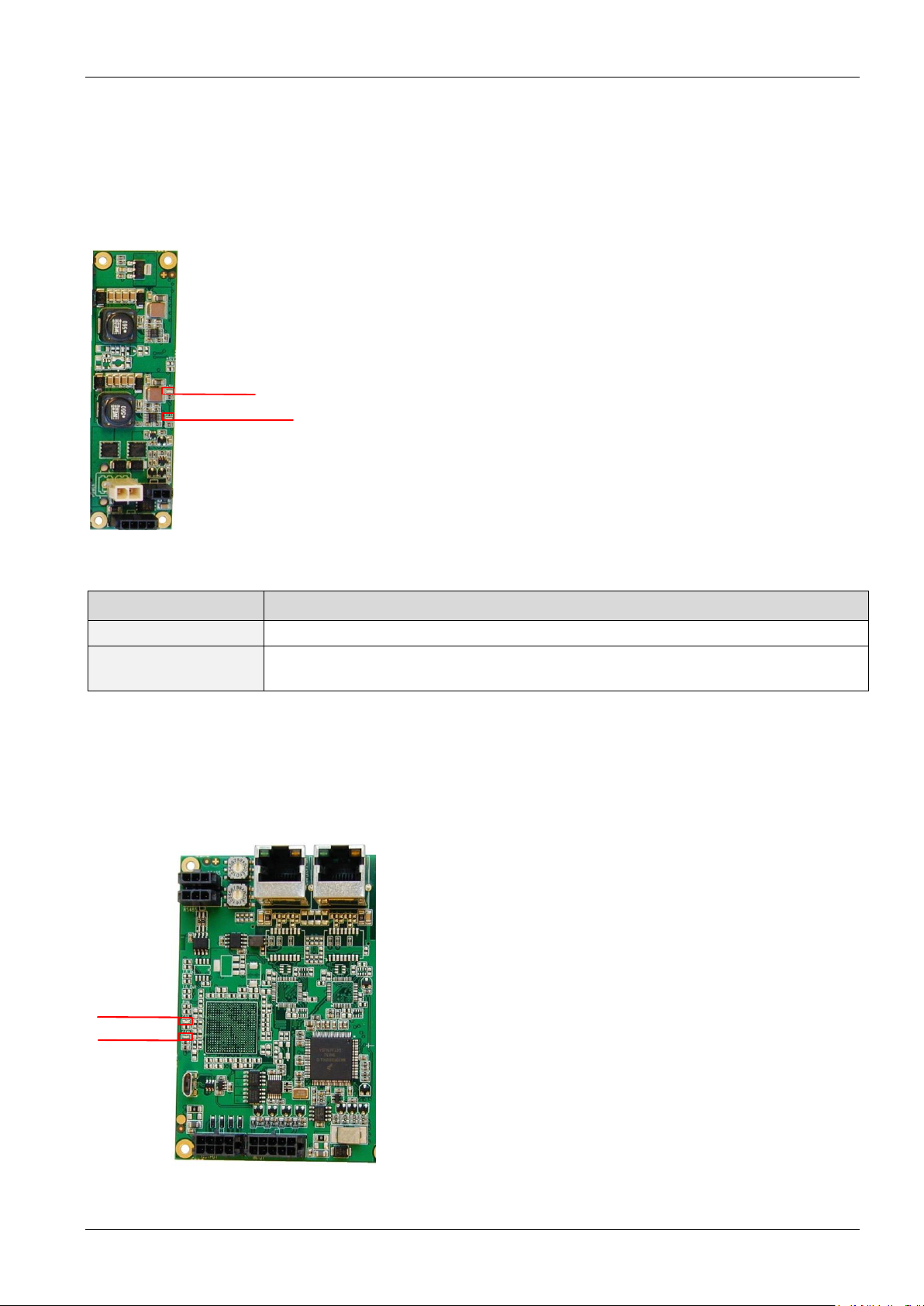

7 On Board LEDs

There are a number of LEDs on-board indicating status.

7.1 Power supply brick

With the TMCM-6210 and TMCM-6211 two LEDs are available on the power supply brick part.

Figure 7.1: LEDs on power supply brick

7.2 TMCM-6210 Interface Brick

With the TMCM-6210 there are two LEDs (one green and one red) available. Both are connected to the on-board microcontroller and function is firmware dependent. With TMCL firmware the green LED is flashing slowly during operation. During firmware updates both LEDs are switched on.

Figure 7.2: LEDs on TMCM-6210 interface brick

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 25

LED (green)

EtherCAT LINK IN

EtherCAT LINK OUT

EtherCAT RUN

ERROR

LED

Description

EtherCAT™ LINK IN

Signal LINK IN, connected to ESC

EtherCAT™ LINK OUT

Signal LINK OUT, connected to ESC

EtherCAT RUN

Indicating status of EtherCAT state machine, connected to ESC

ERROR

Connected to microcontroller and ESC – indicating Error

LED (green)

Connected to microcontroller – flashing slowly during normal operation

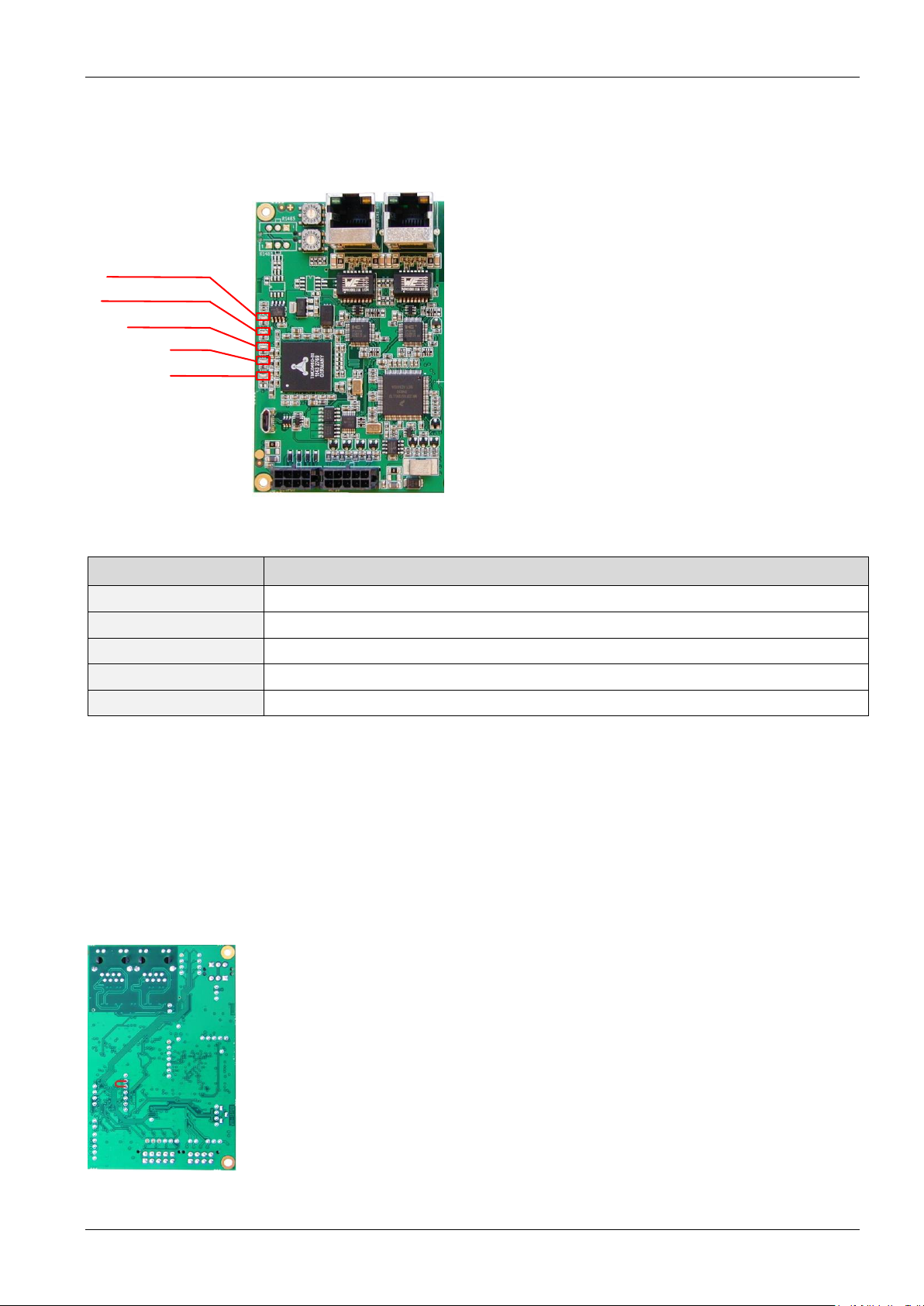

7.3 TMCM-6211 Interface Brick

With the TMCM-6211 there are five LEDs available. Two LEDs are connected to the processor and three to the

EtherCAT™ slave controller (ESC). In addition, one LED (ERROR) is connected to both, the microcontroller and the

ESC.

Figure 7.3: LEDs on TMCM-6211 interface brick

8 Reset to Factory Default

For reset to factory default values please follow instructions below:

1. Switch OFF power supply.

2. Short two pads of programming connector pad-array (see figure 8.1).

3. Switch ON power supply (on-board LED should be flashing fast / faster than during normal operation).

4. Switch OFF power supply.

5. Remove short circuit.

Figure 8.1 Reset to factory defaults (bottom view of pcb – interface brick end)

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 26

Symbol

Parameter

Min

Typ

Max

Unit

+24V

Power supply voltage input

10

24

27

V

+24V_LOGIC

Power supply voltage for on-board digital / logic (if supplied separately)

Same as +24V supply input

V

I

PEAK

Motor coil current for sine wave peak (chopper regulated, adjustable via software)

1

A I

RMS

Continuous motor current (RMS)

0.7

A

I

+24V

Power supply current for driver

<< 6 x I

RMS

A

T

ENV

Environmental temperature at 6x 0.7A RMS motor current (no forced cooling)

-30

**)

+40

***)

°C

Symbol

Parameter

Min

Typ

Max

Unit

V

REFL/R_HOME

Input voltage for stop / home switch inputs REFL / REFR and HOME

0 5.5

V

REFL/R_HOME_L

Low level voltage for stop / home switch inputs REFL / REFR and HOME

0 1.1

V

REFL/R_HOME_H

High level voltage for stop / home switch inputs REFL / REFR and HOME

3.3

V

OUT0…3

Voltage at open collector output OUT0…OUT3

0

Same as +24V supply input

V

I

OUT0…3

Output sink current for OUT0…OUT3

1*)

A

V

AIN0…3

Full scale input voltage range for analog inputs AIN0…AIN3

0 10**)

V

9 Operational ratings

The operational ratings show the intended or the characteristic ranges and should be used as design values.

In no case shall the maximum values be exceeded.

Table 9.1: General operational ratings of the module

**) limited by test equipment. Operation down to -40°C can be expected. Test included “cold” start at this temperature.

***) Test set-up / procedure: module placed inside climate chamber (Binder MK53) with 26pprox.. 53l volume. Motor placed outside chamber moving slowly with motor current set to maximum supported by module (6x 0.A RMS). Test duration: 24h. Communication tested at beginning and end of test.

Table 9.2 Operational ratings of I/Os

*) please note: when using the +24V available at the output connector max. current is limited to 500mA for all outputs together due to on-board fuse (polyfuse)

**) nominal upper input voltage which can be measured without saturation of the ADC. Max. voltage at max. ADC value will be around 10.56V.

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 27

Dual Axes

Controller +

Driver

+5V

HOME, REFL, REFR

+5V

HOME, REFL, REFR

A/B/N Encoder

E

Dual Axes

Controller +

Driver

+5V

HOME, REFL, REFR

+5V

HOME, REFL, REFR

A/B/N Encoder

E

Dual Axes

Controller +

Driver

+5V

HOME, REFL, REFR

+5V

HOME, REFL, REFR

A/B/N Encoder

E

µC

(ARM)

CAN

USB

RS485

Inputs

Outputs

10..27V

DC

EEPROM

I2C

SPI

TMCM-6210

10 TMCM-6210 Functional Description

The TMCM-6210 is a highly integrated controller/driver module for 6 stepper motor axes which can be controlled via several serial interfaces (CAN, RS485 and USB – depending on firmware). Communication traffic is kept low since all time critical operations (e.g. ramp calculations) are performed on board. The nominal supply voltage of the unit is 12V or 24V DC. The module is designed for both, standalone operation and direct mode. Full remote control of device with feedback is possible. The firmware of the module can be updated via one of the serial interfaces (depending on module and firmware type).

In Figure 10.1 the main parts of the TMCM-6210 are shown:

- Microcontroller, responsible for overall control – executes the firmware (either TMCL or CANopen incl. the

communication stack)

- 3 dual-axes motion controller and driver with calculation of ramps (linear and sixPoint™) and speed

profiles internally in hardware

- interface for an external (e.g. optical) incremental A/B/N encoder (differential RS422 signals) for each axis

- interface for HOME / REFL / REFR reference switches for each axis (either encoder interface or reference

switches can be selected in software)

- 4 general purpose analog / digital inputs

- 4 general purpose digital (open-drain) outputs

- Three serial communication interfaces: CAN, RS485 and USB (Micro-USB-connector). While CAN and RS485

are intended for in-system control and operation (for CANopen firmware just CAN) the USB interface may be primarily used for parameter settings and firmware updates.

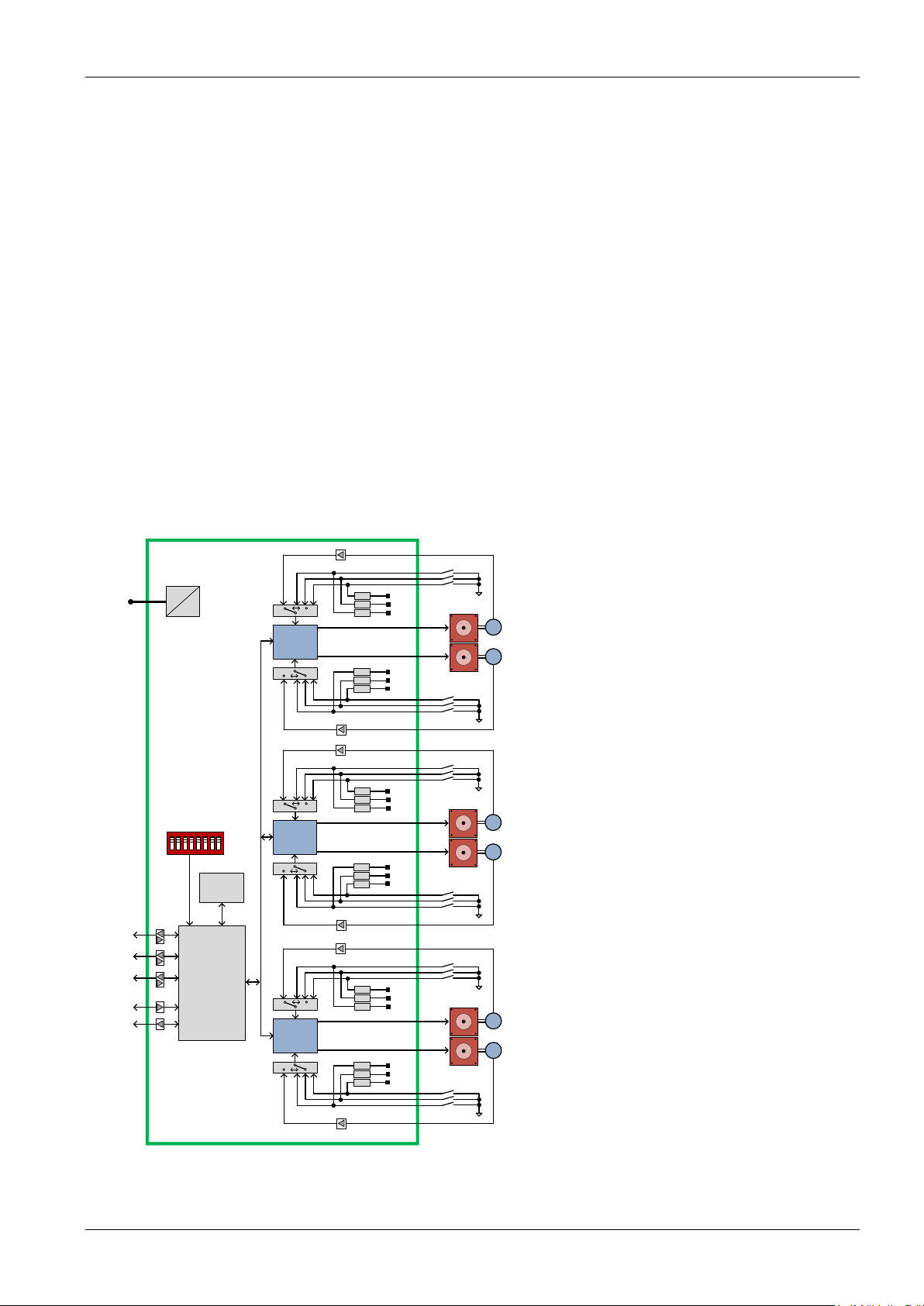

Figure 10.1 Main parts of the TMCM-6210

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 28

Dual Axes

Controller +

Driver

+5V

HOME, REFL, REFR

+5V

HOME, REFL, REFR

A/B/N Encoder

E

Dual Axes

Controller +

Driver

+5V

HOME, REFL, REFR

+5V

HOME, REFL, REFR

A/B/N Encoder

E

Dual Axes

Controller +

Driver

+5V

HOME, REFL, REFR

+5V

HOME, REFL, REFR

A/B/N Encoder

E

µC

(ARM)

USB

Inputs

Outputs

10..27V

DC

EEPROM

I2C

SPI

EtherCAT

slave

controller

SPI

PHY

EtherCAT

TM

TMCM-6211

11 TMCM-6211 Functional Description

The TMCM-6211 is a highly integrated controller/driver module for 6 stepper motor axes which offers an EtherCAT™ interface in addition to USB for communication. The nominal supply voltage of the unit is 12V or 24V DC. Full remote control of the device with feedback is possible using the CANopen over EtherCAT™ (CoE) firmware. The firmware of the module can be updated via one of the serial interfaces.

In Figure 10.1 the main parts of the TMCM-6211 are shown:

- Microcontroller, responsible for overall control – executes the firmware (CANopen over EtherCAT, CoE)

- 3 dual-axes motion controller and driver with calculation of ramps (linear and sixPoint™) and speed

profiles internally in hardware

- interface for an external (e.g. optical) incremental A/B/N encoder (differential RS422 signals) for each axis

- interface for HOME / REFL / REFR reference switches for each axis (either encoder interface or reference

switches can be selected in software)

- 4 general purpose analog / digital inputs

- 4 general purpose digital (open-drain) outputs

- EtherCAT™ and USB interfaces for communication. The EtherCAT™ interface is intended for in-system

control and operation (using CoE firmware), while USB may be used for parameter setting and firmware updates

Figure 11.1 Main parts of the TMCM-6211

TMCM-6210, TMCM-6211 Hardware Manual (V0.95 / 2017-MAR-01) 29

Version

Date

Author

Description

0.90

2015-DEC-17

GE

Initial version

0.91

2016-MAR-14

GE

 Cable loom added  Order Codes Connector corrected + updated  Block diagram added  Remarks regarding RS485 and CAN added

0.92

2016-MAR-16

GE

 Description for on-board LEDs added  Description for factory default reset added  RJ45-2-D-SUB adapter description added  Minor corrections

0.93

2016-APR-20

GE

 Supply output on Output and Input connectors renamed (+24V_FUSE)

0.94

2016-MAY-17

GE

 Chapter 5.8 – General Purpose Outputs OUT0..3 added  Pin assignment of Control connector in figure 5.5 corrected

0.95

2017-MAR-01

GE

Block diagram and functional description simplified / clarified

Version

Date

Description

TMCM-6210_V09

2015-JAN-22

Initial version

TMCM-6210_V10

2015-APR-27

Major redesign (incl. processor change)

TMCM-6210_V11

2015-OCT-26

 Diff. encoder line-receiver will be disabled when REF switch inputs

are enabled (circuit corrected)

 100nF input filter capacitors for HOME + REF switch inputs

TMCM-6211_V11

2015-OCT-26

Version with EtherCAT™ derived from TMCM-6210_V11

12 Revision History

12.1 Document revision

Table 12.1: Document revision

12.2 Hardware revision

Table 12.2: Hardware revision

13 References

[MOLEX] MOLEX connector http://www.molex.com [TMCL-IDE] TMCL-IDE User Manual Manual available on http://www.trinamic.com.
