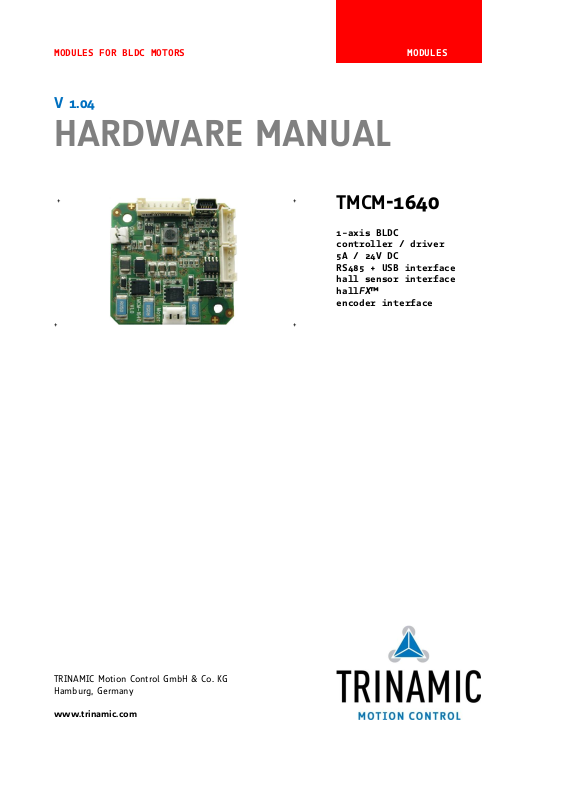

Trinamic TMCM-1640 HARDWARE MANUAL

MODULES FOR BLDC MOTORS MODULES

V 1.04

HARDWARE MANUAL

+ +

1-axis BLDC

controller / driver 5A / 24V DC

RS485 + USB interface hall sensor interface hallFX™ encoder interface

+ +

TMCM-1640

TRINAMIC Motion Control GmbH & Co. KG Hamburg, Germany

www.trinamic.com

TMCM-1640 Hardware Manual (V1.04 / 2011-NOV-16) 2

Table of Contents

1 Life support policy ....................................................................................................................................................... 3

2 Features ........................................................................................................................................................................... 4

3 Order codes .................................................................................................................................................................... 5

4 Mechanical and electrical interfacing ..................................................................................................................... 6

4.1 Controller/driver board size and mounting holes ..................................................................................... 6

4.2 Connectors ............................................................................................................................................................. 7

4.2.1 Power connector ............................................................................................................................................ 8

4.2.2 Motor connector............................................................................................................................................. 8

4.2.3 Hall sensor connector .................................................................................................................................. 9

4.2.4 Encoder connector......................................................................................................................................... 9

4.2.5 USB connector ................................................................................................................................................ 9

4.2.6 GPIOs and RS485 connector ..................................................................................................................... 10

4.3 Input/output circuits ......................................................................................................................................... 11

4.3.1 Hall sensor input ......................................................................................................................................... 11

4.3.2 Encoder input ............................................................................................................................................... 11

4.3.3 General purpose inputs/outputs ............................................................................................................. 12

5 Operational ratings .................................................................................................................................................... 13

6 Functional description .............................................................................................................................................. 14

6.1 System architecture ........................................................................................................................................... 14

6.1.1 Microcontroller ............................................................................................................................................. 14

6.1.2 TMC603 3-phase pre-driver ........................................................................................................................ 14

7 hallFX™ ......................................................................................................................................................................... 15

8 Revision history .......................................................................................................................................................... 16

8.1 Document revision ............................................................................................................................................ 16

8.2 Hardware revision ............................................................................................................................................. 16

9 References..................................................................................................................................................................... 16

TMCM-1640 Hardware Manual (V1.04 / 2011-NOV-16) 3

1 Life support policy

TRINAMIC Motion Control GmbH & Co. KG does not authorize or warrant any of its products for use in life support systems, without the specific written consent of TRINAMIC Motion Control GmbH & Co. KG.

Life support systems are equipment intended to support or sustain life, and whose failure to perform, when properly used in accordance with instructions provided, can be reasonably expected to result in personal injury or death.

Information given in this data sheet is believed to be accurate and reliable. However neither responsibility is assumed for the consequences of its use nor for any infringement of patents or other rights of third parties, which may result from its use.

Specifications are subject to change without notice.

TMCM-1640 Hardware Manual (V1.04 / 2011-NOV-16) 4

2 Features

The TMCM-1640 is a highly compact controller/driver module for brushless DC (BLDC) motors with up to 5A coil current, optional encoder and/or hall sensor feedback. For communication the module offers RS485 and (mini-)USB interfaces.

Applications

 Compact single-axis brushless DC motor solutions

Electrical data

 Supply voltage: +24VDC nom. (+12V… +28.5V DC)  Motor current: up to 5A RMS (programmable)

Integrated motion controller

 High performance ARM Cortex™-M3 microcontroller for system control and communication protocol

handling

Integrated driver

 High performance integrated pre-driver (TMC603)  Support for sensorless back EMF commutation (hallFX™)  High-efficient operation, low power dissipation (MOSFETs with low R  Dynamic current control  Integrated protection

Interfaces

 USB: mini-USB connector, full speed (12Mbit/s) serial communication interface  RS485 serial communication interface  Hall sensor interface (+5V TTL or open-collector signals)  Encoder interface (+5V TTL or open-collector signals)  3 general purpose inputs: 2x digital (+5V / +24V compatible), 1x analogue (0… 10V)  1 general purpose output (open-drain)

Software

 Available with TMCL™  stand-alone operation or remote controlled operation  program memory (non volatile) for up to 2048 TMCL™ commands  PC-based application development software TMCL-IDE  PC-based application development software TMCL-BLDC for initial settings

Please refer to separate TMCM-1640 TMCL™ Firmware Manual for further information

DS(ON)

)

TMCM-1640 Hardware Manual (V1.04 / 2011-NOV-16) 5

Order code

Description

Dimensions [mm]

TMCM-1640

1-axis BLDC controller/driver module with up to 5A /

28.5V. RS485 and USB 2.0 interface

42 x 42 x 15 Component parts

TMCM-1640-CABLE

Cable-loom for TMCM-1640

Related motors

QBL4208-41-04-006

QMot BLDC motor 42 mm, 4000RPM, 0.06Nm

42 x 42 x 41

QBL4208-61-04-013

QMot BLDC motor 42 mm, 4000RPM, 0.13Nm

42 x 42 x 61

3 Order codes

Cables are not included. Add the TMCM-1640-CABLE to your order if required.

Table 3.1: Order codes

TMCM-1640 Hardware Manual (V1.04 / 2011-NOV-16) 6

42.0

39.0

3

36.5

M3

5.5

4 Mechanical and electrical interfacing

4.1 Controller/driver board size and mounting holes

The dimensions of the controller/driver board (TMCM-164) are approx. 42mm x 42mm in order to fit on the back side of a 42mm NEMA 17 brushless DC motor. Maximum component height (height above PCB level) without mating connectors is around 10mm and about 3mm below PCB level. There are two mounting holes for M3 screws for mounting the board directly to a NEMA 17/42mm flange size brushless DC motor.

Figure 4.1: Module dimension and position of mounting holes

TMCM-1640 Hardware Manual (V1.04 / 2011-NOV-16) 7

Motor

USB

Power

GPIO

RS485

1

Hall

Encoder

Domain

Connector type

Mating connector type

Power

Tyco electronics (formerly AMP) MTA-100 series (3-640456-2), 2 pol., male

MTA 100 series (3-640440-2), 2 pol., female Motor

Tyco electronics (formerly AMP) MTA-100 series (3-640456-3), 3 pol., male

MTA 100 series (3-640440-3), 3 pol., female USB

5-pin standard mini-USB connector, female

5-pin standard mini-USB connector, male

Hall

2mm pitch 5 pin JST B5B-PH-K connector

Housing: JST PHR-5 Crimp contacts: BPH-002T-P0.5S (0.5-0.22mm)

Encoder

2mm pitch 5 pin JST B5B-PH-K connector

Housing: JST PHR-5 Crimp contacts: BPH-002T-P0.5S (0.5-0.22mm)

I/O, RS485

2mm pitch 8 pin JST B8B-PH-K connector

Housing: JST PHR-8 Crimp contacts: BPH-002T-P0.5S (0.5-0.22mm)

4.2 Connectors

The controller/driver board offers 6 connectors including the motor connector which is used for attaching the motor coils to the electronics. In addition to the power connector there is one connector for (optional) motor hall sensor signals and one connector for (optional) incremental encoder signals. For serial communication a mini-USB connector has been integrated on-board. There is an additional connector for RS485 serial communication, 3 general purpose inputs and one output. General purpose inputs and output may have dedicated functionality depending on firmware.

Figure 4.2: Overview connectors

TMCM-1640 Hardware Manual (V1.04 / 2011-NOV-16) 8

1

2

Label

Description

1

+U

Module + driver stage power supply input

2

GND

Module ground (power supply and signal ground)

1

3

Label

Description

1

BM1

Motor coil phase 1 / U

2

BM2

Motor coil phase 2 / V

3

BM3

Motor coil phase 3 / W

4.2.1 Power connector

A 2-pin Tyco electronics (formerly AMP) MTA-100 series connector (3-640456-2) is used as power connector on-board.

Mating connector: Tycos electronics (formerly AMP) MTA-100 series (3-640440-2)

Table 4.1: Connector for power supply

Please note, that there is no protection against reverse polarity and only limited protection against voltages above the upper maximum limit. The power supply typically should be within a range of +9 to +28.5V.

When using supply voltages near the upper limit, a regulated power supply is mandatory. Please ensure that enough power filtering capacitors are available in the system (2200µF or more recommended) in order to absorb mechanical energy fed back by the motor in stalling conditions and in order to prevent any voltage surge e.g. during power-on (especially with longer power supply cables as there are only ceramic filter capacitors on-board). In larger systems a zener diode circuitry might be required in order to limit the maximum voltage when the motor is operated at high velocities.

The power supply should be designed in a way that it supplies the nominal motor voltage at the desired maximum motor power. In no case shall the supply value exceed the upper voltage limit.

To ensure reliable operation of the unit, the power supply has to have a sufficient output capacitor and the supply cables should have a low resistance, so that the chopper operation does not lead to an increased power supply ripple directly at the unit. Power supply ripple due to the chopper operation should be kept at a maximum of a few 100mV.

Guidelines for power supply:

a) keep power supply cables as short as possible b) use large diameters for power supply cables c) add 2200µF or larger filter capacitors near the motor driver unit especially if the distance to the

power supply is large (i.e. more than 2-3m)

4.2.2 Motor connector

A 3-pin Tyco electronics (formerly AMP) MTA-100 series connector (3-640456-3) is used as motor connector on-board.

Mating connector: Tycos electronics (formerly AMP) MTA-100 series (3-640440-3)

Table 4.2: Connector for brushless DC motor

TMCM-1640 Hardware Manual (V1.04 / 2011-NOV-16) 9

1

5

Label

Description

1

GND

Hall sensor supply and signal ground

2

+5V

+5V output for hall sensor supply

3

HALL_1

Hall sensor signal 1

4

HALL_2

Hall sensor signal 2

5

HALL_3

Hall sensor signal 3

1

5

Label

Description

1

GND

Hall sensor supply and signal ground

2

+5V

+5V output for encoder supply (max. 100mA)

3 A Encoder channel a

4 B Encoder channel b

5 N Encoder index / null channel

1

5

Label

Description

1

VBUS

+5V power

2

D-

Data –

3

D+

Data + 4 ID

Not connected

5

GND

ground

4.2.3 Hall sensor connector

A 2mm pitch 5 pin JST B5B-PH-K connector is used for hall sensor signals.

Mating connector housing: PHR-5 Mating connector contacts: SPH-002T-P0.5S.

Table 4.3: Connector for hall sensor signals

4.2.4 Encoder connector

A 2mm pitch 5 pin JST B5B-PH-K connector is used for encoder signals.

Mating connector housing: PHR-5 Mating connector contacts: SPH-002T-P0.5S.

Table 4.4: Connector for encoder signals

4.2.5 USB connector

A 5-pin standard mini-USB connector is available on board for serial communication.

Table 4.5: Mini USB connector

TMCM-1640 Hardware Manual (V1.04 / 2011-NOV-16) 10

1 8

Label

Description

1

GND

Signal and system ground

2

+5V

+5V output for supply of external circuit (max. 100mA)

3

AIN

Analog input (0… 10V), may be used as velocity control input in standalone mode (depending on firmware)

4

IN_0

Digital input, may be used as stop (STOP_R) / limit switch input (depending on firmware)

5

IN_1

Digital input, may be used as stop (STOP_L) / limit switch input (depending on firmware)

6

OUT

Digital output (open-drain, max. 100mA)

7

RS485+

RS485 2-wire serial interface (non-inverted signal)

8

RS485-

RS485 2-wire serial interface (inverted signal)

4.2.6 GPIOs and RS485 connector

A 2mm pitch 8 pin JST B8B-PH-K connector is used for connecting general purpose inputs and outputs.

Mating connector housing: PHR-8 Mating connector contacts: SPH-002T-P0.5S

Table 4.6: General purpose input/output connector

TMCM-1640 Hardware Manual (V1.04 / 2011-NOV-16) 11

4.3 Input/output circuits

4.3.1 Hall sensor input

The hall sensor input circuit supports +5V push-pull (TTL) and open-collector hall sensor signals. In order to support open-collector signals the input circuit offers 2k7 pull-up resistors to +5V (generated on-board from power supply voltage).

Figure 4.3: Hall sensor input circuit

4.3.2 Encoder input

The encoder input circuit supports +5V push-pull (TTL) and open-collector hall sensor signals. In order to support open-collector signals the input circuit offers 2k7 pull-up resistors to +5V (+5V generated on-board from power supply voltage).

Figure 4.4: Encoder input circuit

TMCM-1640 Hardware Manual (V1.04 / 2011-NOV-16) 12

4.3.3 General purpose inputs/outputs

Figure 4.5: General purpose input/output circuit

TMCM-1640 Hardware Manual (V1.04 / 2011-NOV-16) 13

Symbol

Parameter

Min

Typ

Max

Unit

+U

Power supply voltage for operation

9

24

28.5

V DC

I

COIL

Continuous motor current (RMS)

0 3 5

A

I

SUPPLY

Power supply current

<< I

COIL

1.4 * I

COIL

A

T

ENV

Environment temperature at rated current (no forced cooling required)

tbd °C

Symbol

Parameter

Min

Type

Max

Unit

V

HALL

Signal voltage at hall sensor input 1/2/3 (either push-pull (TTL) or opencollector (internal 2k7 pull-up))

0 5

V

ENCODER

Signal voltage at encoder input a/b/n (either push-pull (TTL) or opencollector (internal 2k7 pull-up))

0 5

V

AIN

Signal voltage at analog input AIN

0 10

V

DIN_1/DIN_2

Signal voltage at digital input DIN_1, DIN_2

0 24

V

DIN_1/DIN_2_L

Signal voltage at digital input DIN_1, DIN_2, low level

0 0.8

V

DIN_1/DIN_2_L

Signal voltage at digital input DIN_1, DIN_2, high level

2 24

V

5 Operational ratings

The operational ratings shown below should be used as design values. In no case should the maximum values been exceeded during operation.

Table 5.1: General operational ratings of the module

Table 5.2: Operational ratings of hall sensor, encoder, and general purpose inputs and outputs

TMCM-1640 Hardware Manual (V1.04 / 2011-NOV-16) 14

5V

3.3V

9… +28.5V DC

TMCM-1640

BLDC Motor

AIN

DIN_1/2

LED_Temp

LED_Curlimit

2

MOSFET

driver

stage

Cortex_M3

CPU

TMC603

3-phase

pre-driver

encoder

feedback

optional

Hall sensor

feedback

optional

USB 2.0

RS485

ABN

EEPROM

6 Functional description

In Figure 6.1 the main parts of the TMCM-1640 module are shown. The module mainly consists of the Cortex™-M3 CPU, TRINAMICs TMC603A 3-phase pre-driver, the MOSFET driver-stage, and the USB 2.0 interface.

Figure 6.1: Main parts of the TMCM-1640

6.1 System architecture

The TMCM-1640 integrates a microcontroller with the TMCL™ (Trinamic Motion Control Language) operating system. The motion control real-time tasks are realized by the TMC603A.

6.1.1 Microcontroller

On this module, the ARM Cortex™-M3 CPU 32-bit processor is used to run the TMCL™ operating system and to control the TMC603A. The flash ROM of the microcontroller holds the TMCL™ operating system. The EEPROM memory is used to permanently store configuration data. The microcontroller runs the TMCL™ operating system which makes it possible to execute TMCL™ commands that are sent to the module from the host via the interface. The microcontroller interprets the TMCL™ commands and controls the TMC603A which executes the motion commands.

The TMCL™ operating system can be updated via the host interface. Please use the latest version of the TMCL-IDE to do this.

6.1.2 TMC603 3-phase pre-driver

The TMC603A is a three phase motor driver for highly compact and energy efficient drive solutions. It contains all power and analog circuitry required for a high performance BLDC motor system. The TMC603A is designed to provide the frontend for a microcontroller doing motor commutation and control algorithms. It integrates shunt less current measurement, by using the MOSFETs channel resistance for sensing. Integrated hallFX™ (pat.) allows for sensorless commutation. Protection and diagnostic features as well as a step down switching regulator further reduce system cost and increase reliability.

TMCM-1640 Hardware Manual (V1.04 / 2011-NOV-16) 15

Low pass LPU

Low pass LPV

Low pass LPW

PSG

E1

E3

E2

U

LP

V

LP

W

LP

Position signal

generation (PSG)

Induction pulse

supressor (IPS)

IPS

E1 E2 E3

U

V

W

H1 H2 H3

D

BM1 H1

D

H2

D

H3

BM2

BM3

A

SP_SUP

30k

A

30k

A

30k

A

FILT3

FILT2

FILT1

C

SUP

D

SC_CLK

Switch Cap filters

ENRS_TEST

7 hallFX™

hallFX™ provides emulated hall sensor signals. The emulated hall sensor signals are available without a phase shift and there is no error-prone PLL necessary, like with many other systems, nor is the knowledge of special motor parameters required. Since it is based on the motors’ back-EMF, a minimum motor velocity is required to get a valid signal. Therefore, the motor needs to be started without feedback, until the velocity is high enough to generate a reliable hallFX™ signal.

Please refer to the TMCM-1640 Firmware Manual for further information about parameterizing the PIDregulator for using hallFX™.

Figure 7.1: hallFX™ block diagram and timing

A switched capacitor filter for each coil supplies the measured effective coil voltages. Its filter frequency can be adapted to the chopper frequency and the desired maximum motor velocity. An induction pulse suppressor unit gates the commutation spikes which result from the inductive behavior of the motor coils after switching off the current. The gating time can be adapted by an external capacitor to fit the motor inductivity and its (maximum) velocity.

TMCM-1640 Hardware Manual (V1.04 / 2011-NOV-16) 16

Version

Date

Author

GE – Göran Eggers SD – Sonja Dwersteg

Description

0.90

2010-MAY-05

GE

Initial version

1.00

2011-FEB-14

SD

First complete version

1.01

2011-MAY-12

SD

Minor changes

1.02

2011-OCT-31

SD

Table for connectors and mating ones new, minor changes

1.03

2011-NOV-03

SD

Order codes new

1.04

2011-NOV-16

GE

Table overview mating connectors corrected

Version

Date

Description

TMCM-164_V10

2010-APR-09

First 8 prototype boards

TMCM-1640_V10

2010-DEC-10

First version pre-series

8 Revision history

8.1 Document revision

Table 8.1: Document revision

8.2 Hardware revision

Table 8.2: Hardware revision

9 References

[TMCM-1640] TMCM-1640 TMCL™ Firmware Manual [TMCL-IDE and TMCL-BLDC] TMCL-IDE User Manual [TMC603A] TMC603A Datasheet [QBL4208] QBL4208 Manual

Please refer to our homepage http://www.trinamic.com.

Trinamic TMCM-1640 HARDWARE MANUAL

Specifications and Main Features

Frequently Asked Questions

User Manual
