TRINAMIC TMCM-1210 Instructions

MODULES FOR STEPPER MOTORS MODULES

Hardware Version V 1.10

HARDWARE MANUAL

+ +

1-Axis stepper

controller/driver max. 0.6A RMS / 24V DC STOP / HOME switch input hall sensor RS485

+ +

TMCM-1210

TRINAMIC Motion Control GmbH & Co. KG Hamburg, Germany

www.trinamic.com

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 2

Table of contents

1 Life support policy ....................................................................................................................................................... 3

2 Features ........................................................................................................................................................................... 4

3 Order codes .................................................................................................................................................................... 5

4 Mechanical and Electrical Interfacing ..................................................................................................................... 6

4.1 Dimensions and Mounting Holes ................................................................................................................... 6

4.2 Board mounting considerations ...................................................................................................................... 6

4.3 Connectors ............................................................................................................................................................. 7

4.3.1 Power, RS485 + HOME connector .............................................................................................................. 8

4.3.2 Motor connector............................................................................................................................................. 9

4.4 Power supply ........................................................................................................................................................ 9

4.5 RS485 ..................................................................................................................................................................... 10

5 Motor driver current .................................................................................................................................................. 12

6 On-Board LEDs ............................................................................................................................................................. 13

7 Reset to Factory Default Values ............................................................................................................................. 13

8 EMC considerations .................................................................................................................................................... 14

9 Operational Ratings ................................................................................................................................................... 15

10 Functional Description .............................................................................................................................................. 16

11 Revision History .......................................................................................................................................................... 17

11.1 Document revision ............................................................................................................................................ 17

11.2 Hardware revision ............................................................................................................................................. 17

12 References..................................................................................................................................................................... 17

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 3

1 Life support policy

TRINAMIC Motion Control GmbH & Co. KG does not authorize or warrant any of its products for use in life support systems, without the specific written consent of TRINAMIC Motion Control GmbH & Co. KG.

Life support systems are equipment intended to support or sustain life, and whose failure to perform, when properly used in accordance with instructions provided, can be reasonably expected to result in personal injury or death.

Information given in this data sheet is believed to be accurate and reliable. However neither responsibility is assumed for the consequences of its use nor for any infringement of patents or other rights of third parties, which may result from its use.

Specifications are subject to change without notice.

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 4

2 Features

The TMCM-1210 is a highly compact 20mm x 20mm single axis stepper motor controller and driver board with RS485 interface. It has been designed in order to be mounted on the rear side of a NEMA8 (20mm flange size) stepper motor and offers an integrated hall-sensor based encoder IC in addition to a reference switch input for easy homing / search of reference position. The module supports motor currents up to 0.6A RMS and supply voltages up to 24V DC nominal. It is available with standard TMCL firmware and supports stand-alone operation (TMCL programs with auto-start stored on-board) and remote control via RS485 interface.

MAIN CHARACTERISTICS

Motion controller

 Motion profile calculation in hardware in real-time  Motion controller supports linear and sixPoint™ ramps  On the fly alteration of motor parameters (e.g. position, velocity, acceleration)  High performance microcontroller (Cortex-M0+) for overall system control and serial communication protocol

handling

Bipolar stepper motor driver

 Up to 256 microsteps per full step  Highly integrated and highly-efficient operation  Dynamic current control  stallGuard2™ feature for stall detection

Interfaces

 RS485 2-wire communication interface  Digital input IN0 (+24V compatible), can be used as reference switch or left and/or right stop switch input,

also

On board hall sensor

 Absolute sensor within one motor rotation  12bit / 4096 steps / revolution max.  Low-cost sensor - suitable for low velocity applications (few hundred rpm) – e.g. initial reference search

(together with HOME sensor input) after power-up

Software

 TMCL™ remote (direct mode) and standalone operation with memory for up to 876 TMCL commands  Fully supported by TMCL-IDE (PC based integrated development environment)

Electrical data

 Supply voltage: +7V… +30V DC  Motor current: up to 0.7A RMS (programmable)

Mechanical data

 Board size: 20mm x 20mm, overall height 9mm max. (without mating connectors and cables)  Mounting holes compatible with NEMA 8 stepper motors (for mounting the board to the rear side of a NEMA

8 stepper motor using two of the four existing screw)

Please see separate TMCM-1210 Firmware Manual for additional information regarding firmware functionality and TMCL programming.

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 5

Order code

Description

Size of unit

TMCM-1210

1-Axis stepper controller / driver, 0.6A RMS, 24V DC

20mm x 20mm x 9mm

Order code

Description

TMCM-1210-CABLE

Cable loom for TMCM-1210. Contains (see chapter 4.3, also):

- 1x cable loom for Power, RS485 and HOME connector

- 1x cable loom for Motor connector

3 Order codes

The TMCM-1210 is available as:

A cable loom set is available for this module, also:

Table 3.2: Cable loom order code

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 6

20mm

18mm

2mm

PCB

20mm

2mm

18mm

2.1mm

2x

4 Mechanical and Electrical Interfacing

4.1 Dimensions and Mounting Holes

The dimensions of the board are approx. 20mm x 20mm x 9 mm in order to fit on the back side of a 20mm (NEMA8) stepper motor. Maximum component height (height above PCB level) without mating connectors is around 6mm above PCB level and 2 mm below PCB level. There are two mounting holes for M2 screws for mounting to a NEMA8 stepper motor.

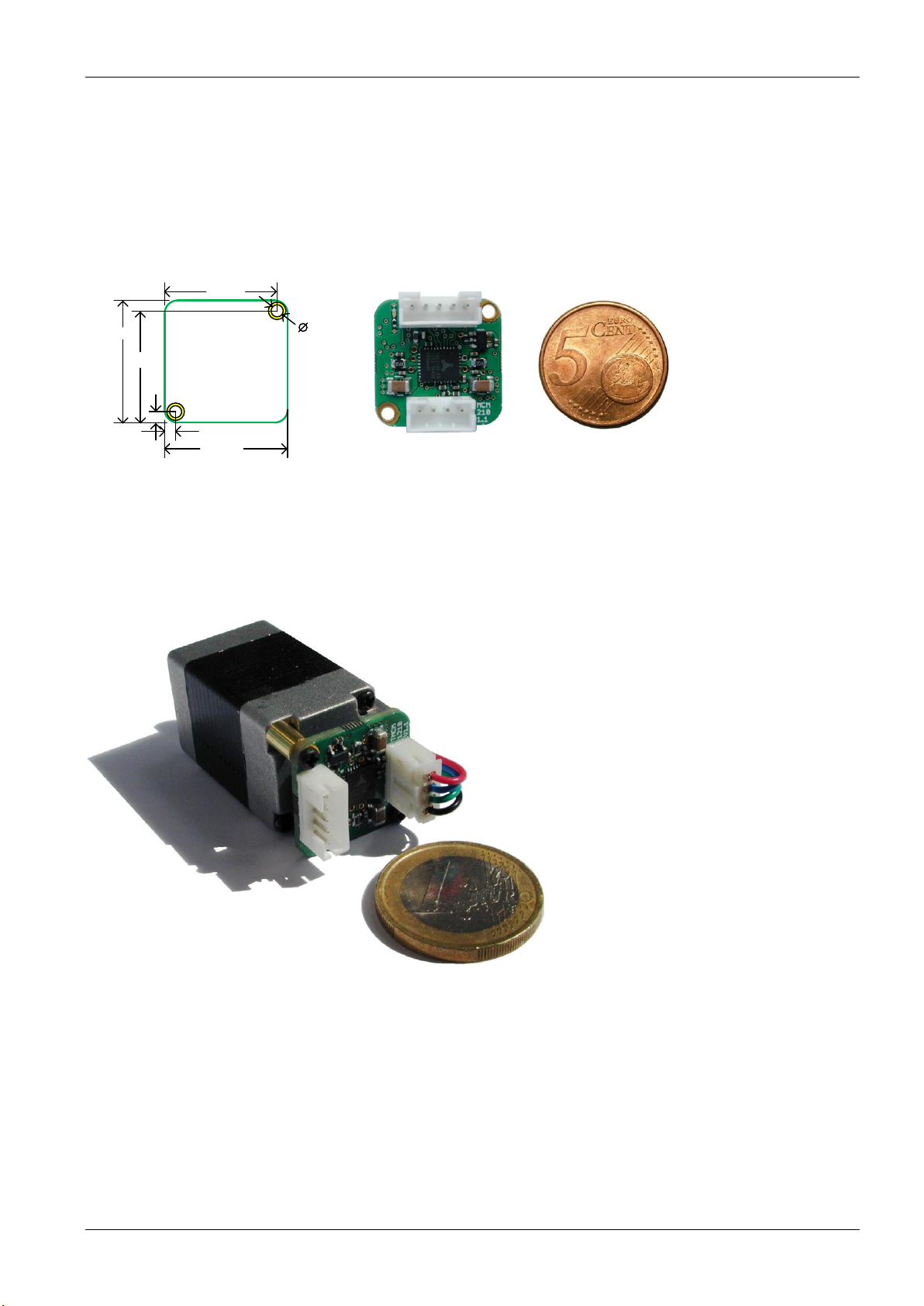

Figure 4.1 Dimensions of TMCM-1210 and position of mounting holes (with comparison of size)

4.2 Board mounting considerations

The TMCM-1210 offers two metal plated mounting holes. Both mounting holes are connected to power supply ground. Please keep this in mind when mounting the board to the rear side of a motor.

Figure 4.2: Example of TMCM-1210 mounted to NEMA 8 stepper motor

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 7

4

1

1 5

Power, RS485 + HOME connector

HOME5

RS485+

RS485-3

4

VDD

GND1

2

IN0STOP_L / STOP_R

Motor connector

OA1

OA23

4

OB1

OB21

2

Label

Connector type

Mating connector type

Power, RS485 + HOME connector

JST B5B-PH-K-S (JST PH series, 5pins, 2mm pitch)

Connector housing: JST PHR-5 Contacts: JST SPH-002T-P0.5S Wire: 0.22mm2, AWG 24

Motor connector

JST B4B-PH-K-S (JST PH series, 4pins, 2mm pitch)

Connector housing: JST PHR-4 Contacts: JST SPH-002T-P0.5S Wire: 0.22mm2, AWG 24

4.3 Connectors

The TMCM-1210 offers two connectors including the motor connector which is used for attaching the motor coils to the electronics. The Power, RS485 and HOME connector is used for power supply, RS485 serial wire communication and offers one digital input.

Figure 4.2 Overview connectors

Overview of connectors and mating connectors types:

Table 4.1: Connectors and mating connectors, contacts and applicable wire

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 8

5 1

Label

Direction

Description

1

GND

Power (GND)

Supply and signal ground

2

VCC

Power (Supply in)

Power supply input

3

RS485-

Bi-directional

RS485 2-wire bus interface, diff. signal (inverting)

4

RS485+

Bi-directional

RS485 2-wire bus interface, diff. signal (noninverting)

5

HOME

Input

Digital input (accepts +24V signals), internal 10k pulldown resistor Can be used as:

 HOME switch input

GAP 9, 0 // home switch status

 STOP_L / STOP_R input

GAP 10, 0 // right limit switch status GAP 11, 0 // left limit switch status

 General purpose digital input 0 (IN0)

GIO 0, 0 // IN0

CAUTION

Always keep the power supply voltage (VDD) below the upper limit of 30V! Otherwise the driver electronics will be seriously damaged. Especially, when the selected operating voltage is near the upper limit a regulated power supply is highly recommended.

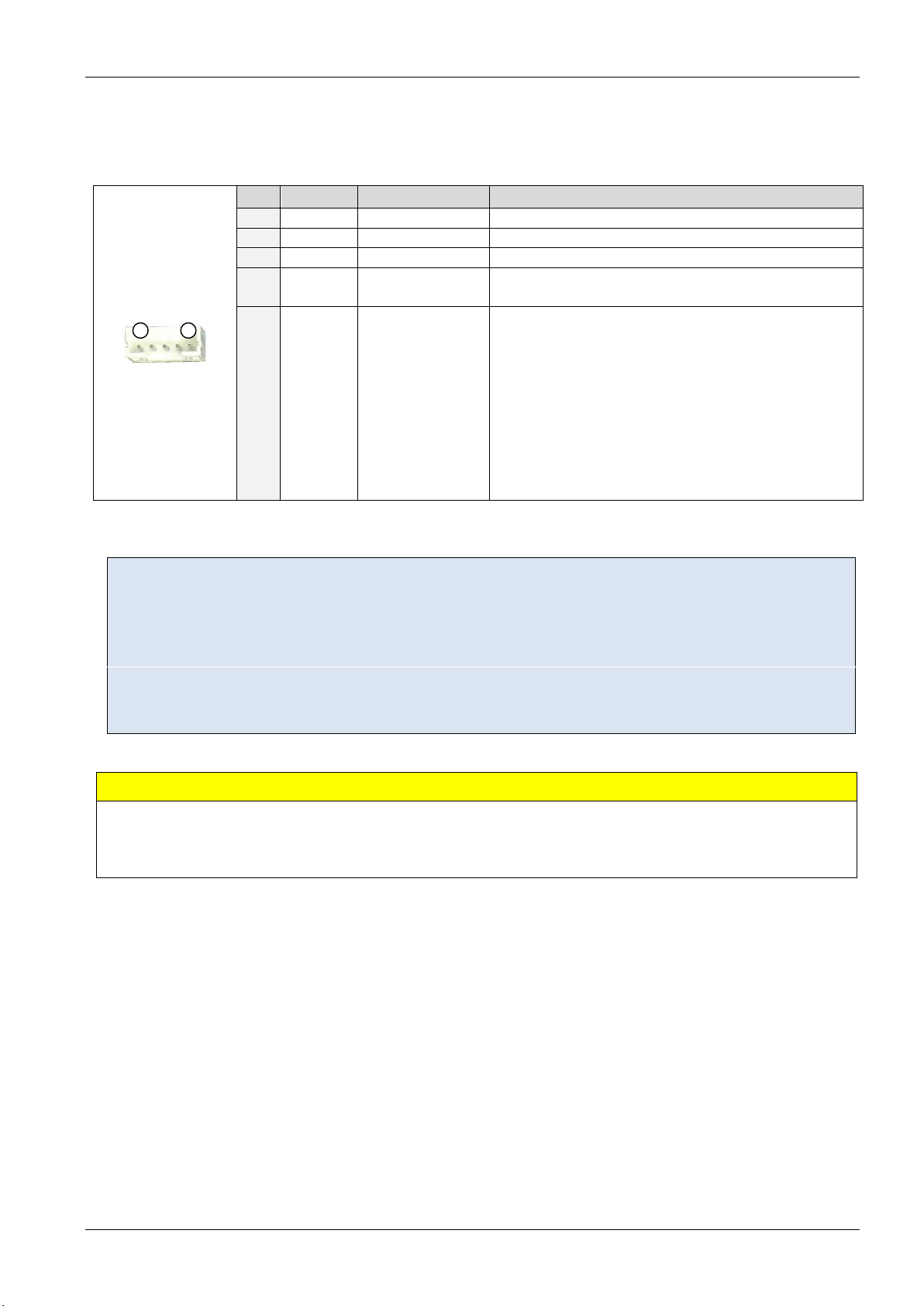

4.3.1 Power, RS485 + HOME connector

The module offers one combined power, RS485 2-wire serial communication and digital input (HOME) connector (JST PH series).

Table 4.2: Power, RS485 + IN0 connector

Please note:

- RS485: there is no line termination etc. on-board. Please ensure proper RS485 cabling and line

termination.

- HOME / digital input IN0: input offers pull-down resistor, input series resistor and protection diodes.

This way input is protected for voltages up-to nom. +24V. The pull-down resistors also ensure a valid (low) level when left unconnected.

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 9

14

Label

Direction

Description

1

OA1

Output

Pin 1 of motor coil A

2

OA2

Output

Pin 2 of motor coil A

3

OB1

Output

Pin 1 of motor coil B

4

OB2

Output

Pin 2 of motor coil B

CAUTION

Do not connect or disconnect motor while driver stage is active and supplies current to the motor as this might permanently damage the driver stage!

CAUTION

Add external power supply capacitors!

It is recommended to connect an electrolytic capacitor of significant size (e.g. 470µF/35V) to the power supply lines next to the TMCM-1210!

Rule of thumb for size of electrolytic capacitor: c = 1000

μF

A

× I

SUPPLY

In addition to power stabilization (buffer) and filtering this added capacitor will also reduce any voltage spikes which might otherwise occur from a combination of high inductance power supply wires and the ceramic capacitors. In addition it will limit slew-rate of power supply voltage at the module. The low ESR of ceramiconly filter capacitors may cause stability problems with some switching power supplies.

Do not connect or disconnect motor during operation!

Motor cable and motor inductivity might lead to voltage spikes when the motor is disconnected / connected while energized. These voltage spikes might exceed voltage limits of the driver MOSFETs and might permanently damage them. Therefore, always disconnect power supply before connecting / disconnecting the motor.

Keep the power supply voltage below the upper limit of 30V!

Otherwise the driver electronics will seriously be damaged! Especially, when the selected operating voltage is near the upper limit a regulated power supply is highly recommended. Please see also chapter 7, operating values.

No reverse polarity protection! The module will short any reversed supply voltage due to internal diodes of the driver transistors.

4.3.2 Motor connector

As motor connector a 4pin JST EH-series 2.5mm pitch single row connector is available. The motor connector is used for connecting the four motor wires of the two motor coils of the bipolar stepper motor to the electronics.

Table 4.4: Motor connector

4.4 Power supply

For proper operation care has to be taken with regard to power supply concept and design. Due to space restrictions the TMCM-1210 includes just about 20µF/35V of supply filter capacitors. These are ceramic capacitors which have been selected for high reliability and long life time.

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 10

c:>

node

1

node

n

- 1

node

n

Host

Slave Slave Slave

RS485

termination

resistor

(120 Ohm)

termination

resistor

(120 Ohm)

}

keep distance as short as possible

4.5 RS485

For remote control and communication with a host system the TMCM-1210 provides a two wire RS485 bus interface. For proper operation the following items should be taken into account when setting up an RS485 network:

1. BUS STRUCTURE:

The network topology should follow a bus structure as closely as possible. That is, the connection between each node and the bus itself should be as short as possible. Basically, it should be short compared to the length of the bus.

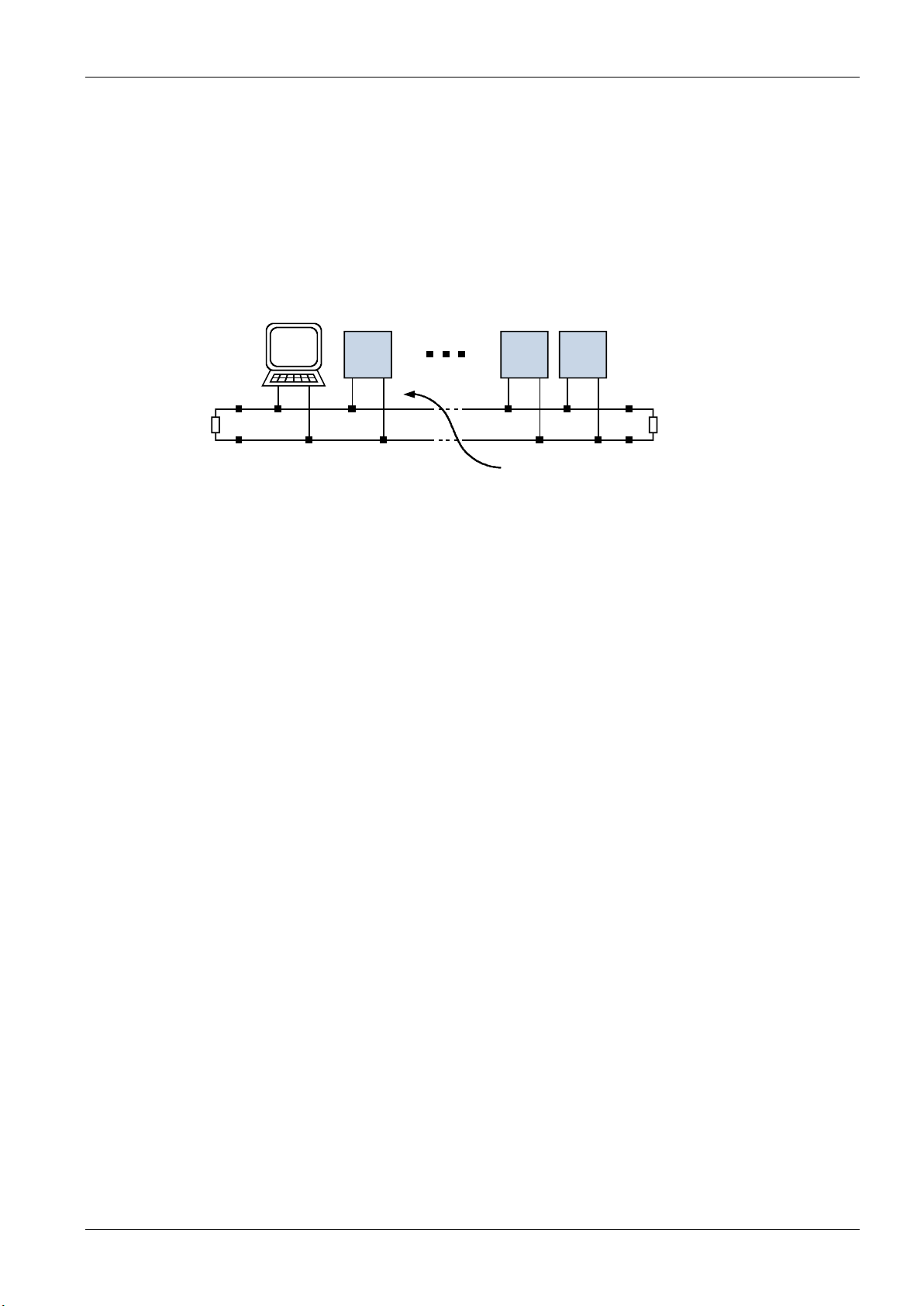

Figure 4.6: Bus structure

2. BUS TERMINATION:

Especially for longer busses and/or multiple nodes connected to the bus and/or high communication speeds, the bus should be properly terminated at both ends. The TMCM-1210 does not integrate any termination resistor. Therefore, 120 Ohm termination resistors at both ends of the bus have to be added externally.

3. NUMBER OF NODES:

The RS485 electrical interface standard (EIA-485) allows up to 32 nodes to be connected to a single bus. The bus transceiver used on the TMCM-1210 unit (SN65HVD3085E) has a significantly reduced bus load and allow a maximum of 255 units to be connected to a single RS485 bus using TMCL firmware. Please

note: usually it cannot be expected to get reliable communication with the maximum number of nodes connected to one bus and maximum supported communication speed at the same time. Instead, a compromise has to be found between bus cable length, communication speed and number of nodes.

4. COMMUNICATION SPEED:

The maximum RS485 communication speed supported by the TMCM-1210 hardware is 1Mbit/s. Factory default is 9600 bit/s. Please see separate TMCM-1210 TMCL firmware manual for information regarding other possible communication speeds below the upper limit in hardware.

5. NO FLOATING BUS LINES:

Avoid floating bus lines while neither the host/master nor one of the slaves along the bus line is transmitting data (all bus nodes switched to receive mode). Floating bus lines may lead to communication errors. In order to ensure valid signals on the bus it is recommended to use a resistor network connecting both bus lines to well defined logic levels.

There are actually two options which can be recommended: Add resistor (Bias) network on one side of the bus, only (120R termination resistor still at both ends):

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 11

node

n - 1

node

n

Slave Slave

termination

resistor

(120R)

+5V

GND

pull-up (680R)

pull-down (680R)

RS485- / RS485B

termination

resistor

(120R)

RS485+ / RS485A

node

n - 1

node

n

Slave Slave

termination

resistor

(220R)

+5V

GND

pull-up (390R)

pull-down (390R)

RS485- / RS485B

RS485+ / RS485A

termination

resistor

(220R)

+5V

GND

pull-up (390R)

pull-down (390R)

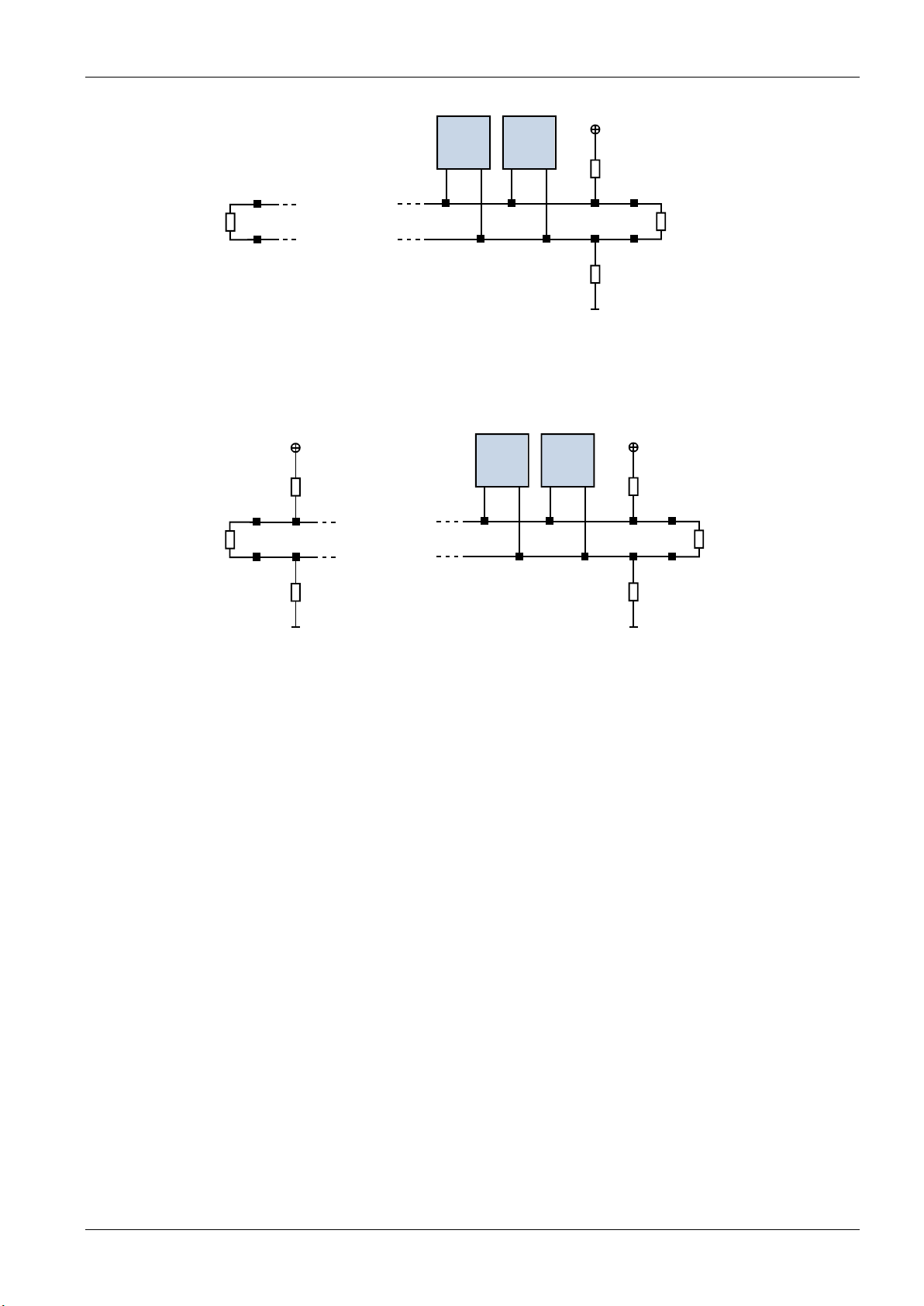

Figure 4.7: Bus lines with resistor (Bias) network on one side, only

Or add resistor (Bias) network at both ends of the bus (like Profibus™ termination):

Figure 4.8: Bus lines with resistor (Bias) network at both ends

Certain RS485 interface converters available for PCs already include these additional resistors (e.g. USB-2485 with bias network at one end of the bus).

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 12

Motor current setting in software (TMCL)

These are the values for TMCL axis parameter 6 (motor run current) and 7 (motor standby current). They are used to set the run / standby current using the following TMCL commands:

SAP 6, 0, <value> // set run current

SAP 7, 0, <value> // set standby current

(read-out value with GAP instead of SAP. Please see separate TMCM-1210 firmware manual for further information)

Motor current I

RMS

[A]

Resulting motor current based on motor current setting

Motor current

setting in

software (TMCL)

Motor

current

I

COIL_PEAK

[A]

Motor

current

I

COIL_RMS

[A]

0..7

0.033

0.023

8..15

0.066

0.047

16..23

0.099

0.070

24..31

0.132

0.094

32..39

0.165

0.117

40..47

0.199

0.140

48..55

0.232

0.164

56..63

0.265

0.187

64..71

0.298

0.211

72..79

0.331

0.234

80..87

0.364

0.257

88..95

0.397

0.281

96..103

0.430

0.304

104..111

0.463

0.328

112..119

0.496

0.351

120..127

0.529

0.374

128..135

0.563

0.398

136..143

0.596

0.421

144..151

0.629

0.445

152..159

0.662

0.468

160..167

0.695

0.491

168..175

0.728

0.515

176..183

0.761

0.538

184..191

0.794

0.562

192..199

0.827

0.585

200..207

0.860

0.608

208..215

0.893

0.632

216..223

0.926

0.655

224..231

0.960

0.679

232..239

0.993

0.702

240..247

1.026

0.725

248..255

1.059

0.749

5 Motor driver current

The on-board stepper motor driver operates current controlled. The driver current may be programmed in software with 32 effective scaling steps in hardware.

Explanation of different columns in table below:

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 13

Status

Label

Description

Heartbeat

Run

This green LED flashes slowly during operation.

GREEN LED

6 On-Board LEDs

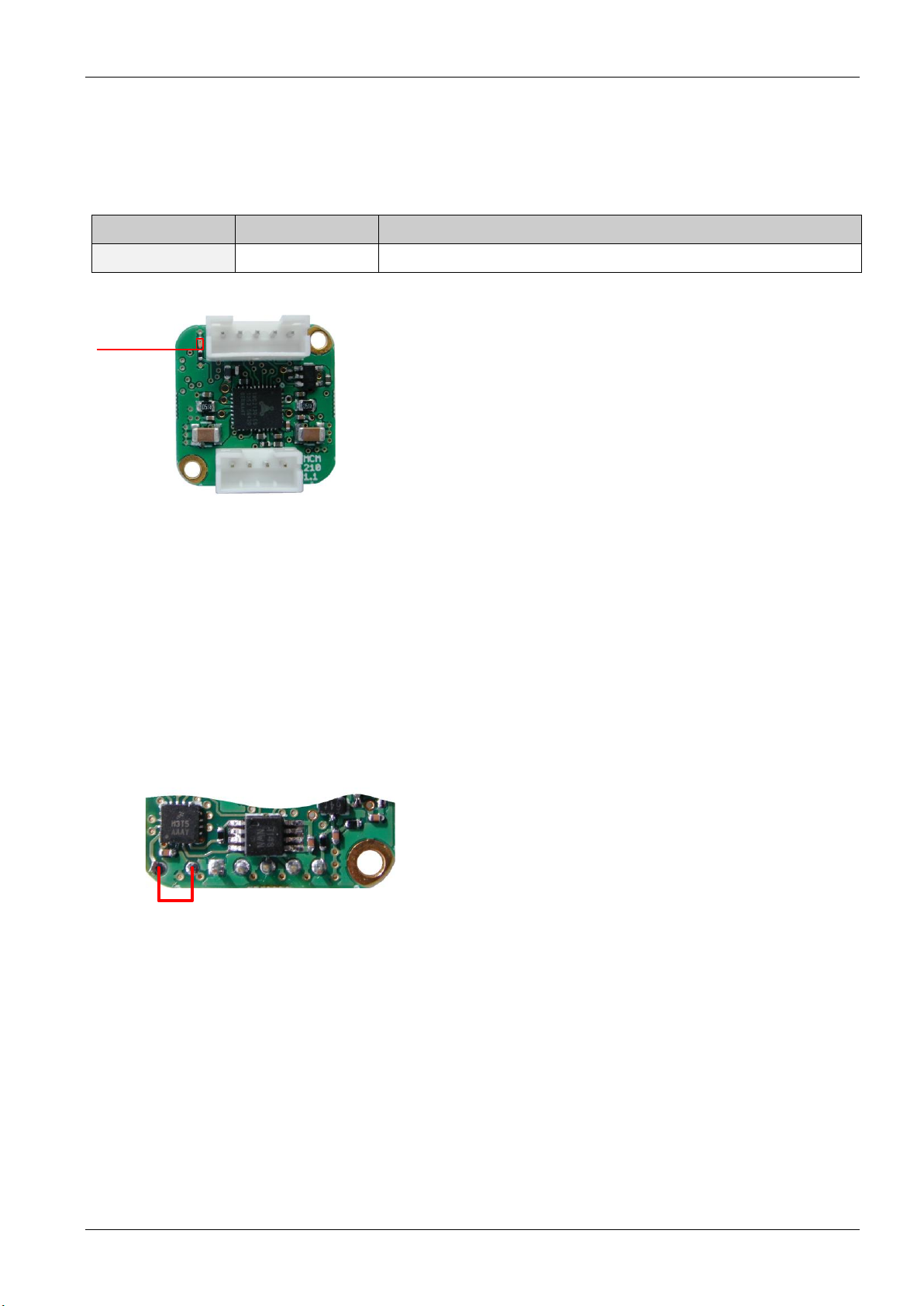

The board offers one LED in order to indicate board status. The function of the LED is dependent on the firmware version. With standard TMCL firmware the green LED should be flashing slowly during operation.

BEHAVIOR OF LEDS WITH STANDARD TMCL FIRMWARE

Figure 6.1 On-board LED

7 Reset to Factory Default Values

In order to reset all settings (e.g. incl. address and RS485 baud rate) to factory default values please follow instruction sequence below:

1. Switch OFF power supply.

2. Short programming pads on bottom of PCB as shown in figure 7.1.

3. Switch ON power supply (on-board LED should start flashing fast).

4. Switch OFF power supply.

5. Remove short circuit.

Figure 7.1 Reset to factory default values (bottom view of pcb)

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 14

8 EMC considerations

The TMCM-1210 contains ferrite beads on-board in line with the positive supply input and all 4 motor windings connections in addition to filter capacitors.

Tests have shown that it is possible to meet Class B emission standards using the bare TMCM-1210 (motor and power connected) with the motor running slowly at maximum current (0.7A RMS) and +24V supply voltage without additional / external filters.

Figure 8.1: Setup with TMCM-1210 and attached motor (motor rotating slowly @ 0.7A RMS / 24V supply, standalone mode using on-board TMCL-autostart-program)

Figure 8.2: measurement results (example)

Please note that these measurement results using a bare TMCM-1210 unit with only motor and power supply connected do not imply any guarantee for a complete system with one or more integrated TMCM-1210 with meeting any emission limits.

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 15

Symbol

Parameter

Min

Typ

Max

Unit

VDD

Power supply voltage for operation

6

12…24

30

V

I

COIL_peak

Motor coil current for sine wave peak (chopper regulated, adjustable via software)

0 1

A I

COIL_RMS

Continuous motor current (RMS)

0 0.7

A

IDD

Power supply current

<< I

COIL

1.4 * I

COIL

A

T

ENV

Environment temperature at rated current (0.6A RMS) and rated voltage (+24V) (no forced cooling required)

-30 +40

°C

Symbol

Parameter

Min

Typ

Max

Unit

V

HOME

Input voltage for HOME/STOP_L/STOP_R/IN0

0 +30

V

HOME_LOW

Low level voltage for HOME/STOP_L/STOP_R/IN0 (digital input)

0 2 V V

HOME_HIGH

High level voltage for HOME/STOP_L/STOP_R/IN0 (digital input)

4.6 +30

V

Symbol

Parameter

Min

Typ

Max

Unit

N

RS485

Number of nodes connected to single RS485 network

255

f

RS485

Maximum bit rate supported on RS485 connection

9600

1000000

bit/s

9 Operational Ratings

The operational ratings show the intended or the characteristic ranges and should be used as design values.

In no case shall the maximum values be exceeded!

Table 9.1 General operational ratings of module

OPERATIONAL RATINGS OF HOME SWITCH

Table 9.2 Operational ratings of HOME + STOP switches / IN0 inputs

OPERATIONAL RATINGS OF RS485 INTERFACE

Table 9.3: Operational ratings of RS485 interface

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 16

7…28.5V DC

ARM

Cortex-M0+

TM

microcontroller

TMCL™

Memory

Step

Motor

RS485

Energy Efficient

Driver

TMC262

TMC2130

Bipolar

stepper

motor

controller +

driver

TMCM-1210

I2C

VREG

+5V

SPI

Input

Hall

Encoder

I2C

A/B

+3V3

10 Functional Description

The TMCM-1210 is a highly integrated controller/driver module which can be controlled via several serial interfaces. Communication traffic is kept low since all time critical operations (e.g. ramp calculations) are performed on board. The nominal supply voltage of the unit is 12V or 24V DC. The module is designed for both, standalone operation and direct mode. Full remote control of device with feedback is possible. The firmware of the module can be updated via the RS485 serial interfaces.

In Figure 10.1 the main parts of the TMCM-1210 are shown:

 microprocessor, which runs the TMCL operating system (connected to TMCL memory),  motion controller (part of TMC2130), which calculates ramps and speed profiles internally by hardware,  driver (part of TMC2130) with stallGuard2™ and its energy efficient coolStep™ feature and stealthChop™

for extremely quiet operation

 hall sensor based encoder which delivers position feedback at low speed (few 100rpm max.) – can be

used for reference search e.g. after power-up

Figure 10.1 Main parts of the TMCM-1210

The TMCM-1210 comes with the PC based software development environment TMCL-IDE for the Trinamic Motion Control Language (TMCL). Using predefined TMCL high level commands like move to position a rapid and fast development of motion control applications is guaranteed.

Please refer to the TMCM-1210 TMCL Firmware Manual for more information about TMCL commands.

TMCM-1210 Hardware Manual (V0.91 / 2017-SEP-04) 17

Version

Date

Author

Description

0.90

2016-APR-14

GE

Initial version

0.91

2017-SEP-04

GE

Typos corrected

Version

Date

Description

TMCM-1210_V10

2014-DEC-17

Initial version

TMCM-1210_V11

2015-JUN-25

 External digital input connected to REFL/REFR of TMC2130.

/RESET input of processor not connected (used for programming, only)

 /CS and SCK connection between processor and TMC2130

corrected (signals exchanged)

 Footprint of protection diode for external digital input

corrected

11 Revision History

11.1 Document revision

Table 11.1: Document revision

11.2 Hardware revision

Table 11.2: Hardware revision

12 References

[JST] JST connector http://www.jst.com [TMC2130] TMC2130 datasheet Manual available on http://www.trinamic.com [TMCL-IDE] TMCL-IDE User Manual Manual available on http://www.trinamic.com.
