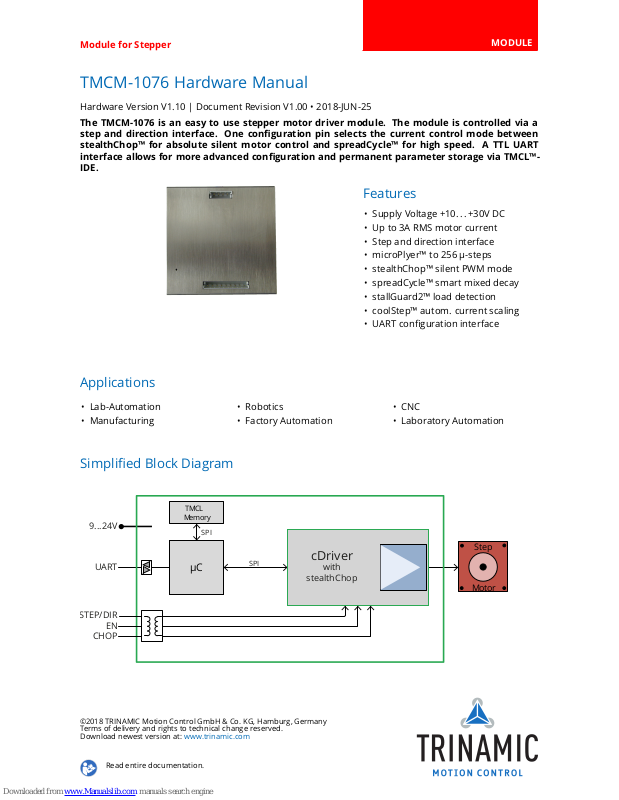

Module for Stepper
MODULE
TMCM-1076 Hardware Manual
Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
The TMCM-1076 is an easy to use stepper motor driver module. The module is controlled via a
step and direction interface. One configuration pin selects the current control mode between
stealthChop™ for absolute silent motor control and spreadCycle™ for high speed. A TTL UART
interface allows for more advanced configuration and permanent parameter storage via TMCL™IDE.
Features
• Supply Voltage +10. .. +30V DC
• Up to 3A RMS motor current
• Step and direction interface
• microPlyer™ to 256 µ-steps
• stealthChop™ silent PWM mode
• spreadCycle™ smart mixed decay
• stallGuard2™ load detection
• coolStep™ autom. current scaling
• UART configuration interface
Applications
• Lab-Automation
• Manufacturing
• Robotics
• Factory Automation
• CNC
• Laboratory Automation
Simplified Block Diagram
µC
TMCL
Memory
Step
Motor
cDriver
with
stealthChop
UART
EN
CHOP
9...24V
SPI
SPI
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at: www.trinamic.com
Read entire documentation.
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
2 / 22
Contents
1 Features 3
1.1 General Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 TRINAMIC’s Unique Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2.1 stealthChop™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2.2 spreadCycle™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 stallGuard2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4 coolStep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Order Codes 6
3 Mechanical and Electrical Interfacing 7
3.1 TMCM-1076 Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2 Mounting Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Connectors and LEDs 8
4.1 Motor Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2 Power + I/O Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.3 TTL UART Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.4 Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5 Functional Description 11
5.1 Typical Application Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.2 Optically Isolated Inputs with Common Anode Input . . . . . . . . . . . . . . . . . . . . . . . . 12
5.3 Optically Isolated Inputs with Common Cathode Input . . . . . . . . . . . . . . . . . . . . . . . 13
5.4 Thermal Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6 Operational Ratings and Characteristics 15
6.1 Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.2 Electrical Characteristics (Ambient Temperature 25° C) . . . . . . . . . . . . . . . . . . . . . . . 15
6.3 I/O Ratings (Ambient Temperature 25° C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.4 Functional Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.5 Other Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7 Abbreviations used in this Manual 17
8 Figures Index 18
9 Tables Index 19
10 Supplemental Directives 20
10.1 Producer Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10.2 Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10.3 Trademark Designations and Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10.4 Target User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10.5 Disclaimer: Life Support Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10.6 Disclaimer: Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10.7 Collateral Documents & Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
11 Revision History 22
11.1 Hardware Revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
11.2 Document Revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
3 / 22
1 Features
The TMCM-1076 is an easy to use stepper driver unit with state of the art feature set. It is highly integrated
and offers a convenient handling. TMCM-1076 can be used with a simple step and direction interface and
can be configured using a TTL UART interface. stallGuard2 and coolStep can be configured via TTL UART
interface and are disabled by default.
1.1 General Features
Main Characteristics
• Supply Voltage +10V to +30V DC
• 3A RMS phase current (ca. 4.2A peak phase current)
• Highest micro step resolution, up to 256 micro steps per full step
•
microPlyer™microstep interpolator for obtaining increased smoothness of microstepping over a low
frequency STEP/DIR interface
• With housing and motor mounted
• Permanent onboard parameter storage
• Simple step & direction mode
• Noiseless stealthChop™ chopper mode for slow to medium velocities
• High performance spreadCycle™ chopper mode
• High-precision sensorless load measurement with stallGuard2™
• Automatic current scaling algorithm coolStep™ to save energy and keep your drive cool
Optically Isolated Inputs
• Step & direction interface with up to 45kHz input frequency
• Enable input to power-on/-off driver H-bridges
• Mode select input to switch between the two chopper modes
TTL UART Interface
• TTL-level UART interface for parameter configuration
• Interface speed 9600-115200 bps (default 9600 bps)
• TMCL-based protocol for online configuration and permanent parameter settings
• Bootloader for firmware updates
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
4 / 22
1.2 TRINAMIC’s Unique Features
1.2.1 stealthChop™
stealthChop is an extremely quiet mode of operation for low and medium velocities. It is based on a voltage
mode PWM. During standstill and at low velocities, the motor is absolutely noiseless. Thus, stealthChop
operated stepper motor applications are very suitable for indoor or home use. The motor operates
absolutely free of vibration at low velocities. With stealthChop, the motor current is applied by driving
a certain effective voltage into the coil, using a voltage mode PWM. There are no more configurations
required except for the regulation of the PWM voltage to yield the motor target current.
Figure 1: Motor coil sine wave current using stealthChop (measured with current probe)
1.2.2 spreadCycle™
The spreadCycle chopper is a high-precision, hysteresis-based, and simple to use chopper mode, which
automatically determines the optimum length for the fast-decay phase. Several parameters are available to
optimize the chopper to the application. spreadCycle offers optimal zero crossing performance compared
to other current controlled chopper algorithms and thereby allows for highest smoothness. The true target
current is powered into the motor coils.
Figure 2: spreadCycle principle
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
5 / 22
1.3 stallGuard2
stallGuard2 is a high-precision sensorless load measurement using the back EMF of the motor coils. It
can be used for stall detection as well as other uses at loads below those which stall the motor. The
stallGuard2 measurement value changes linearly over a wide range of load, velocity, and current settings.
At maximum motor load, the value reaches zero or is near zero. This is the most energy-efficient point of
operation for the motor.
Load [Nm]
stallGuard2
Initial stallGuard2 (SG) value: 100%
stallGuard2 (SG) value: 0
Maximum load reached.
Motor close to stall.
Motor stalls
Figure 3: stallGuard2 Load Measurement as a Function of Load
1.4 coolStep
coolStep is a load-adaptive automatic current scaling based on the load measurement via stallGuard2.
coolStep adapts the required current to the load. Energy consumption can be reduced by as much as 75%.
coolStep allows substantial energy savings, especially for motors which see varying loads or operate at a
high duty cycle. Because a stepper motor application needs to work with a torque reserve of 30% to 50%,
even a constant-load application allows significant energy savings because coolStep automatically enables
torque reserve when required. Reducing power consumption keeps the system cooler, increases motor
life, and allows for cost reduction.
0
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
0 50 100 150 200 250 300 350
Velocity [RPM]
Efficiency with coolStep
Efficiency with 50% torque reserve
Figure 4: Energy Efficiency Example with coolStep
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
6 / 22
2 Order Codes
Order Code Description Size (LxWxH)
TMCM-1076
Controller/Driver Module without motor, +24V DC, 3A RMS,
TTL UART interface (9600bps default), S/D interface, Enable,
Mode Select
60mm x 60mm x 13mm
Table 1: Order codes modules
Order Code Description
TMCM-1076-CABLE Cable loom for TMCM-1076. Contains:
• 1x cable loom for motor connector with 4-pin JST EH female connector
•
1x cable loom for Power + I/O connector with 9-in JST EH female connector
Table 2: Order codes cable loom
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
7 / 22
3 Mechanical and Electrical Interfacing
3.1 TMCM-1076 Dimensions and Weight
The dimensions of the TMCM-1076 are approximately 60mm x 60mm x 13mm. There are four mounting
holes for M3 screws for mounting the TMCM-1076. These mounting holes are located in the bottom / base
plate and accessible after removing the top cover (see 5, right figure, mounting holes marked red). Two of
them at opposite positions can be used for mounting the module to the backside of our NEMA23 stepper
motors (screw/thread length depends on motor size). The other two can be used for mounting the module
to the backside of our NEMA24 stepper motors (screw/thread length depends on motor size).
Figure 5:
TMCM-1076 top view mechanical dimensions (left) and position of mounting holes (marked red / right).
All dimensions in mm
Order Code Dimension in mm Weight in g
TMCM-1076 60mm x 60mm x 13mm ≈ 68
Table 3: TMCM-1076 dimensions and weight
3.2 Mounting Considerations
TMCM-1076 is designed to be mountable on the back of our NEMA23 and NEMA24 motors. Alternatively, it
can be mounted standalone.
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
8 / 22
4 Connectors and LEDs
Motor
Power + I/O
1
4
1
9
LED
Figure 6: TMCM-1076 connectors
4.1 Motor Connector
Pin no. Pin name Description
1 B1 Motor phase B pin 1
2 B2 Motor phase B pin 2
3 A1 Motor phase A pin 1
4 A2 Motor phase A pin 2
Table 4: Motor connector pinning
NOTICE
Do not connect or disconnect motor during operation!
Motor cable and motor inductivity might lead to voltage spikes when the motor is (dis)connected
while energized. These voltage spikes might exceed voltage limits of the driver
MOSFETs and might permanently damage them. Therefore, always switch off or
disconnect power supply before (dis)connecting the motor.
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
9 / 22
4.2 Power + I/O Connector
Pin no. Pin name Description
1 GND
Supply ground connection, also used for USB serial converter ground connection
2 V+ Supply voltage (V DD) +10V to +30V DC
3 DIR Optically isolated direction input of S/D interface
4 STEP Optically isolated step input of S/D interface
5 EN Optically isolated enable input of motor driver H-bridges
6 CHOP Optically isolated chopper mode selection input
7 COMM
Opto-coupler common anode or cathode, connect to ground or VCCIO (3.3V to
6V - higher voltages possible with additional external resistors)
8 RXD
TTL-level UART receive line, use with USB serial converter TXD line to connect to
PC
9 TXD
TTL-level UART transmit line, use with USB serial converter RXD line to connect to
PC
Table 5: Power + I/O connector pinning
NOTICE
Supply Voltage Buffering / Add External Power Supply Capacitors
A sufficiently buffered power supply or an external electrolyte capacitor
connected between V+ and GND is recommended for stable operation.
It is recommended to connect an electrolytic capacitor of significant size to the
power supply lines next to the TMCM-1076.
Rule of thumb for size of electrolytic capacitor: C = 1000
µF
A
∗ I
SU P P LY
The TMCM-1076 comes with approximately 40µF of onboard ceramic capacitors.
NOTICE
There is no reverse polarity protection on the supply input!
The module will short any reversed supply voltage and board electronics will get
damaged.
NOTICE
Power Up Sequence
The TMCM-1076 must be powered up with disabled driver stage only. Depending
on your configuration the EN input should be logically OFF. For example, if COMM
input is connected to 3.3V to 6V, the EN input must be 0V. If common ground or
0V level is connected to COMM input, the EN input must have high level.
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
10 / 22
4.3 TTL UART Connection
To connect via the TTL UART interface to a host PC, we suggest using a USB serial converter from TTL-UART
(5V) to USB interface.
Communication with the host PC, for example when using TRINAMIC’s TMCL-IDE, is done via the Virtual
COM port installed by the converter driver.
More information on the TMCL-IDE and the latest release can be found here: www.trinamic.com
The converter cable must be connected to pins 1, 8, and 9 (GND, RXD, TXD) of the I/O connector.
Note
Default Baud Rates
The default baud rate is 9600 bps.
In bootloader mode, the baud rate is 115200 bps.
Info
USB to UART converter
For example, the TTL-232R-5V from FTDI is working with the module and has
been tested. More information on this converter is available on the FTDI website:
www.ftdichip.com
NOTICE
5V TTL UART Level
The TTL UART interface works with 5V level. Take special care when selecting a
converter cable for USB connection.
4.4 Status LEDs
The TMCM-1076 has one green status LED. See figure 6 for its location.
State Description
Blinking MCU active, normal operation
Permanent on Bootloader mode
Off Power Off
Table 6: LED state description
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
11 / 22
5 Functional Description
5.1 Typical Application Wiring
Wire the TMCM-1076 as shown in the following figures.
• Connect the the power supply to V+ and GND.
• Connect the Step and Direction signals to your motion controller.
• At power up time, the EN input must be low (= driver stage disabled)!
•
Optional: Connect UART to a TTL UART interface with 5V logic levels. To configure your TMCM-1076
connect start the TMCL-IDE and use the parameterization tools. For detailed instructions refer to the
TMCM-1076-firmware-manual.
Note
The TTL UART interface is not optically isolated. It has and requires 5V level
signals.
Nevertheless, it provides basic ESD and rail-to-rail signal line protection for the
TMCM-1076.
+5V
+5V
TMCM-1076 /
PD-x-1076
GND
EN
DIR
STEP
CHOP
User
MCU
A1
B2
A2
B1
M
COMM
270 Ω
270 Ω
270 Ω
270 Ω
RXD
TXD
Driver &
Controller
9V-28V
V+
GND
Figure 7: Typical application scenario with 5V inputs
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
12 / 22
5.2 Optically Isolated Inputs with Common Anode Input
The control inputs of the TMCM-1076 are optically isolated (not the TTL UART interface). All optocouplers
share one common anode (COMM) input as shown in the figure above.
+5V
3.3V to +6V
Driver &
Controller
TMCM-1076 /
PD-x-1076
GND
EN
DIR
STEP
CHOP
User
MCU
A1
B2
A2
B1
M
COMM
270 Ω
270 Ω
270 Ω
270 Ω
Figure 8: Inputs with common anode input with 3.3V to 6V
The typical voltage at COMM input is 5V. Nevertheless, 3.3V or voltages higher than 5V can also be used as
long as the current is through the optocouplers’ emitter is between 5mA to 20mA. For 3.3V operation the
controller must be carefully selected with respect to its I/O ports, its actual output voltage, and the series
resistor of the I/O ports. The user must make sure that the current through the optocouplers’ emitter is
between 5mA to 20mA.
Note
Step pulse width
Width of the step pulses should be between 2µs and 4µs, for maximum step
frequency.
With a larger step pulse width, for example 50% duty cycle coming from a frequency generator, the maximum input frequency will be lower at ca. 9kHz..
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
13 / 22
270 Ω
+5V
>5V to +24V
Driver &
Controller
TMCM-1076 /
PD-x-1076
GND
A1
B2
A2
B1
M
COMM
270 Ω
270 Ω
270 Ω
EN
GND
DIR
GND
STEP
GND
CHOP
R
external
R
external
R
external
R
external
Figure 9: Inputs with common anode input with >5V to 24V
The series resistors in the TMCM-1076 are 270mOhms. For operation with voltages higher than 5V an
additional external resistor
R
external
is required per input to limit the current. See Table 7 as reference for
additional external resistor values.
COMM Voltage (V) Value of R
external
(Ω)
3.3 -
5 -
9 300
12 500
15 700
24 1K5
Table 7: Additional resistor reference values
Note
R
external
Selection
Take care when selecting an additional external resistor. The resistor type must
have a fitting power rating. This depends on the voltage used at COMM input.
5.3 Optically Isolated Inputs with Common Cathode Input
The optocouplers inside TMCM-1076 are bidirectional types (AC/DC). Thus, COMM can also be used as
common cathode connection with high-side (pnp style) switches instead of low side (npn style) as shown
in previous figures 9, 8 or 7.
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
14 / 22
5.4 Thermal Behavior
The motor current may be set to the specified maximum current of 3A RMS / 4.2A peak for the TMCM1076 which is slightly above the maximum specified current for the stepper motor options (available as
PD57/PD60-x-1076).
Typically, at this nominal current setting the stepper motor and the driver electronics will get hot. Continuous operation at maximum current is not guaranteed without cooling the motor.
Note
Operation with Maximum Current Setting
For table-top testing and application bring-up the current should be reduced or the coolStep feature should be
configured to keep heating on a reasonable level. Especially, when there is no
other cooling option for the motor.
For proper and continuous operation at maximum current, the motor flange
must be mounted to the applications mechanical interface with good contact.
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
15 / 22
6 Operational Ratings and Characteristics
6.1 Absolute Maximum Ratings
Parameter Min Max Unit
Supply voltage +10 +30 V
Working temperature -30 +40 ° C
Motor coil current / sine wave peak 4.2 A
Continuous motor current (RMS) 3 A
NOTICE
Never Exceed the absolute maximum ratings!
Stresses above those listed
under "‘Absolute Maximum Ratings"’ may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at those
or any other conditions above those indicated in the operation listings of this
specification is not implied. Exposure to maximum rating conditions for extended
periods may affect device reliability.
Keep the power supply voltage below the upper limit of +30V! Otherwise
the board electronics will seriously be damaged! Especially, when the selected
operating voltage is near the upper limit a regulated power supply is highly
recommended.
6.2 Electrical Characteristics (Ambient Temperature 25° C)
Parameter Symbol Min Typ Max Unit
Supply voltage V DD 10 24 30 V
Motor coil current / sine wave
peak
(chopper regu-
lated, adjustable via TTL UART interface)
I
COI Lpeak
0 4.2 A
Continuous motor current (RMS) I
COI LRM S
0 3 A
Power supply current I
DD
I
COI L
1.4∗I
COI L
A
Table 9: Electrical Characteristics
6.3 I/O Ratings (Ambient Temperature 25° C)
Parameter Symbol Min Typ Max Unit
COMM input voltage V
COM M
3.3 5 6 V
Input frequency of optically isolated I/Os f
in
45 kHz
TTL UART input voltage V
T T L_I N
5 5.5 V
TTL UART low level voltage V
T LL
L
0 1.75 V
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
16 / 22
TTL UART high level voltage V
T T L
H
3.25 5 V
TTL UART output voltage V
T T L_OU T
5 V
Table 10: Operational ratings of optically isolated inputs and TTL UART interface
6.4 Functional Characteristics
Parameter Description / Value
Control 4-wire interface with Step, Direction, Enable, and Chopper Mode Switch
Step Pulse Width
The step pulse width should be between 2µs and 4µs for maximum frequency.
With a larger step pulse width, for example 50% duty cycle coming from a
frequency generator, the maximum input frequency will be lower at ca. 9kHz.
Communication
2-wire TTL UART interface for configuration, 9600-115200 bps (default 9600 bps)
Driving Mode
spreadCycle and stealthChop chopper modes (selectable with CHOP input),
adaptive automatic current reduction using stallGuard2 and coolStep
Stepping Resolution
Full, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256 step, default is 1/16 with internal
interpolation to 1/256
Table 11: Functional Characteristics
6.5 Other Requirements
Specifications Description or Value
Cooling Free air
Working environment Avoid dust, water, oil mist and corrosive gases, no condensation, no frosting
Working temperature -30° C to +40° C
Table 12: Other Requirements and Characteristics
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
17 / 22
7 Abbreviations used in this Manual
Abbreviation Description
COMM Common Anode or common cathode
IDE Integrated Development Environment
LED Light Emmitting Diode
RMS Root Mean Square value
TMCL TRINAMIC Motion Control Language
TTL Transistor Transistor Logic
UART Universal Asynchronous Receiver Transmitter
USB Universal Serial Bus
Table 13: Abbreviations used in this Manual
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
18 / 22
8 Figures Index
1
Motor coil sine wave current using
stealthChop (measured with current
probe) . . . . . . . . . . . . . . . . . . . 4
2 spreadCycle principle . . . . . . . . . . 4
3
stallGuard2 Load Measurement as a
Function of Load . . . . . . . . . . . . 5
4
Energy Efficiency Example with coolStep
5
5
TMCM-1076 top view mechanical di-
mensions (left) and position of mount-
ing holes (marked red / right). All di-
mensions in mm . . . . . . . . . . . . 7
6 TMCM-1076 connectors . . . . . . . . 8
7
Typical application scenario with 5V in-
puts . . . . . . . . . . . . . . . . . . . . 11
8
Inputs with common anode input with
3.3V to 6V . . . . . . . . . . . . . . . . 12
9
Inputs with common anode input with
>5V to 24V . . . . . . . . . . . . . . . . 13
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
19 / 22
9 Tables Index
1 Order codes modules . . . . . . . . . 6
2 Order codes cable loom . . . . . . . . 6
3 TMCM-1076 dimensions and weight . 7
4 Motor connector pinning . . . . . . . 8
5 Power + I/O connector pinning . . . . 9
6 LED state description . . . . . . . . . . 10
7 Additional resistor reference values . 13
9 Electrical Characteristics . . . . . . . . 15
10
Operational ratings of optically iso-
lated inputs and TTL UART interface . 16
11 Functional Characteristics . . . . . . . 16
12
Other Requirements and Characteristics
16
13 Abbreviations used in this Manual . . 17
14 Hardware Revision . . . . . . . . . . . 22
15 Document Revision . . . . . . . . . . . 22
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
20 / 22
10 Supplemental Directives
10.1 Producer Information
10.2 Copyright
TRINAMIC owns the content of this user manual in its entirety, including but not limited to pictures, logos,
trademarks, and resources.©Copyright 2018 TRINAMIC. All rights reserved. Electronically published by
TRINAMIC, Germany.
Redistributions of source or derived format (for example, Portable Document Format or Hypertext Markup
Language) must retain the above copyright notice, and the complete Datasheet User Manual documentation of this product including associated Application Notes; and a reference to other available
product-related documentation.
10.3 Trademark Designations and Symbols
Trademark designations and symbols used in this documentation indicate that a product or feature is
owned and registered as trademark and/or patent either by TRINAMIC or by other manufacturers, whose
products are used or referred to in combination with TRINAMIC’s products and TRINAMIC’s product documentation.
This Hardware Manual is a non-commercial publication that seeks to provide concise scientific and technical
user information to the target user. Thus, trademark designations and symbols are only entered in the
Short Spec of this document that introduces the product at a quick glance. The trademark designation
/symbol is also entered when the product or feature name occurs for the first time in the document. All
trademarks and brand names used are property of their respective owners.
10.4 Target User
The documentation provided here, is for programmers and engineers only, who are equipped with the
necessary skills and have been trained to work with this type of product.
The Target User knows how to responsibly make use of this product without causing harm to himself or
others, and without causing damage to systems or devices, in which the user incorporates the product.
10.5 Disclaimer: Life Support Systems
TRINAMIC Motion Control GmbH & Co. KG does not authorize or warrant any of its products for use in life
support systems, without the specific written consent of TRINAMIC Motion Control GmbH & Co. KG.
Life support systems are equipment intended to support or sustain life, and whose failure to perform,
when properly used in accordance with instructions provided, can be reasonably expected to result in
personal injury or death.
Information given in this document is believed to be accurate and reliable. However, no responsibility
is assumed for the consequences of its use nor for any infringement of patents or other rights of third
parties which may result from its use. Specifications are subject to change without notice.
10.6 Disclaimer: Intended Use
The data specified in this user manual is intended solely for the purpose of product description. No representations or warranties, either express or implied, of merchantability, fitness for a particular purpose
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
21 / 22
or of any other nature are made hereunder with respect to information/specification or the products to
which information refers and no guarantee with respect to compliance to the intended use is given.
In particular, this also applies to the stated possible applications or areas of applications of the product.
TRINAMIC products are not designed for and must not be used in connection with any applications where
the failure of such products would reasonably be expected to result in significant personal injury or death
(safety-Critical Applications) without TRINAMIC’s specific written consent.
TRINAMIC products are not designed nor intended for use in military or aerospace applications or environments or in automotive applications unless specifically designated for such use by TRINAMIC. TRINAMIC
conveys no patent, copyright, mask work right or other trade mark right to this product. TRINAMIC assumes
no liability for any patent and/or other trade mark rights of a third party resulting from processing or
handling of the product and/or any other use of the product.
10.7 Collateral Documents & Tools
This product documentation is related and/or associated with additional tool kits, firmware and other
items, as provided on the product page at: www.trinamic.com.
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25
22 / 22
11 Revision History
11.1 Hardware Revision
Version Date Author Description
1.00 2018-FEB-28 GE First prototype version.
1.10 2018-APR-09 GE
Pull-ups for opto-isolator changed to lower values (to be compatible
with TMCM-1070).
Table 14: Hardware Revision
11.2 Document Revision
Version Date Author Description
1.00 2018-JUN-25 GE First release.
Table 15: Document Revision
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
Loading...
