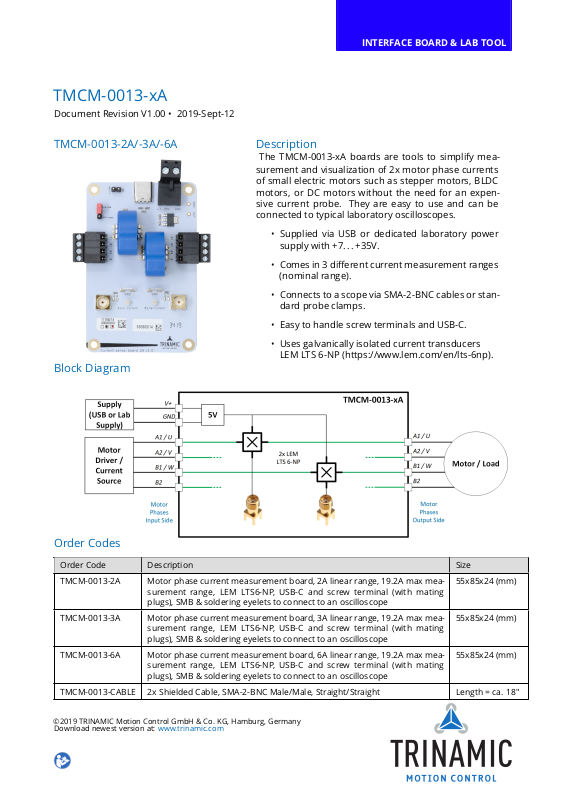

TMCM-0013-xA
Document Revision V1.00 • 2019-Sept-12
TMCM-0013-2A/-3A/-6A Description
The TMCM-0013-xA boards are tools to simplify mea-
surement and visualization of 2x motor phase currents
of small electric motors such as stepper motors, BLDC
motors, or DC motors without the need for an expensive current probe. They are easy to use and can be
connected to typical laboratory oscilloscopes.
• Supplied via USB or dedicated laboratory power
supply with +7. . . +35V.
• Comes in 3 different current measurement ranges
(nominal range).
• Connects to a scope via SMA-2-BNC cables or standard probe clamps.
INTERFACE BOARD & LAB TOOL
• Easy to handle screw terminals and USB-C.
• Uses galvanically isolated current transducers
LEM LTS 6-NP (https://www.lem.com/en/lts-6np).
Block Diagram
Order Codes
Order Code Description Size
TMCM-0013-2A Motor phase current measurement board, 2A linear range, 19.2A max mea-
surement range, LEM LTS6-NP, USB-C and screw terminal (with mating
plugs), SMB & soldering eyelets to connect to an oscilloscope
TMCM-0013-3A Motor phase current measurement board, 3A linear range, 19.2A max mea-
surement range, LEM LTS6-NP, USB-C and screw terminal (with mating
plugs), SMB & soldering eyelets to connect to an oscilloscope
TMCM-0013-6A Motor phase current measurement board, 6A linear range, 19.2A max mea-
surement range, LEM LTS6-NP, USB-C and screw terminal (with mating
plugs), SMB & soldering eyelets to connect to an oscilloscope
TMCM-0013-CABLE 2x Shielded Cable, SMA-2-BNC Male/Male, Straight/Straight Length = ca. 18"
55x85x24 (mm)
55x85x24 (mm)
55x85x24 (mm)
©2019 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Download newest version at: www.trinamic.com
TMCM-0013-xA Interface Board & Lab Tool • Document Revision V1.00 • 2019-Sept-12
Application Wiring
Electrical and Environmental Parameter
2 / 1
Parameter Symbol Min Typ Max Unit
Supply voltage range from dedicated supply V S 7 24 35 V
USB supply voltage V USB 5 V
Transducer primary nominal RMS current I
Transducer primary current measuring range I
Output Voltage at IP= 0 V
Output Voltage at primary current I
P
P N
P max
OU T
V
OU T
-19.2 +19.2 A
2.475 2.5 2.525 V
0 2.5 ± (0.625 × IP/I
2/3/6 A
) 5 V
P N
Accuracy at TA= 25°C X ± 0.2 %
Ambient operating temperature T
A
-40 +85 °C
(IPis the actual primary current visible at the motor inputs.)
For more information on the current transducer LTS 6-NP visit www.lem.com.
Manual History
Version Date Author Info
1.00 10.02.2017 SK First release
©2019 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
