Features
The TMC236 / TMC236A / TMC236B (1) is a dual full bridge driver IC for bipolar stepper motor control applications. It is realized in a HVCMOS technology combined with Low-RDS-ON high efficiency MOSFETs (pat. pend.). It allows driving a coil current of up to 1500mA even at high environment temperatures. Its low current consumption and high efficiency together with the miniature package make it a perfect solution for embedded motion control and for battery powered devices. The low power dissipation makes the TMC236 an optimum choice for drives, where a high reliability is desired. Internal DACs allow microstepping as well as smart current control. The device can be controlled by a
serial interface (SPI™
i
) or by analog / digital input signals. Short circuit, temperature, undervoltage and
overvoltage protection are integrated.
Control via SPI with easy-to-use 12 bit protocol or external analog / digital signals
Short circuit, overvoltage and over temperature protection integrated
Status flags for overcurrent, open load, over temperature, temperature pre-warning, undervoltage
Integrated 4 bit DACs allow up to 16 times microstepping via SPI (can be expanded to 64
microsteps)
Any resolution via analog control
Mixed decay feature for smooth motor operation
Slope control user programmable to reduce electromagnetic emissions
Chopper frequency programmable via a single capacitor or external clock
Current control allows cool motor and driver operation
Internal open load detector
7V to 34V motor supply voltage (A-type)
Up to 1500mA output current and more than 800mA at 105°C
3.3V or 5V operation for digital part
Low power dissipation via low RDS-ON power stage
Standby and shutdown mode available
(1) The term TMC236 in this datasheet always refers to the TMC236B, TMC236A and the TMC236.
The major differences in the older TMC236 are explicitly marked with “non-A-type”. The TMC236A brings a number of enhancements and is fully backward compatible to the TMC236. The latest revision TMC236B is 100% compatible to the TMC236A.
TMC236/B – DATA SHEET
High current, low power dissipation microstep stepper motor driver with protection / diagnostics and SPI Interface
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 2
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
FEATURES.............................................................................................................................................. 1
PINNING .................................................................................................................................................. 5
PACKAGE CODES.................................................................................................................................... 5
PQFP44 DIMENSIONS ............................................................................................................................ 6
APPLICATION CIRCUIT / BLOCK DIAGRAM ....................................................................................... 7
PIN FUNCTIONS ...................................................................................................................................... 7
LAYOUT CONSIDERATIONS ................................................................................................................ 8
CONTROL VIA THE SPI INTERFACE ................................................................................................... 9
SERIAL DATA WORD TRANSMITTED TO TMC236 ....................................................................................... 9
SERIAL DATA WORD TRANSMITTED FROM TMC236 .................................................................................. 9
TYPICAL WINDING CURRENT VALUES ..................................................................................................... 10
BASE CURRENT CONTROL VIA INA AND INB IN SPI MODE ....................................................................... 10
CONTROLLING THE POWER DOWN MODE VIA THE SPI INTERFACE ........................................................... 10
OPEN LOAD DETECTION ........................................................................................................................ 11
STANDBY AND SHUTDOWN MODE........................................................................................................... 11
POWER SAVING .................................................................................................................................... 11
PROTECTION FUNCTIONS ................................................................................................................. 12
OVERCURRENT PROTECTION AND DIAGNOSIS ........................................................................................ 12
OVERTEMPERATURE PROTECTION AND DIAGNOSIS................................................................................. 12
OVERVOLTAGE PROTECTION AND ENN PIN BEHAVIOR ............................................................................ 12
CHOPPER PRINCIPLE ......................................................................................................................... 13
CHOPPER CYCLE / USING THE MIXED DECAY FEATURE............................................................................ 13
ADAPTING THE SINE WAVE FOR SMOOTH MOTOR OPERATION .................................................................. 14
BLANK TIME ......................................................................................................................................... 14
BLANK TIME SETTINGS .......................................................................................................................... 14
CLASSICAL NON-SPI CONTROL MODE (STAND ALONE MODE) .................................................. 15
PIN FUNCTIONS IN STAND ALONE MODE.................................................................................................. 15
INPUT SIGNALS FOR MICROSTEP CONTROL IN STAND ALONE MODE .......................................................... 15
CALCULATION OF THE EXTERNAL COMPONENTS ....................................................................... 16
SENSE RESISTOR ................................................................................................................................. 16
EXAMPLES FOR SENSE RESISTOR SETTINGS .......................................................................................... 16
HIGH SIDE OVERCURRENT DETECTION RESISTOR RSH ............................................................................ 16
MAKING THE CIRCUIT SHORT CIRCUIT PROOF ......................................................................................... 17
OSCILLATOR CAPACITOR ...................................................................................................................... 18
TABLE OF OSCILLATOR FREQUENCIES.................................................................................................... 18
PULL-UP RESISTORS ON UNUSED INPUTS ............................................................................................... 18
POWER SUPPLY SEQUENCING CONSIDERATIONS .................................................................................... 18
SLOPE CONTROL RESISTOR ................................................................................................................. 19
EXAMPLE FOR SLOPE SETTINGS ............................................................................................................ 19
ABSOLUTE MAXIMUM RATINGS ....................................................................................................... 20
ELECTRICAL CHARACTERISTICS ..................................................................................................... 20
OPERATIONAL RANGE .......................................................................................................................... 20
DC CHARACTERISTICS ......................................................................................................................... 21
AC CHARACTERISTICS ......................................................................................................................... 22
THERMAL PROTECTION (1) ................................................................................................................... 23
THERMAL CHARACTERISTICS ................................................................................................................ 23
TYPICAL POWER DISSIPATION AT HIGH LOAD / HIGH TEMPERATURE ........................................................ 23
SPI INTERFACE TIMING ...................................................................................................................... 24
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 3
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
PROPAGATION TIMES ........................................................................................................................... 24
USING THE SPI INTERFACE ................................................................................................................... 24
SPI FILTER (ONLY A-TYPE) ................................................................................................................... 24
ESD PROTECTION ............................................................................................................................... 25
APPLICATION NOTE: EXTENDING THE MICROSTEP RESOLUTION ............................................. 26
DOCUMENTATION REVISION ............................................................................................................ 27
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 4
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Life support policy
TRINAMIC Motion Control GmbH & Co KG does not authorize or warrant any of its products for use in life support systems, without the specific written consent of TRINAMIC Motion Control GmbH & Co KG.
Life support systems are equipment intended to support or sustain life, and whose failure to perform, when properly used in accordance with instructions provided, can be reasonably expected to result in personal injury or death.
© TRINAMIC Motion Control GmbH & Co KG 2005 Information given in this data sheet is believed to be
accurate and reliable. However no responsibility is assumed for the consequences of its use nor for any infringement of patents or other rights of third parties, which may result from its use.
Specifications subject to change without notice.
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 5
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Pinning
1
9
4
12
17
14
15
162218
21
13
19
20
33
25
30
41
44
43
42
39
36
35
40
38
37
34
TMC 236 / 236A
QFP44
BL2 OB1
OB1
OB2
OB2
BRB
VSB
INB
AGND
SLP
INA
GND
VS
VT
VCC
-
-
-
ANN
OA1
OA2
OA2
OA1 BRA
VSA
SRA
GND
SDO
SDI
SCK
SRB
CSN
BL1
OSC
ENN
SPE
2
3
5
6
7
8
10
11
24
23
27
26
29
28
32
31
Package codes
Type
Package
Temperature range
Lead free (ROHS)
Code/marking
TMC236B
PQFP44
automotive (1)
Yes
TMC236B-PA
TMC236A
PQFP44
automotive (1)
Yes
TMC236A-PA
TMC236
PQFP44
automotive (1)
From date code 30/04
TMC236-PA
(1) ICs are not tested according to automotive standards, but are usable within the complete
automotive temperature range.
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 6
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
PQFP44 Dimensions
REF
MIN.
MAX.
A
12 C 10 D 1
E - 1.6 F 0.09
0.2 G 0.05
0.15
H
0.30
0.45
I
0.45
0.75 K 0.8
L 0 0.08
All dimensions are in mm. L: Co-planarity of pins
I
E
F
C
KH
D
G
A
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 7
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Application Circuit / Block Diagram
R
S
R
SH
Coil A
+V
M
Coil B
100µF220nF
NN
N N
PP
P P
TMC236A
VT
VS
4
DAC
4
DAC
INA
INB
VREF
REFSEL
PWM-CTRL
ANNSPE
1
0
0
1
Current Controlled
Gate Drivers
Current Controlled
Gate Drivers
SLP
R
SLP
PWM-CTRL
OSC
Control & Diagnosis
Parallel
Control
SPI-
Interface
REFSEL
GNDAGND
Under-
voltage
Tem-
perature
OSC
VCC
1nF
100nF
+V
CC
SCK
SDI
SDO
CSN
BL2BL1
[MDBN]
[PHA]
[ERR]
[PHB]
stand alone mode
[MDAN]
OA1
OA2
OB1
OB2
VSB
VSA
SRA
BRA
R
S
SRB
BRB
[...]: function in stand alone mode
ENN
VCC/2
Pin Functions
Pin
Function
Pin
Function
VS
Motor supply voltage
VT
Short to GND detection comparator – connect to VS if not used
VCC
3.0-5.5V supply voltage for analog and logic circuits
GND
Digital / Power ground
AGND
Analog ground (Reference for SRA, SRB, OSC, SLP, INA, INB, SLP)
OSC
Oscillator capacitor or external clock input for chopper
INA
Analog current control phase A
INB
Analog current control input phase B
SCK
Clock input of serial interface
SDO
Data output of serial interface (tri-state)
SDI
Data input of serial interface
CSN
Chip select input of serial interface
ENN
Device enable (low active), and overvoltage shutdown input
SPE
Enable SPI mode (high active). Tie to GND for non-SPI applications
ANN
Enable analog current control via INA and INB (low active)
SLP
Slope control resistor. BL1, BL2
Digital blank time select
SRA, SRB
Bridge A/B current sense resistor input
OA1, OA2
Output of full-bridge A
OB1, OB2
Output of full-bridge B
VSA, VSB
Supply voltage for bridge A/B
BRA, BRB
Bridge A/B sense resistor
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 8
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG

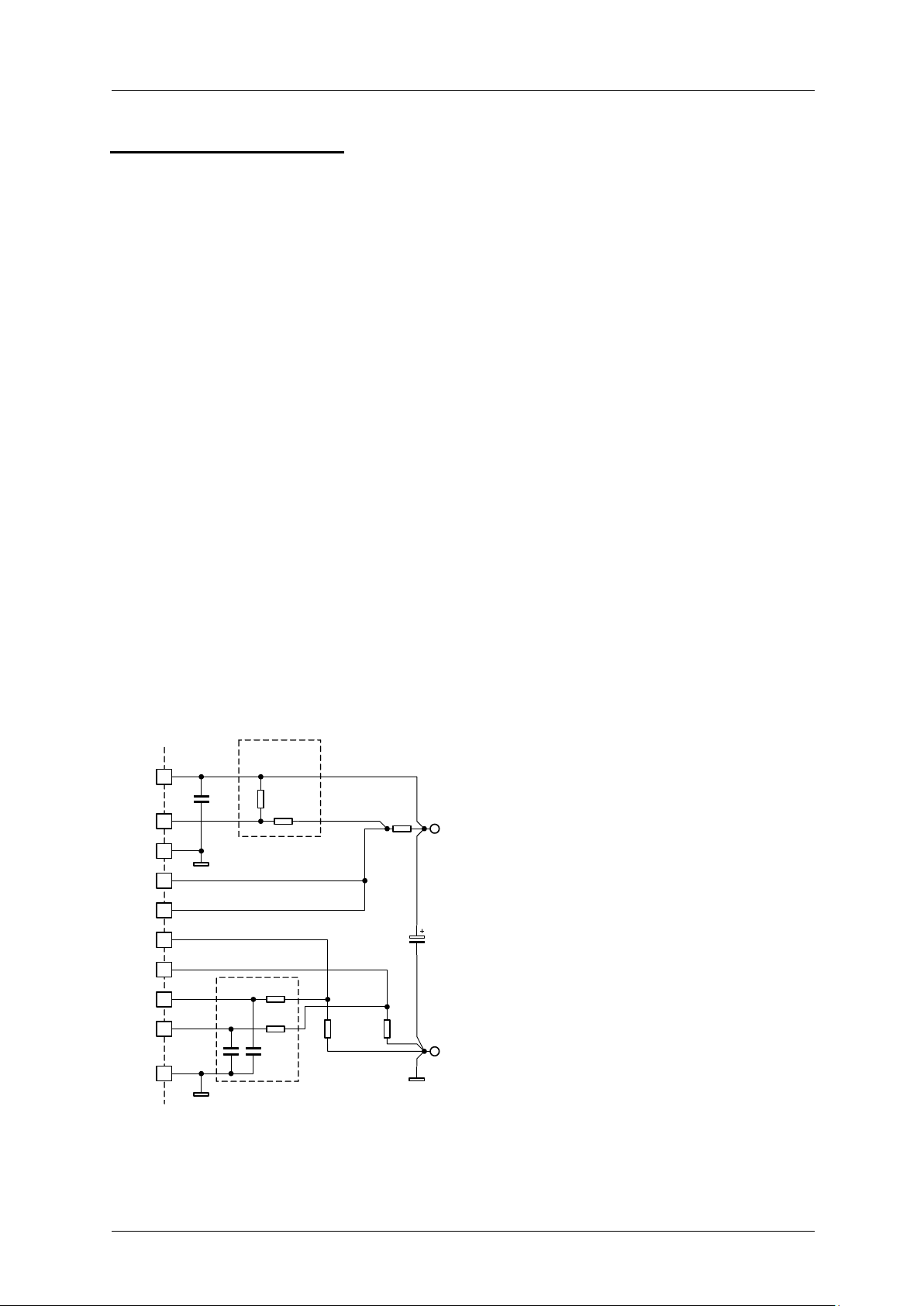

Layout Considerations
For optimal operation of the circuit a careful board layout is important, because of the combination of high current chopper operation coupled with high accuracy threshold comparators. Please pay special attention to a massive grounding. Depending on the required motor current, either a single massive ground plane or a ground plane plus star connection of the power traces may be used. The schematic shows how the high current paths can be routed separately, so that the chopper current does not flow through the system’s GND-plane. Tie the TMC236’s AGND and GND to the GND plane. Additionally, use enough filtering capacitors located near to the board’s power supply input and small ceramic capacitors near to the power supply connections of the TMC236. Use low inductance sense resistors, or add a ceramic capacitor in parallel to each resistor to avoid high voltage spikes. In some applications it may become necessary to introduce additional RC-filtering into the VT and SRA / SRB line, as shown in the schematic, to prevent spikes from triggering the short circuit protection or the chopper comparator.
Be sure to connect all pins of the PQFP package for each of the double/quad output pins externally. Each two of these output pins should be treated as if they were fused to a single wide pin (as shown in the drawing). Each two pins are used as cooling fin for one of the eight integrated output power transistors. Use massive motor current traces on all these pins and multiple vias, if the output trace is changed to a different layer near the package.
A symmetrical layout on all of the OA and OB pins is required, to ensure proper heat dissipation on all output transistors. Otherwise proper function of the thermal protection can not be guaranteed!
A multi-layer PCB shows superior thermal performance, because it allows usage of a massive GND plane, which will act as a heat spreader. The heat will be coupled vertically from the output traces to the GND plane, since vertical heat distribution in PCBs is quite effective. Heat dissipation can be improved by attaching a heat sink to the package directly.
Please be aware, that long or thin traces to the sense resistors may add substantial resistance and thus reduce output current. The same is valid for the high side shunt resistor. Use short and straight traces to avoid parasitic inductivities, because these can generate large voltage spikes and EMV problems.
+VM
GND
GND­Plane
R
SB
R
SA
R
SH
C
VM
100R
optional
voltage divider
VS
VT
TMC236/ TMC246
100R
100R
3.3 ­10nF
SRA
SRB
optional filter
AGND
GND
100nF
VSA
VSB
BRA
BRB
R
DIV
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 9
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Control via the SPI Interface
The SPI data word sets the current and polarity for both coils. By applying consecutive values, describing a sine and a cosine wave, the motor can be driven in microsteps. Every microstep is initiated by its own telegram. Please refer to the description of the analog mode for details on the waveforms required. The SPI interface timing is described in the timing section. We recommend the TMC428 to automatically generate the required telegrams and motor ramps for up to three motors.
Serial data word transmitted to TMC236
(MSB transmitted first)
Bit
Name
Function
Remark
11
MDA
mixed decay enable phase A
“1” = mixed decay
10
CA3
current bridge A.3
MSB
9
CA2
current bridge A.2
8 CA1
current bridge A.1
7 CA0
current bridge A.0
LSB
6
PHA
polarity bridge A
“0” = current flow from OA1 to OA2
5
MDB
mixed decay enable phase B
“1” = mixed decay
4
CB3
current bridge B.3
MSB
3
CB2
current bridge B.2
2 CB1
current bridge B.1
1 CB0
current bridge B.0
LSB
0
PHB
polarity bridge B
“0” = current flow from OB1 to OB2
Serial data word transmitted from TMC236
(MSB transmitted first)
Bit
Name
Function
Remark
11 0 always “0”
10 0 always “0”
9 0
always “0”
8 1
always “1”
7 OT
overtemperature
“1” = chip off due to overtemperature
6
OTPW
temperature prewarning
“1” = prewarning temperature exceeded
5
UV
driver undervoltage
“1” = undervoltage on VS
4
OCHS
overcurrent high side
3 PWM cycles with overcurrent within 63 PWM cycles
3
OLB
open load bridge B
no PWM switch off for 14 oscillator cycles
2
OLA
open load bridge A
no PWM switch off for 14 oscillator cycles
1
OCB
overcurrent bridge B low side
3 PWM cycles with overcurrent within 63 PWM cycles
0
OCA
overcurrent bridge A low side
3 PWM cycles with overcurrent within 63 PWM cycles
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 10
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Typical winding current values
Current setting CA3..0 / CB3..0
Percentage of current
Typical trip voltage of the current sense comparator (internal reference or analog input voltage of 2V is used)
0000
0%
0 V (bridge continuously in slow decay condition)
0001
6.7%
23 mV
0010
13.3%
45 mV
...
... 1110
93.3%
317 mV
1111
100%
340 mV
The current values correspond to a standard 4 Bit DAC, where 100%=15/16. The contents of all registers is cleared to “0” on power-on reset or disable via the ENN pin, bringing the chip to a low power standby mode. All SPI inputs have Schmitt-Trigger function.
Base current control via INA and INB in SPI mode
In SPI mode, the IC can use an external reference voltage for each DAC. This allows the adaptation to different motors. This mode is enabled by tying pin ANN to GND. A 2.0V input voltage gives full scale current of 100%. In this case, the typical trip voltage of the current sense comparator is determined by the input voltage and the DAC current setting (see table above) as follows:
V
TRIP,A
= 0.17 V
INA
“percentage SPI current setting A”
V
TRIP,B
= 0.17 V
INB
“percentage SPI current setting B”
A maximum of 3.0V VIN is possible. Multiply the percentage of base current setting and the DAC table to get the overall coil current. It is advised to operate at a high base current setting, to reduce the effects of noise voltages. This feature allows a high resolution setting of the required motor current using an external DAC or PWM-DAC (see schematic for examples).
47K
100nF
AGND
INA
INB
ANN
µC­PWM
using PWM signal
100K
µC­Port .2
8 level via R2R-DAC
51K
51K
51K
100K
100K
µC­Port .1
µC­Port .0
R1
2 level control
R2
µC­Port
+V
CC
10nF
Controlling the power down mode via the SPI interface
Standard
function
11
MxA10CA39CA2
6
PhA
- 0 -
Control
word
function
- -
Bit
Enable standby mode and clear error flags
8
CA17CA0
5
MxB4CB33CB2
0
PhB
2
CB11CB0
000 0 00 0
Programming current value “0000” for both coils at a time clears the overcurrent flags and switches the
TMC236 into a low current standby mode with coils switched off.
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 11
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Open load detection
Open load is signaled, whenever there are more than 14 oscillator cycles without PWM switch off. Note
that open load detection is not possible while coil current is set to “0000”, because the chopper is off in
this condition. The open load flag will then always be read as inactive (“0”). During overcurrent and undervoltage or over temperature conditions, the open load flags also become active!
Due to their principle, the open load flags not only signal an open load condition, but also a torque loss of the motor, especially at high motor velocities. To detect only an interruption of the connection to the motor, it is advised to evaluate the flags during stand still or during low velocities only (e.g. for the first or last steps of a movement).
Standby and shutdown mode
The circuit can be put into a low power standby mode by the user, or, automatically goes to standby on Vcc undervoltage conditions. Before entering standby mode, the TMC236 switches off all power driver outputs. In standby mode the oscillator becomes disabled and the oscillator pin is held at a low state. The standby mode is available via the interface in SPI-mode and via the ENN pin in non-SPI mode.
The shutdown mode even reduces supply current further. It can only be entered in SPI-mode by pulling the ENN pin high. In shutdown additionally all internal reference voltages become switched off and the SPI circuit is held in reset.
Power saving
The possibility to control the output current can dramatically save energy, reduce heat generation and increase precision by reducing thermal stress on the motor and attached mechanical components. Just reduce motor current during stand still: Even a slight reduction of the coil currents to 70% of the current of the last step of the movement, halves power consumption! In typical applications a 50% current reduction during stand still is reasonable.
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 12
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Protection Functions
Overcurrent protection and diagnosis
The TMC236 uses the current sense resistors on the low side to detect an overcurrent: Whenever a voltage above 0.61V is detected, the PWM cycle is terminated at once and all transistors of the bridge are switched off for the rest of the PWM cycle. The error counter is increased by one. If the error counter reaches 3, the bridge remains switched off for 63 PWM cycles and the error flag is read as
“active”. The user can clear the error condition in advance by clearing the error flag. The error counter
is cleared, whenever there are more than 63 PWM cycles without overcurrent. There is one error counter for each of the low side bridges, and one for the high side. The overcurrent detection is inactive during the blank pulse time for each bridge (resp. the corresponding bridge in non-A-type), to suppress spikes which can occur during switching.
The high side comparator detects a short to GND or an overcurrent, whenever the voltage between VS and VT becomes higher than 0.15 V at any time, except for the blank time period which is logically ORed for both bridges. Here all transistors become switched off for the rest of the PWM cycle, because the bridge with the failure is unknown.
The overcurrent flags can be cleared by disabling and re-enabling the chip either via the ENN pin or by sending a telegram with both current control words set to “0000”. In high side overcurrent conditions the user can determine which bridge sees the overcurrent, by selectively switching on only one of the bridges with each polarity (therefore the other bridge should remain programmed to “0000”).
Over temperature protection and diagnosis
The circuit switches off all output power transistors during an over temperature condition. The over temperature flag should be monitored to detect this condition. The circuit resumes operation after cool down below the temperature threshold. However, operation near the over temperature threshold should be avoided, if a high lifetime is desired.
Overvoltage protection and ENN pin behavior
During disable conditions the circuit switches off all output power transistors and goes into a low
current shutdown mode. All register contents is cleared to “0”, and all status flags are cleared. The
circuit in this condition can also stand a higher voltage, because the voltage then is not limited by the maximum power MOSFET voltage. The enable pin ENN provides a fixed threshold of ½ VCC (TTL level in non-A-type) to allow a simple overvoltage protection up to 40V using an external voltage divider (see schematic for A-type).
ENN
R2
µC-Port (opt.)
low=Enable,
high=Disable
R1
+V
M
for switch off at 26 - 29V: at VCC=5V: R1=100K; R2=10K at VCC=3.3V: R1=160K; R2=10K
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 13
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Chopper Principle
Chopper cycle / Using the mixed decay feature
The TMC236 uses a quiet fixed frequency chopper. Both coils are chopped with a phase shift of 180 degrees. The mixed decay option is realized as a self stabilizing system (pat. fi.), by shortening the fast decay phase, if the ON phase becomes longer. It is advised to enable the mixed decay for each phase during the second half of each microstepping half-wave, when the current is meant to decrease. This leads to less motor resonance, especially at medium velocities. With low velocities or during standstill mixed decay should be switched off. In applications requiring high resolution, or using low inductivity motors, the mixed decay mode can also be enabled continuously, to reduce the minimum motor current which can be achieved. When mixed decay mode is continuously on or when using high inductivity motors at low supply voltage, it is advised to raise the chopper frequency to minimum 36kHz, because the half chopper frequency could become audible under these conditions.
R
SENSE
SWC
SWOSWC
SWO
I
On phase: Current flows in target direction
R
SENSE
I
Fast decay phase: Current flows back into power supply
SWC SWO
SWO
R
SENSE
I
Slow decay phase: Current re-circulation
SWC SWO
SWOSWC
oscillator clock
resp. external clock
actual current phase A
target current phase A
mixed decay disabled mixed decay enabled
on slow decay on
fast decay
slow decay
When polarity is changed on one bridge, the PWM cycle on that bridge becomes restarted at once. Fast decay switches off both upper transistors, while enabling the lower transistor opposite to the
selected polarity. Slow decay always enables both lower side transistors.
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 14
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Adapting the sine wave for smooth motor operation
After reaching the target current in each chopper cycle, both, the slow decay and the fast decay cycle reduce the current by some amount. Especially the fast decay cycle has a larger impact. Thus, the medium coil current always is a bit lower than the target current. This leads to a flat line in the current shape flowing through the motor. It can be corrected, by applying an offset to the sine shape. In mixed decay operation via SPI, an offset of 1 does the job for most motors.
t
I
Target current Coil current
t
I
Target current Coil current
Coil current does not have optimum shape Target current corrected for optimum shape of coil current
Blank Time
The TMC236 uses a digital blanking pulse for the current chopper comparators. This prevents current spikes, which can occur during switching action due to capacitive loading, from terminating the chopper cycle. The lowest possible blanking time gives the best results for microstepping: A long blank time leads to a long minimum turn-on time, thus giving an increased lower limit for the current. Please remark, that the blank time should cover both, switch-off time of the lower side transistors and turn-on time of the upper side transistors plus some time for the current to settle. Thus the complete switching duration should never exceed 1.5µs.
The TMC236 allows adapting the blank time to the load conditions and to the selected slope in four steps (the effective resulting blank times are about 200ns shorter in the non-A-type):
Blank time settings
BL2
BL1
Typical blank time
GND
GND
0.6 µs
GND
VCC
0.9 µs
VCC
GND
1.2 µs
VCC
VCC
1.5 µs
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 15
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Classical non-SPI control mode (stand alone mode)
The driver can be controlled by analog current control signals and digital phase signals. To enable this mode, tie pin SPE to GND. In this mode, the SPI interface is disabled and the SPI input pins have alternate functions. The internal DACs are forced to “1111”.
Pin functions in stand alone mode
Pin
Stand alone mode name
Function in stand alone mode
SPE
(GND)
Tie to GND to enable stand alone mode
ANN
MDAN
Enable mixed decay for bridge A (low = enable)
SCK
MDBN
Enable mixed decay for bridge B (low = enable)
SDI
PHA
Polarity bridge A (low = current flow from output OA1 to OA2)
CSN
PHB
Polarity bridge B (low = current flow from output OB1 to OB2)
SDO
ERR
Error output (high = overcurrent on any bridge, or over temperature). In this mode, the pin is never tri-stated.
ENN
ENN
Standby mode (high active), high causes a low power mode of the device. Setting this pin high also resets all error conditions.
INA, INB
INA, INB
Current control for bridge A, resp. bridge B. Refer to AGND. The sense resistor trip voltage is 0.34V when the input voltage is 2.0V. Maximum input voltage is 3.0V.
Input signals for microstep control in stand alone mode
Attention: When transferring these waves to SPI operation, please remark, that the mixed decay bits are inverted when compared to stand alone mode.
90° 180° 270° 360°
INA
INB
PHA
(SDI)
PHB
(CSN)
MDAN
(ANN)
MDBN
(SCK)
Use dotted line to improve performance at medium velocities
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 16
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Calculation of the external components
Sense Resistor
Choose an appropriate sense resistor (RS) to set the desired motor current. The maximum motor
current is reached, when the coil current setting is programmed to “1111”. This results in a current
sense trip voltage of 0.34V when the internal reference or a reference voltage of 2V is used. When operating your motor in fullstep mode, the maximum motor current is as specified by the manufacturer. When operating in sine step mode, multiply this value by 1.41 for the maximum current (I
max
).
RS = V
TRIP
/ I
max
In a typical application:
RS = 0.34V / I
max
RS: Current sense resistor of bridge A, B V
TRIP
: Programmed trip voltage of the current sense comparators
I
max
: Desired maximum coil current
Examples for sense resistor settings
RS
I
max
0.47
723mA
0.43
790mA
0.39
870mA
0.33
1030mA
0.27
1259mA
0.22
1545mA
High side overcurrent detection resistor RSH
The TMC236 detects an overcurrent to ground, when the voltage between VS and VT exceeds 150mV. The high side overcurrent detection resistor should be chosen in a way that 100mV voltage drop are not exceeded between VS and VT, when both coils draw the maximum current. In a sinestep application, this is when sine and cosine wave have their highest sum, i.e. at 45 degrees, corresponding to 1.41 times the maximum current setting for one coil. In a fullstep application this is the double coil current.
In a microstep application:
RSH = 0.1V / (1.41 I
max
)
In a fullstep application:
RSH = 0.1V / (2 I
max
)
RSH: High side overcurrent detection resistor I
max
: Maximum coil current
However, if the user desires to use higher resistance values, a voltage divider in the range of 10 to 100 can be used for VT. This might also be desired to limit the peak short to GND current, as described in the following chapter.
Attention: A careful PCB layout is required for the sense resistor traces and for the RSH traces.
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 17
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Making the circuit short circuit proof
In practical applications, a short circuit does not describe a static condition, but can be of very different nature. It typically involves inductive, resistive and capacitive components. Worst events are unclamped switching events, because huge voltages can build up in inductive components and result in a high energy spark going into the driver, which can destroy the power transistors. The same is true when disconnecting a motor during operation: Never disconnect the motor during operation!
There is no absolute protection against random short circuit conditions, but pre-cautions can be taken to improve robustness of the circuit: In a short condition, the current can become very high before it is interrupted by the short detection, due to the blanking during switching and internal delays. The high-side transistors allows up to 10A flowing for the selected blank time. The lower the external inductivity, the faster the current climbs. If inductive components are involved in the short, the same current will shoot through the low-side resistor and cause a high negative voltage spike at the sense resistor. Both, the high current and the voltage spikes are a danger for the driver.
Thus there are a two things to be done, if short circuits are expected:
1. Protect SRA/SRB inputs using a series resistance
2. Increase RSH to limit maximum transistor current: Use same value as for sense resistors
3. Use as short as possible blank time The second measure effectively limits short circuit current, because the upper driver transistor with its
fixed ON gate voltage of 7V forms a constant current source together with its internal resistance and RSH. A positive side effect is, that only one type of low ohmic resistor is required. The drawback is, that power dissipation increases. A high side short detection resistor of 0.33 Ohms limits maximum high side transistor current to typically 4A. The schematic shows the modifications to be done.
However, the effectiveness of these measures should be tested in the given application.
+VM
GND
R
SB
R
SA
R
SH
C
VM
100R
VS
VT
100R
100R
SRA
SRB
GND
100nF R
DIV
internal
R
DIV
values for reference Microstep: 27R Fullstep: 18R
INA/INB up to3V 18R 12R
RSH=RSA=R
SB
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 18
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Oscillator Capacitor
The PWM oscillator frequency can be set by an external capacitor. The internal oscillator uses a 28k resistor to charge / discharge the external capacitor to a trip voltage of 2/3 Vcc respectively 1/3 Vcc. It can be overdriven using an external CMOS level square wave signal. Do not set the frequency higher than 100kHz and do not leave the OSC terminal open! The two bridges are chopped with a phase shift of 180 degrees at the positive and at the negative edge of the clock signal.
[nF] C s40
1
f
OSC
OSC
fOSC: PWM oscillator frequency COSC: Oscillator capacitor in nF
Table of oscillator frequencies
f
OSC
typ.
C
OSC
16.7kHz
1.5nF
20.8kHz
1.2nF
25.0kHz
1.0nF
30.5kHz
820pF
36.8kHz
680pF
44.6kHz
560pF
Please remark that an unnecessary high frequency leads to high switching losses in the power transistors and in the motor. For most applications a chopper frequency slightly above audible range is sufficient. When audible noise occurs in an application, especially with mixed decay continuously enabled, the chopper frequency should be two times the audible range. For most applications we recommend a frequency of 36.8kHz.
Pull-up resistors on unused inputs
The digital inputs all have integrated pull-up resistors, except for the ENN input, which is in fact an analog input. Thus, there are no external pull-up resistors required for unused digital inputs which are meant to be positive.
Power supply sequencing considerations
Upon power up, the driver initializes and switches off the bridge power transistors. However, in order for the internal startup logic to work properly, the Vcc supply voltage has to be at least 1.0V, respectively, the Vs supply voltage has to be at least 5.0V. When Vs goes up with Vcc at 0V, a medium current temporary cross conduction of the power stage can result at supply voltages between 2.4V and
4.8V. While this does no harm to the driver, it may hinder the power supply from coming up properly, depending on the power supply start up behavior.
In order to prevent this from occurring, either use a dual voltage power supply, or use a local regulator, generating the 5V or 3.3V Vcc voltage.
Please pay attention to the local regulator start up voltage: Some newer switching regulators do not start, before the input voltage has reached 5V. Therefore it is recommended to use a standard linear regulator like 7805 or LM317 series or a low drop regulator or a switching regulator like the LM2595, starting at relatively low input voltages.
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 19
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Slope Control Resistor
The output-voltage slope of the full bridge outputs can be controlled to reduce noise on the power supply and on the motor lines and thus electromagnetic emission of the circuit. It is controlled by an external resistor at the SLP pin.
Operational range:
0k  R
SLP
100k
The SLP-pin can directly be connected to AGND for the fastest output-voltage slope (respectively maximum output current). In most applications a minimum external resistance of 10 K is recommended to avoid unnecessary high switching spikes.
Only for non-A-types the slope on the lower transistors is fixed (corresponding to a 5K to 10K slope control resistor). For applications where electromagnetic emission is very critical, it might be necessary to add additional LC (or capacitor only) filtering on the motor connections. For these applications emission is lower, if only slow decay operation is used.
Please remark, that there is a tradeoff between reduced electromagnetic emissions (slow slope) and high efficiency because of low dynamic losses (fast slope).
The following table and graph depict typical behavior measured from 15% of output voltage to 85% of output voltage. However, the actual values measured in an application depend on multiple parameters and may stray in a user application.
Example for slope settings
t
SLP
typ.
R
SLP
30ns
2.2K
60ns
10K
110ns
22K
245ns
51K
460ns
100K
10
100
t
SLP
[ns] @ 10V
R
SLP
in KOhm
10520 20 50 100
t
SLP
[ns] @ 24V
20
50
200
500
1
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 20
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Absolute Maximum Ratings
The maximum ratings may not be exceeded under any circumstances.
Symbol
Parameter
Min
Max
Unit
VS
Supply voltage (A-type/B-type)
-0.3
36 V V
S
Supply voltage (non-A/B -type)
-0.3
30
V
VMD
Supply and bridge voltage max. 20000s (non-A-type: device disabled)
40
V
VTR
Power transistor voltage VOA-V
BRA
, VOB-
V
BRB, VSA-VOA
, VSB-VOB (A/B-type)
40
V
VTR
Power transistor voltage VOA-V
BRA
, VOB-
V
BRB, VSA-VOA
, VSB-VOB (non-A/B-type)
30
V
VCC
Logic supply voltage
-0.5
6.0
V
IOP
Output peak current (10µs pulse)
+/-7
A
IOC
Output current (continuous, per bridge)
TA 85°C
1500
mA
TA 105°C
1000
TA 125°C
800
VI
Logic input voltage
-0.3
VCC+0.3V
V
VIA
Analog input voltage
-0.3
VCC+0.3V
V
IIO
Maximum current to / from digital pins and analog inputs
+/-10
mA
VVT
Short-to-ground detector input voltage
VS-1V
VS+0.3V
V
TJ
Junction temperature
-40
150 (1)
°C
T
STG
Storage temperature
-55
150
°C
(1) Internally limited
Electrical Characteristics
Operational Range
Symbol
Parameter
Min
Max
Unit
TAI
Ambient temperature industrial (1)
-25
125
°C
TAA
Ambient temperature automotive
-40
125
°C
TJ
Junction temperature
-40
140
°C
VS
Bridge supply voltage (A-type/B-type)
7
34 V VS
Bridge supply voltage (non-A/B-type)
7
28.5 V VCC
Logic supply voltage
3.0
5.5
V
f
CLK
Chopper clock frequency
50
kHz
R
SLP
Slope control resistor
0
110
K
(1) The circuit can be operated up to 140°C, but output power derates.
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 21
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
DC Characteristics
DC characteristics contain the spread of values guaranteed within the specified supply voltage and temperature range unless otherwise specified. Typical characteristics represent the average value of all parts. Logic supply voltage: VCC = 3.0 V ... 5.5 V, Junction temperature: TJ = -40°C … 150°C, Bridge supply voltage : VS = 7 V … 34 V (unless otherwise specified)
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
R
OUT,Sink
R
DSON
of sink-FET (A-type)
TJ = 25°C VS 8V
0.12
0.19
R
OUT,Source
R
DSON
of source-FET (A-type)
0.22
0.36
R
OUT,Sink
R
DSON
of sink-FET max. (A-type)
TJ =150°C VS 8V
0.20
0.26
R
OUT,Source
R
DSON
of source-FET max.
(A-Type)
0.37
0.47
R
OUT,Sink
R
DSON
of sink-FET (B-type)
TJ = 25°C VS 8V
0.10
0.14
R
OUT,Source
R
DSON
of source-FET (B-type)
0.17
0.23
R
OUT,Sink
R
DSON
of sink-FET max. (B-type)
TJ =150°C VS 8V
0.16
0.23
R
OUT,Source
R
DSON
of source-FET max.
(B-Type)
0.28
0.38  V
DIO
Diode forward voltages of Oxx MOSFET diodes (A-Type)
TJ = 25°C I
OXX
= 1.05A
0.84
1.21 V V
DIO
Diode forward voltages of Oxx MOSFET diodes (B-Type)
TJ = 25°C I
OXX
= 1.05A
0.77
1.2
V
V
CCUV
VCC undervoltage
2.5
2.7
2.9
V
V
CCOK
VCC voltage o.k.
2.7
2.9
3.0 V ICC
VCC supply current
f
osc
= 25 kHz
0.75
1.20
mA
I
CCSTB
VCC supply current standby
0.45
0.75
mA
I
CCSD
VCC supply current shutdown
ENN = 1
12
40
µA
V
SUV
VS undervoltage
5.5
5.9
6.2
V
V
CCOK
VS voltage o.k.
6.1
6.4
6.7
V
I
SSM
VS supply current with fastest slope setting (static state)
VS = 14V
6
mA
I
SSD
VS supply current shutdown or standby
VS = 14V
28
50
µA
VIH
High input voltage (all digital inputs except ENN in A-type)
2.2
VCC +
0.3 V
V
VIL
Low input voltage (all digital inputs except ENN in A-type)
-0.3 0.7
V
V
IHYS
Input voltage hysteresis (all digital inputs except ENN in A-type)
100
300
500
mV
VOH
High output voltage (output SDO)
-IOH = 1mA
VCC –
0.6
VCC –
0.2
VCC
V
VOL
Low output voltage (output SDO)
IOL = 1mA
0
0.1
0.4
V
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 22
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
-I
ISL
Low input current
(SDI, SCK, CSN, BL1, BL2, SPE, ANN,
ENN for non-A-type)
VI = 0 VCC = 3.3V VCC = 5.0V
2 10 25
70
µA µA µA
V
ENNH
High input voltage threshold (input ENN) only for A/B-type
1/2 VCC
V
EHYS
Input voltage hysteresis (input ENN) only for A/B-type
0.1 V
ENNH
V
OSCH
High input voltage threshold (input OSC)
tbd
2/3 VCC
tbd
V
V
OSCL
Low input voltage threshold (input OSC)
tbd
1/3 VCC
tbd V V
VTD
VT threshold voltage (referenced to VS)
-130
-155
-180
mV
V
TRIP
SRA / SRB voltage at DAC=”1111”
internal ref. or 2V at INA / INB
315
350
385
mV
V
SRS
SRA / SRB overcurrent detection threshold
570
615
660
mV
V
SROFFS
SRA / SRB comparator offset voltage
-10 0 10
mV
R
INAB
INA / INB input resistance
Vin 3 V
175
264
300
k
AC Characteristics
AC characteristics contain the spread of values guaranteed within the specified supply voltage and temperature range unless otherwise specified. Typical characteristics represent the average value of all parts. Logic supply voltage: VCC = 5.0V, Bridge supply voltage: VS = 14.0V, Ambient temperature: TA = 27°C
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
f
OSC
Oscillator frequency using internal oscillator
C
OSC
= 1nF
1%
20
25 31
kHz
tRS, tFS
Rise and fall time of outputs Oxx with R
SLP
=0
Vo 15% to 85% I
OXX
= 800mA
25 ns
tRS, tFS
Rise and fall time of outputs Oxx with R
SLP
= 25K
Vo 15% to 85% I
OXX
= 800mA
125
ns
tRS, tFS
Rise and fall time of outputs Oxx with R
SLP
= 50K
Vo 15% to 85% I
OXX
= 800mA
250
ns
TBL
Blank time
BL1, BL2 = VCC
1.35
1.5
1.65
µs
T
ONMIN
Minimum PWM on-time
BL1, BL2 = GND
0.7 µs
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 23
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Thermal Protection (1)
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
T
JOT
Thermal shutdown
145
155
165
°C
T
JOTHYS
T
JOT
hysteresis
15
°C
T
JWT
Prewarning temperature
135
145
155
°C
T
JWTHYS
T
JWT
hysteresis
15
°C
(1) All temperatures are for A-type/B-type. The non-A/B-types have 5°C lower values in all fields.
Thermal Characteristics
Symbol
Parameter
Conditions
Typ
Unit
R
THA12
Thermal resistance bridge transistor junction to ambient, one bridge chopping, fixed polarity
soldered to 2 layer PCB
88
°K/W
R
THA22
Thermal resistance bridge transistor junction to ambient, two bridges chopping, fixed polarity
soldered to 2 layer PCB
68
°K/W
R
THA14
Thermal resistance bridge transistor junction to ambient, one bridge chopping, fixed polarity
soldered to 4 layer PCB (pessimistic)
84
°K/W
R
THA24
Thermal resistance bridge transistor junction to ambient, two bridges chopping, fixed polarity
soldered to 4 layer PCB (pessimistic)
51
°K/W
Typical Power Dissipation at high load / high temperature
Coil: LW = 10mH, RW = 5.0 Chopping with: t
DUTY
= 33% ON, only slow decay
Current both brid-
ges on
Current one bridge
on
Ambient temperature
TA
Motor supply voltage
VM
Slope t
SLP
Chopper frequency
f
CHOP
Typ total power dissipation
PD
560 mA
-
105 °C
16 V
400 ns
25 KHz
490 mW
-
800 mA
105 °C
16 V
400 ns
25 KHz
450 mW
560 mA
125 °C
14 V
60ns
20 KHz
350 mW
800 mA
125 °C
14 V
60ns
20 KHz
340 mW
1000 mA
-
70 °C
28 V
60ns
25 KHz
1000 mW
-
1500 mA
70 °C
28 V
60ns
25 KHz
1100 mW
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 24
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
SPI Interface Timing
Propagation Times
(3.0 V VCC 5.5 V, -40°C Tj 150°C; VIH = 2.8V, VIL = 0.5V; tr, tf = 10ns; CL = 50pF, unless otherwise specified)
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
f
SCK
SCK frequency
ENN = 0
DC 4
MHz
t1
SCK stable before and after CSN change
50
ns
tCH
Width of SCK high pulse
100
ns
tCL
Width of SCK low pulse
100
ns
tDU
SDI setup time
40
ns
tDH
SDI hold time
50
ns
tD
SDO delay time
CL = 50pF
40
100
ns
tZC
CSN high to SDO high impedance
*)
50
ns
tES
ENN to SCK setup time
30
µs
tPD
CSN high to OA / OB output polarity change delay
**)
3 t
OSC
+ 4
µs
*) SDO is tristated whenever ENN is inactive (high) or CSN is inactive (high). **) Whenever the PHA / PHB polarity is changed, the chopper is restarted for that phase. However, the chopper does not switch on, when the SRA resp. SRB comparator threshold is exceeded upon the start of a chopper period.
Using the SPI interface
The SPI interface allows either cascading of multiple devices, giving a longer shift register, or working with a separate chip select signal for each device, paralleling all other lines. Even when there is only one device attached to a CPU, the CPU can communicate with it using a 16 bit transmission. In this case, the upper 4 bits are dummy bits.
SPI Filter (only A-type) To prevent spikes from changing the SPI settings, SPI data words are only accepted, if their length is
at least 12 bit.
t
1
SDO
SDI
SCK
CSN
t
ES
t1t
1
t
CLtCH
bit11 bit10 bit0
bit11 bit10 bit0
t
D
t
ZC
t
DUtDH
ENN
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 25
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
ESD Protection
Please be aware, that the TMC236 is an ESD sensitive device due to integrated high performance MOS transistors.
ESD sensitive device If the ICs are manually handled before / during soldering, special precautions have to be taken to avoid
ESD voltages above 100V HBM (Human body model). For automated SMD equipment the internal device protection is specified with 1000V CDM (charged device model), tbf.
When soldered to the application board, all inputs and outputs withstand at least 1000V HBM.
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 26
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Application Note: Extending the Microstep Resolution
For some applications it might be desired to have a higher microstep resolution, while keeping the advantages of control via the serial interface. The following schematic shows a solution, which adds two LSBs by selectively pulling up the SRA / SRB pin by a small voltage difference. Please remark, that the lower two bits are inverted in the depicted circuit. A full scale sense voltage of 340mV is assumed. The circuit still takes advantage of completely switching off of the coils when the internal DAC bits are set to “0000”. This results in the following comparator trip voltages:
Current setting (MSB first)
Trip voltage
0000xx
0 V
000111
5.8 mV
000110
11.5 mV
000101
17.3 mV
000100
23 mV
...
111101
334.2 mV
111100
340 mV
SPI bit
15
14
13
12
11
10 9 8
DAC bit
/B1
/B0
/A1
/A0
MDA
A5
A4
A3
SPI bit
7 6 5 4 3 2 1 0 DAC bit
A2
PHA
MDB
B5
B4
B3
B2
PHB
R
S
SRA
TMC236 /
TMC239
110R
4.7nF opt.
74HC595
C1
Q0 Q1 Q2 Q3 Q4 Q5 Q6 Q7
Q7'
/MR
C2
/OE
SCK
SDI
SDO
CSN
+V
CC
DS1D
100K
/CS
SDI
SCK
SDO
Free for second TMC239
47K 47K
47K
/DACA.0 /DACA.1 /DACB.0 /DACB.1
Vcc = 5V
1/2 74HC74
C
DQ
Note: Use a 74HC4094 instead of the HC595 to get rid of the HC74 and inverter
Please see the FAQ document for more application information.
TMC236/A/B DATA SHEET (V2.11 / 2018-Mar-01) 27
Copyright © 2004, TRINAMIC Motion Control GmbH & Co KG
Documentation Revision
Version
Author
BD= Bernhard Dwersteg
Description
V2.05
BD
Added power supply sequencing considerations
V2.06
BD
Adapted style, added info on chopper cycle
V2.07
BD
Corrected ENN timing in SPI section
V2.10
BD
Added IC revision TMC236B with improved MOSFETs – see chapter “Electrical Characteristics” for any differences.
V2.11
BD
Added Package code TMC236B
i
SPI is a trademark of Motorola
Loading...
