Trim-Tex Ceiling Mounted Deflection Bead User Manual

Please read entire instruction

Ceiling

Drywall

Stud

Fill, Void or Cavity
Material as specified

Ceiling

Drywall

Stud

Trim-Tex Stock #9240
Ceiling Mounted
Deflection Bead

Set Drywall Down

Installation

before proceeding.

Improper installation will void

any applicable warranty.

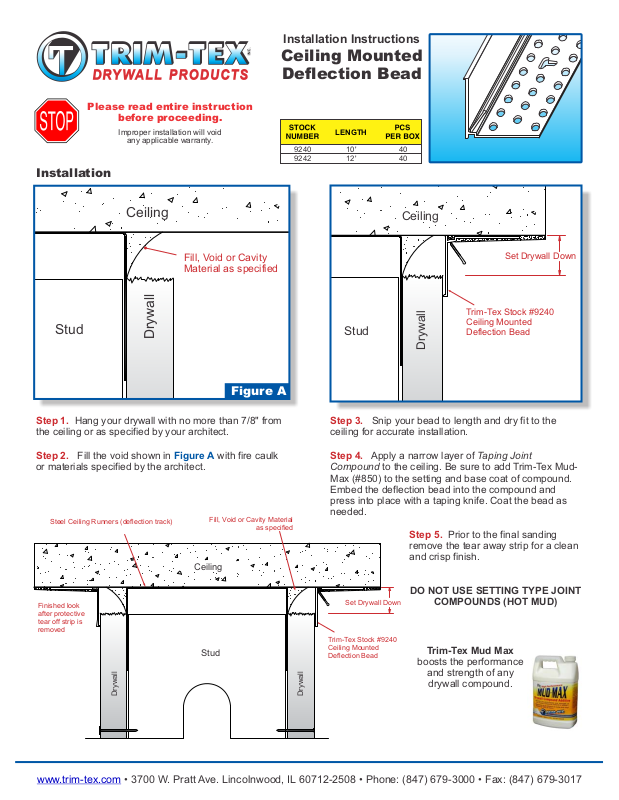

Installation Instructions

Ceiling Mounted

Deflection Bead

LENGTH

4010'9240
4012'9242

Step 1. Hang your drywall with no more than 7/8" from

the ceiling or as specified by your architect.

Step 2. Fill the void shown in with fire caulk

Figure A

or materials specified by the architect.

Steel Ceiling Runners (deflection track)

Finished look
after protective
tear off strip is
removed

Fill, Void or Cavity Material

Ceiling

Stud

Drywall

Figure A

as specified

Step 3. Snip your bead to length and dry fit to the

ceiling for accurate installation.

Step 4. Apply a narrow layer of

Compound

to the ceiling. Be sure to add Trim-Tex Mud-

Taping Joint

Max (#850) to the setting and base coat of compound.
Embed the deflection bead into the compound and
press into place with a taping knife. Coat the bead as
needed.

Step 5. P

emove the tear away strip for a clean

r

rior to the final sanding

and crisp finish.

DO NOT USE SETTING TYPE JOINT

Set Drywall Down

Trim-Tex Stock #9240
Ceiling Mounted
Deflection Bead

COMPOUNDS (HOT MUD)

Trim-Tex Mud Max

boosts the performance

and strength of any

drywall compound.

Drywall
