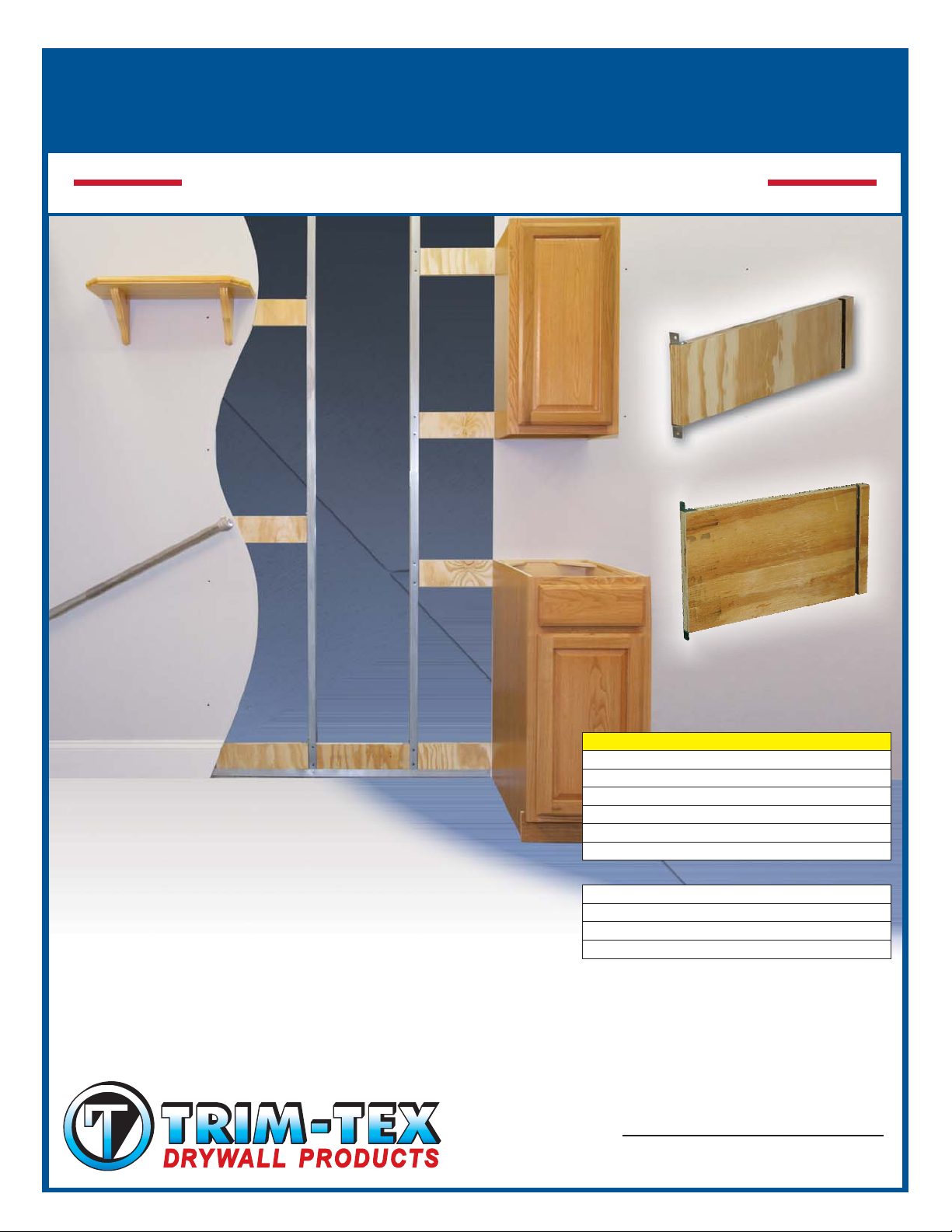

BACKERBOARD
BACKERBOARD
Backing System For Steel Studs
BACKERBOARD™BACKERBOARD™
patent pendingpatent pending
Wall CabinetsWall CabinetsWall Cabinets
Shelving & PicturesShelving & PicturesShelving & Pictures
830
Grab Bars & HandrailsGrab Bars & HandrailsGrab Bars & Handrails
™
™
Base Cabinets & VanitiesBase Cabinets & Vanities
Base Cabinets & VanitiesBase Cabinets & Vanities
BaseboardsBaseboardsBaseboards
STOCK # DESCRIPTION PCS/BOX
830
831
832
833

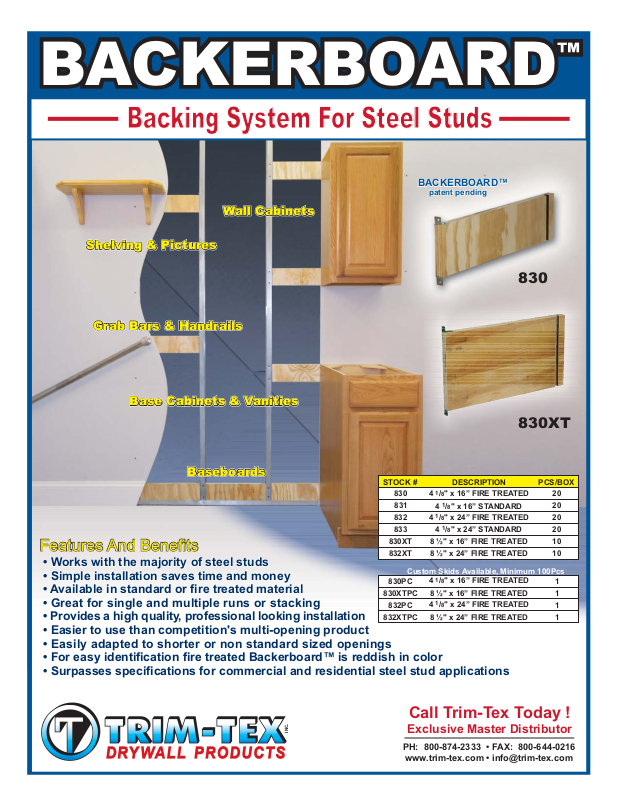

Features And Benefits
Features And Benefits
• Works with the majority of steel studs
• Works with the majority of steel studs
• Simple installation saves time and money
• Simple installation saves time and money
• Available in standard or fire treated material
• Available in standard or fire treated material
• Great for single and multiple runs or stacking
• Great for single and multiple runs or stacking
• Provides a high quality, professional looking installation
• Provides a high quality, professional looking installation
• Easier to use than competition's multi-opening product
• Easier to use than competition's multi-opening product
• Easily adapted to shorter or non standard sized openings
• Easily adapted to shorter or non standard sized openings
• For easy identification fire treated Backerboard™ is reddish in color
• For easy identification fire treated Backerboard™ is reddish in color
• Surpasses specifications for commercial and residential steel stud applications
• Surpasses specifications for commercial and residential steel stud applications
830XT
832XT
830PC
830XTPC
832PC
832XTPC
1
8
4 / " x 16” FIRE TREATED
1
8
4 / " x
16” STANDARD
1
24” FIRE TREATED
4 / " x
8
1
8
24” STANDARD
4 / " x
8 ½" x 16” FIRE TREATED
8 ½" x 24” FIRE TREATED
Custom Skids Available, Minimum 100Pcs
1
8
4 / " x 16”
8 ½" x 16” FIRE TREATED
1
8
4 / " x 24” FIRE TREATED
8 ½" x 24” FIRE TREATED
FIRE TREATED
830XT
20
20
20
20
10
10
1
1
1
1
INC.
Call Trim-Tex Today !
Exclusive Master Distributor
PH: 800-874-2333 FAX: 800-644-0216•
www.trim-tex.com • info@trim-tex.com
BACKERBOARD
BACKERBOARD
Patent Pending
™
™
BACKERBOARD
TM
INSTALLATION INSTRUCTION
FOR STEEL STUD FRAMING
INSTALLATION
Select BACKERBOARD appropriate to your application.
Fire treated BACKERBOARD is marked with a red “Fire Treated” stamp
Notched End
BACKERBOARD
Installation
FIGURE 1FIGURE 1
Place notched end of Backerboard into the
open side of steel stud, inserting the stud lip
into the notch of the Backerboard .
TM
Bracket
TM
TM
Insert
Screw
BACKERBOARD
FIGURE 2FIGURE 2
TM
TM
Push Backerboard firmly against the flat
face of adjoining stud and flush with the front
surface.
Insert 2 screws through metal tabs of
installation bracket into flat face of adjoining
stud.
TM
TM
Insert
Screw
SIZE MODIFICATION
Adjustable
Slots
Cut Backer to
Desired Length
Insert
Screws
BACKERBOARD
FIGURE 3FIGURE 3
Pull notched end of Backerboard tight
against back side of stud lip: insert 2 screws
through the stud lip face into Backerboard .
Install Modified BACKERBOARD
into Stud Opening as
Shown Above
TM
TM
TM
TM
BACKERBOARD
BACKERBOARD
FIGURE 4FIGURE 4
If opening between studs is larger than
Backerboard , use the adjustable slotted
holes in the metal bracket to lengthen the
Backerboard upto / ".
TM
3
TM
8
TM
STUD LAYOUT
FIGURE AFIGURE A
FIGURE BFIGURE B
FIGURE CFIGURE C
BACKERBOARD
FIGURE 5FIGURE 5
If opening between studs is less then length
of backer, remove metal bracket, cut
B
ackerboard
reinstall bracket.
B
ackerboard
in the same direction, as shown in FIGURE A.
If Studs are not in the same direction, as in
FIGURE B, install another stud (back-toback) as in FIGURE C.
Modify B
TM
to desired length, and
TM
is designed for studs running
ackerboard
TM
TM
for new opening.
BACKERBOARD
FIGURE 6FIGURE 6
Install modified B
opening as shown in FIGURE 3 above.
ackerboard
TM
TM
into stud
Call Trim-Tex Today !
Exclusive Master Distributor
PH: 800-874-2333 FAX: 800-644-0216
www.trim-tex.com info@trim-tex.com
•
•
