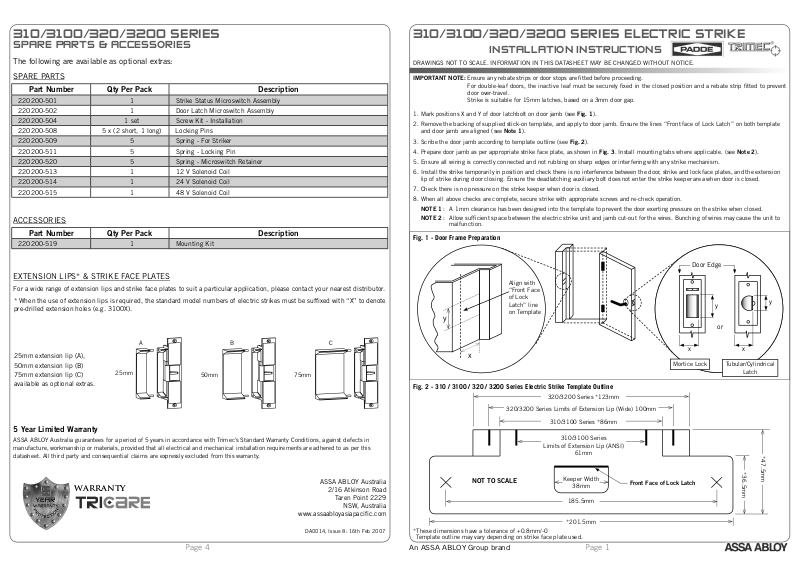

310/3100/320/3200 SERIES
SPARE PARTS & ACCESSORIES
The following are available as optional extras:

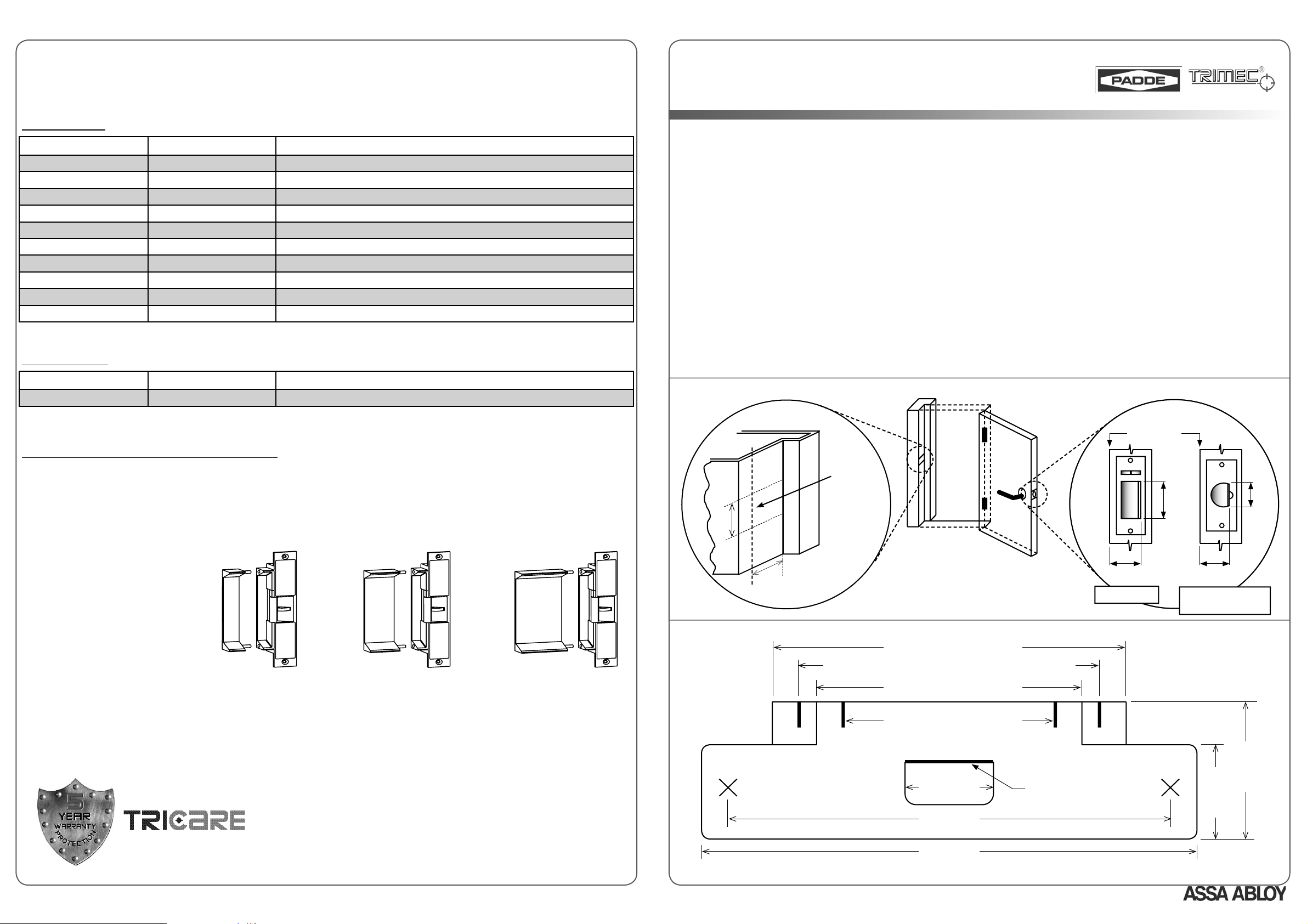

310/3100/320/3200 SERIES ELECTRIC STRIKE
INSTALLATION INSTRUCTIONS
DRAWINGS NOT TO SCALE. INFORMATION IN THIS DATASHEET MAY BE CHANGED WITHOUT NOTICE.
SPARE PARTS
Part Number Qty Per Pack Description
220200-501 1 Strike Status Microswitch Assembly
220200-502 1 Door Latch Microswitch Assembly
220200-504 1 set Screw Kit - Installation
220200-508 5 x (2 short, 1 long) Locking Pins
220200-509 5 Spring - For Striker
220200-511 5 Spring - Locking Pin
220200-520 5 Spring - Microswitch Retainer
220200-513 1 12 V Solenoid Coil
220200-514 1 24 V Solenoid Coil
220200-515 1 48 V Solenoid Coil
ACCESSORIES
Part Number Qty Per Pack Description
220200-519 1 Mounting Kit
IMPORTANT NOTE: Ensure any rebate strips or door stops are fi tted before proceeding.
For double-leaf doors, the inactive leaf must be securely fi xed in the closed position and a rebate strip fi tted to prevent
door over-travel.
Strike is suitable for 15mm latches, based on a 3mm door gap.
1.
Mark positions X and Y of door latchbolt on door jamb (see Fig. 1).
2.
Remove the backing of supplied stick-on template, and apply to door jamb. Ensure the lines “Front face of Lock Latch” on both template
and door jamb are aligned (see Note 1).
3.
Scribe the door jamb according to template outline (see Fig. 2).
4.
Prepare door jamb as per appropriate strike face plate, as shown in Fig. 3. Install mounting tabs where applicable. (see Note 2).
5.
Ensure all wiring is correctly connected and not rubbing on sharp edges or interfering with any strike mechanism.
6.
Install the strike temporarily in position and check there is no interference between the door, strike and lock face plates, and the extension
lip of strike during door closing. Ensure the deadlatching auxiliary bolt does not enter the strike keeper area when door is closed.
7.
Check there is no pressure on the strike keeper when door is closed.
8.
When all above checks are complete, secure strike with appropriate screws and re-check operation.
NOTE 1 : A 1mm clearance has been designed into the template to prevent the door exerting pressure on the strike when closed.
NOTE 2 : Allow suffi cient space between the electric strike unit and jamb cut-out for the wires. Bunching of wires may cause the unit to
Fig. 1 - Door Frame Preparation
malfunction.
Bevelled Face
Door Edge
EXTENSION LIPS* & STRIKE FACE PLATES
For a wide range of extension lips and strike face plates to suit a particular application, please contact your nearest distributor.
* When the use of extension lips is required, the standard model numbers of electric strikes must be suffi xed with “X” to denote
pre-drilled extension holes (e.g. 3100X).
25mm extension lip (A),
50mm extension lip (B)
75mm extension lip (C)
available as optional extras.
25mm
A
50mm
B
75mm
C
5 Year Limited Warranty
ASSA ABLOY Australia guarantees for a period of 5 years in accordance with Trimec’s Standard Warranty Conditions, against defects in
manufacture, workmanship or materials, provided that all electrical and mechanical installation requirements are adhered to as per this
datasheet. All third party and consequential claims are expressly excluded from this warranty.
ASSA ABLOY Australia
warranty
www.assaabloyasiapacifi c.com
DA0014, Issue 8: 16th Feb 2007
2/16 Atkinson Road
Taren Point 2229
NSW, Australia
age
Align with
“Front Face
of Lock
Latch” line
on Template
y
x
Fig. 2 - 310 / 3100 / 320 / 3200 Series Electric Strike Template Outline
320/3200 Series *123mm
320/3200 Series Limits of Extension Lip (Wide) 100mm
310/3100 Series *86mm
310/3100 Series
Limits of Extension Lip (ANSI)
61mm
NOT TO SCALE
*These dimensions have a tolerance of +0.8mm/-0
Template outline may vary depending on strike face plate used.
An ASSA ABLOY Group brand
Keeper Width
38mm
185.5mm
*201.5mm
age
y
xx
Mortice Lock
Front Face of Lock Latch
y
y
or
or
X
X
Tubular/Cylindrical
Latch
*36.5mm
y
*47.5mm
