150 SERIES ELECTRIC STRIKE
1
INSTALLATION INSTRUCTIONS
DRAWINGS NOT TO SCALE. INFORMATION IN THIS DATASHEET MAY BE CHANGED WITHOUT NOTICE.
IMPORTANT NOTE: Ensure any rebate strips or door stops are fi tted before proceeding.
For double-leaf doors, the inactive leaf must be securely fi xed in the closed position and a rebate strip fi tted to prevent
door over-travel.
Strike is suitable for 15mm latches, based on a 3mm door gap.
1.
Position strike on door jamb in line with the centre of the latch to establish the vertical alignment (see Fig. 1). Ensure that any auxiliary
bolt on the door does not enter the “keeper area” where the latch is positioned when the door is closed.
2.
Ensure that there is no mechanical interference with the strike when door is in the closed position. A minimum of 4mm door gap will
provide a working gap of 1mm. If a working gap of 1mm is not available, rebate the strike into the door frame to give the recommended
clearance (see Fig. 2).
3.
Drill the door frame to provide a cable exit from the strike and connect to control device.
4.
Using strike body as template, drill and fi t the 3 fi xing screws to complete installation (see Fig. 3).

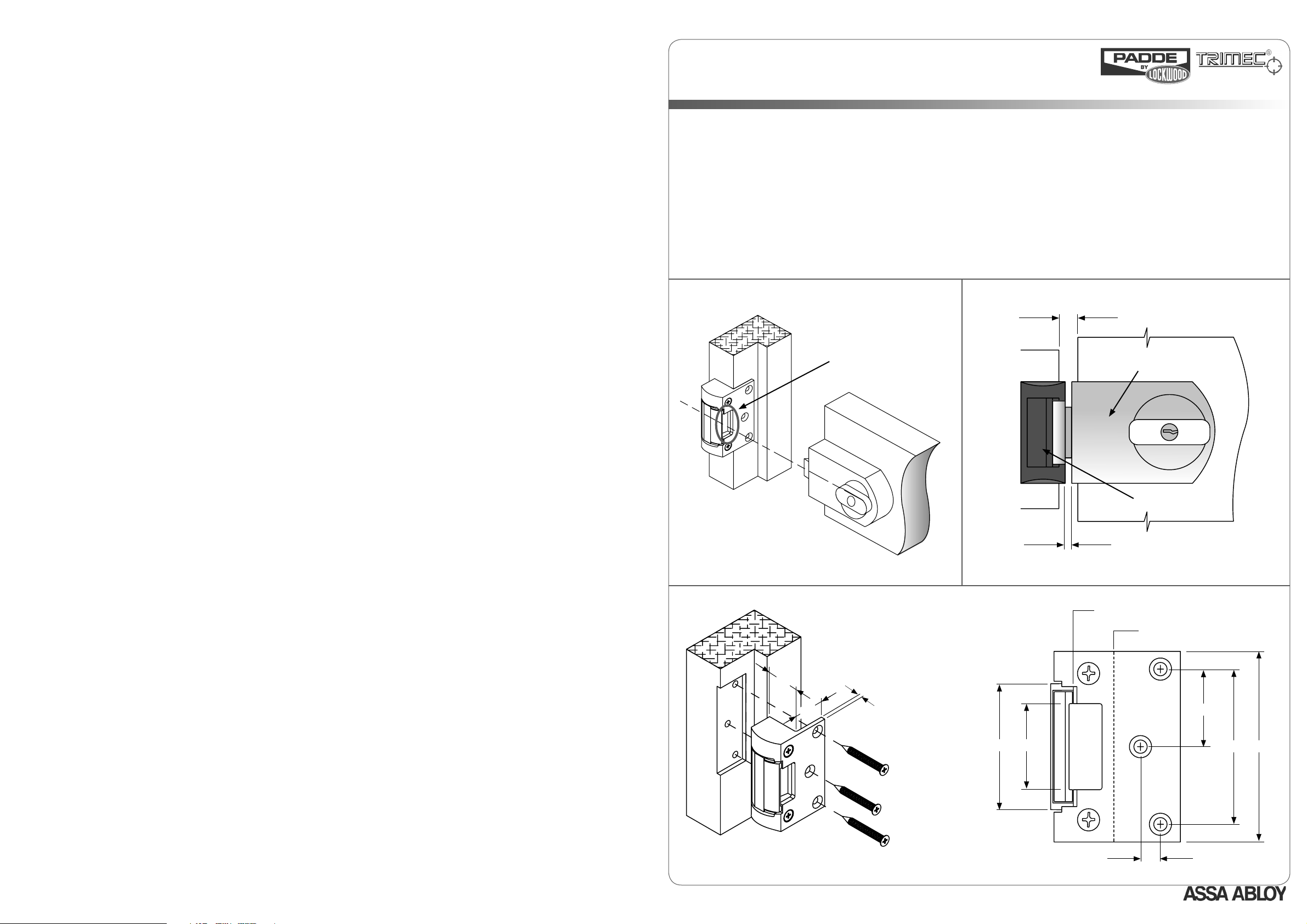

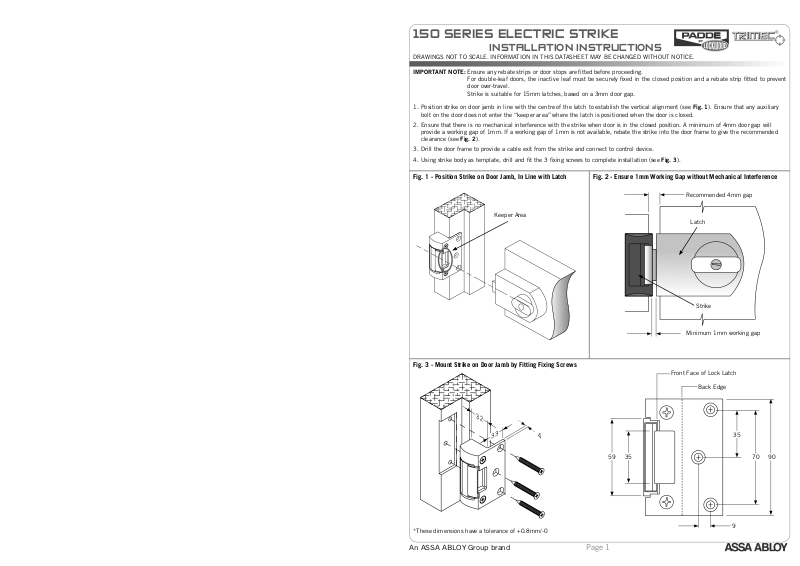

Fig. 1 - Position Strike on Door Jamb, In Line with Latch
Keeper Area
Fig. 3 - Mount Strike on Door Jamb by Fitting Fixing Screws
Fig. 2 - Ensure 1mm Working Gap without Mechanical Interference
Recommended 4mm gap
Latch
Strike
Minimum 1mm working gap
Front Face of Lock Latch
Back Edge
32
9
35
70
90
33
*These dimensions have a tolerance of +0.8mm/-0
An ASSA ABLOY Group brand
4
3559
age
Page 2
2
3
CHANGING MODE OF LOCK OPERATION ELECTRICAL SPECIFICATIONS
NOTE: As the 150 series strike will normally be used on an exit door, it is recommended that the strike should always be confi gured to
“Power to Lock” mode.
1.
To change electric strike’s mode of lock operation, remove the 2 screws securing the lock to the body (see Fig. 4).
2.
Depress the striker jaw and slide the strike out of the housing. If the electric strike locking mode is set to Power to Open, power up the
strike to enable rotation of the striker jaw before removal from housing.
3.
Remove brass screw from strike body, invert strike and release the spring and 3 locking pins (2 x Short pin, 1 x Long pin).
4.
Re-insert pins in in the manner shown for the desired mode of lock operation (Power to Open: see Fig. 5; Power to Lock: see Fig. 6),
followed by the spring.
5.
Screw in the brass screw to strike body. This will secure the spring and locking pins.
6.
Apply power to lock if necessary, depress striker jaw and insert body into housing. Secure the strike body in housing by screwing in the
2 screws.
Certifi cation
•
•
•
•
Solenoid Leads Colour
Red
Blue
Supply Voltage
CAUTION! Incorrect supply voltage may cause damage not covered by warranty. Please check supply voltage with a suitable meter
to ensure it is within +/- 15% of the nominal voltage shown above with the strike powered.
This product has been designed for use in weather protected areas only. DO NOT OIL OR LUBRICATE.
AS4145.2 compliant
BS5872 approved
CE compliant
up to 20-minutes fi re rating, depending on type of doorset
(in accordance with AS1905.1 - 1997, Part 1: Fire-resistant Doorsets)
12 VDC
24 VDC
Current Draw
250 mA
187 mA
20
Mins
Long Pin
Short Pins
Depress Striker Jaw, Slide
Strike Out of Housing

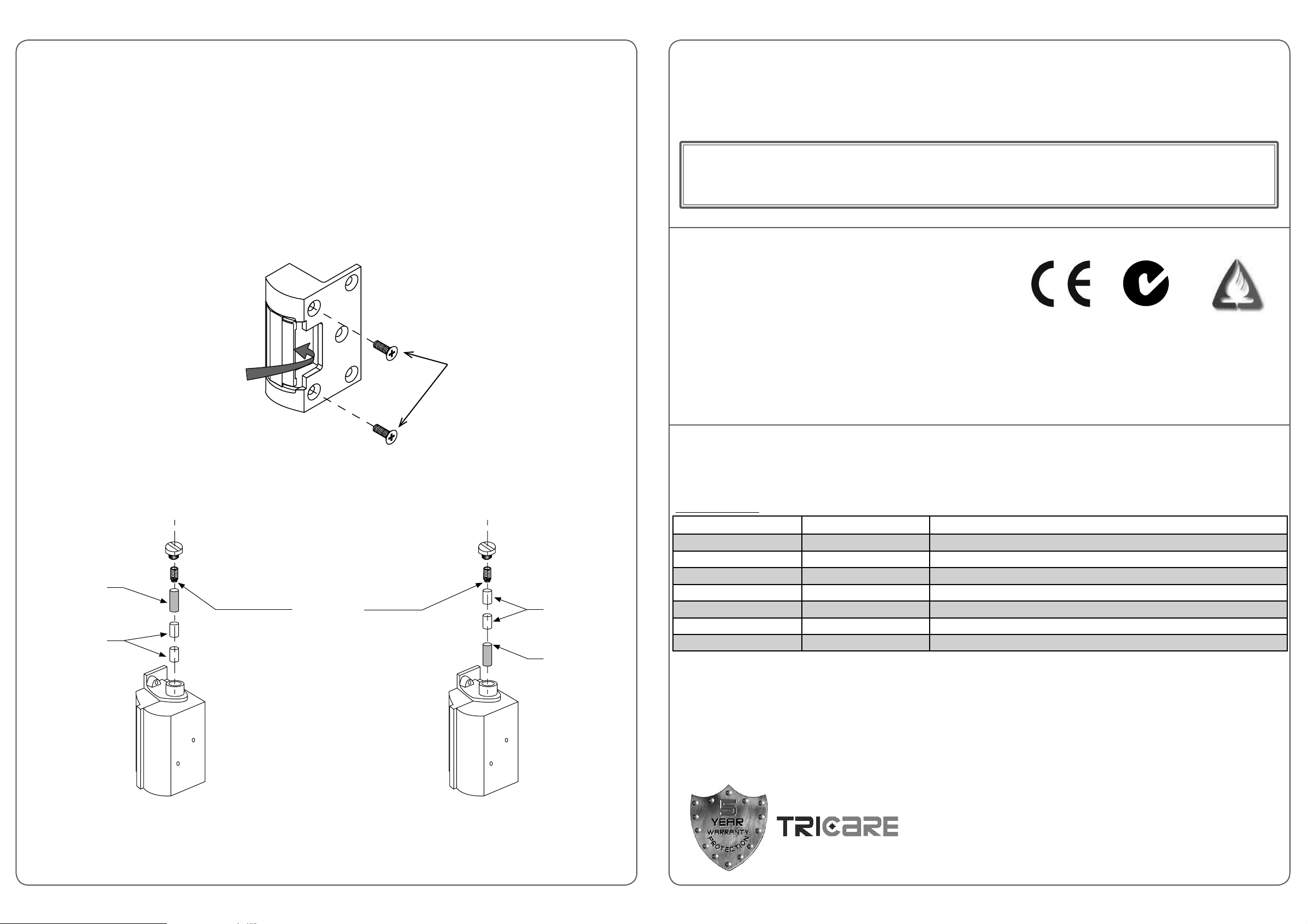

Fig. 4 - Remove Screws, then Slide Strike Out of Housing
Small End of
Spring
Remove Screws from Body
Short Pins
Long Pin
Tested according to UL 1034:
1,500 lbs. (680 kg) static strength rating
•
70 foot-lbs. dynamic strength rating
•
1,000,000 cycles endurance rating
•
150 SERIES SPARE PARTS & ACCESSORIES
The following are available as optional extras:
SPARE PARTS
Part Number Qty Per Pack Description
220100-501 1 12 V Solenoid Coil
220100-512 1 12 V Weather Resistant Solenoid Coil
220100-502 1 24 V Weather Coil
220100-511 1 24 V Weather Resistant Solenoid Coil
220100-509 1 48 V Solenoid Coil
200100-100 5 100 Series Locking Pins, Spring and Stop Screw
200100-110 5 100 Series Weather Resistant Locking Pins, Spring and Stop Screw
5 Year Limited Warranty
ASSA ABLOY Australia guarantees for a period of 5 years in accordance with Trimec’s Standard Warranty Conditions, against defects in
manufacture, workmanship or materials, provided that all electrical and mechanical installation requirements are adhered to as per this
datasheet. All third party and consequential claims are expressly excluded from this warranty.
warranty
Fig. 5 -
Power to Open (Fail-Secure) Confi guration
Power to Lock (Fail-Safe) Confi guration
Page
Fig. 6 -
www.assaabloyasiapacifi c.com
age
ASSA ABLOY Australia
2/16 Atkinson Road
Taren Point 2229
NSW, Australia
DA0024, Issue 5: 25th July 2007
