Technical Information Page
Technical Information Page
TAC TIP

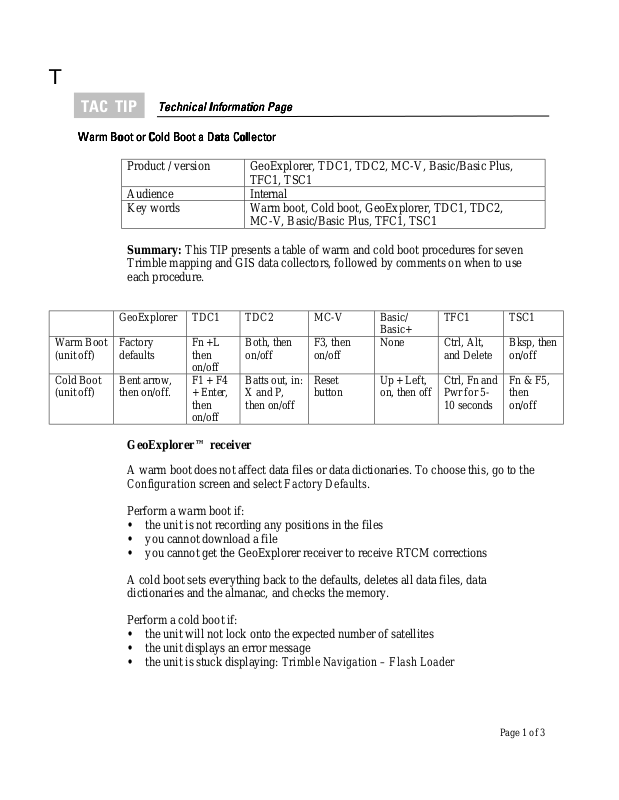

Warm Boot or Cold Boot a Data Collector
Warm Boot or Cold Boot a Data Collector
Warm Boot or Cold Boot a Data CollectorWarm Boot or Cold Boot a Data Collector
Product / version GeoExplorer, TDC1, TDC2, MC-V, Basic/Basic Plus,
Audience Internal
Key words Warm boot, Cold boot, GeoExplorer, TDC1, TDC2,
Summary: This TIP presents a table of warm and cold boot procedures for seven
Trimble mapping and GIS data collectors, followed by comments on when to use
each procedure.
Technical Information PageTechnical Information Page
TFC1, TSC1
MC-V, Basic/Basic Plus, TFC1, TSC1
Warm Boot
(unit off)
Cold Boot
(unit off)
GeoExplorer TDC1 TDC2 MC-V Basic/
Basic+
Factory
defaults
Bent arrow,
then on/off.
Fn +L
then
on/off
F1 + F4
+ Enter,
then
on/off
Both, then
on/off
Batts out, in:
X and P,
then on/off
F3, then
on/off
Reset
button
None Ctrl, Alt,
Up + Left,
on, then off
TFC1 TSC1
Bksp, then
and Delete
Ctrl, Fn and
Pwr for 510 seconds
on/off
Fn & F5,
then
on/off
GeoExplorer™ receiver
A warm boot does not affect data files or data dictionaries. To choose this, go to the
Configuration screen and select Factory Defaults.
Perform a warm boot if:
• the unit is not recording any positions in the files
• you cannot download a file
• you cannot get the GeoExplorer receiver to receive RTCM corrections
A cold boot sets everything back to the defaults, deletes all data files, data
dictionaries and the almanac, and checks the memory.
Perform a cold boot if:
• the unit will not lock onto the expected number of satellites
• the unit displays an error message
• the unit is stuck displaying: Trimble Navigation – Flash Loader
Page 1 of 3
Page 2
T
Technical Information Page
Technical Information Page
TAC TIP
Warm Boot or Cold Boot a Data Collector
Warm Boot or Cold Boot a Data Collector
Warm Boot or Cold Boot a Data CollectorWarm Boot or Cold Boot a Data Collector
TDC1 data collector
A warm boot does not cause data loss or reset the configuration settings.
Perform a warm boot if:
• the unit is locked up and will not respond to keypad entries
A cold boot deletes all data files, data dictionaries, and performs a memory check on
the system.
Perform a cold boot if:
• the warm boot did not work
TDC2™ data collector
A warm or cold boot does not cause data loss or reset the configuration.
Technical Information PageTechnical Information Page
Perform a warm boot if:
• the unit is locked up
• the unit does not respond to keypad entries
• the unit displays an error message
Perform a cold boot if:
• the unit is running in a continuous loop, and you need to break out or if the warm
boot did not work
MC-V data collector
A warm or cold boot does not cause data loss or reset the configuration.
Perform a warm boot if:
• the unit is locked up
• the unit does not respond to keypad entries
Perform a cold boot if:
• the unit will not come on at all
• the screen displays garbled letters or if the warm boot did not work
Page 2 of 3
Page 3
T
Technical Information Page
Technical Information Page
TAC TIP
Warm Boot or Cold Boot a Data Collector
Warm Boot or Cold Boot a Data Collector
Warm Boot or Cold Boot a Data CollectorWarm Boot or Cold Boot a Data Collector
Basic + receiver
A cold boot clears all files and resets the configuration.
(There is no warm boot for the Basic+ receiver.)
Perform a cold boot if:
• the unit is locked up
• the unit will not lock onto any satellites
TFC1 data collector
A warm or cold boot will not delete files or change the configuration.
Perform a warm boot if:
• you change anything in the DOS configuration files
• the unit is locked up
Technical Information PageTechnical Information Page
Perform a cold boot if:
• the warm boot does not work
TSC1™ data collector
A warm boot will not delete files or change the configuration.
Perform a warm boot if:
• the unit is locked up
• the unit does not respond to keypad entries
A cold boot will erase the internal memory. It does not affect the PC card. All data in
the TSC1 data collector’s memory, including any extra coordinate system files you
have downloaded onto the TSC1, will be lost after a cold boot.
Perform a cold boot if:
• the warm boot did not work
©2000 Trimble Navigation Limited. All rights reserved. Trimble with the Trim ble logo is a trademark of Trimble Navigation Limited
registered in the United States Patent and Trademark Office. GeoExplorer, TSC1, and TDC2 are trademarks of Trimble Navigation Limited.
All other marks are the property of their respective owners.
Disclaimer: This document is for informational purposes only. Trimble makes no warranties, expressed or implied, in this document.
