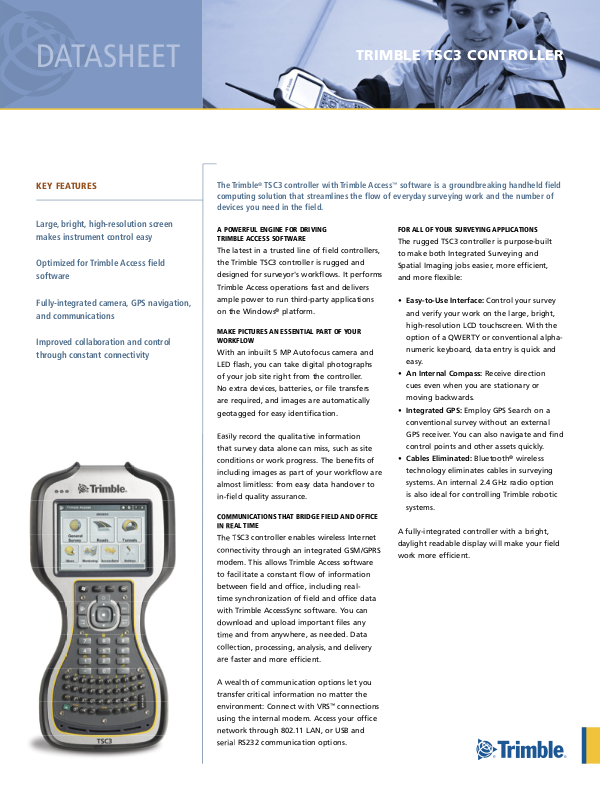

Trimble TSC3 DATASHEET

DATASHEET

TRIMBLE TSC3 CONTROLLER

KEY FEATURES

Large, bright, high-resolution screen
makes instrument control easy

Optimized for Trimble Access field
software

Fully-integrated camera, GPS navigation,
and communications

Improved collaboration and control
through constant connectivity

The Trimble® TSC3 controller with Trimble Access™ software is a groundbreaking handheld field
computing solution that streamlines the flow of everyday surveying work and the number of
devices you need in the field.

A POWERFUL ENGINE FOR DRIVING
TRIMBLE ACCESS SOFTWARE

The latest in a trusted line of field controllers,

the Trimble TSC3 controller is rugged and

designed for surveyor's workflows. It performs

Trimble Access operations fast and delivers

ample power to run third-party applications

on the Windows® platform.

MAKE PICTURES AN ESSENTIAL PART OF YOUR
WORKFLOW

With an inbuilt 5 MP Autofocus camera and

LED flash, you can take digital photographs

of your job site right from the controller.

No extra devices, batteries, or file transfers

are required, and images are automatically

geotagged for easy identification.

Easily record the qualitative information

that survey data alone can miss, such as site

conditions or work progress. The benefits of

including images as part of your workflow are

almost limitless: from easy data handover to

in-field quality assurance.

COMMUNICATIONS THAT BRIDGE FIELD AND OFFICE
IN REAL TIME

The TSC3 controller enables wireless Internet

connectivity through an integrated GSM/GPRS

modem. This allows Trimble Access software

to facilitate a constant flow of information

between field and office, including real-

time synchronization of field and office data

with Trimble AccessSync software. You can

download and upload important files any

time and from anywhere, as needed. Data

collection, processing, analysis, and delivery

are faster and more efficient.

FOR ALL OF YOUR SURVEYING APPLICATIONS

The rugged TSC3 controller is purpose-built

to make both Integrated Surveying and

Spatial Imaging jobs easier, more efficient,

and more flexible:

• Easy-to-Use Interface: Control your survey

and verify your work on the large, bright,

high-resolution LCD touchscreen. With the

option of a QWERTY or conventional alpha-

numeric keyboard, data entry is quick and

easy.

• An Internal Compass: Receive direction

cues even when you are stationary or

moving backwards.

• Integrated GPS: Employ GPS Search on a

conventional survey without an external

GPS receiver. You can also navigate and find

control points and other assets quickly.

• Cables Eliminated: Bluetooth® wireless

technology eliminates cables in surveying

systems. An internal 2.4 GHz radio option

is also ideal for controlling Trimble robotic

systems.

A fully-integrated controller with a bright,

daylight readable display will make your field

work more efficient.

A wealth of communication options let you

transfer critical information no matter the

environment: Connect with VRS™ connections

using the internal modem. Access your office

network through 802.11 LAN, or USB and

serial RS232 communication options.

TRIMBLE TSC3 CONTROLLER

TECHNICAL SPECIFICATIONS
Standard software

Windows Mobile® 6.5 Professional operating system, including:

• SMS Text Messaging Support

• Microsoft Office Mobile:

Word Mobile

Excel Mobile
PowerPoint Mobile

Outlook Mobile

• Internet Explorer Mobile

• Notes / Tasks

• Task Manager

• Calculator

• Microsoft Pictures and Videos

• Customized Camera and Flash control including geo-tagging through

Microsoft Pictures & Videos software

• Flashlight mode control application

• Calendar / Contacts

• Windows Media Player

• Messenger

• Adobe Acrobat Reader

• Trimble SatViewer (GPS interface software application)

Operating system languages options (customer provisionable):

• Simplified Chinese, English, French, German, Japanese, Spanish

Trimble Field Software Solutions

The Trimble TSC3 controller runs the Trimble Access field software. In addition,

a number of regional solutions are available. For more information on the

field software that's best for you, contact your local Trimble authorized
distributionpartner.

Standard Accessories (included)

• 28.9 Wh Li-Ion battery

• International AC power supply

• Hand strap

• USB cable (mini)

• Stylus tether

• Stylus with spring tip (pkg of 2)

• Screen protectors

• Audio port dust cover

• I/O port dust covers

• Standard soft case

• Quick start guide sheet

• Radio antenna for integrated 2.4 GHz radio modem (optional)

Optional Accessories

• Deluxe carry case

• Individual battery charger

• Range pole bracket

• 12 V vehicle charging kit

• Desk docking cradle with USB host, USB client, and 10/100 Mbps

Ethernetconnections

All standard accessories are also available to order separately.

HARDWARE
Physical Specifications

Size . . . . . . . . . . . . . . . . . . . . . 141 mm x 278 mm x 64 mm (5.6 in x 10.9 in x 2.5 in)

80 mm (3.2 in) at handgrip

Weight . . . . . . . . . . . . . . . . . . . . . . . 1.04 kg (2.3 lb) including rechargeable battery

1.10 kg (2.4 lb) including rechargeable battery

and optional internal 2.4 GHz radio-modem

Housing. . . . . . . . . . . . . . . . . . . . . . . . . . . . Polycarbonate (case), Hytrel

®

(overmold)

ENVIRONMENTAL SPECIFICATIONS

Meets or exceeds:

Operating Temperature . . . . . . . . . . . . . . . . . . . . . –30 °C to 60 °C (–22 °F to 140 °F)

Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . –40 °C to 70 °C (–40 °F to 158 °F)

Temperature shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –35 °C/65 °C (–31 °F/149 °F)

MIL-STD-810G, Method 503.5, Procedure I

Humidity . . . . . . . . . . . . . . . . . . . . . . . 90%RH temp cycle –20 °C/60 °C (–4 °F/140 °F)

MIL-STD-810G, Method 507.5
Sand & dust . . . IP6x: 8 hours of operation with blowing talcum powder (IEC-529)

Water . . . . . . . . . . . . . . . . IPx7: Immersed in 1 m of water for 30 minutes (IEC-529)

Drop . . . . . . . . . . . . . . . . . . . . . . . 26 drops at room temperature from 1.22 m (4 ft)

onto plywood over concrete
MIL-STD-810G, Method 516.6, Procedure IV

Vibration. . . . . . . . . . . . . . . . . . . .General Minimum Integrity and Loose Cargo test

MIL-STD 810G, Method 514.6, Procedures I, II

Altitude. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4,572 m (15,000 ft) at 23 °C (73 °F)

and 12,192m (40,000 ft.) at -30 °C (-22 °F)

MIL-STD-810G, Method 500.5, Procedures I, II, III

ELECTRICAL SPECIFICATIONS

Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Texas Instrument Sitara™ 3715 series

ARM

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256 MB RAM

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 GB non-volatile NAND Flash onboard

Expansion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SDHC memory slot, USB host

internal embedded expansion slot (for future use)

Batteries . . . . . . . . . . . . . . . . . 11.1 V, 2600 mAh, 28.9 Wh Li-Ion rechargeable pack

Battery life of 34 hours under normal operating conditions

Full charge in 3.0 hours.

Notification LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 x tri-colored notification LEDs

Display . . . . . . . . . . . . . . . 4.2 in (107 mm) landscape VGA display, 640 x 480 pixels

sunlight-readable color TFT with LED backlight, resistive touchscreen

Keyboard . . . . . . . . . . . . . . . . . . . . .Full QWERTY keypad with 10-key number pad,

directional buttons, and 4 programmable buttons
"ABCD" style keypad option with 10-key number pad,
directional buttons, and 4 programmable buttons available

Audio . . . . . . . . Integrated speaker and microphone with 3.5 mm stereo headset

connection for audio system events, warnings, and notifications.

I/O . . . . . . . . . . . . . USB Host (full speed), USB Client (high speed), DC power port,

9-pin serial RS-232

Wireless. . . . . . . . . . . . integrated Bluetooth 2.0+EDR, integrated Wi-Fi 802.11 b/g

integrated quad-band GSM/GPRS/EDGE: 850/900/1800/1900 MHz,

2/6 Mbit/s 3G HSDPA GSM WWAN
integrated 2.4 GHz frequency-hopping spread-spectrum

radio modem (optional)

Camera / GPS / Compass / Accelerometer . . . . . 5 MP auto focus camera with dual

white light LED flash, LED flashlight function

integrated GPS (WAAS enabled)

integrated compass
integrated accelerometer

®

Cortex™–A8 Processor (800 MHz)

CERTIFICATIONS

Class B Part 15 FCC certification, CE Mark approval and C-tick approval. RoHS

compliant. Bluetooth type approvals and regulations are country specific.

MIL-STD-810G, IP 67, MIL-STD-461, PTCRB, GCF compliant, Wi-Fi Alliance certified,

AT&T Network Compatible.

Country type certifications: USA, Canada, EU, New Zealand, Australia.

Pending certifications: Brazil, China (PRC), India, Japan, Republic of Korea, Russia,

Taiwan, Thailand, UAE

RECYCLING INFORMATION

For product recycling instructions and more information, please go to

www.trimble.com/environment/summary.html.
